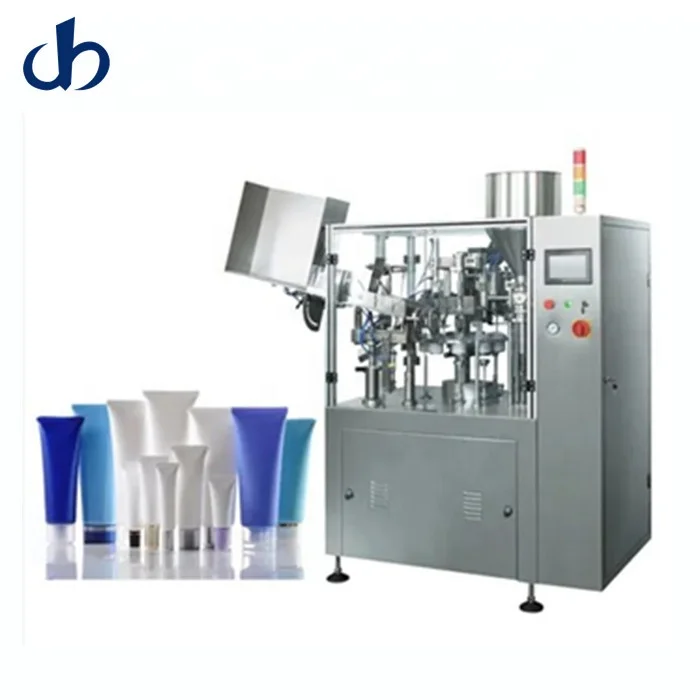

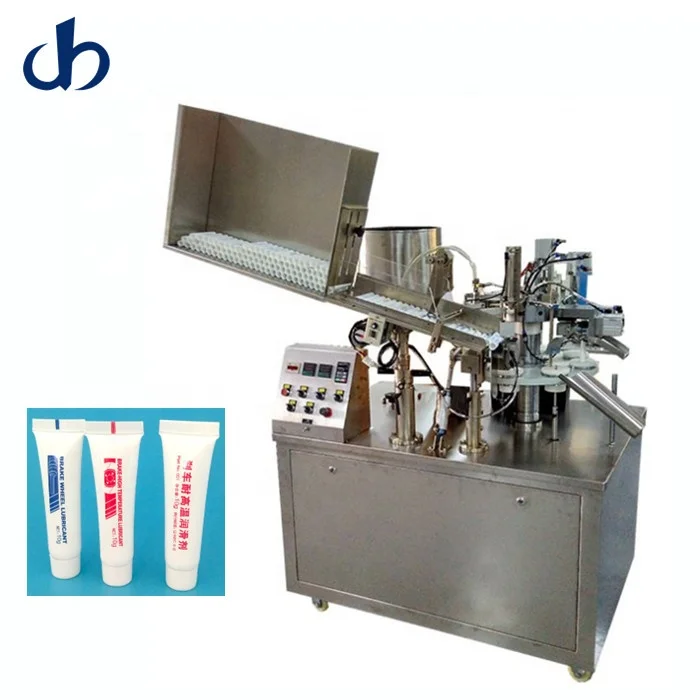

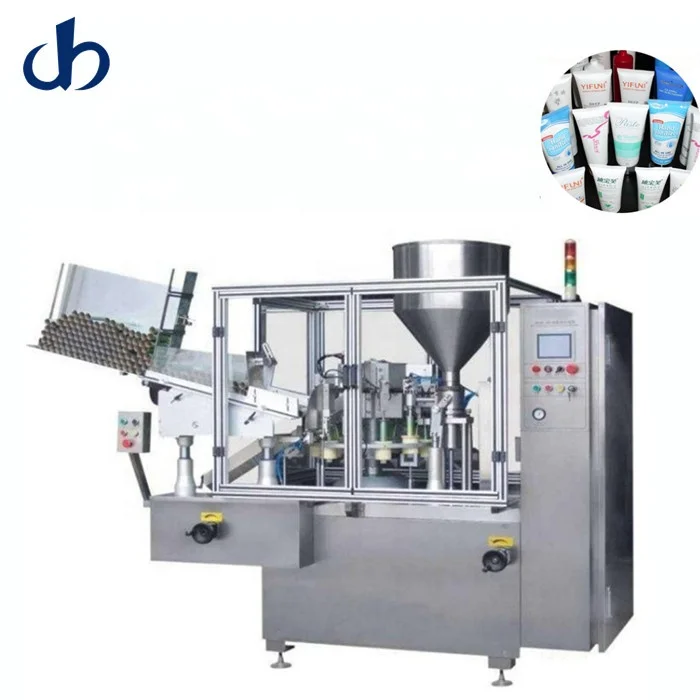

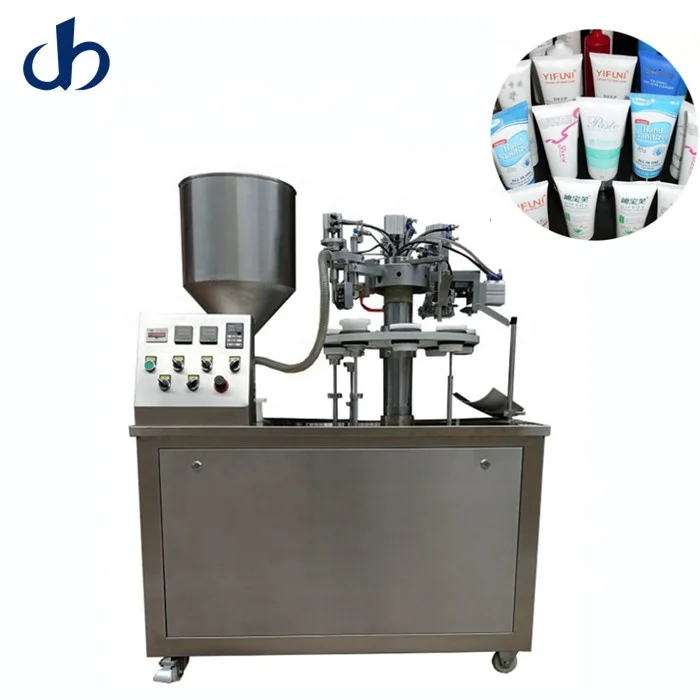

Automatic Cosmetics Pharmaceutical Plastic Tube Filling Sealing Machine

Product Overview

Description

Automatic Cosmetics Pharmaceutical Plastic Tube Filling Sealing Machine





Introduction&Function



This machine applies the transmission principle. It uses the slot wheel dividing system to drive the conveyor table to do intermittent movement. The machine has 8 or 10 tube stations. Expect manually feeding the tubes onto the machine, it can automatically position the tubes, fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and trim the tails and the finished tubes exit.



Filling measurement is accurate by the pistol plunger. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and has no any noise and pollution during production.



The part which is contact with the filling material is made of high-quality stainless steels 304 or SS316L. The parts which need to clean are made of quick-change device that is removable and convenient for washing.



If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.

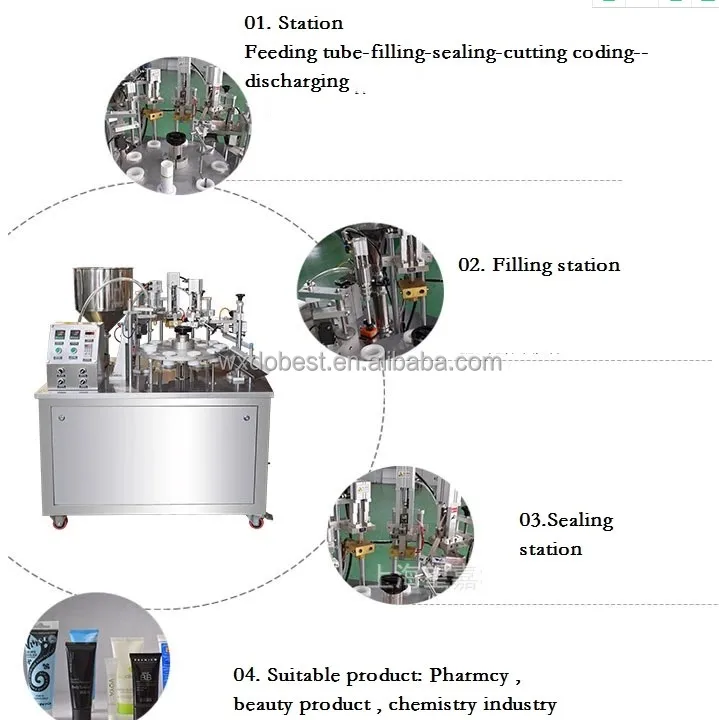

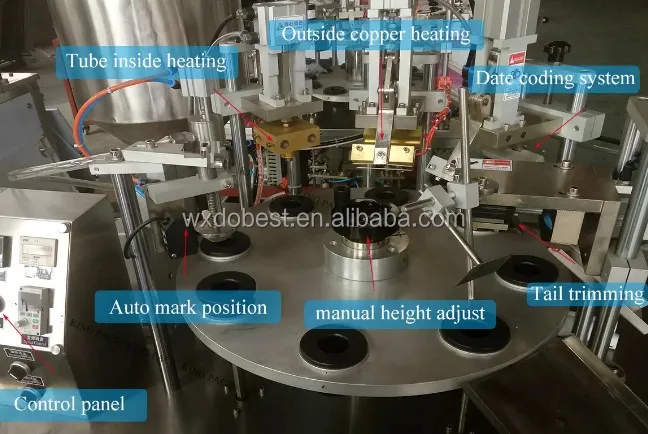

Working Flow



1.      Manually feeding the tubes

2.      Automatic mark positioning (photoelectrical sensor)

3.      Automatic dosing filling

4.       Tail inner heating

5.       Tail sealing and pressing the batch, dates

6.      Tail trimming

7.      Automatic ejection

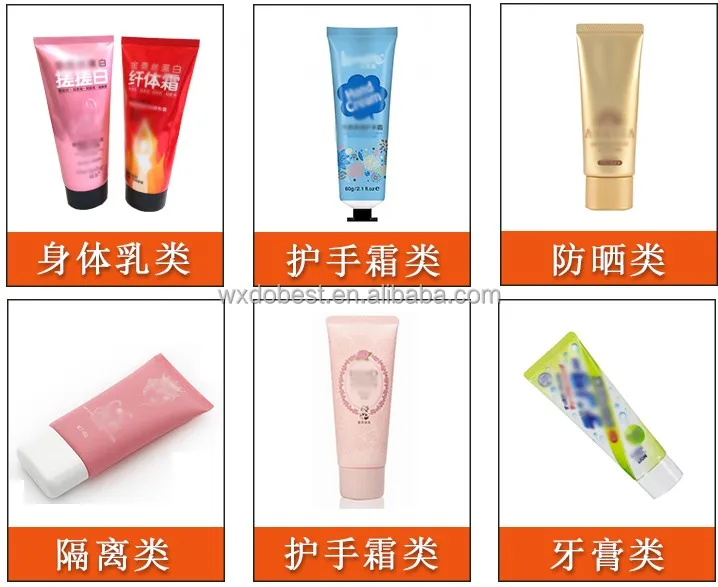

Application range

Characteristics

1.  The material contact parts are made of stainless steel SUS304; SUS316 is optional.

2. The connection of the various is used the quick-change device, which is easy to disassemble and clean;

3. high-quality pneumatic components

4. The height of conveyor table can be adjusted easily by a hand wheel for different tubes

5. Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.

6. The filling speed can be adjusted freely a VFD

7. Production counter could be displayed on the control cabinet

8. Inner heating and out heating technology, a stable and good looking sealing is got.



Main technical parameters

Power	220V 50HZ Single phase
Rate	1.4KW
Filling volume	5--250ml
Tube diameter	Φ13~40mm,Φ40-50mm
Producing speed	20-30pcs/min
Filling accuracy	±1%
Dimension	1200*850*1500mm
Weight	350kg
Working air pressure	>0.4Mpa

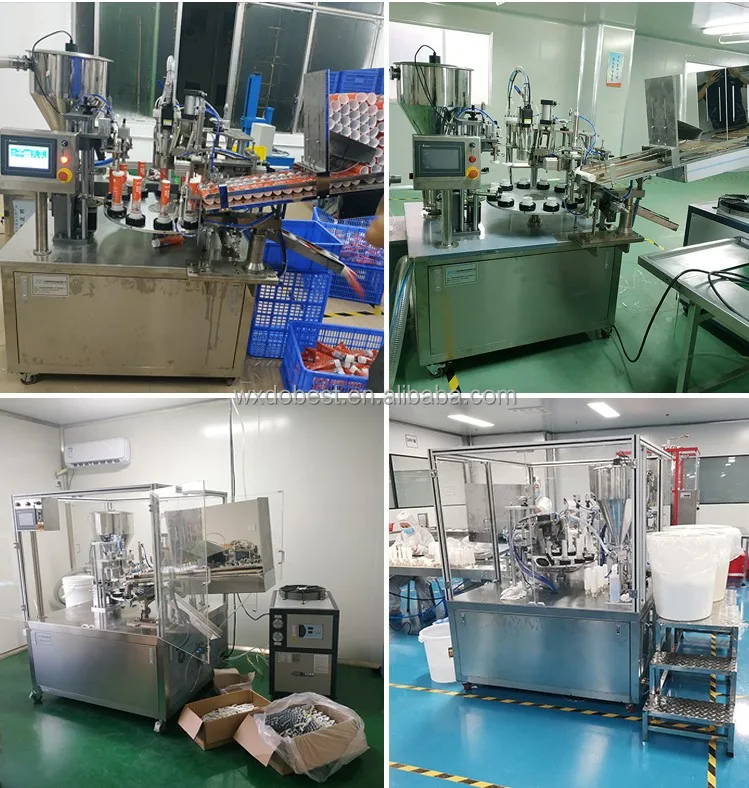

WORKSHOP







PACKING&DELIVERY
