Серводвигатель переменного тока с ЧПУ 220 В 15 Нм 3 кВт 2000 об/мин

Motor Model

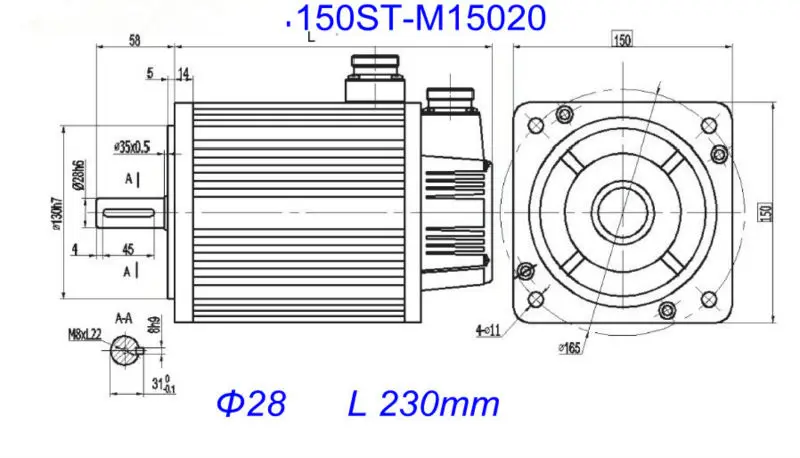

150ST-M15020

Rated power   (KW)

3.0

Rated voltage (V)

220

Rated current (A)

14

Rated speed (rpm)

2000

Rated torque (N.m)

15

Peak torque (N.m)

30

Voltage constant (V/1000r/min)

70

Torque coefficient (N.m/A)

1.07

Rotor inertia (Kg.m2)

3.88*10-3

Line-line Resistance (Ω)

0.34

Line-line Inductance (mH)

1.55

Electrical time-constant (ms)

4.56

Weight (Kg)

15

Encoder line (PPR)

2500 P

Insulation class

Class F

Safety class

IP65

The operating

of Environmental Conditions

Temperature: -20℃ ~ +40 ℃

Humidity: Below 90%RH No dewing

Power connector

Signal

U

V

W

PE

Pin No.

2

3

4

1

Encoder connector

Signal

PE

5V

0V

A

B

Z

A-

B-

Z-

U

V

W

U-

V-

W-

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15
