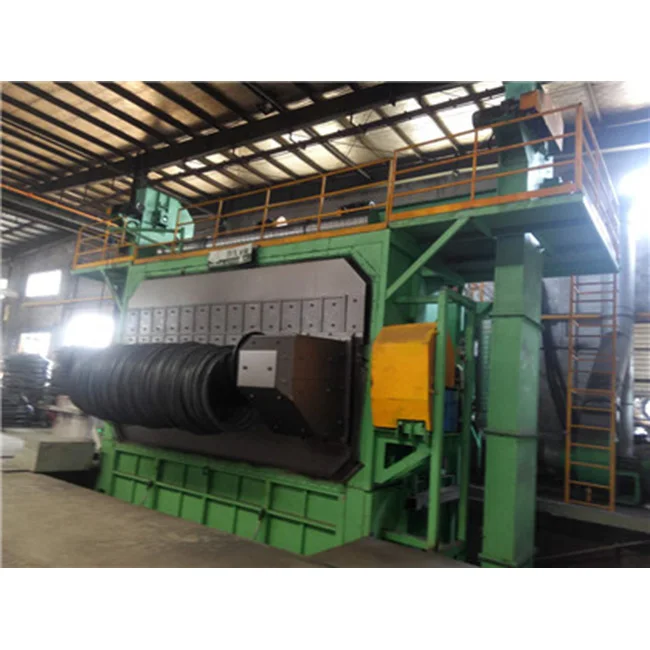

Steel Wire Rod Coils Shot Blasting Machine China
- Category: Sandblaster >>>
- Supplier: Qingdao Knnjoo Machine Inc.
Share on (1600200312196):
Product Overview
Description

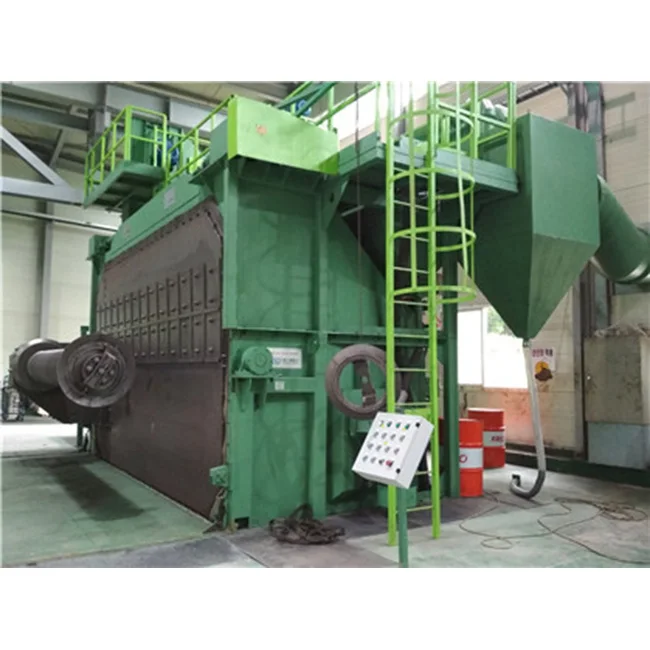

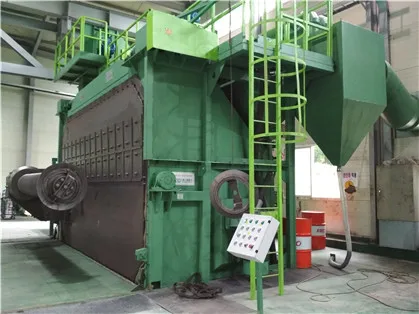

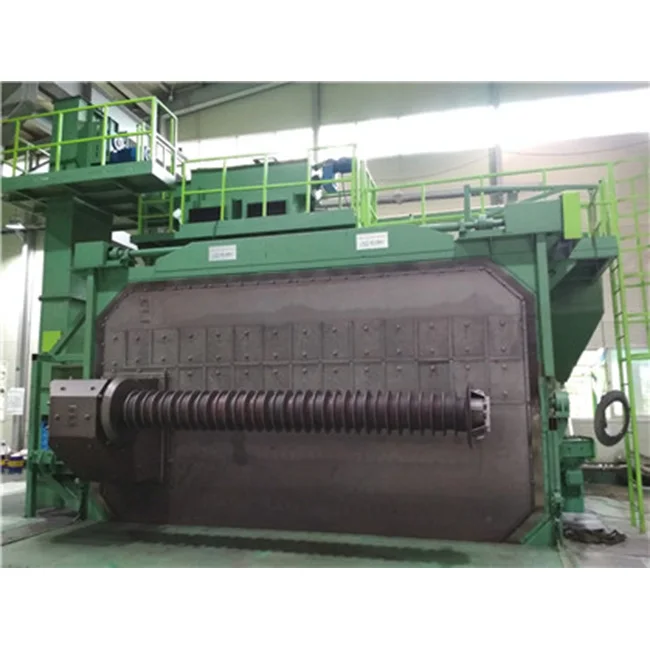

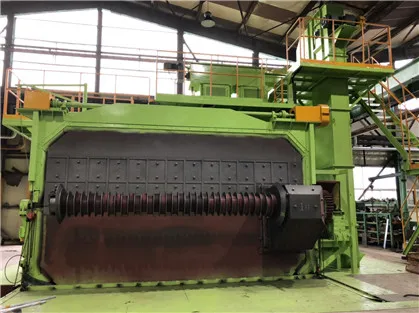

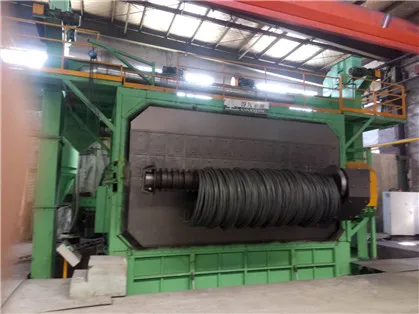

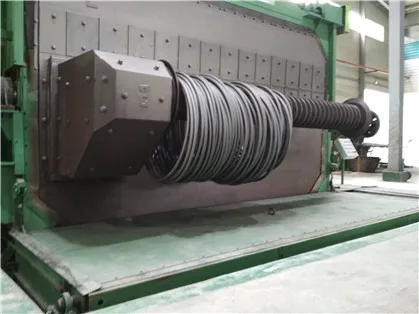

Wire Rod coil Shot Blasting Machine
This machine is the best special equipment which used to cleaning the wire rod, it clean the scale cinder on the surface of the
wire and the squama layer on the rolled steel through the blasting process.The surface descaling grade of the
steel billet rust reach Sa2.5 level after cleaning, and the surface roughness level reach Ra6.3 ~ 12.5μm. Compared to
pickling treatment, it have the characteristics of economy, environmental protection and high efficiency.
Specification of wire coils :
A.Diameter of the wire: Φ 4～Φ 36mm
B.Inner diameter of the wire rod: Φ 800-1100mm
COuter diameter of the wire rod: Φ1200-1400mm
D.Height of wire rod: 2500mm
E.Maximum load: 2500kg(diameter of wire rod:φ4～φ36mm)
F.Cleaning productivity: 50--70tons / 8hours
G.Effective length:3800mm
H.Rotation speed: 10-20 r/min ( frequency control )
This machine is the best special equipment which used to cleaning the wire rod, it clean the scale cinder on the surface of the
wire and the squama layer on the rolled steel through the blasting process.The surface descaling grade of the
steel billet rust reach Sa2.5 level after cleaning, and the surface roughness level reach Ra6.3 ~ 12.5μm. Compared to
pickling treatment, it have the characteristics of economy, environmental protection and high efficiency.
Specification of wire coils :
A.Diameter of the wire: Φ 4～Φ 36mm
B.Inner diameter of the wire rod: Φ 800-1100mm
COuter diameter of the wire rod: Φ1200-1400mm
D.Height of wire rod: 2500mm
E.Maximum load: 2500kg(diameter of wire rod:φ4～φ36mm)
F.Cleaning productivity: 50--70tons / 8hours
G.Effective length:3800mm
H.Rotation speed: 10-20 r/min ( frequency control )

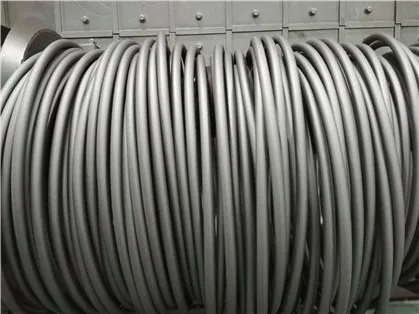

Shot Blasting Effect Display : The cleaning effect is super good!!!
Details Images

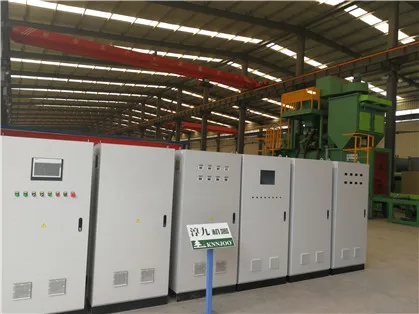

Touch Screen, PLC: SIEMENS
Automated by PLC controlled.

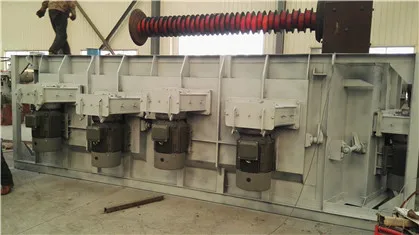

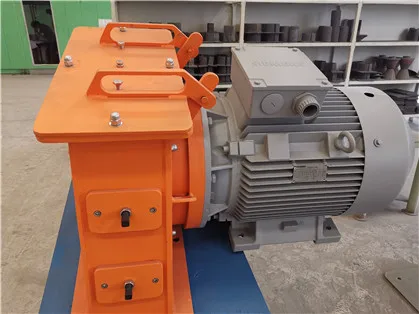

High power direct-coupled blast wheel
Motor: SIEMENS
Welding seams and related surfaces are smooth and regular！！！

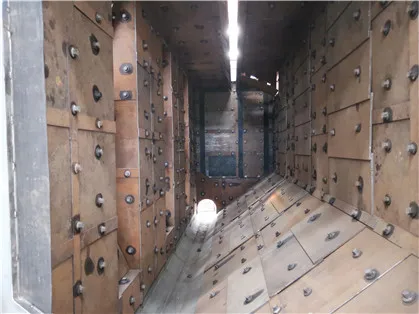

Main blasting area guards: Sweden imported HARDOX 600 with a service life of> 25,000 hours.
Products Show

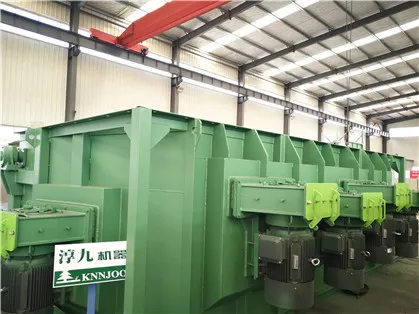

KNNJOO Workshop Manufacturing Site

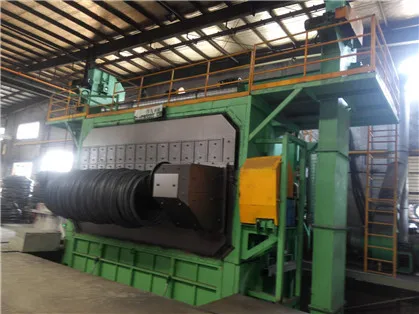

KNNJOO Customer Site
Our Advantages
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

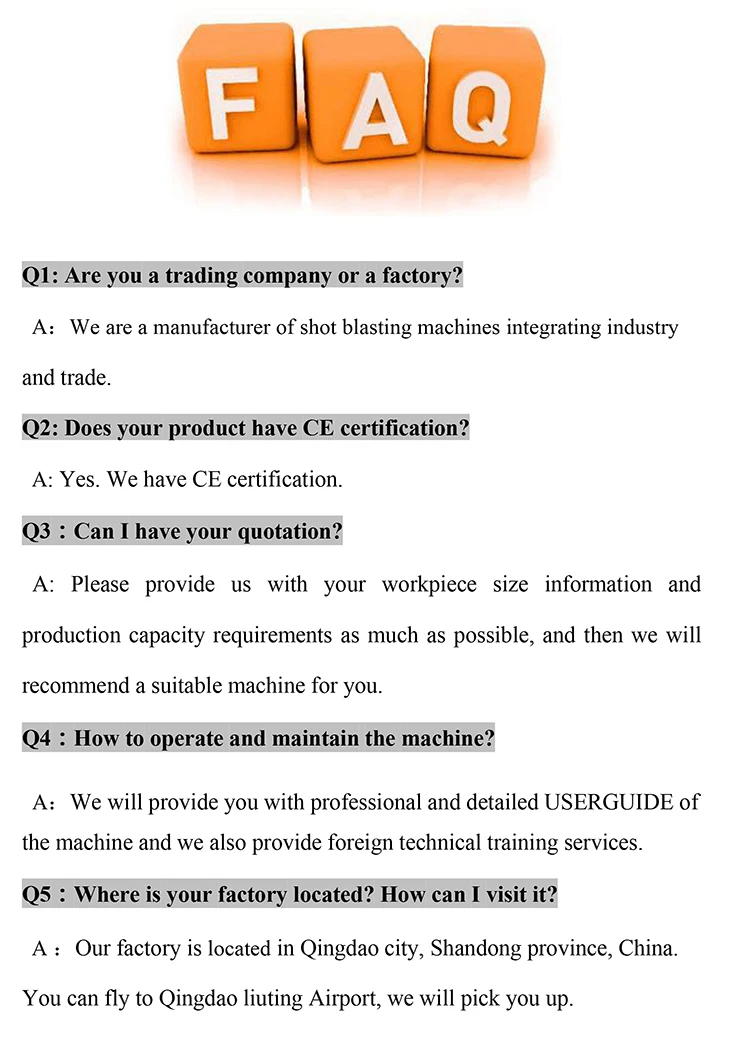

FAQ
Contact us
