Kafan wheel sandblasting machine cabinet with turntable and cart
- Category: Sandblaster >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (62540079078):
Product Overview
Description
Product Description

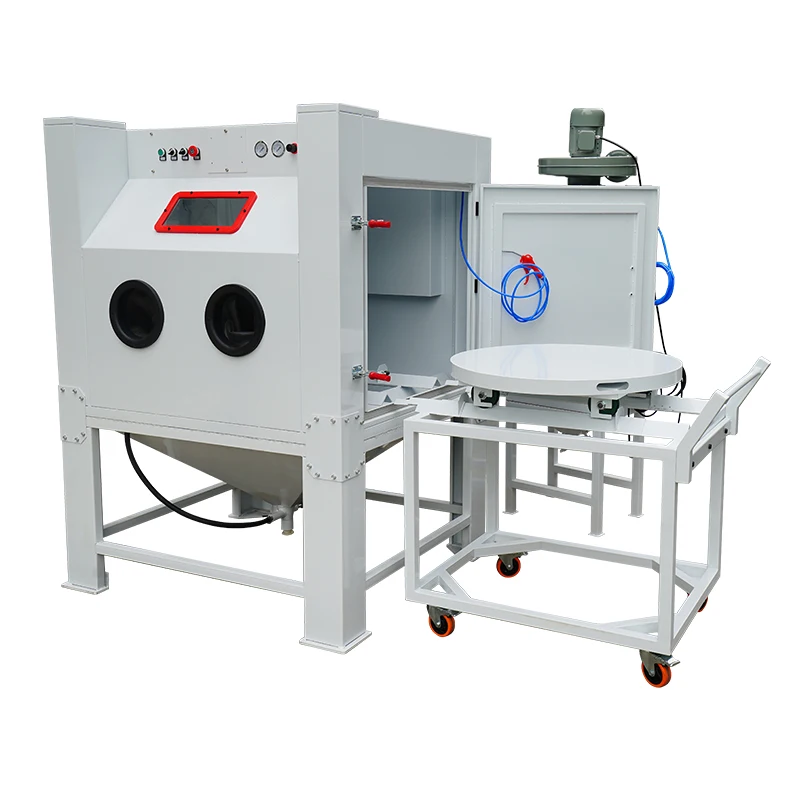

Kafan wheel sandblasting machine cabinet with turntable and cart
Kafan sandblast machine is easy to operate and more efficient.features novel design, simple structure, reliable performance, easy operation, high efficiency and low consumption of power.
It is specially designed with turntable and cart, making it effortless to handling heavy workparts, such as alloy wheels, moulds, statues, or forgings, castings, welded components, etc.
Working Chamber Size: Length1200 * Width1200 * Height800mm (can be custom-made as requests)
Application

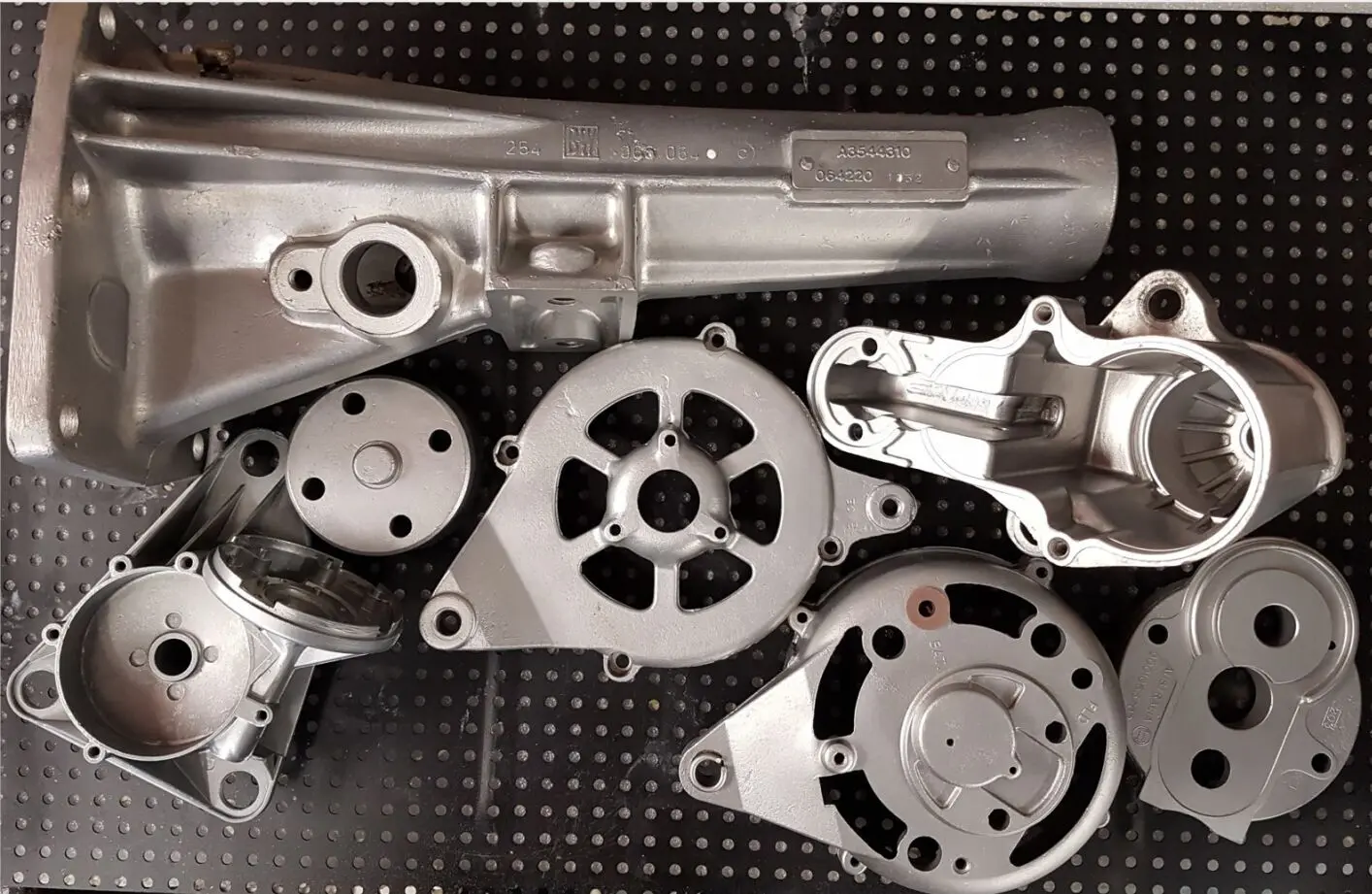

Sand blaster can do cleaning work on forgings, castings, welded components, heat-treated components and rough surfaces on machines components. It has the function of removing scales, slugs and burrs. It is good for pretreatment before painting, coating and electric plating.
Detailed Images

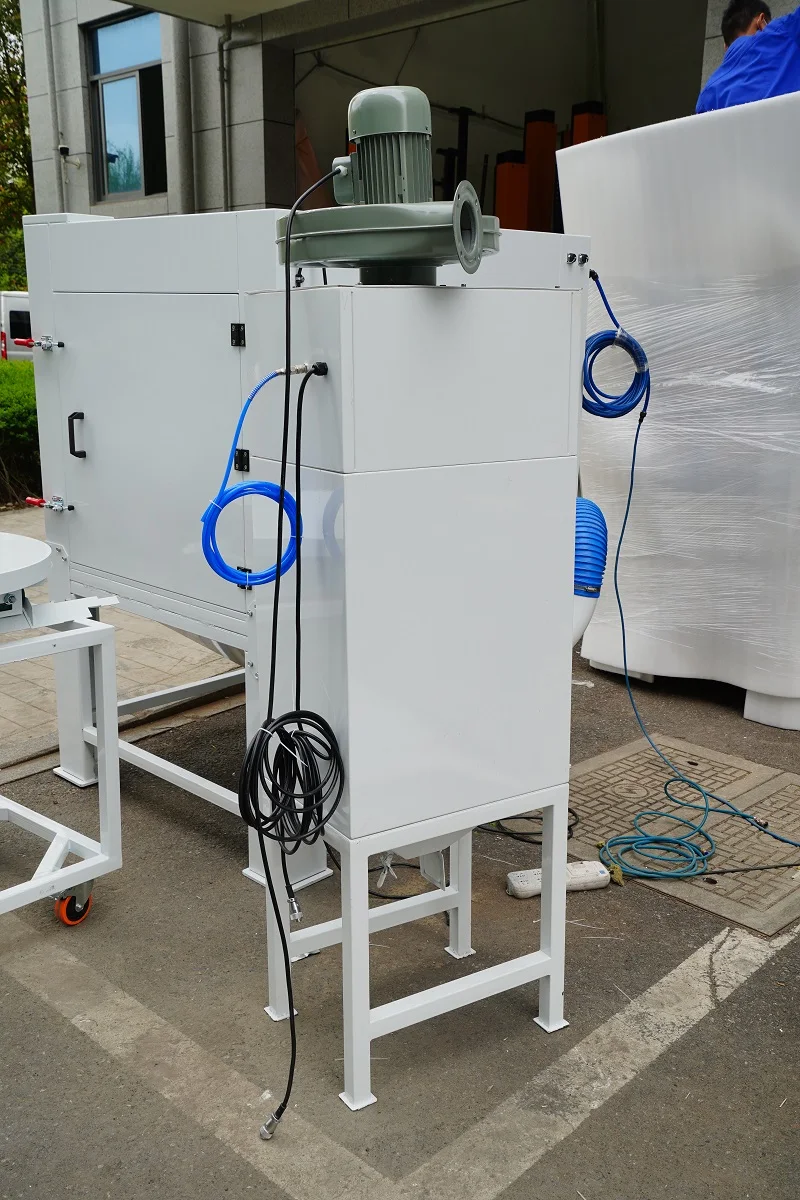

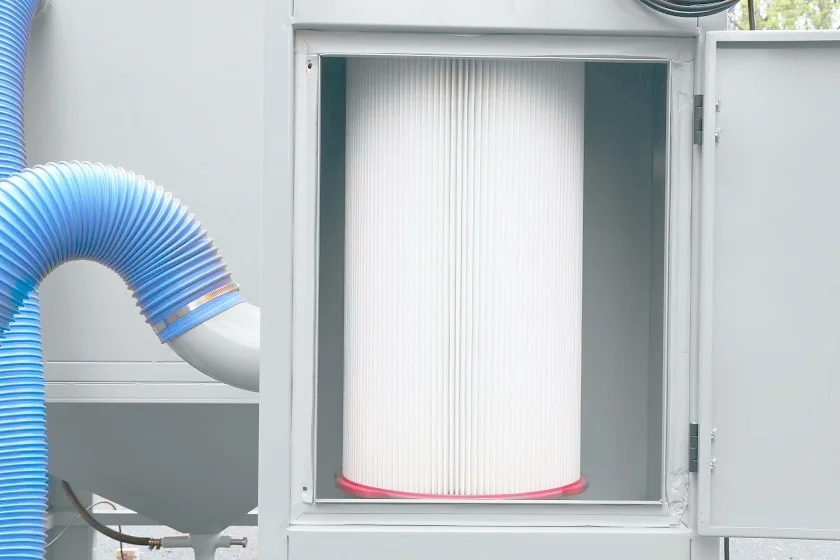

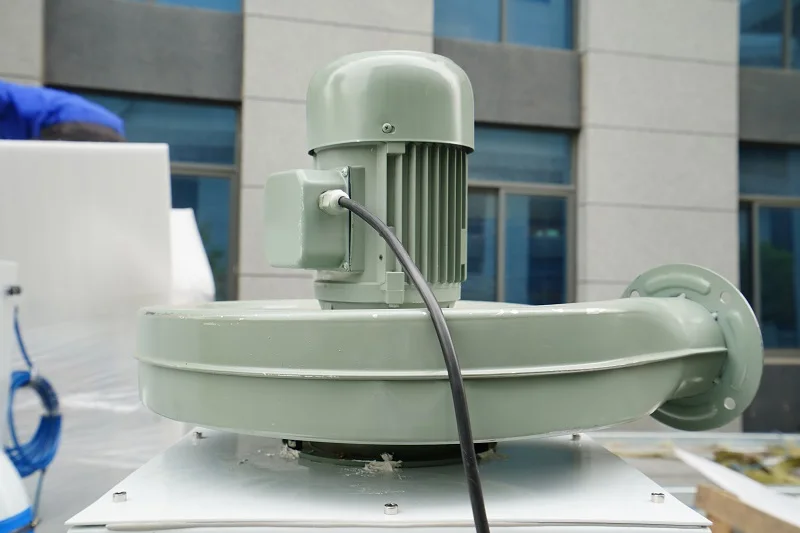

Cartridge Filter Dust Collector for Sandblasting Cabinet
An independent cartridge filter dust collector effectively remove dust from the working chamber, ensure the pure abrasives are recycled, and it keeps dust away from the operator's window for increased visibility and accuracy when cleaning.
Can be optionally equipped with a cyclone separator, which can recycle the abrasive and improve the efficiency of abrasive use.
Working Chamber: gloves, blasting gun, air gun

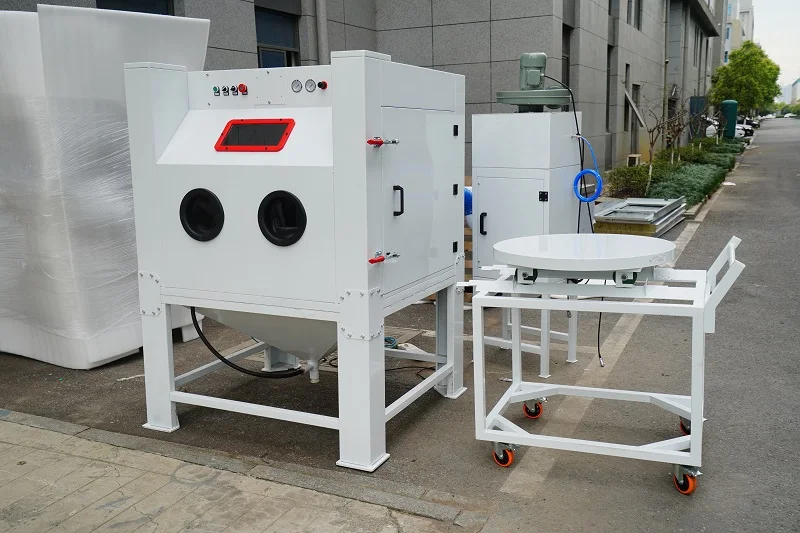

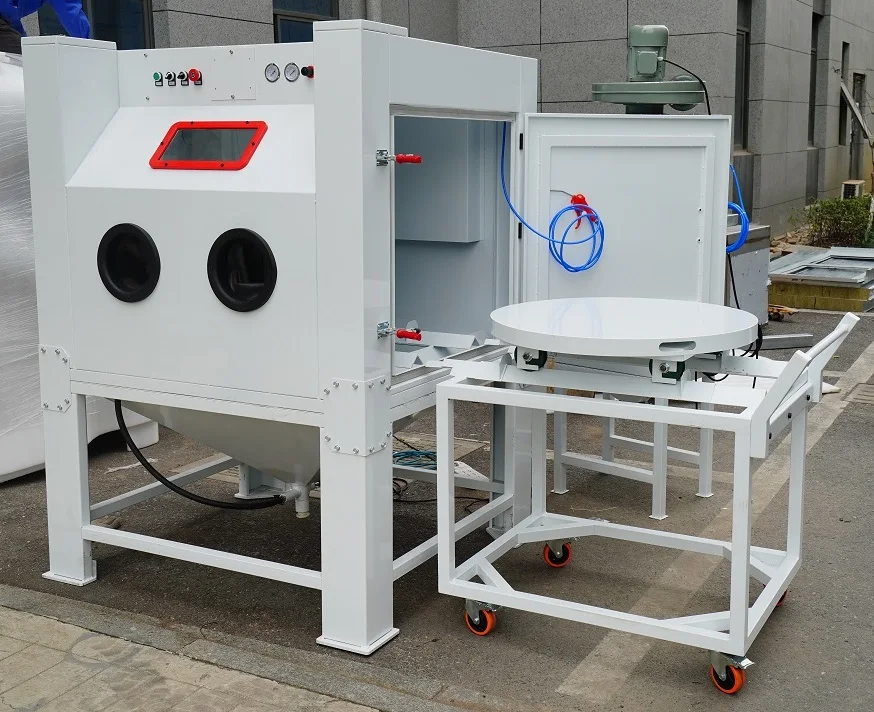

Turntale and cart
Switch, Regulator, Gauge.
Lights in the chamber
1. Standardly configured with boron carbide nozzle, maximize service life.
2. Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
2. Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
3. Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extented life.
4. Blast working is controlled by foot pedal switch, increase safety and reduce operator's fatigue.
5. Built with light to increase blasting efficiency.
Size Information
Model | KF-1212FTA |
Overall Dimension | Length1200*Width1680*Height1840mm |
Work Chamber | Length1200*Width1200*Height800mm |
Turntable | Diameter 800mm |
Loading | Max. 200kgs |
Door Size | W830xH770mm |
Power Supply | 110V/220V, 50-60Hz (customized) |
Motor Power | 0.75kw |
Lighting | 18w Fluorescent |
Blasting Gun | 1 piece with boron carbide nozzle |
Compressed Air | 5-8 bar(kg/cm2) |
Flow | 0.5-1.2m3/min |
The cabinet of sand blasting size aslo can be customized
Model | Colo-9080 | Colo-1010 | Colo-6050 | Colo-1212 | Colo-1615 | ||||
Working cabinet size | 900*800*800mm | 1000*1000*800mm | 600*500*650mm | 1200*1200*800mm | 1600*1500*1000mm | ||||
Voltage | 220V /380V Single phase .three phase | 15.3 | 15.9 | 16.5 | 17.1 | ||||
Recommend Products
Packing&Shipping
All sandblasting machines comply with international export standards and are available in wooden boxes and foam films
Company Introduction
We are a professional manufactuer of surface finishing machinery.we have worked on worldwide market for 10 years, because of the superior technology, quality, service.we exported into more than 100 countries, established long term business with distributer in US, Mexico, Russia , Poland, Uk, Germany ect. We own a manufacruery base on 3600 square meter, around 100 employees and 24sets of production equipment, dividing into technical department, after-sale department.
