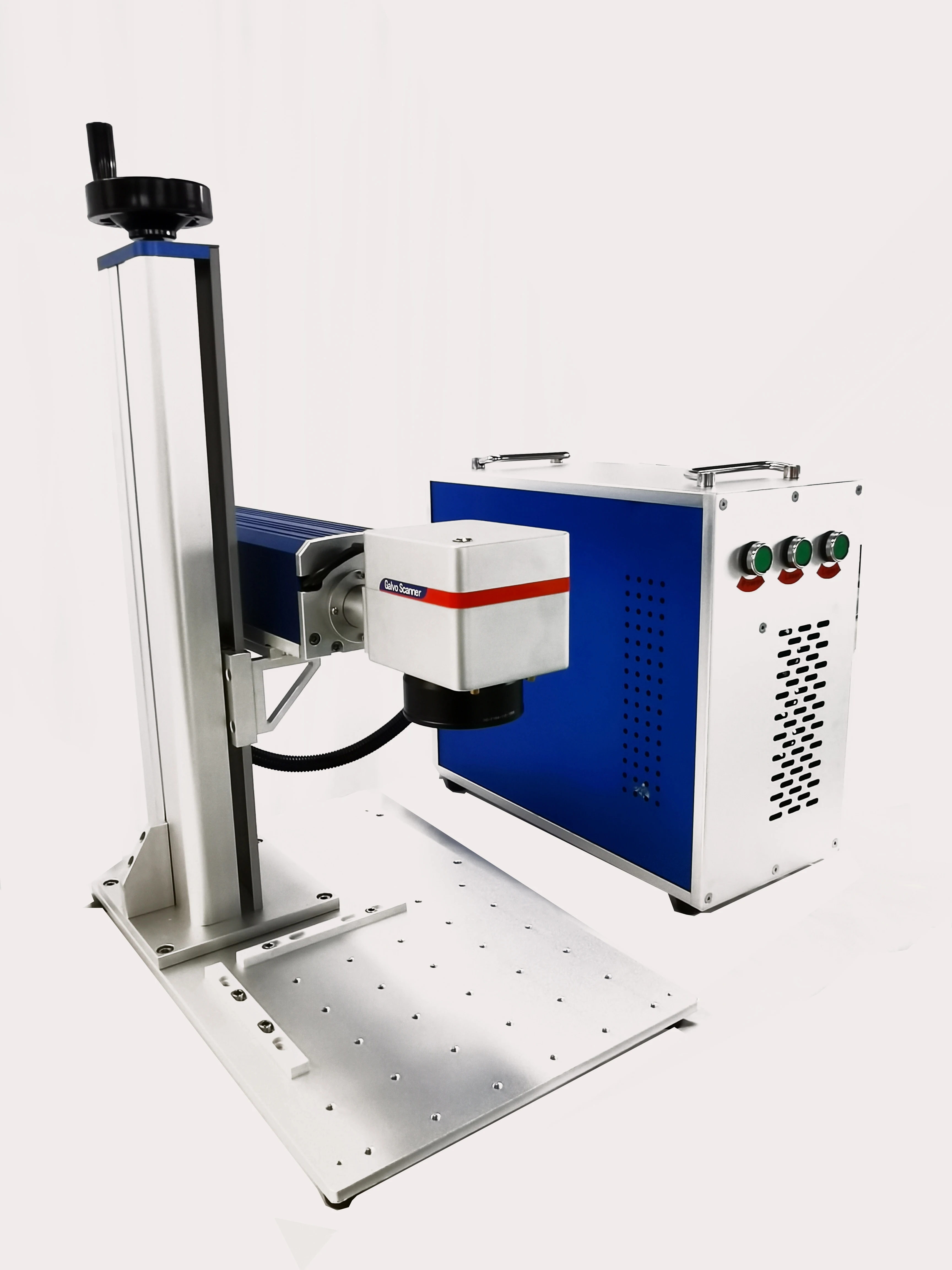

20w 30w 50w 100w split shape fiber laser marking machine work on metal material
- Category: Laser Marking Machines >>>
- Supplier: Liaocheng Haotian Machinery Equipment Co. Ltd.
Share on (1600200655820):
Product Overview
Description
Product Description
20w 30w 50w 100w fiber laser marking machine
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as AB

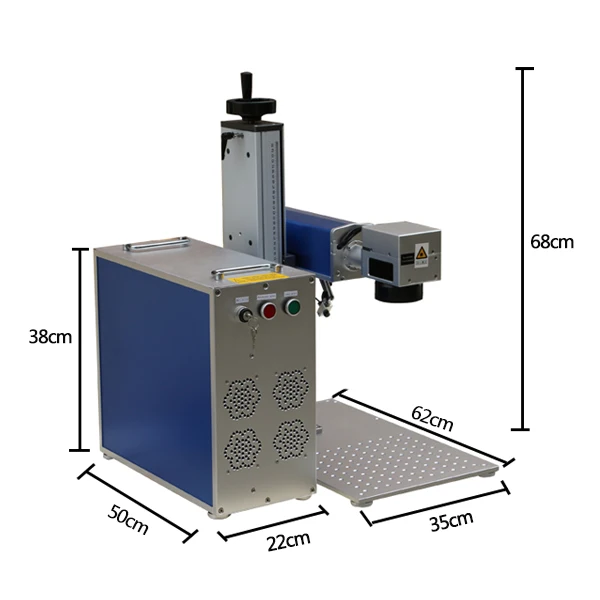

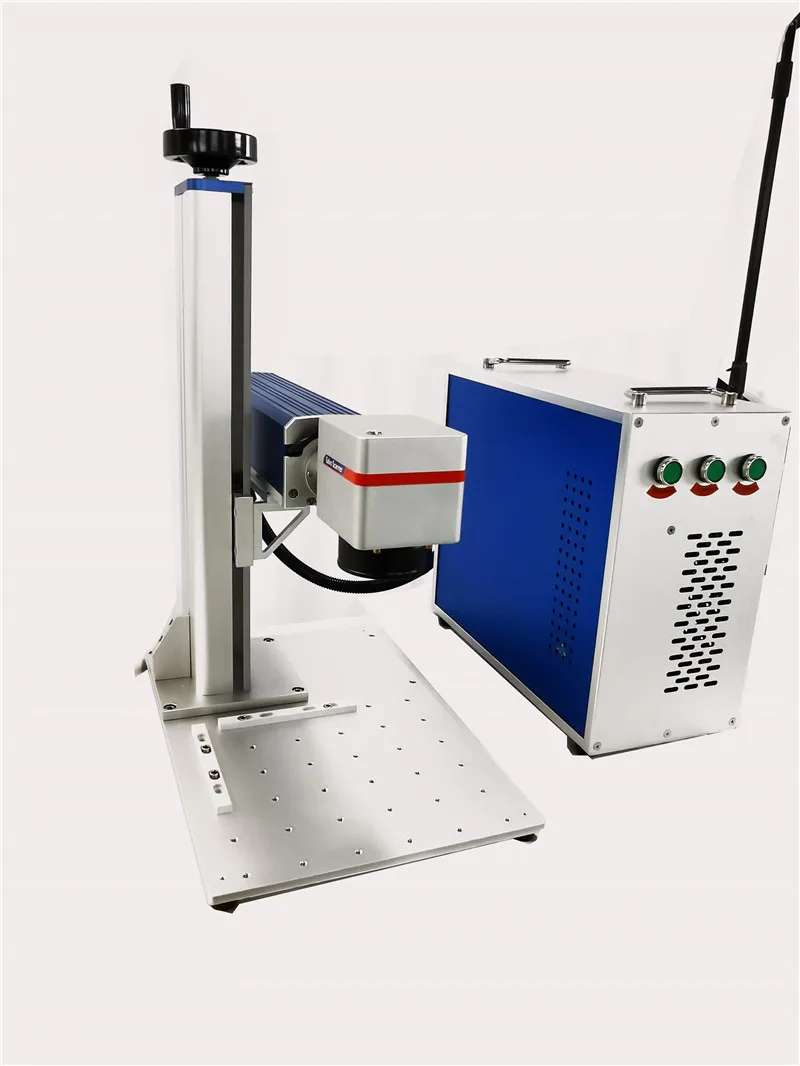

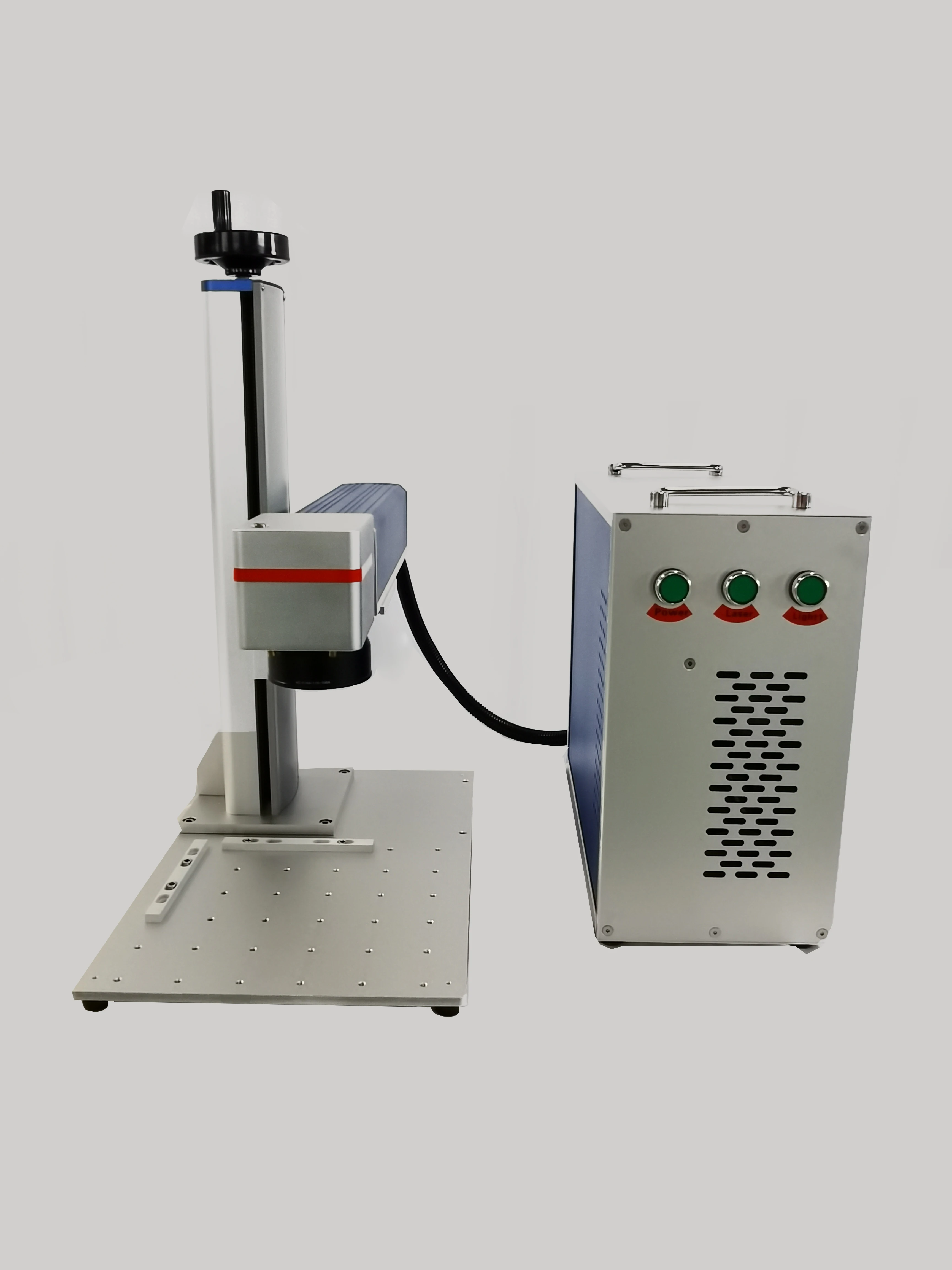

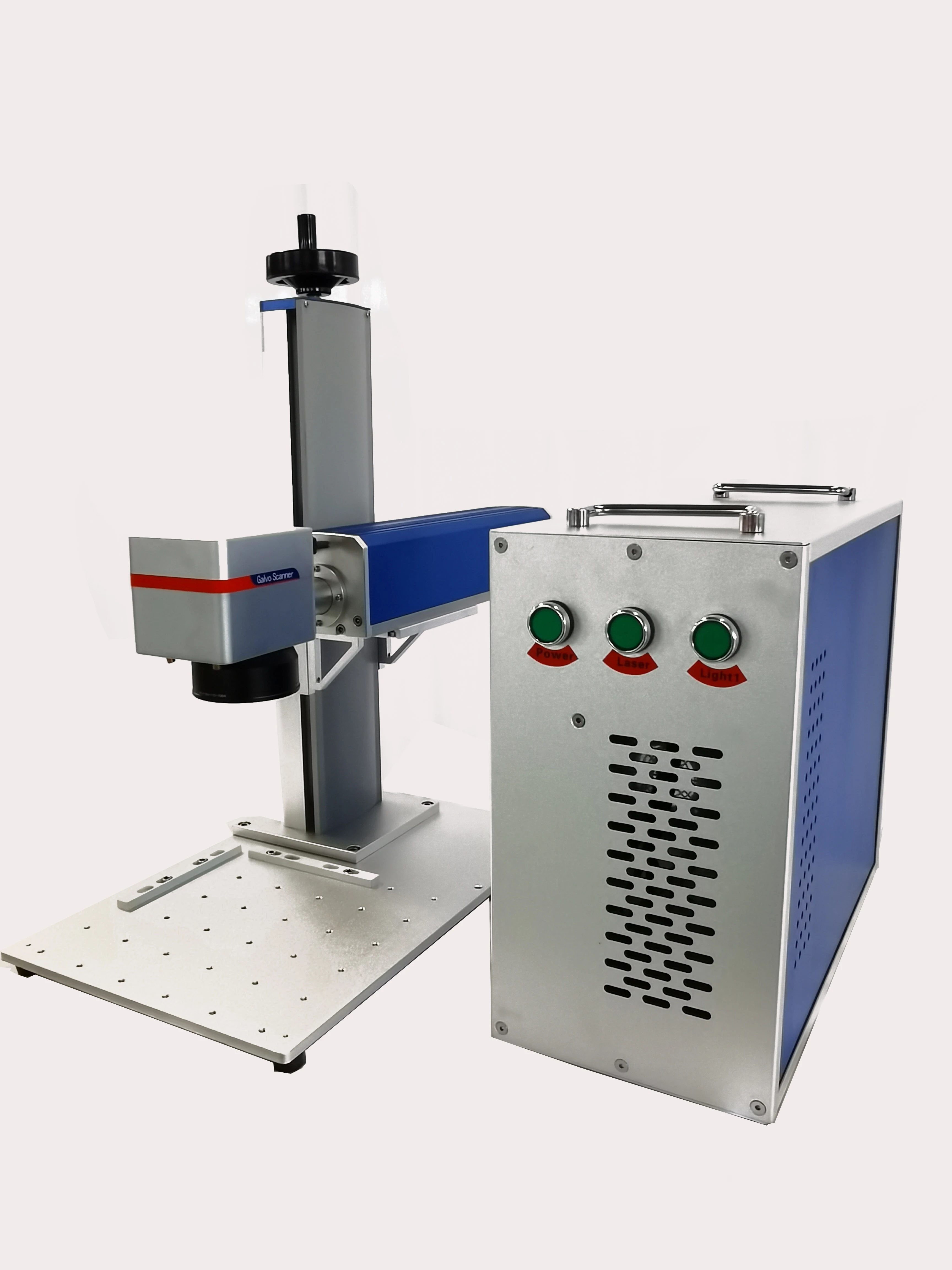

Model: | Machine Photo | |
20W split type fiber marking machine | | |
Main Configuration | ||

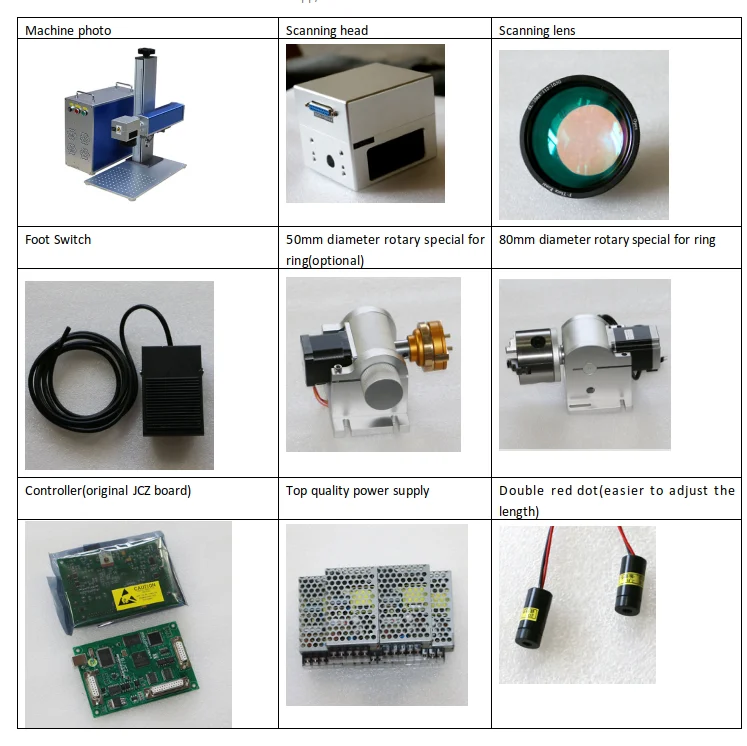

EZCAD Controller& Software(original) Fixed high quality aluminum worktable Double Red Dot for Adjust the focus Foot Switch Working size: 200mm*200mm Laser Power:20W Raycus QS 100% aluminum machine cover high quality scanning head and lens stable laser machine body | ||
Accessories | ||

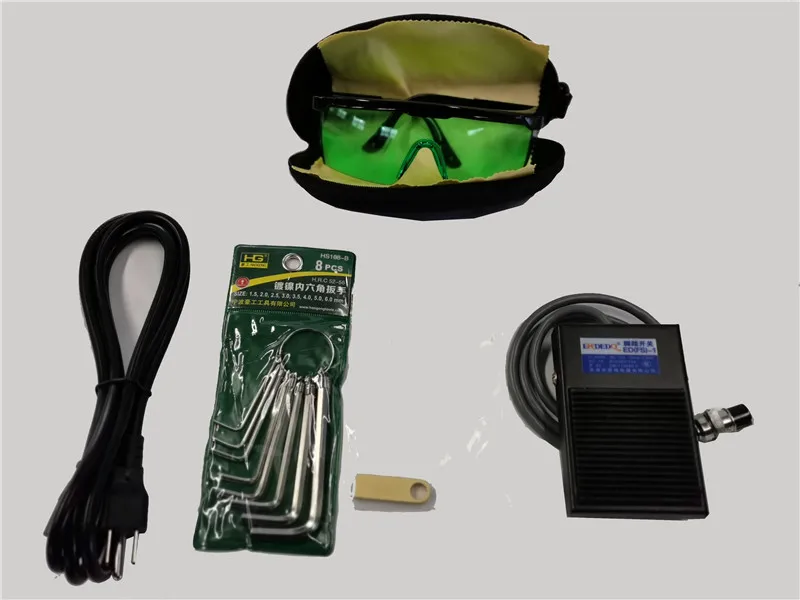

Parts with the machine | U disk(for software), power cable, USB cable, tools, foot switch, 80mm rotary, 100*100mm lens extra | |
Optional accessories | safety glasses(US$12, special price) and 50mm rotary(for ring, US$180) | |
Detailed Parameters: | ||
Effective Working Area | 200*200mm | |
Laser Power | 20W | |

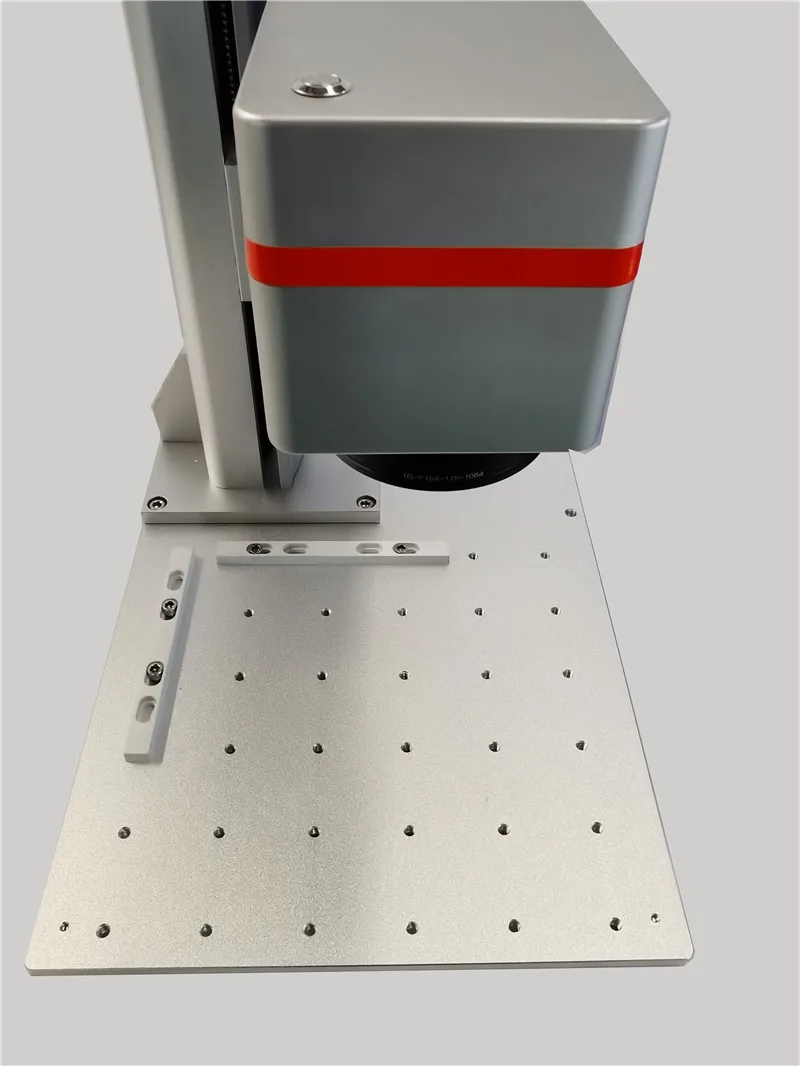

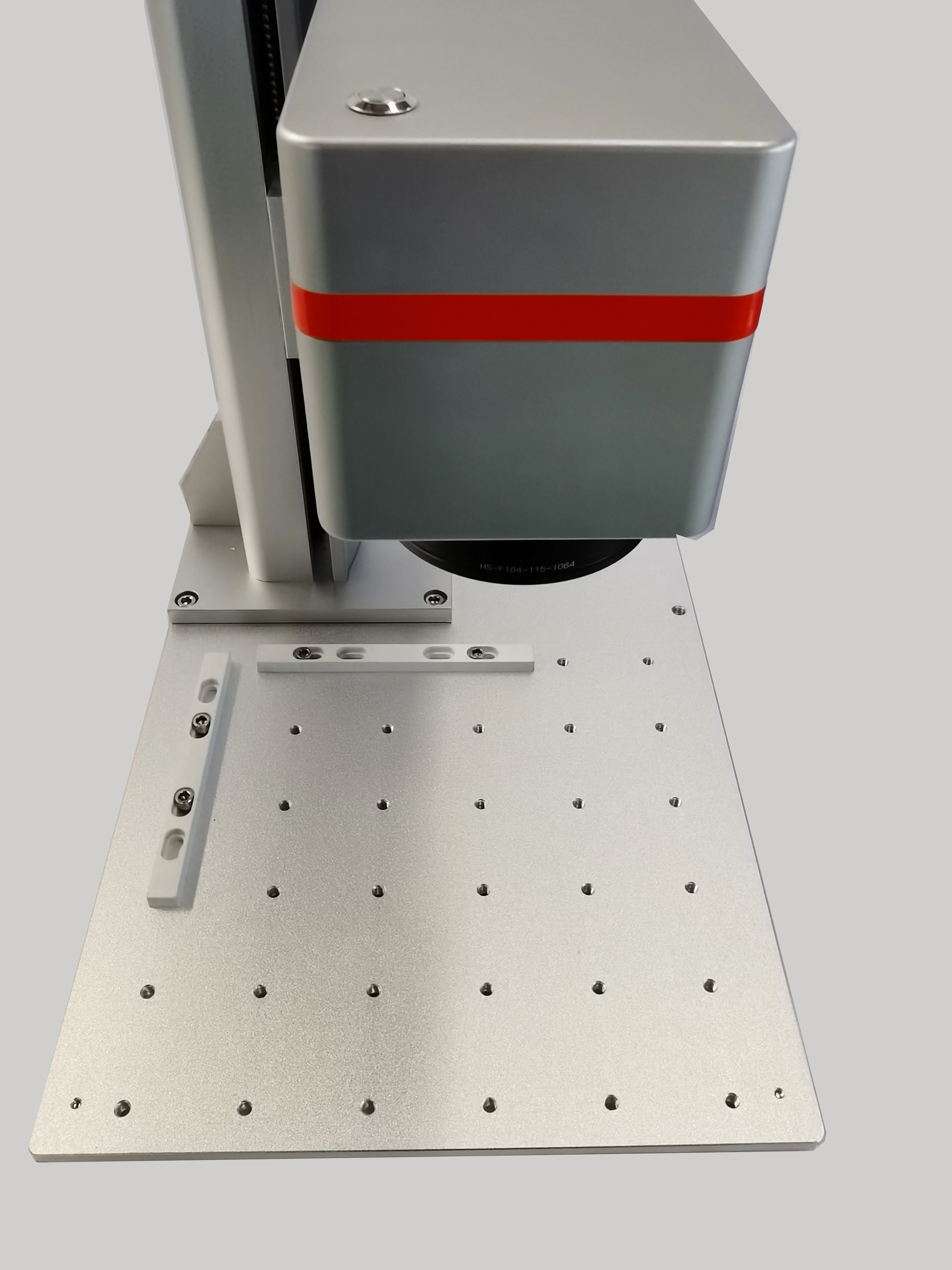

Worktable | Fixed high quality aluminum worktable | |
Wave Length | 1064nm | |
Laser Frequency | 20~100KHz | |
Computer System | WINDOWS XP/Win7/8/10 32/64bits | |
Minimum Character | 0.15mm | |
Minimum Linear Width | 0.01mm | |
Cooling way | Air Cooling | |
Maxi Marking Speed | 7000mm/s | |
Data Transfer: | USB2.0 transmission | |
Control System | EZCAD Offline Controller | |
Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | |
Compatiable Software | CorelDraw, AutoCAD,Adobe Illustrator,Cadian | |
Total Power | 500W ( AC220V 50Hz /AC110V 50Hz) | |
Package Weight/dimension | 55KG | |
Package Size | 730mm×470mm×740mm | |
Main Features
1) Small size and compact structure, convenient to move.
2) Long lifespan of fiber laser source: 100 000 hours

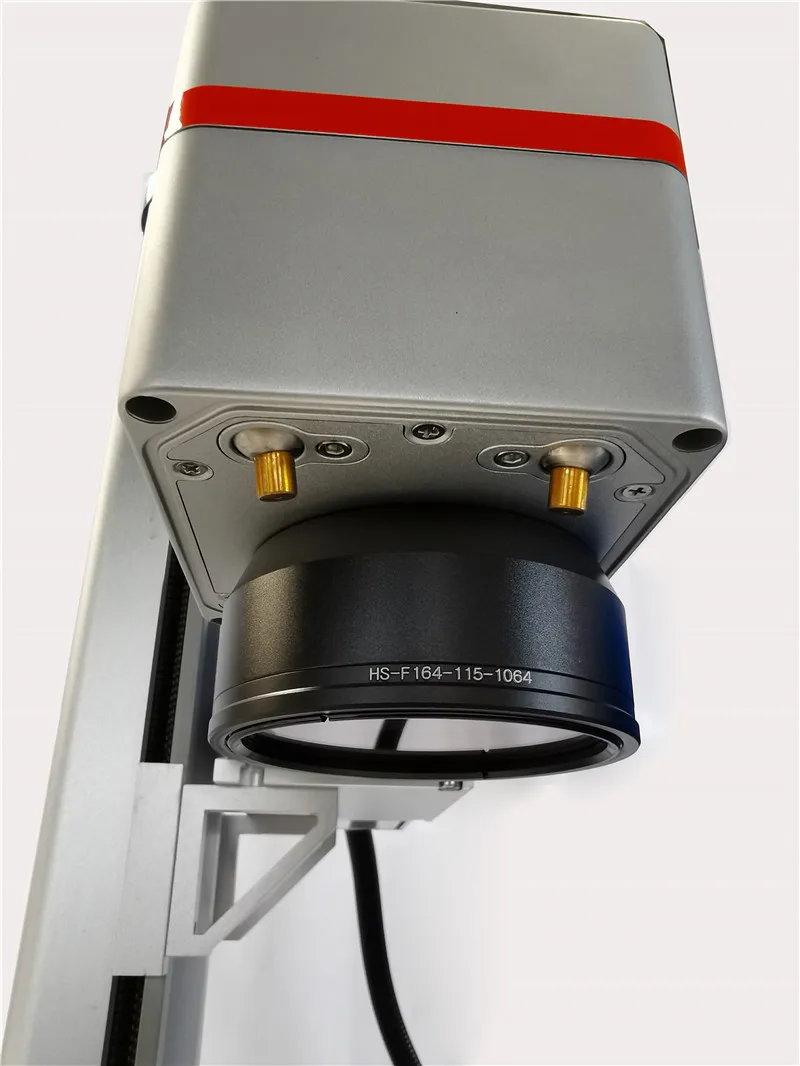

3) good scanning galvanometer, with good seal, small volume, compact.
4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
9) The fiber laser beam no need to adjust the laser optical path.
10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effectin YAG lase
