Share on (62416730736):


Price:$3,000.00 - $3,400.00

Quantity:


Product Overview

Description

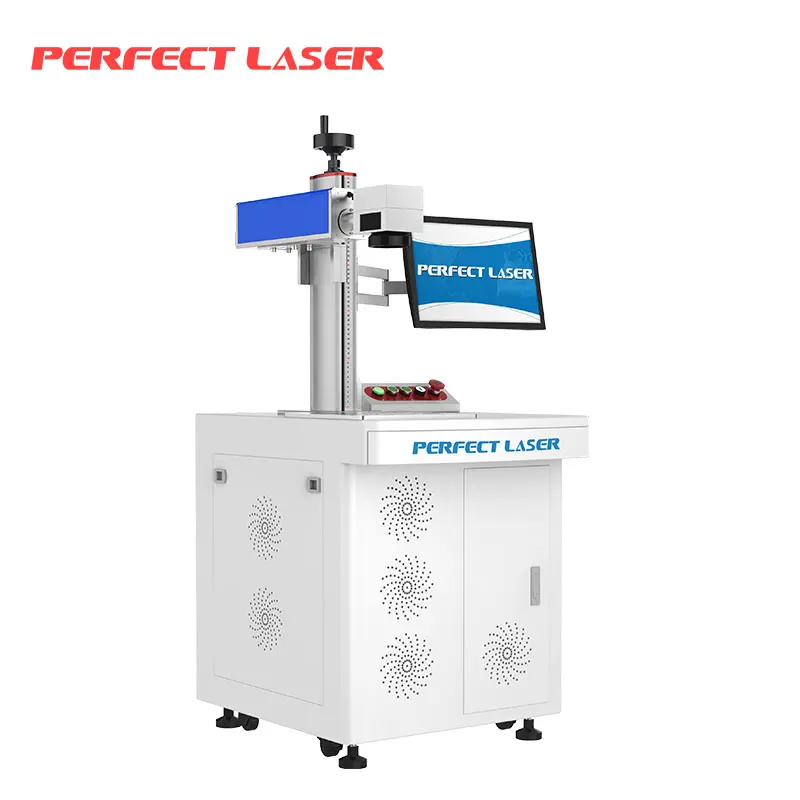

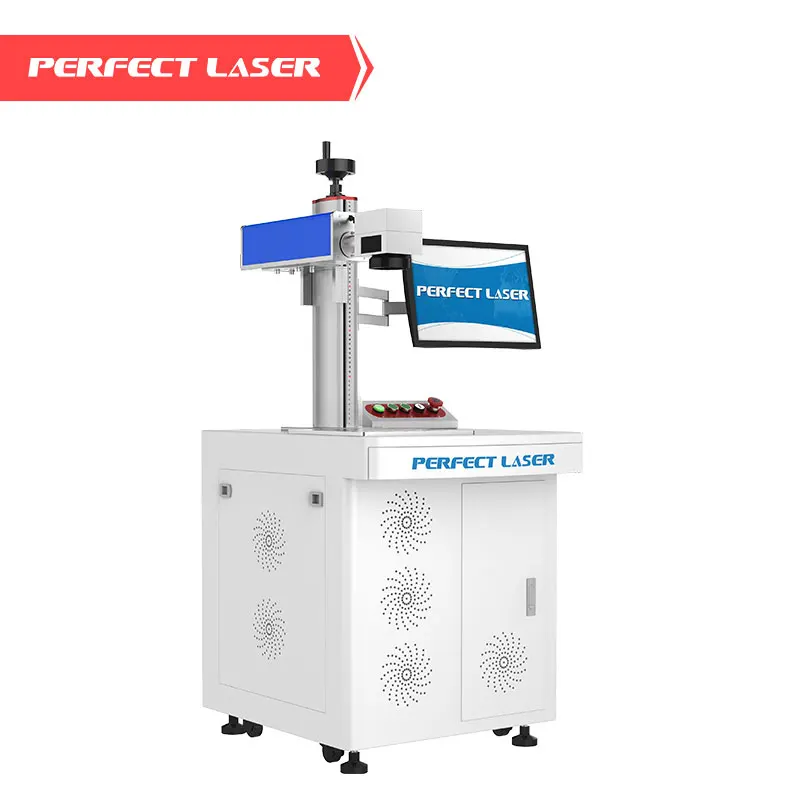

Perfect Laser 20w 30w 50w 100W Raycus /MAX /IPG/JPT Mopa Fiber Laser Marker Machine
(Model:PEDB-400D)
Contact:Suki Email:sales32(@)perfectlaser.net


Product Description




Introduction:
The fiber laser etching machine for metal adopts international most advanced technology and the fiber laser source's service life can reach 100,000 hours, 8-10 years without any consumables and maintenance.
This fiber laser etching machine for metal with PC for metal is the best choice for the customers who have special requirements to the smallest & finest laser beam and character. The software has already been installed and the parameter is settled before delivery. Once received, the fiber laser etching machine for metal could work directly without data adjustment.




Specification


Model No
PEDB-400A
PEDB-400B
PEDB-400C
PEDB-400D
Type
Portable
Desktop
Colorful
Standby
Computer
Not includes PC
Includes PC
Laser Source
IPG Series
Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation
Pulsed
Polarization
random
Nominal average output power
10W - 30W For PEDB-400A /400B /400C
10W - 50W For PEDB-400D
Central emission wavelength
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth
(FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Net Dimensions
70*20*50cm
58*22*50cm 80*38*72cm
70*20*50cm
143*62*101cm
Net Weight
44 kgs
53 kgs
44 kgs
130 kgs
Gross Weight
60 kgs
70 kgs
60 kgs
200 kgs
Laser system
Scanning Speed
0-7000mm/s
Marking Speed
0-5000mm/s
Marking size
110mm×110mm (F-theta 160)
Spot size
≤ 40 micron (F-theta 160)
Cooling unit
Air cooled
Pilot laser
650nm diode laser, visible red light for marking guide
Continuous working time
≥16h
Humidity
45～85% (no condensation)
Operating temperature
0~40℃
Control units
Laser Mark (English Version)


Machine Details








Product Features:
1. Humanized design: The principle of ergonomic mechanics is taken into full consideration of the user experience to improve work efficiency and simplify operations of the laser etching metal machine.
2. High-quality imported laser source: Germany IPG 20W laser, stable laser beam, smooth and fine marking lines.
3. High-speed marking: shorten the time for processing the workpiece, and increase the order per unit time.
4. High-efficiency electro-optical conversion: zero-power coupling loss, no consumables, and no maintenance.
5. 10 years of operation life: this fiber laser etching machine for metal can meet the requirements of 24-hour continuous and stable processing.
6. High performance, high reliability EMCC control system: friendly interface, stable and reliable system.
7. Low power consumption: low cost, only 0.5 kW/h.




Application




Application:
This fiber laser etching machine is widely used in mobile button, plastic transparent button, electronic parts, IC, tools, communication products, bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on.
