MB06 16 Plastic Square Adhesive Mixer Static Mixing Tip Nozzle for 50ml ABglue, Adhesive, Bonding, Epoxy
- Category: Other Plastic Products >>>
- Supplier: Shenzhen Well Win International Trade Co. Ltd.
Share on (1600201059064):
Product Overview
Description
MB06-16 Plastic Square Adhesive Mixer Static Mixing Tip Nozzle for 50ml ABglue, Adhesive, Bonding, Epoxy

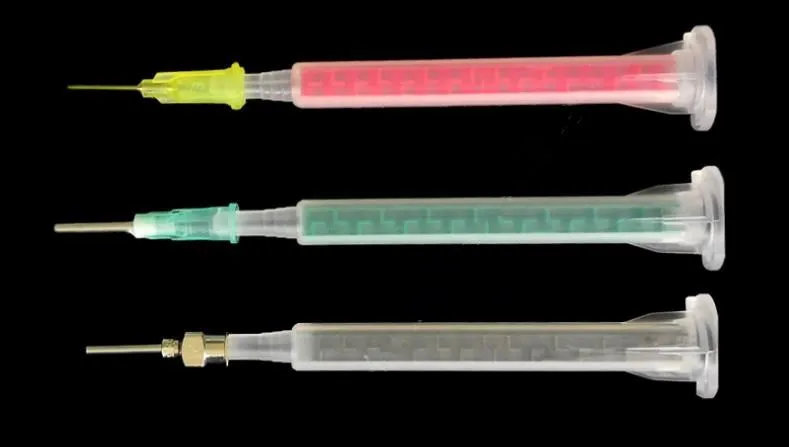

Match Dispensing Tips

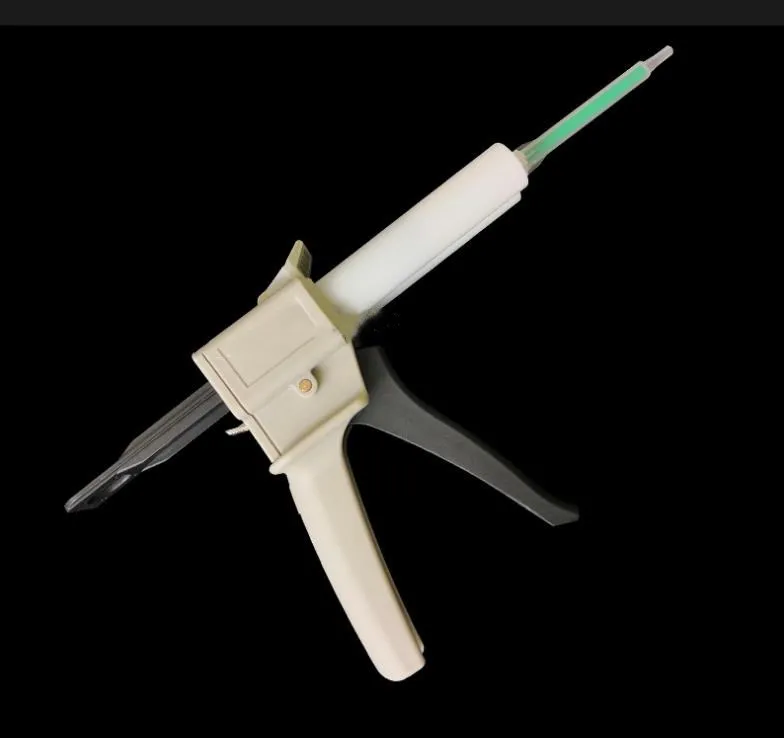

Match 50ml Dual Cartridges & Guns

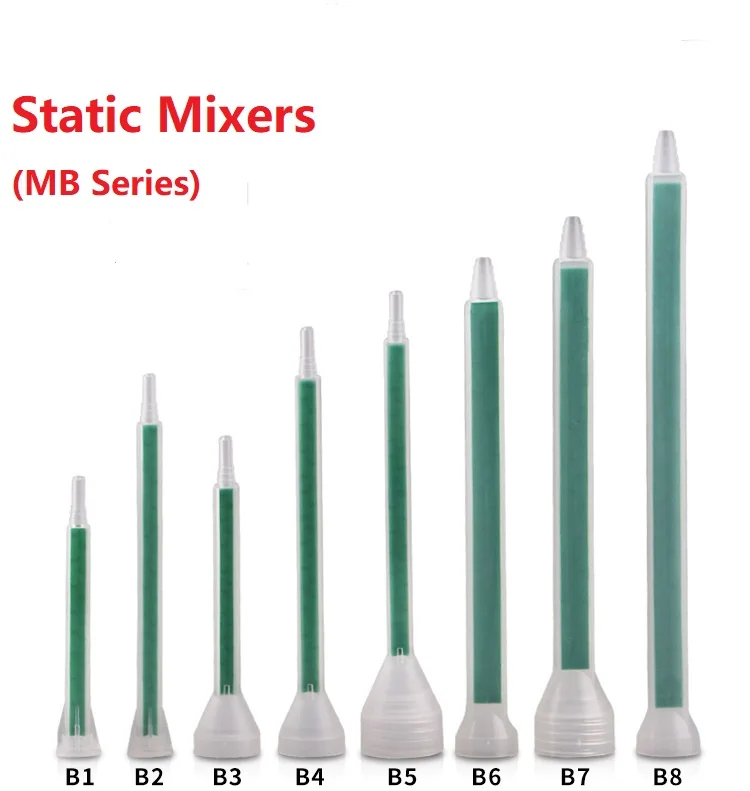

Series No. | Type No. | Element No. | Inner Dia. (mm) | Outer Dia. (mm) | Connector ID (mm) | Oultet ID (mm) | Total Length (mm) |

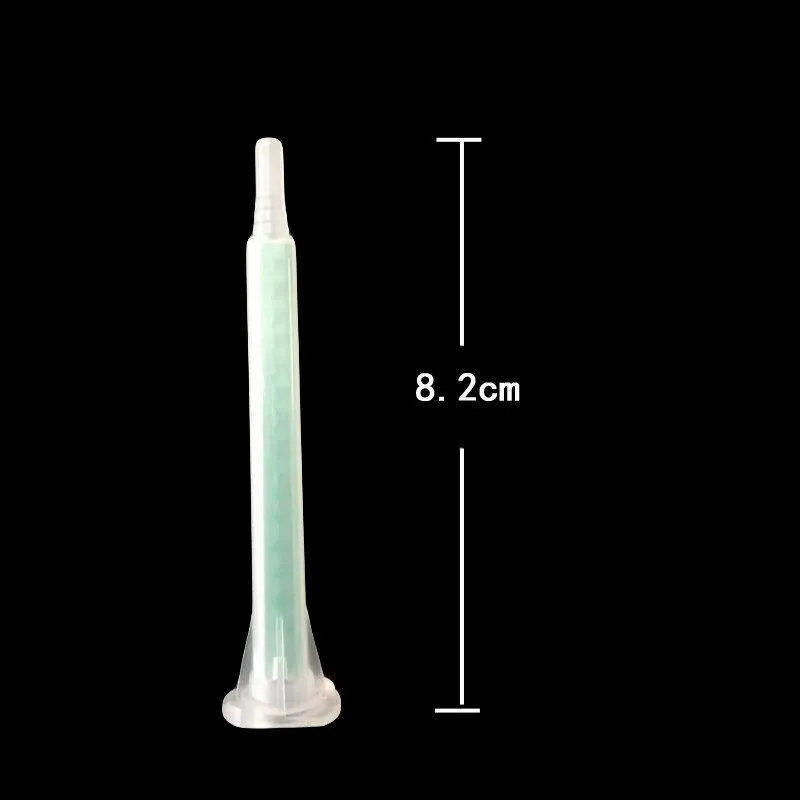

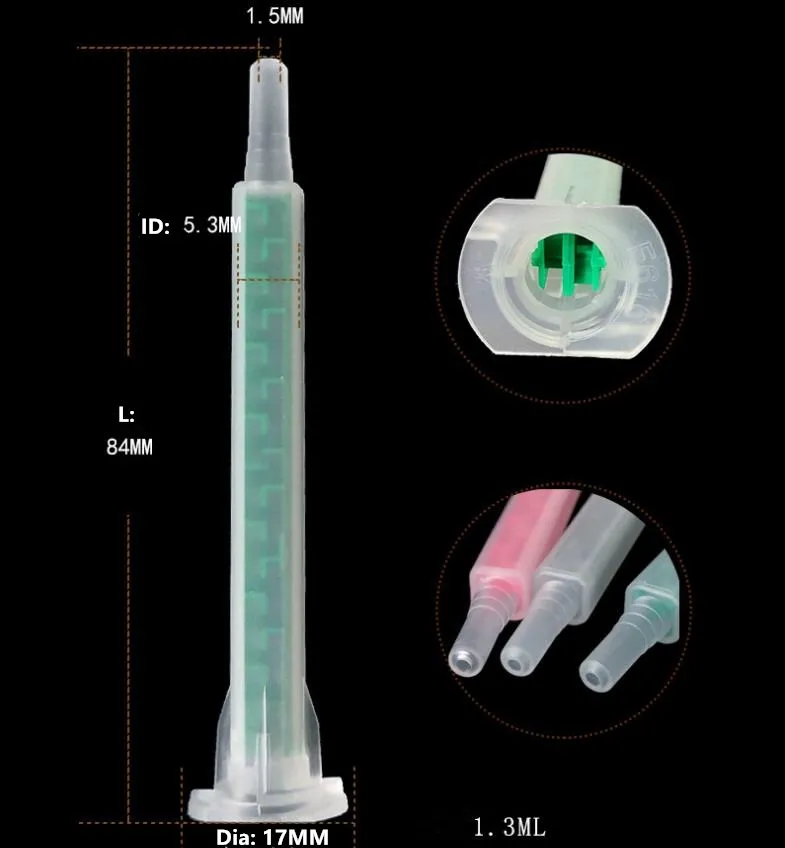

B1 | MB06-16 | 16 | 5.3 | 7.6 | 10 | 1.5 | 83 |
B2 | MB06-24 | 24 | 5.3 | 7.6 | 10 | 1.5 | 115 |
B3 | MB06-16R | 16 | 5.3 | 7.6 | 17 | 1.5 | 96 |
B4 | MB06-24R | 24 | 5.3 | 7.6 | 17 | 1.5 | 129 |
B5 | MB06-24S | 24 | 5.3 | 7.6 | 22 | 1.5 | 141 |
B6 | MB08-24R | 24 | 8.7 | 11.6 | 17 | 3.5 | 150 |
B7 | MB08-24S | 24 | 8.7 | 11.6 | 22 | 3.5 | 162 |
B8 | MB08-32R | 32 | 8.7 | 11.6 | 17 | 3.5 | 186 |
Series No. | Type No. | Element No. | Inner Dia. (mm) | Outer Dia. (mm) | Connector ID (mm) | Oultet ID (mm) | Total Length (mm) |
A1 | MA3-8L | 8 | 3 | 5 | 7 | 1 | 38 |
A2 | MA3-8S | 8 | 3 | 4 | 10 | 1 | 33 |
A3 | MA3-17 | 17 | 3 | 4.6 | 10 | 1 | 62 |
A4 | MA5.4-17 | 17 | 5.4 | 7.6 | 10 | 1.5 | 106 |
A5 | MA6.3-21 | 21 | 6.3 | 8.7 | 10 | 1.5 | 153 |
A6 | MA6.3-21L | 21 | 6.3 | 8.7 | 10 | 1.5 | 153 |
Series No. | Type No. | Element No. | Inner Dia. (mm) | Outer Dia. (mm) | Connector ID (mm) | Oultet ID (mm) | Total Length (mm) |
C1 | MC05-18 | 18 | 5 | 8 | 17 | 1 | 122 |
C2 | MC05-24 | 24 | 5 | 8 | 17 | 1 | 150 |
C3 | MS05-24 | 24 | 5 | 8 | 17 | 1 | 150 |
C4 | ME05-32 | 32 | 5 | 8 | 17 | 1 | 150 |
C5 | MC05-32 | 32 | 5 | 8 | 17 | 1 | 188 |
C6 | MS05-32 | 32 | 5 | 8 | 17 | 1 | 188 |
C7 | ME05-32 | 32 | 5 | 8 | 17 | 1 | 188 |
