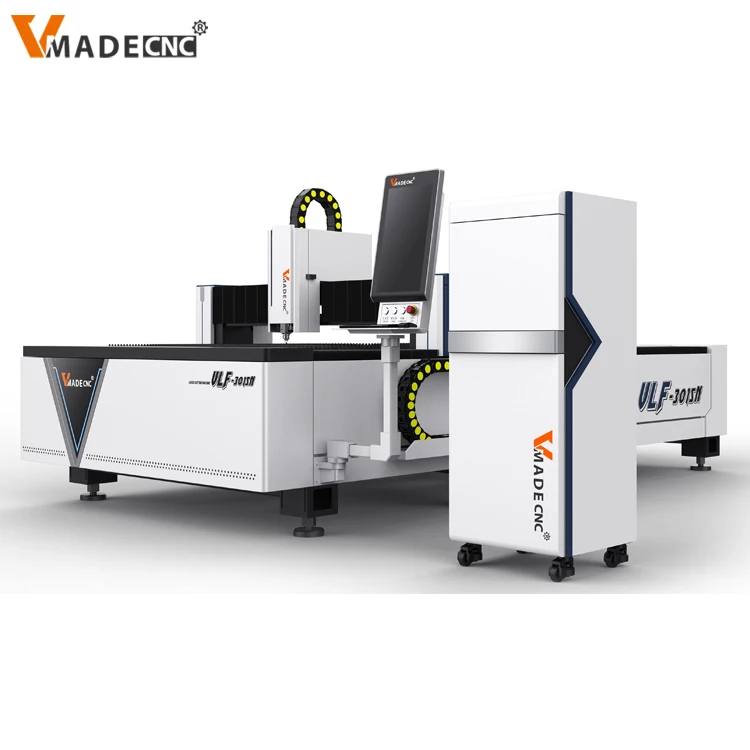

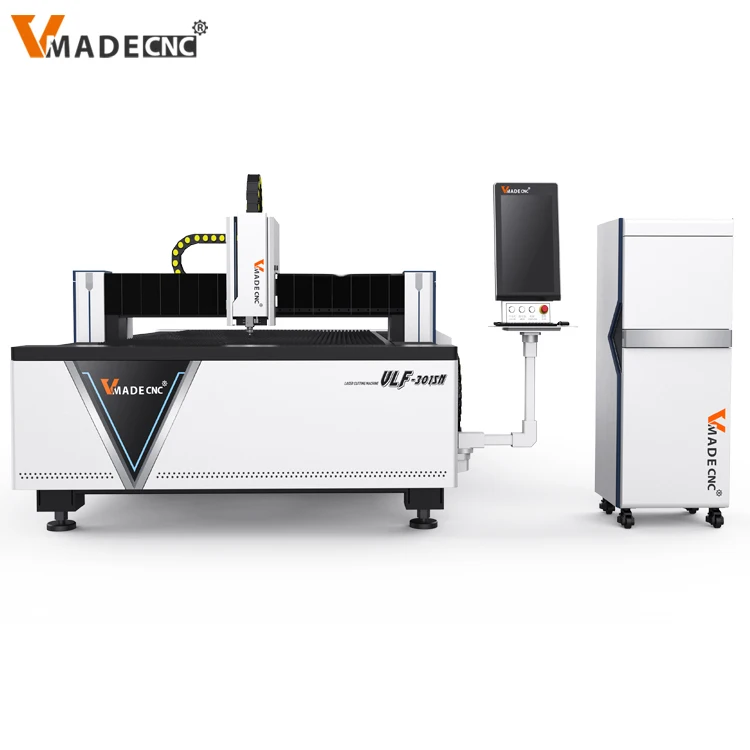

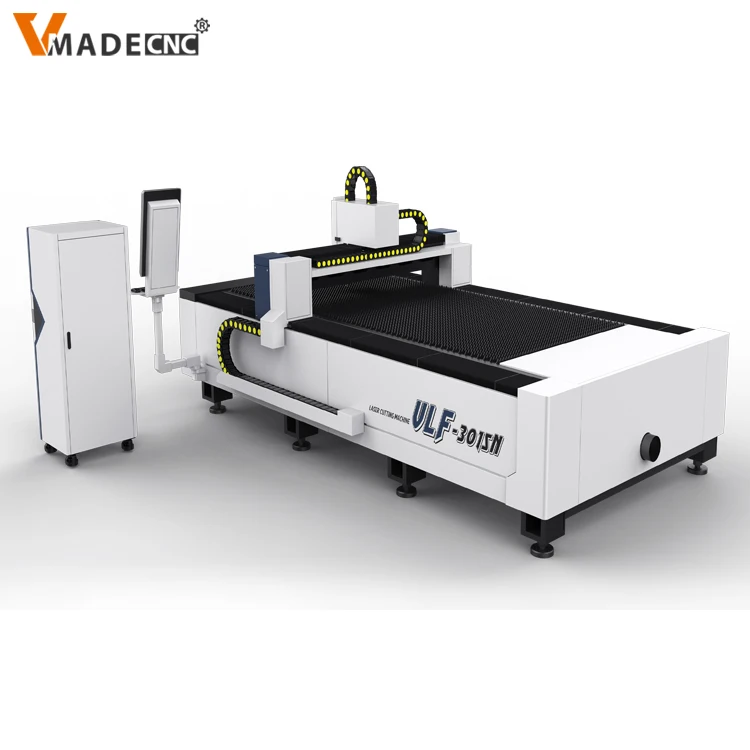

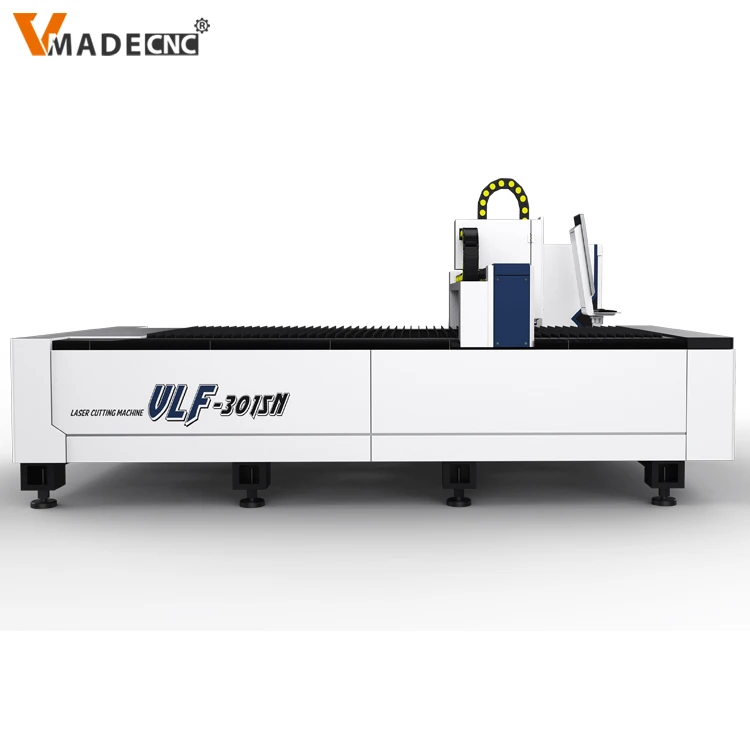

CNC 1000watt 2000watt 3000watt Fiber Laser Cutting Machine Sheet Metal
- Category: >>>
- Supplier: Jinan Vmade CNC Machine Co. Ltd.
Share on (1600201702154):
Product Overview
Description
Product Description

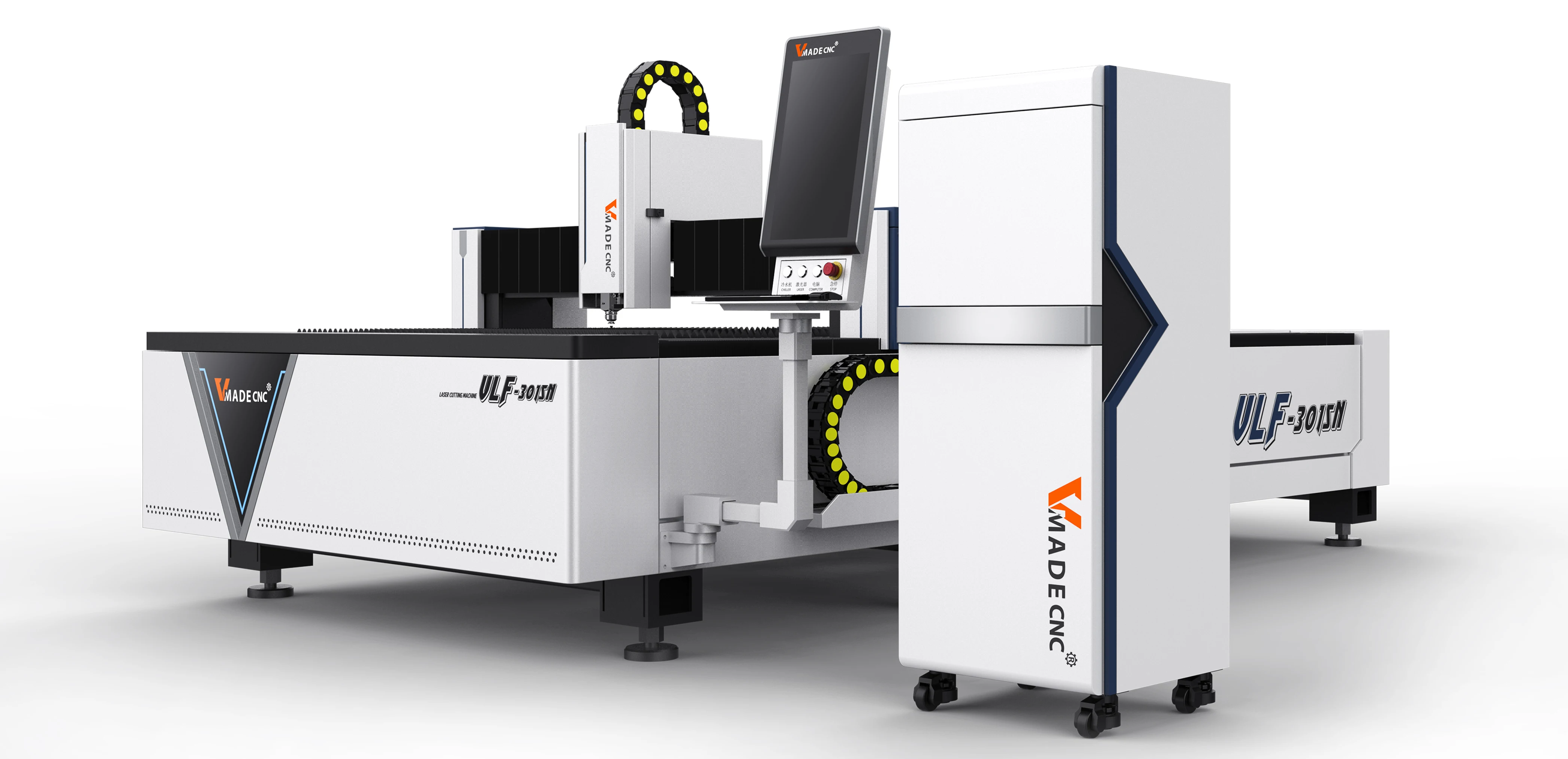

High Quality Fiber Laser Cutting Machine for Metal Cut
VLF1530L is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

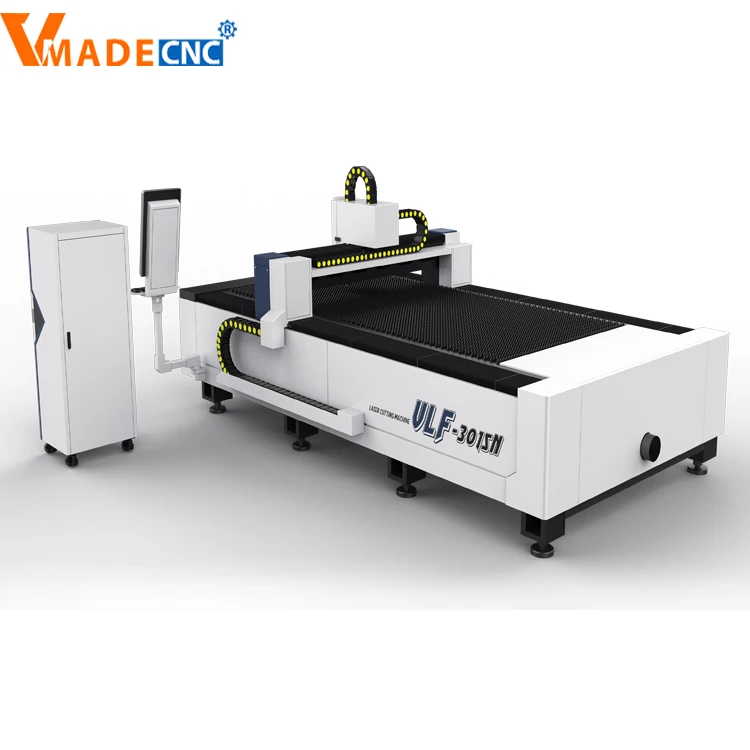

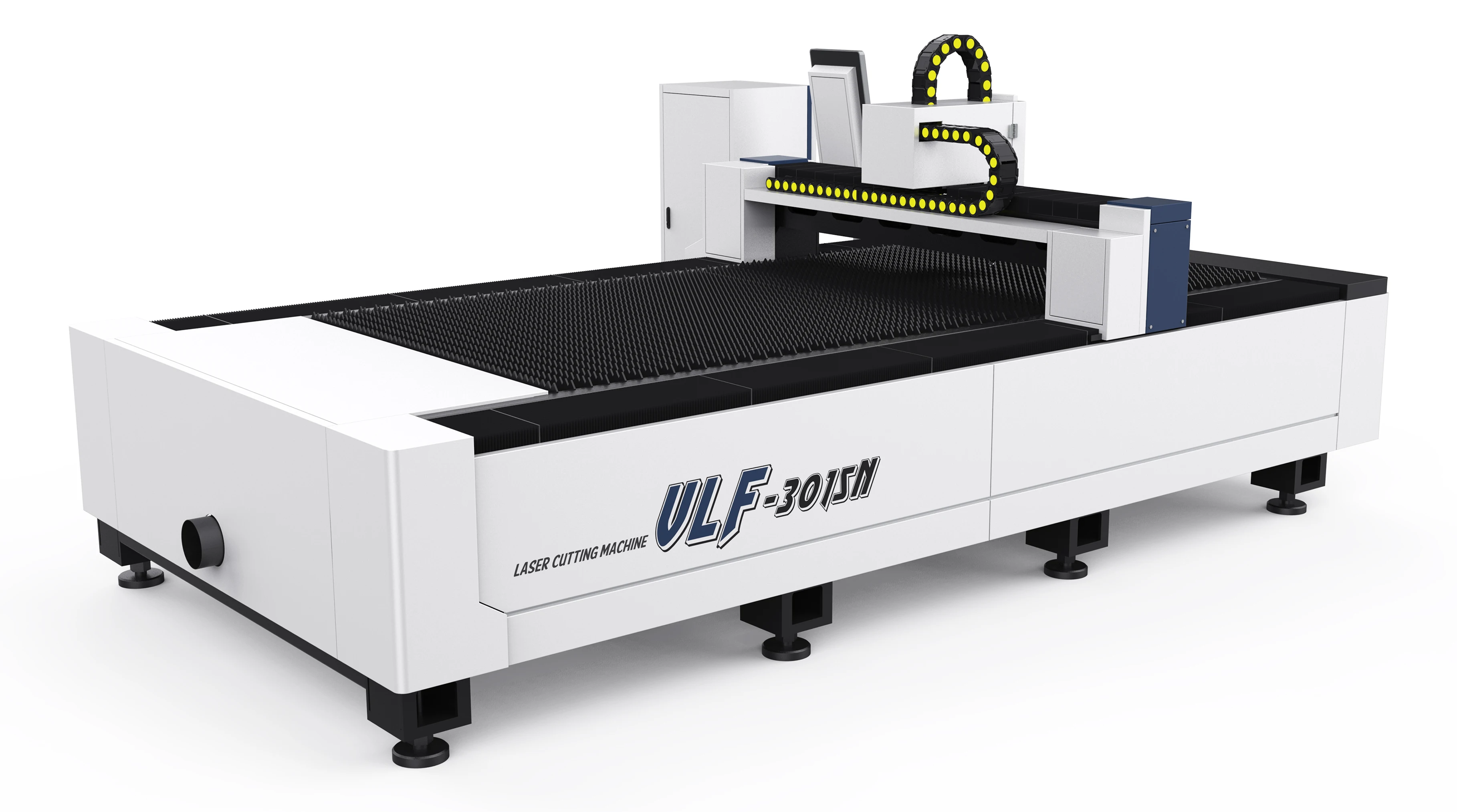

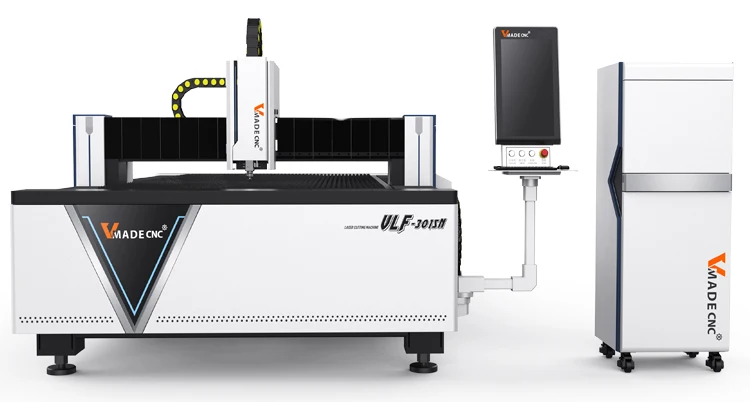

Details Images
VLF1530L Fiber Laser Cutting Machine Configurations advantage
1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2. Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
5. Laser-produced without gas, it could use air to cut sheet metal
1Kw Raycus Fiber Laser Source
Yaskawa Servo Motor
Auto FocusRaytools Cutting Head
French Motovario Motor Reducer
Japan Panasonic Motor
iPAD Design
APEX Rack Gear
Taiwan HIWIN Guide Rail
Taiwan TBI Ball Screw
Tongfei Industrial Water Chiller
Independent Control Cabinet
Heavy Machine Bed
Our Company have our own milling center to guarantee the quality of every piece of equipment.
3rd Generation Aviation Aluminum Gantry
Product Paramenters
Model No. | New VLF1530L |
Working Area | 1500*3000mm |
Fiber Laser Power Source | Raycus/IPG/MAX |
Laser Power | 1000W/1500W/2000W/3000W |
Laser Cutting Head | Raytools |
Motor and Driver | Japan Fuji/Yaskawa/Panasonic Servo Motor and Driver |
Control System | Cypcut Control System |
Max Running Speed | 40m/min |
Max Acceleration | 1G |
Transmission | APEX Double Rack Gear |
Guide Rail | Taiwan HIWIN Guide Rail |
Repeat Positioning Accuracy | +/-0.02 |
Reducer | France Motovario Motor Reducer |
Electric Parts | France Schneider |
Pneumatic Parts | SMC |
Machine Bed Weight | 4000kg with Special Heat Treatment (Erosion-Proof) |
Optional Exchange Platform | 3m Exchange Platform |
Optional Rotary | 3m Rotary |
Sample Picture
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material?
1.What is your material?
2.The size of material?
3.The thickness of material?
Q: This is the first time I use this kind of machine, is it easy to operate?
A: A manual is already included in our product packaging,we also provide 24/7 telephone support to our customers and offer a life time warranty.Jinan Vmade as the largest laser manufacturing factory, we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use
Q: Why choose agent and OEM?
A: The minimum order is 1 set machine, if you order more one time, the price will be better,Jinan Vmade focus on laser research and development production of 14 years,have 31 national patents, It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in northen of China,we have advanced technology, quality certification CE. products are exported to more than 100 countries and areas, as a focus on laser industry manufacturers, not only can give you a good quality assurance, but also can offer you a good price.
Our Service
Pre-sale Service:
1. For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
2. Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service:
1. Before delivering the machine, we will test and adjust it many times, guarantee that every machine work and high quality,so you can use it directly when you get it.
2. If you have problems while using, 24h online professional advice available.
3. Lifetime software free upgrades.
4. Fiber laser source we warranty for 2 years ,the machine warranty for 3 years.
Customers Visit
Customer's Feedback
Company Information
Jinan Vmade CNC-Your Best Choice
Jinan Vmade CNC Machine Co.,Ltd was established in 2004. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. These years, Vmade has sold their products to all over the world. Such as USA, Canada, Brazil, Russia, England, Australia, more than 60 countries and do OEM service to more than 15 dealers and distributors. Vmade is warmly welcomed by customers with their continuously enthusiasm, Frist-Class before/after sales service, efficient reaction and the perfect machine quality.The name of Vmade originate from most of the buyers' expectation. "V", means the VIP design and production which specially customized to each client; "made", means we use hundred percentage of our attention to focus on every order, finalized all clients' entrust with perfect products which are elaborate made.Vmade CNC, keep innovation, with high passion, to provide perfect project for every client. Welcome join Vmade, we will never let you down!
