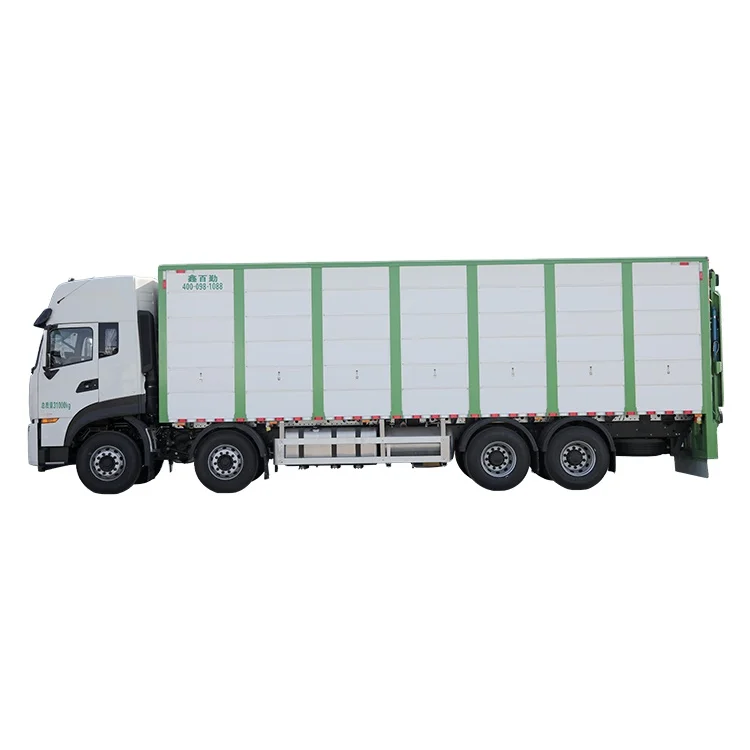

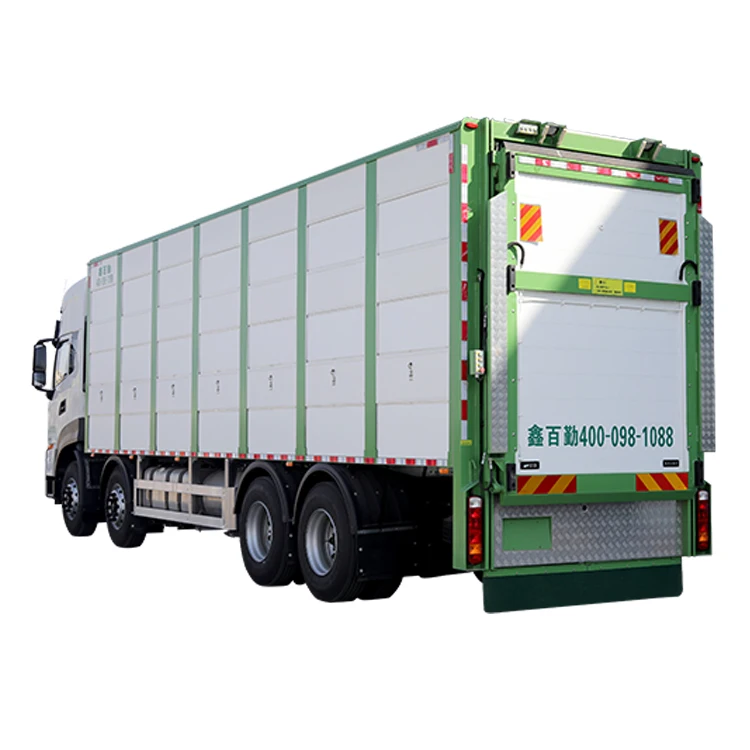

210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck
210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck

210 horsepower 3 floors aluminum body 6.8m 4x2 livestock poultry pig animal transport truck

Share on (1600201725045):


Price:$66,129.00 - $69,355.00

Quantity:


Product Overview

Description





Products Description





Vehicle
Parameters
Overall Dimensions(L*W*H)(mm)
9685×2530×3950
Total Mass(kg)
18000
Curb Weight(kg)
10500
Bulletin loading(kg)
7305
Max speed(km/h)
89
Fuel consumption (l/100km)
23.7
Minimum turning radius(m)
9







Chassis Parameters
Chassis Model/ Manufacturer
DFH5180XXYBX2DV /Dongfeng Trucks Company
Engine model / manufacturer
ISB180 50 /Dongfeng Cummins Engine Co., Ltd.
Transmission model / manufacturer
8JS85E/Shaanxi Fast Gear Co.,Ltd.
Drive Mode
4×2 rear wheel drive
Wheelbase(mm)
5600
Engine capacity(ml)
5900
Maximum torque and rated speed(n.m)/(r/min)
 736/1500
Rated power and rated speed(kw)/(r/min)
155/2500
Tire specifications
295/80R22.5 18PR



Standard Configuration
The tank is designed with a fully enclosed structural frame, made of all-aluminum alloy profiles, with light weight, high strength and strong rust resistance.
The roof is equipped with an advanced umbrella top design that can be lifted up and down to facilitate temperature control during top loading, unloading, cleaning and disinfection.

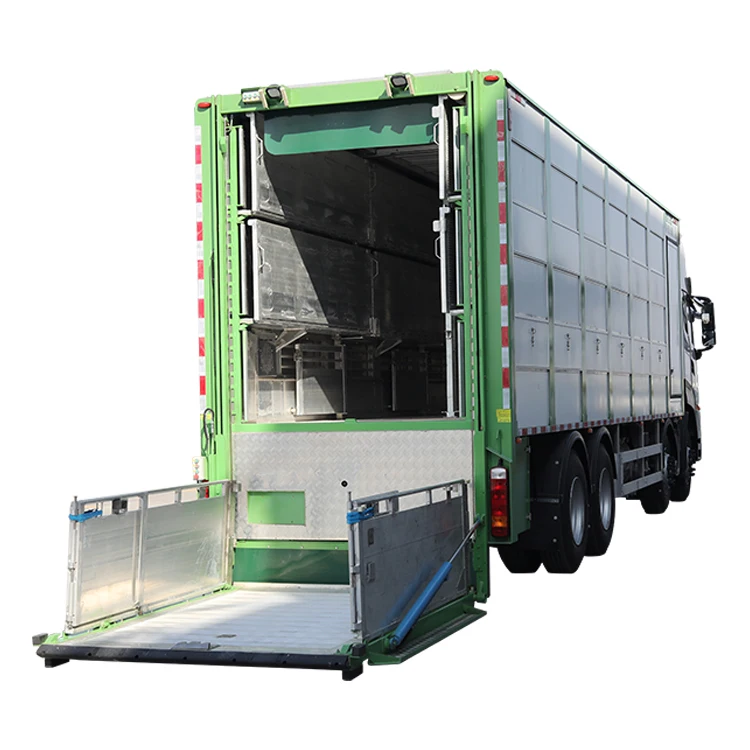

The professional equipment imported from Dutch technology, adopts the tail lifting loading and unloading method, the internal double channel, can be turned up, easy to handle, clean and disinfect
Sliding windows are designed on both sides of the vehicle body for emergency use in high temperature and extreme weather.
Video surveillance and temperature monitoring in the tank
Area(㎡)
42
Number of compartments
9
Voltage(V)
24
 Spray tank volume(L)
350
Layer height per floor (mm)
815/815/865
Water system or spray system can be installed on each floor
Number of front fans(pc)/Air volume(m3/h)/pc
6/2730
Number of rear fans(pc)/Air volume(m3/h)/pc
6/1300
High Configuration
Flanged without partition MERV 15 filter system
Prevent infection of bacteria during transport of pigs
Water system or spray system can be installed on each floor.
Insulation partitions are installed on both sides and top of the tank to effectively avoid high temperature conduction and control
the internal temperature of the tank.
