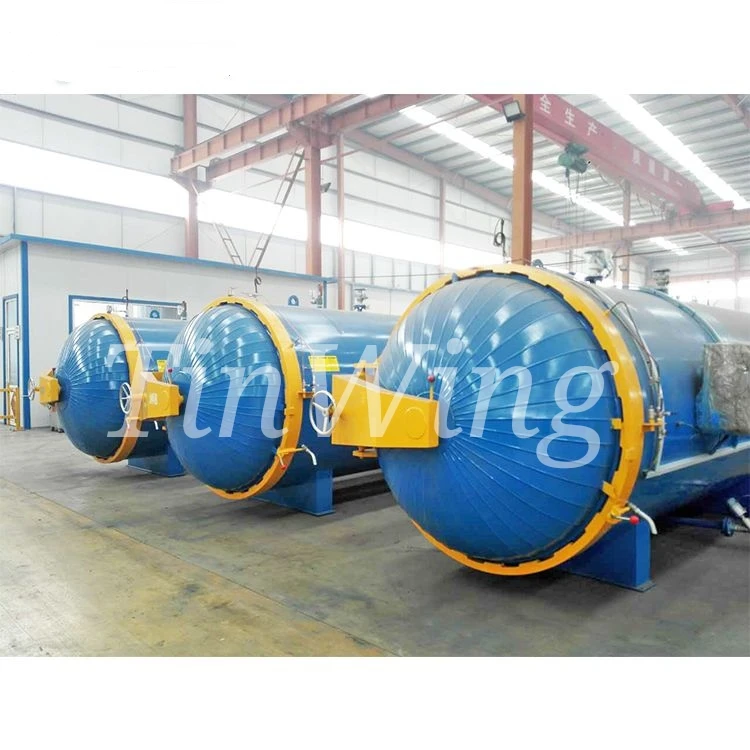

Product Introduction:The composite material autoclave mainly used to the composite materials by high temperature and high pressure, such as military products,space vehicle.It also can be applied to strengthen the carbon fiber,glass fiber etc.
Tinwing can provide a key solution according to customer requirement . We have professional R&D Engineers, manufacturing engineers, electrical engineers as well as service team. When you purchase a Tinwing product, will receive a key solution service
System Composition:
1.Tank The tank consists of tank body, door, high-temperature motor, insulating layer and so on, All these form a tank which can resistance high pressure and high temperature. 2.Safety interlock device Safety interlock device include high pressure automatic interlocking, manual interlocking, and ultra-high pressure alarm device. 3.Door sealing device Adopted silicone inflatable gasket, can resist high temperature 400 ℃. 4.Pressure system It includes a compressor, a gas storage tank, pressure control valves, pipeline, pressure sensor, pressure gauge and so on. 5. Heating system Use heating tube as heating source. 6. Temperature cycling system The circulating fan, a wind guiding plate and a diversion cover form a uniform temperature field. 7. Vacuum system It includes of vacuum pump, pipeline, vacuum gauge and vacuum valve. 8. Automatic control system Adopting SIEMENS PLC control system realizes high precision control of the pressure, temperature, cooling and other process parameters and real-time recording.
Product Superiority
1.Powerful database system ,
2.Good measurement accuracy,
3.Stable running,
4.Low energy consumption,
5.Simple operation.
Size Information
TYPE
1600*2500
2000*3500
2500*5500
3000*6500
3500*7500
4000*8500
Max Work Pressure
3.8MPa
1.0MPa
1.0MPa
1.5MPa
1.2MPa
1.2MPa
Design Pressure
4.0MPa
1.2MPa
1.2MPa
1.6MPa
1.3MPa
1.3MPa
Maximum Working Temperature
400℃
250℃
250℃
250℃
250℃
250℃
Design Temperature
420℃
270℃
270℃
270℃
270℃
270℃
Insulation
Internal insulation, 200mm
Internal insulation, 150mm
Internal insulation, 150mm
Internal insulation, 150mm
Internal insulation, 150mm
Internal insulation, 100-150mm
Total Power
60kw
90kw
210kw
330kw
510kw
780kw
Application Fields
Aerospace Industry
Automobile Industry
The New Field Of Energy
Glass Industry
Ballistics Industry
The Nuclear Industry
Packing&Shipping
Package: standard package for sea We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.
Company Introduction
Shandong Tinwing Machinery Manufacturing Co. Ltd. is a professional pressure vessel manufacturer . The company has pressure vessel manufacturing certificates: China government pressure vessel A2 certificate (No. TS2237G06-2024), ASME and CE (PED). Tinwing has advanced manufacturing and detection equipment, strong technical power, strict detection standard and quality assurance system. We cooperate with many colleges scientific research institutes, military enterprises at R&D and manufacturing. Our autoclave can be applied in aerospace,defense weapon, transportation, racing car, sailing boat, fan, rubber shoes, rubber hose, wood vacuum pressure treatment, wood dyeing etc, widely used in many fields. We can provide a reasonable solution for customers according to their requirements. And we also provide the product's design, manufacturing, installation, commissioning , maintenance for customers. We have cooperated many customers in many countries, such as America, Mexico, Columbia, Venezuela, Peru, Ecuador, Australia, Russia, Vietnam, Sri Lanka, Tajikistan, Ukraine, Saudi Arabia, Poland, United Kingdom, Spain, Libya etc.
Our Workshop
Our Customers
Certifications
FAQ
1. What are the payment terms? T/T,L/C and trade assurance are acceptable,T/T will be more appreciated,30% deposit before production,70% balance before shipment. 2.What is the delivery time? At least 2 month after the deposit for most machines 3.How to pack the machine? Standard packaging 4.How to install after the machines arriving destination? Our engineer will go to customers site if you need,but need to pay installation fee according to the contract. 5.What's the capacity you can do? We always produce any capacity depend on customers' requirement.
