2021 Hot Sale Double Impeller Gold Leaching Agitation Tank

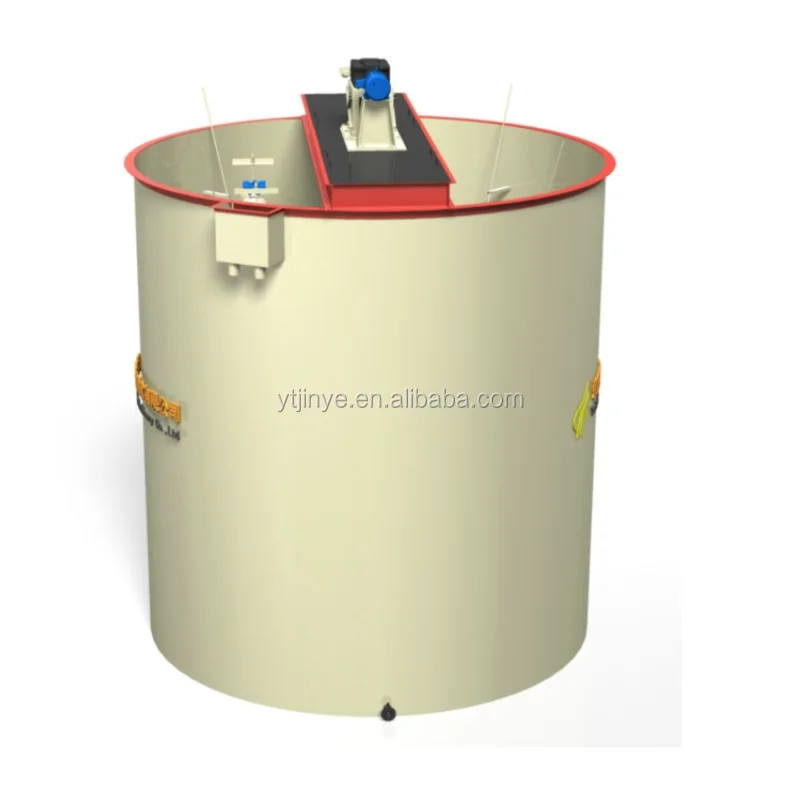

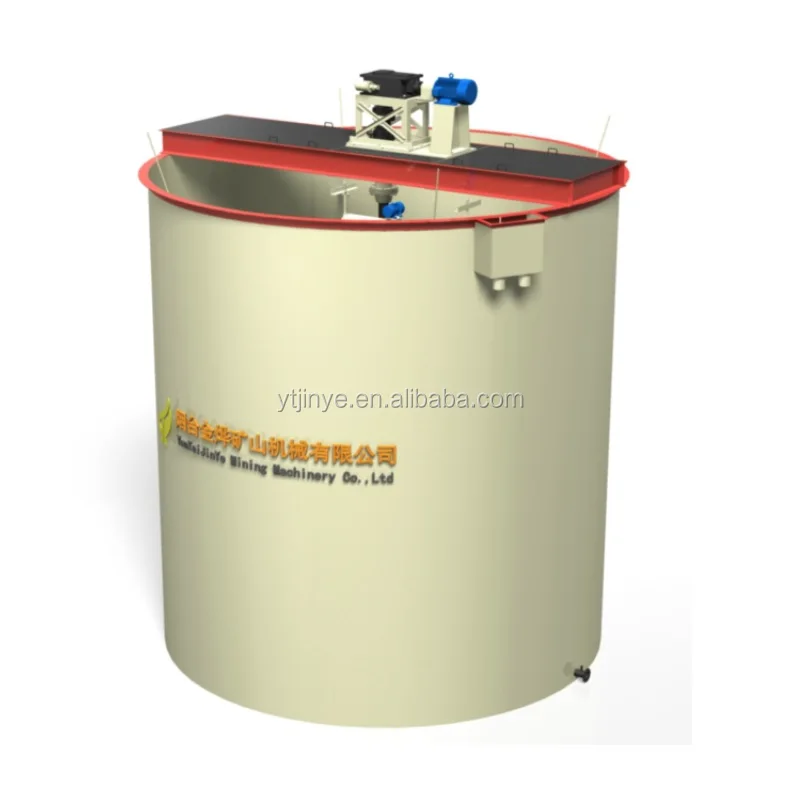

The high-efficiency agitation tank is a kind of mixing equipment that can make the slurry move up and down in the agitation tank. Our company has made great improvements to the original process, using umbrella-shaped impellers to apply downward pressure to the ore slurry, so that the ore slurry can do up and down circulation movement along the diversion device, which is the full fusion of the agent and the slurry. On the basis of the original, work efficiency and cost have been greatly improved.
Model
Specs of tank
D x H
(mm)
Effective volume (m³)
Impeller revolution (r.p.m)
Diameter of impeller (mm)
Motor power (kw)
SJ2.0x2.5
2000x2500
6
52
909
2.2
SJ2.5x3.15
2500x3150
13.14
52
935
2.2
SJ3.0x3.0
3000x3000
18
40.85
1130
4
SJ3.0x3.15
3000x3150
18.93
43
1130
4
SJ3.0x3.5
3000x3500
21
43
1130
4
SJ3.15x3.55
3150x3550
24
43
1260
4
SJ3.5x3.5
3500x3500
30
52
1310
5.5
SJ3.5x4.0
3500x4000
32.7
52
1310
5.5
SJ3.55x4.0
3550x4000
33.6
43
1310
4
SJ3.7x4.2
3700x4200
38.4
42
1310
4
SJ4.0x4.5
4000x4500
48
35
1750
7.5
SJ4.5x5.0
4500x5000
71.57
35
1750
7.5
SJ5.0x5.6
5000x5600
98
31
2046
11
SJ5.5x6.0
5500x6000
112
31
2100
11
SJ7.0x7.5
7000x7500
245.4
21
2400
22
SJ7.5X8.0
7500X8000
268.6
21
2900
18.5
SJ8.0x8.5
8000x8500
342
18.5
3200
30
SJ8.5x9.0
8500x9000
395
18.5
3300
30
Working Principle
2021 Hot Sale Double Impeller Gold Leaching Agitation Tank

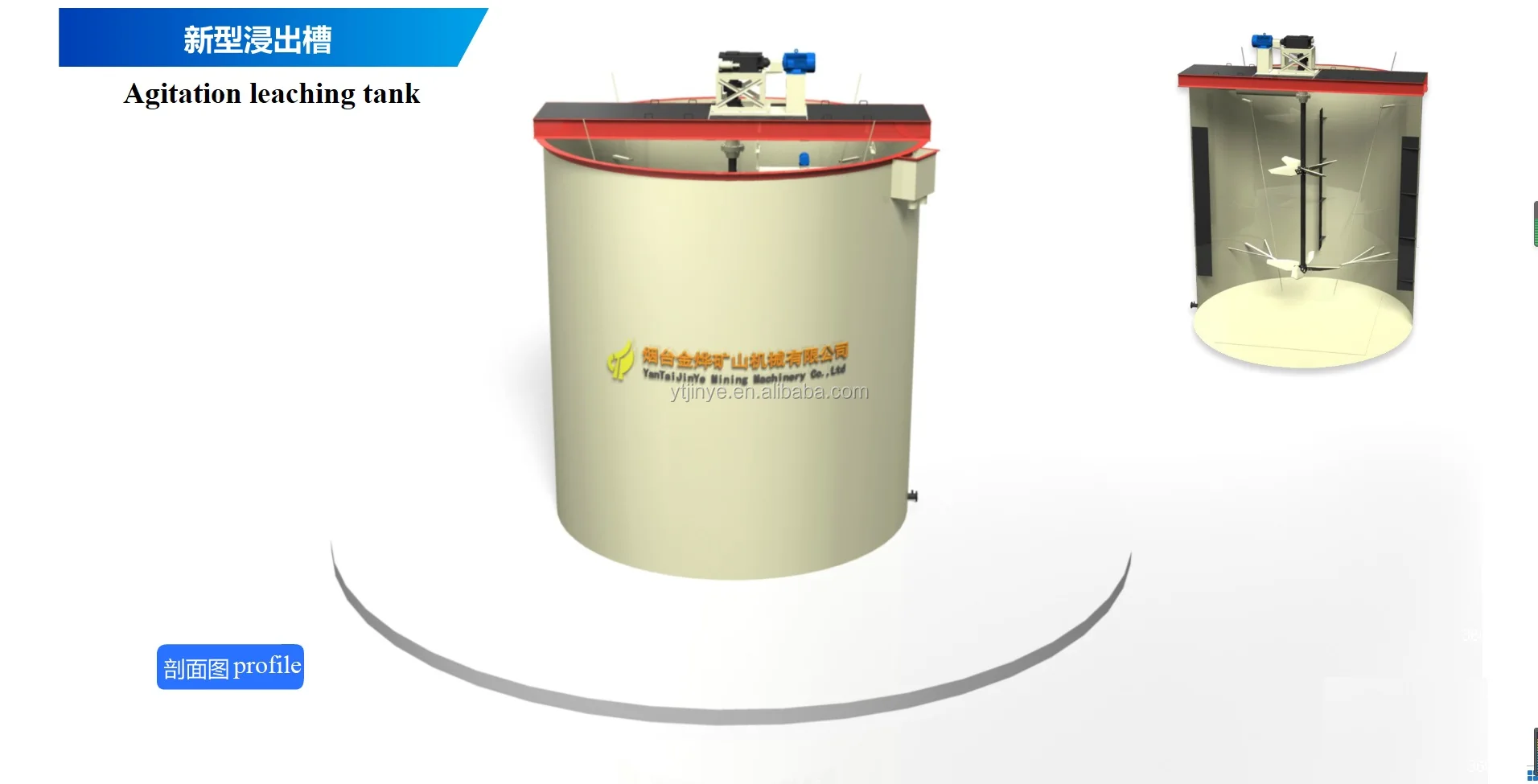

The ore pulp is discharged from the lower end of the impeller in the axial direction under the rotation of the blade impeller, and a negative pressure is formed in the impeller cavity, so that the ore slurry flows into the impeller cavity from the impeller to supplement. At the same time, under the effect of the flow guide of the flow stabilizing plate, the ore pulp forms a vertical circulating flow with the center down and the circumference up in the tank. When the upflow velocity of the slurry is greater than the settling velocity of the ore particles, the ore particles in the slurry will be in a suspended state and maintain a uniform concentration.
Features
2021 Hot Sale Double Impeller Gold Leaching Agitation Tank
1.Strong mixing ability of slurry in impeller design ; 2.The impeller high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability; 3.The enhancement of circulation capability improves flotation index; 4.The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.
5.Stable operation and convenient maintenance.
Applications
Application of high efficiency agitation tank
It is mainly used in the slurry mixing in front of the flotation equipment operation, which is a full combination of reagents and slurry, but can also be used in the chemical building materials industry, as well as industrial departments such as cyanide plants, sewage treatment plants, coal preparation plants.
