Product Overview

Description

Model	SF-400LA	SF-5030LG
Power	2.0kw	16kw
Power Supply	AC 220V 1/3PH 50/60Hz	AC 380/220V 3PH 50/60Hz
Max. Packing Size L×W×H	L+H≤530mm W+H≤430mm H≤135mm	W400×H200mm
L Bar Size L×W×H	550×450mm	/
Tunnel Size L×W×H	/	1500×500×300mm
Packing Speed	15m/min.	0~20m/min.
External Air Source	6-8kg/cm2	/
Shrink Film	POF	POF
Machine Size L×W×H	1860×880×1660mm	1894×985×1260mm
Packaging Size L×W×H	1830×860×1560mm	1870×1010×1440mm
G./N. Weight	475/453kgs	482/453kgs

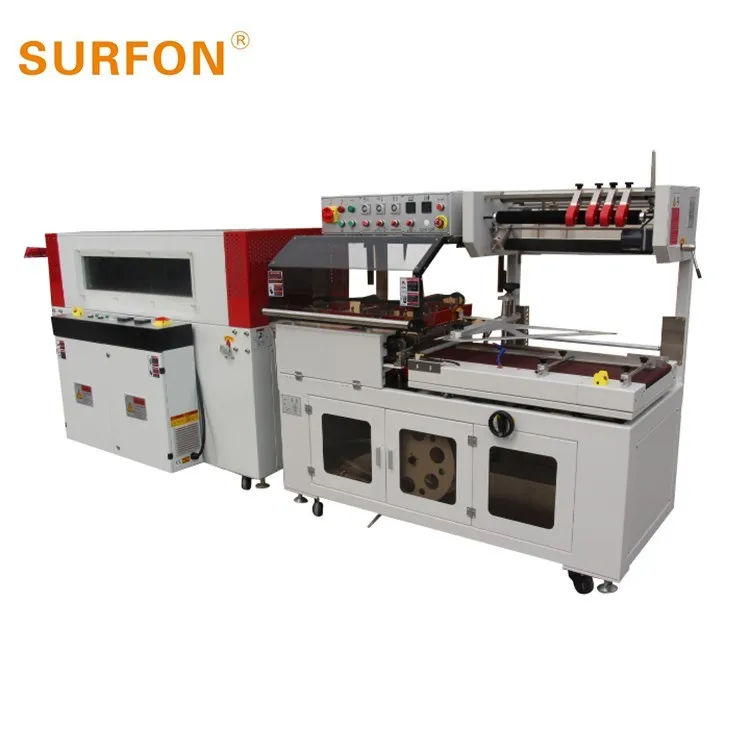

• SF-400LA is a fully automatic unmanned operation L-bar sealer which is widely used in mass production packaging line with high efficiency. Automatic film feeding punching device, manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items;


• The cooper L type sealing blade with PTFE-coating is anti-stick & anti-high temperature.Compared with the aluminum sealing blade, the cooper blade has much longer life span. So the sealing will not have cracking, coking and smoking with zero pollution;


• Automatically-feeding: the length can be auto adjusted by the sensors and time relays. Matched the gear motor makes the waste film automatically rolling;


• Automatic pack bag length determined through horizontal or vertical sensors depending from the product shape. Thin and small items can be sealed easily;


• Infeed conveyor belt with a continuous or synchronized movement with the sealing bat;


• When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;


• Multi-pack function: Different size products can also be packaged combinations to achieve the promotional effect;


• Using original Omron digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate and we can be arbitrarily set. Do not worry about hurting the product for imprecise temperature. The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting;


• The machine is equipped with acrylic cover and automatic alarm function which greatly improves safety;


• Film up-down synchronization mechanism specially designed to correct the deviation film;


• Micro film perforation during the film unwinding to make air escape rapidly and get good shrinking effect;


• SF-5030LG shrink tunnel adopts stainless steelheating elements which greatly extended the machine’s life span;


• All chain bars use solid 45 # steel and protect from external silicone tubes or fiber tubes without film burning. PTFE coated fiberglass mesh belt conveyor or S.S. mesh belt for option;


• Control systems regulating temperature, air velocity and conveyor speed allow for a variety of operating condition and ensure optimum shrink on all heat shrinkable packaging films. Micron frequency inverter instead of electronic speed regulator prolongs the service life;


• The circulation system allows hot air to reach all surfaces of the package, resulting in a uniform shrink on a wide range of product sizes and configurations;


• Applies to software, food, cosmetics, printing, pharmaceutical and hardware etc. It is a good choice for customers who have limited space and require high working efficiency.

Sealer	Brand	Country
Sensor	Banner	USA
Cylinder	Airtac	Taiwan
Solenoid Valve	Airtac	Taiwan
Solid State Relay	Aole	Taiwan
Conveyor Motor	Li Ming	Taiwan
Film Motor	Li Ming	Taiwan
PLC	Fatek	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Omron	Japan
Time Relay	Omron	Japan
Switching Power Supply	Schneider	France
AC Contactor	Schneider	France
All Switches	Siemens	Germany
Belt	Esbelt	Spain

Shrink Tunnel	Brand	Country
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Micro Frequency Inverter	Nianbo	Korea
Intermediate Relay	Siemens	Germany
Solid State Relay	Fotek	Taiwan
Temperature Controller	Autonics	Korea
Switching Power Supply	Mean Well	Taiwan
Overload Relay	Schneider	France
AC Contactor	Schneider	France
All Switches	Siemens	Germany

Video Link	Product
https://youtu.be/0Tgswf1ymsg	A4 paper
https://youtu.be/C0RAmwOOQ90	Box
https://youtu.be/QolrNMex9ak	Red Box with U Type
https://youtu.be/izaH1NP625I	Family Fast-food Lunch boxes
https://youtu.be/ezDq5EZd_0g	Two Oil Bottles
https://youtu.be/LXMmJnO5yMg	Cosmetic Bottles with Tray

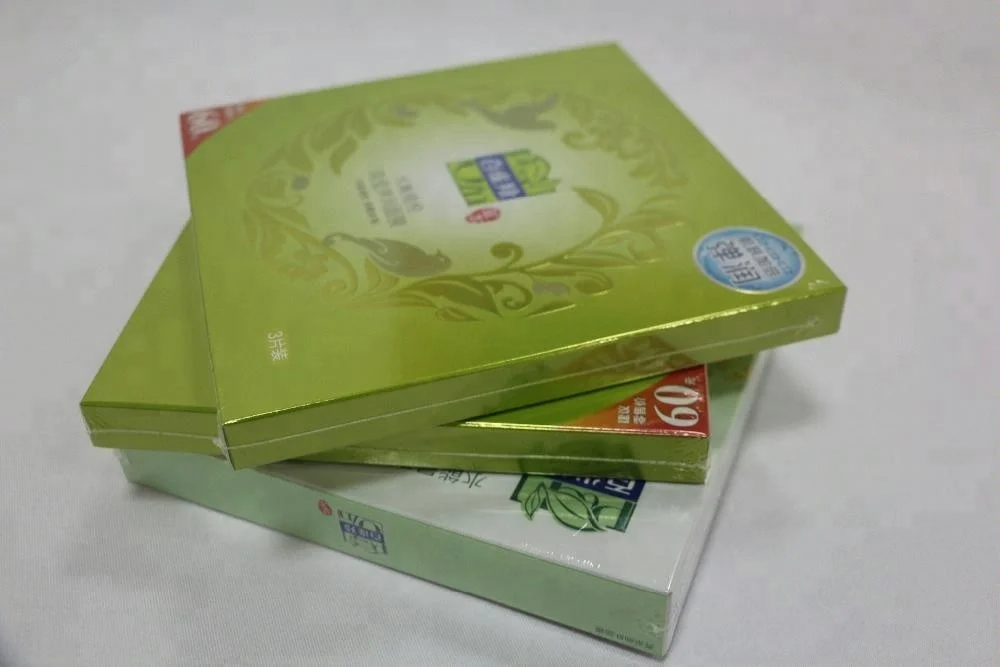

https://youtu.be/-DEUU86Ubc8	Tea Boxes 3x4
https://youtu.be/1jqedHXOcow	Cardboard
https://youtu.be/_q5RYUxAazI	Shampoo
https://youtu.be/OfvjqK1fb34	Transparent Small Bottle
https://youtu.be/-1eQWjmKUzs	Petri Dish

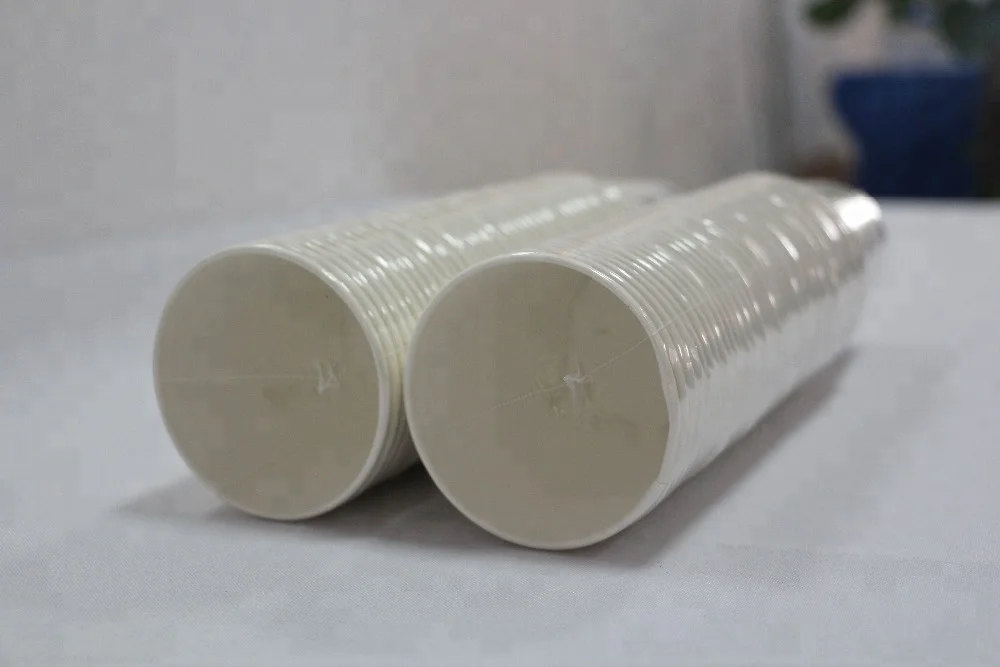

https://youtu.be/u37OVntdyg4	Two Rolls
https://youtu.be/Si3ZPLUR1VA	Notebook
https://youtu.be/UKmIRw-41NE	Medicine box
