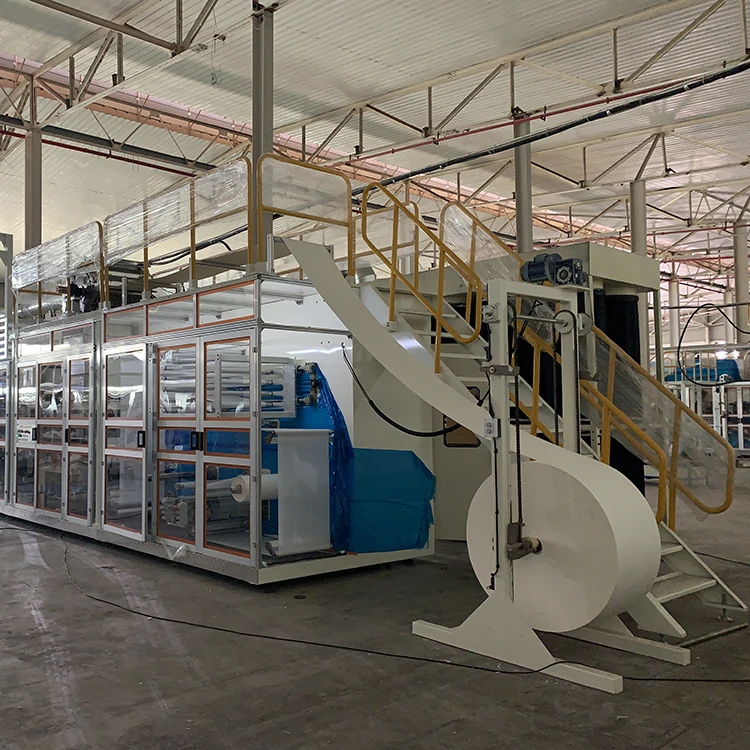

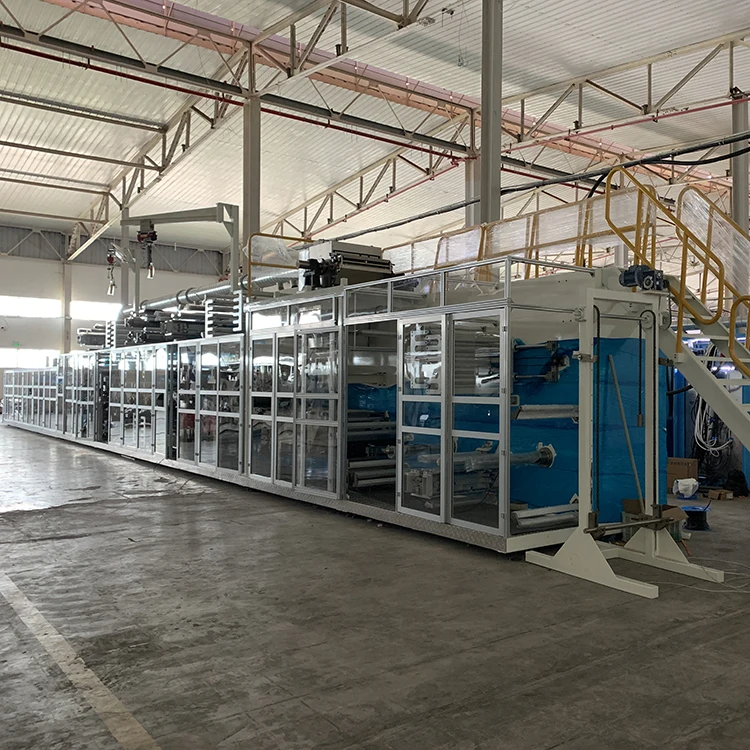

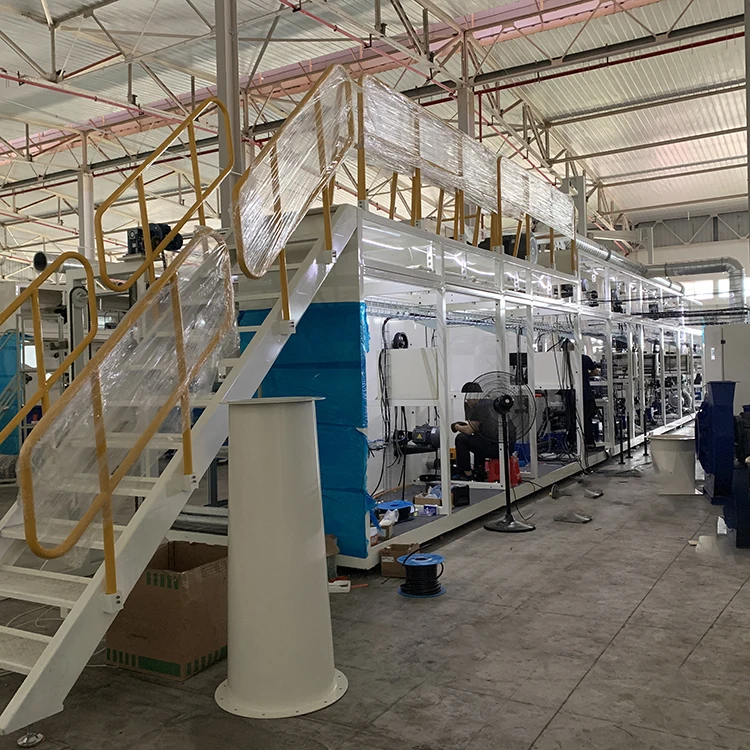

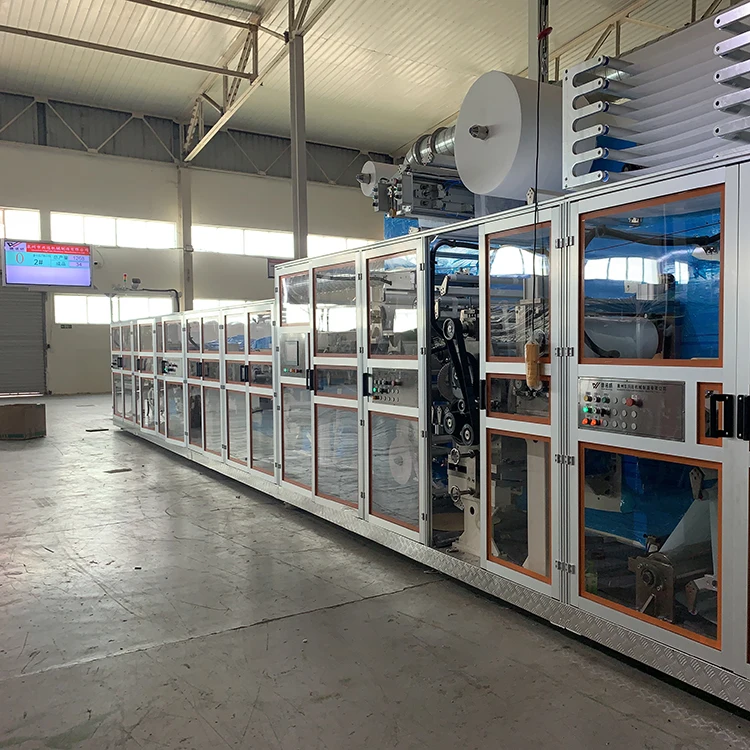

pet pads making machine fully automatic underpad making machine underpad machine production UNDERPAD PRODUCTION LINE
- Category: Paper Production Machinery >>>
- Supplier: Quanzhou Xingyuan Machinery Manufacture Co. Ltd.
Share on (1600205339873):
Product Overview
Description
Specification
Product Type | Pad Machine |
Processing Type | Laminating Machine |
Place of Origin | China |
Fujian | |
Brand Name | DNW Machinery |
Voltage | 380V 50Hz |
Power | 250kw |
Dimension(L*W*H) | 25m*6m*4.5m |
Weight | 70Ton |
Production Capacity | 250 meters per minute |
Finished Products | under pad |

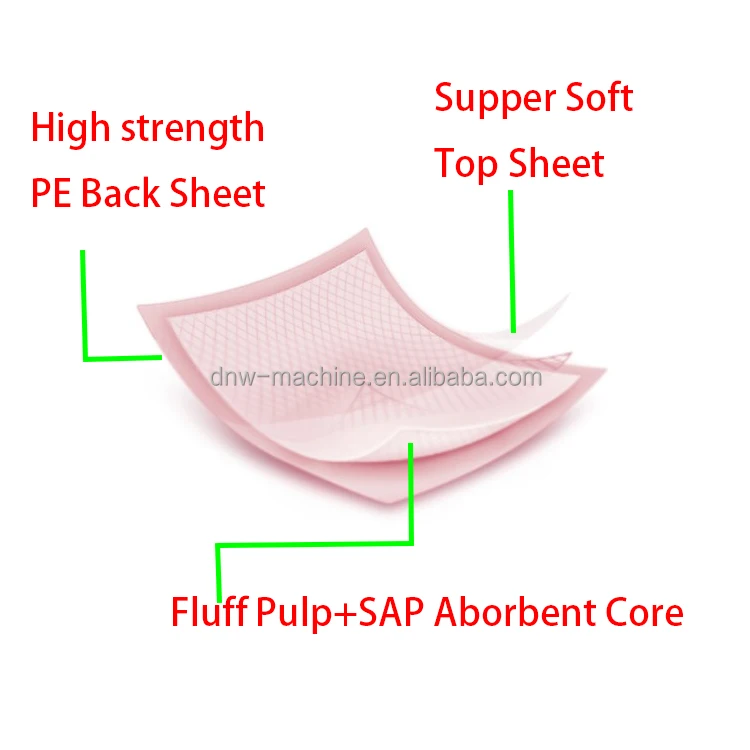

Raw material | Non-woven;PE film;SAP;Hot melt glue;Tissue paper |
Color | Rich White;customerized |
Capacity | 250 meters per minute |
Control system | PLC+SERVO motor |
Automation | Fully Atuomatic |
Working Air Source | Air Pressure 0.4-0.8Mpa |
Operation | 8-10 Persons |
Rated Productivity | 70,000pcs per shift |
Products Description
Design Speed | 300meters/minute | installation capacity | About 250Kw |
Working Speed | 220~250 meters/minute | Electricity | 380V ±5%、50HZ |
Qualified rate | >= 98% | Total weight | About 75Tons |
Efficiency | >= 85% | Machine size | 24×8×5 M(L×W×H) |

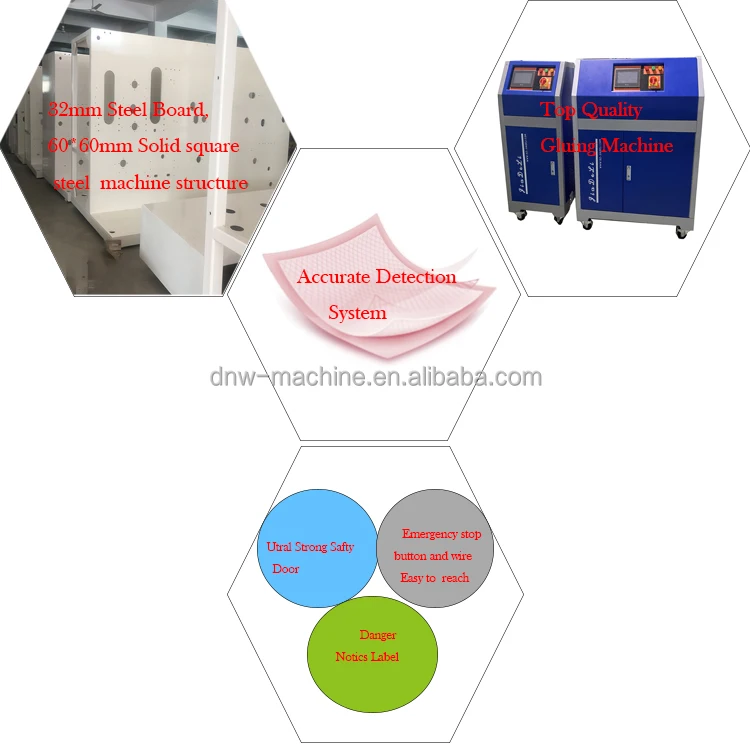

Machine frame structure and main characters
1).Solid square steel frame: Panel 30mm thick , solid cage use 60 * 60mm square steel, the base use 120mm × 120mm square tube, back transmission gearbox are widened for easy repair. Bottom panel 18mm thick. The main frame panel adopts six-sided high-precision plane grinding and module design to ensure the stability of high-speed operation.
Adopt stainless steel covering the machine surface, better appearance and much cleaner.
Adopt stainless steel covering the machine surface, better appearance and much cleaner.
2)Fluff core adopts direct-head feeding system, the cellulose is evenly distributed, and the width of the cotton core is adjustable within 400-550mm.
Servo System:
(1)All servo motors unified controlled by PLC, realize the precious adjustment of each driving unit.(2)Each servo motor running condition can be shown and revised through touchable screen.
(3)Do not need to change any transmission part to change product’s size
(4)Machine can remotely controlled, change parameters according to client’s request, can adjust the size of all raw materials
(5)It can delete the difference of mechanical running in time and guarantee the qualified rate.
Detection system:
(1)All servo motors unified controlled by PLC, realize the precious adjustment of each driving unit.
(2)Each servo motor running condition can be shown and revised through touchable screen.
(3)Do not need to change any transmission part to change product’s size.
(4))Machine can remotely controlled, change parameters according to client’s request, can adjust the size of all raw materials.
(5)It can delete the difference of mechanical running in time and guarantee the qualified rate.
Detection system:
(1)Raw materials connection joint auto detection, auto rejection
(2)Raw materials breaking auto alarm and auto stop
(3)Lycra breaking auto detection and auto rejection
(4)Detection switch shelf is convenient to adjust
Driving system:
(1)Single button starts up one by one to reduce the power network impact.
(2)Without blower start up and glue applicator start up, machine cannot start up. Also this function can be shield.
Company Profile
DNW is located in Jinjiang Nanan Quanzhou machiney and equipment industrial area,is professional engaged in researching ,development,production,sales and service of hygiene product equipment ,and now already is an excellent Manufacturer of Household Paper Equipment.
Our product including:baby diaper production line(I &T shape diaper,baby pants,full elastic waistband diaper),adult diaper production line(adult diaper,adult pants),sanitary napkin&panty liner production line ,under pad production line,disposable breast pad production line.
Our product including:baby diaper production line(I &T shape diaper,baby pants,full elastic waistband diaper),adult diaper production line(adult diaper,adult pants),sanitary napkin&panty liner production line ,under pad production line,disposable breast pad production line.
Packing & Delivery
Bag sealing machine packing is wooden base and stretch film.
Why Choose Us
FAQ
1. Who are we?
We are based in Fujian, China, start from 2014,sell to Southeast Asia(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Baby Diaper Machine,Adult Diaper Machine,Sanitary Pad Machine,Under pad Machine
4. Why should you buy from us not from other suppliers?
Management Idea:Take the customer as the focus of attention, take the market demand as the direction
supply a station service,from raw material,calculate cost,machine to management.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
We are based in Fujian, China, start from 2014,sell to Southeast Asia(00.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Baby Diaper Machine,Adult Diaper Machine,Sanitary Pad Machine,Under pad Machine
4. Why should you buy from us not from other suppliers?
Management Idea:Take the customer as the focus of attention, take the market demand as the direction
supply a station service,from raw material,calculate cost,machine to management.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,Russian
