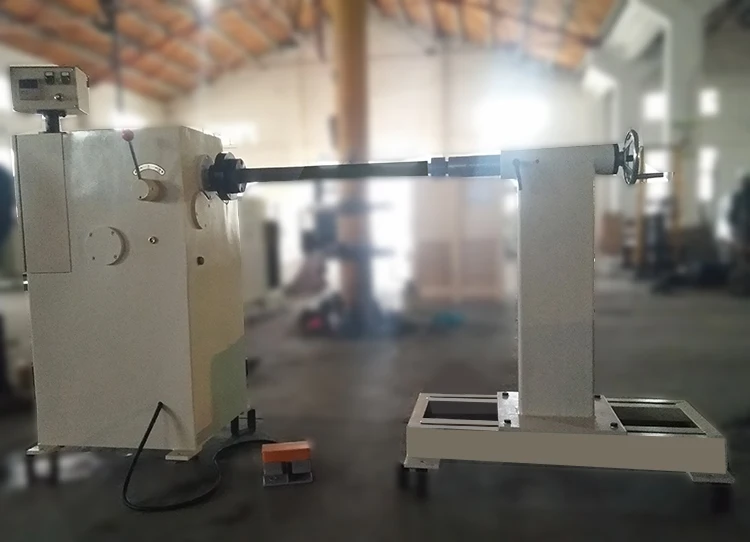

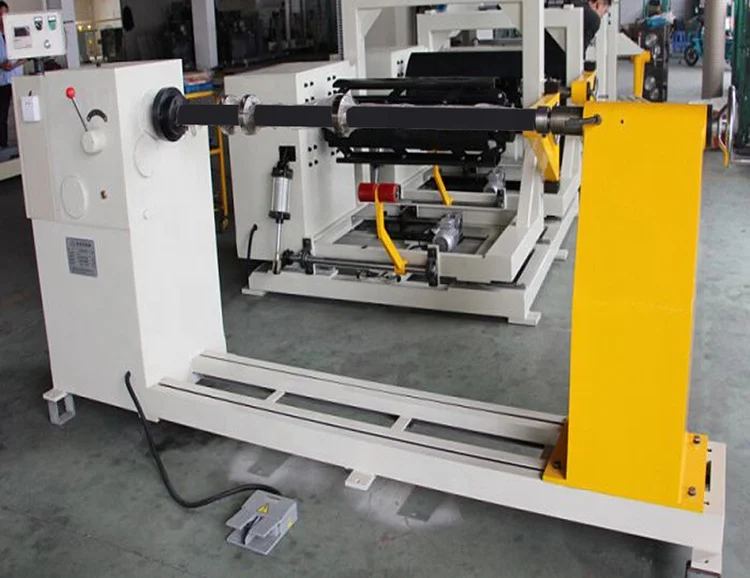

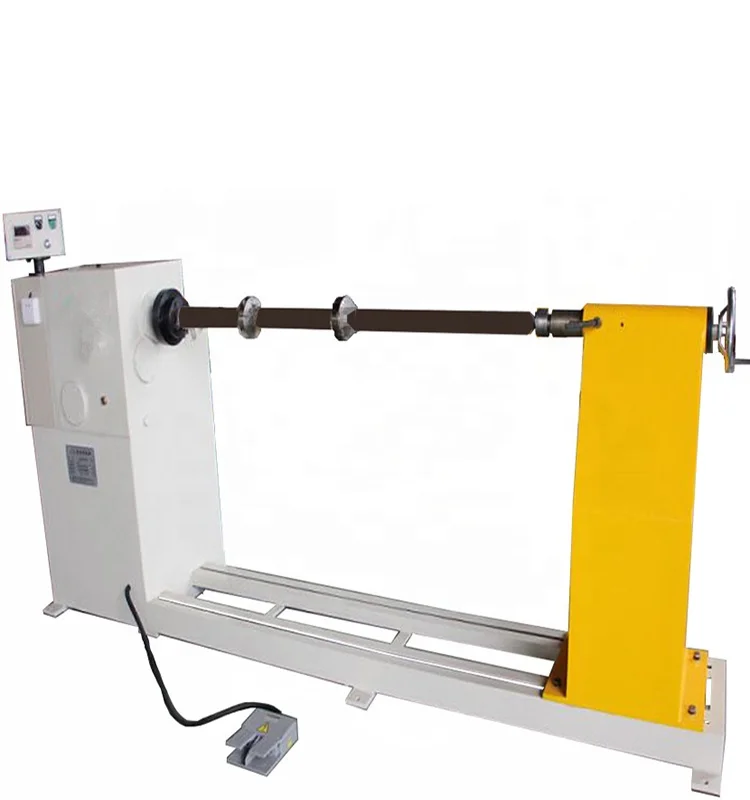

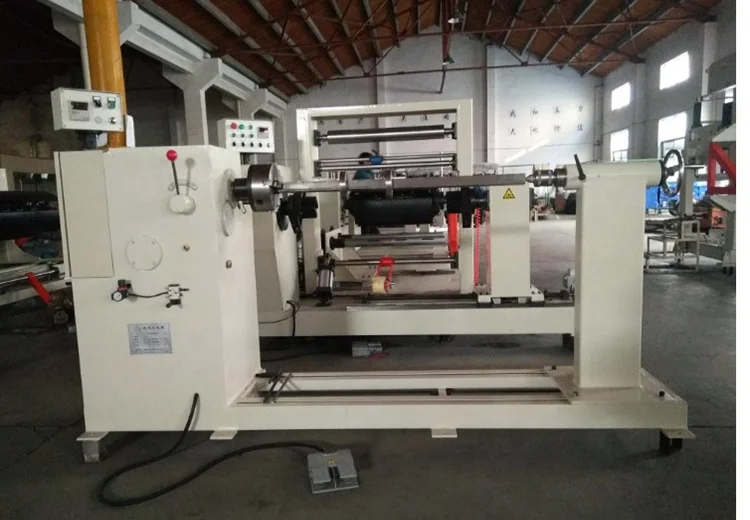

Semi Automatic HV LV Oil Type Distribution Transformer Coil Winding Machine
Introduction
Semi Automatic HV LV Oil Type Distribution Transformer Coil Winding Machine GDY-1T is suitable for winding different specifications of copper or aluminum wire coils, these coils can be used in HV and LV power transformers, motors, reactors, and similar products.

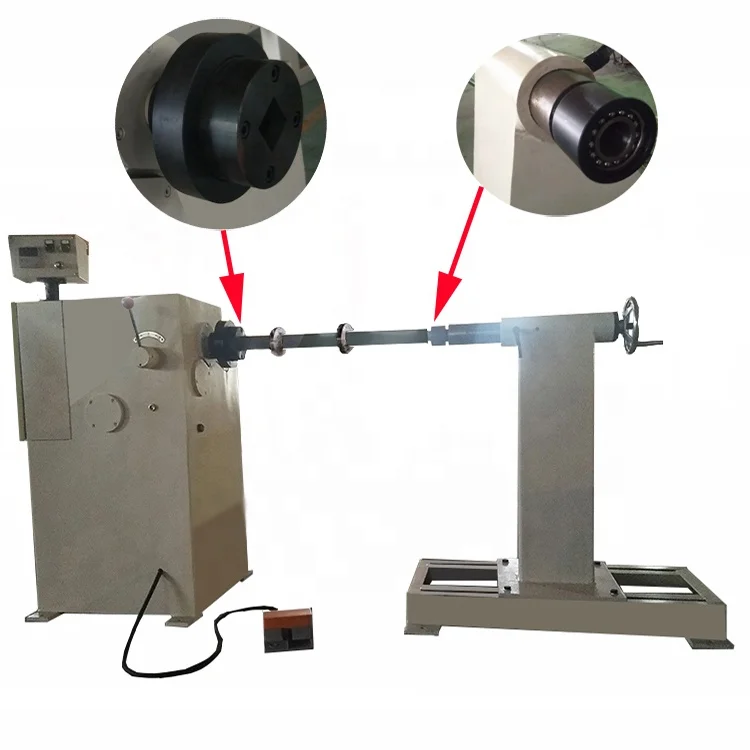

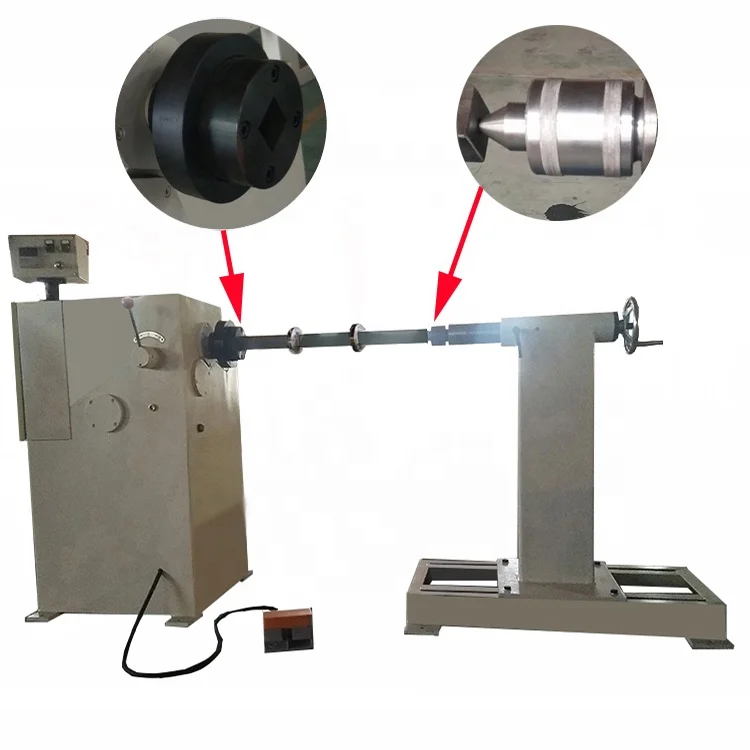

Main Components
1.Main frame
2.Gearbox
3.Tailstock
4.Electric control box
5.Foot switch
Main Parameters
Typical standard specifications of GDY series are shown below, however these can be easily modified as requested.
No.
Item
GDY-1T
1
Center Height
1200 mm
2
Axial Length
800mm
3
Flange Square Hole Size
fixed
4
Working Torque
1200N.M
5
Max. Speed
200 Rpm
6
Counting Range
0-9999.9
7
Max. Load
1T
8
Power Supply
380V
9
Power
3Kw
Warranty
Good after sale services are provided for the machine. The warranty period of the machine is 12 months. During the warranty period, if there is anything wrong with the machine, we will guide you how to eliminate the problem and provide you with components if needed, and all is for free. Beyond the warranty period, we also provide technology support for the machine, if some components are needed, we will provide and charge according to the cost of the components.
