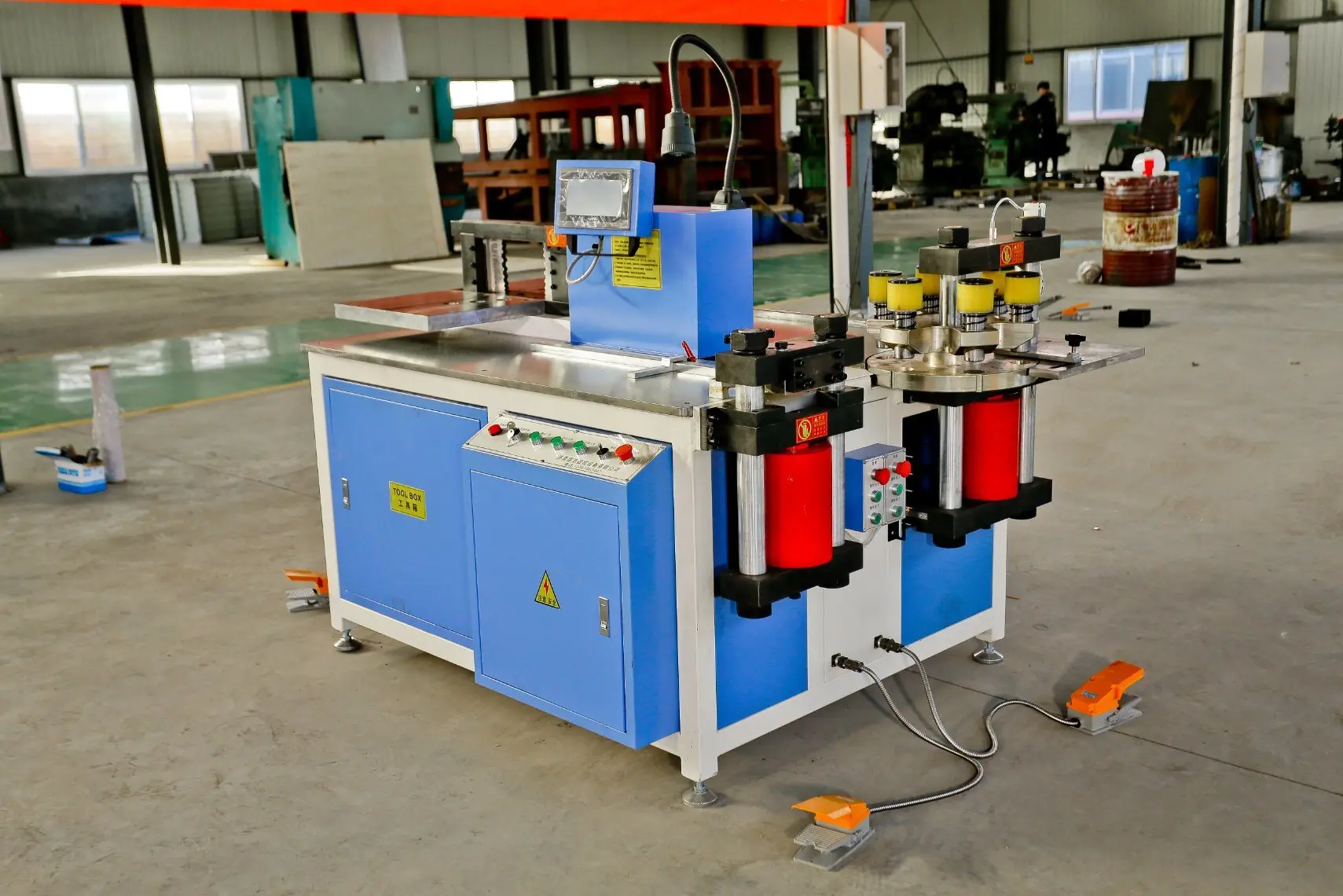

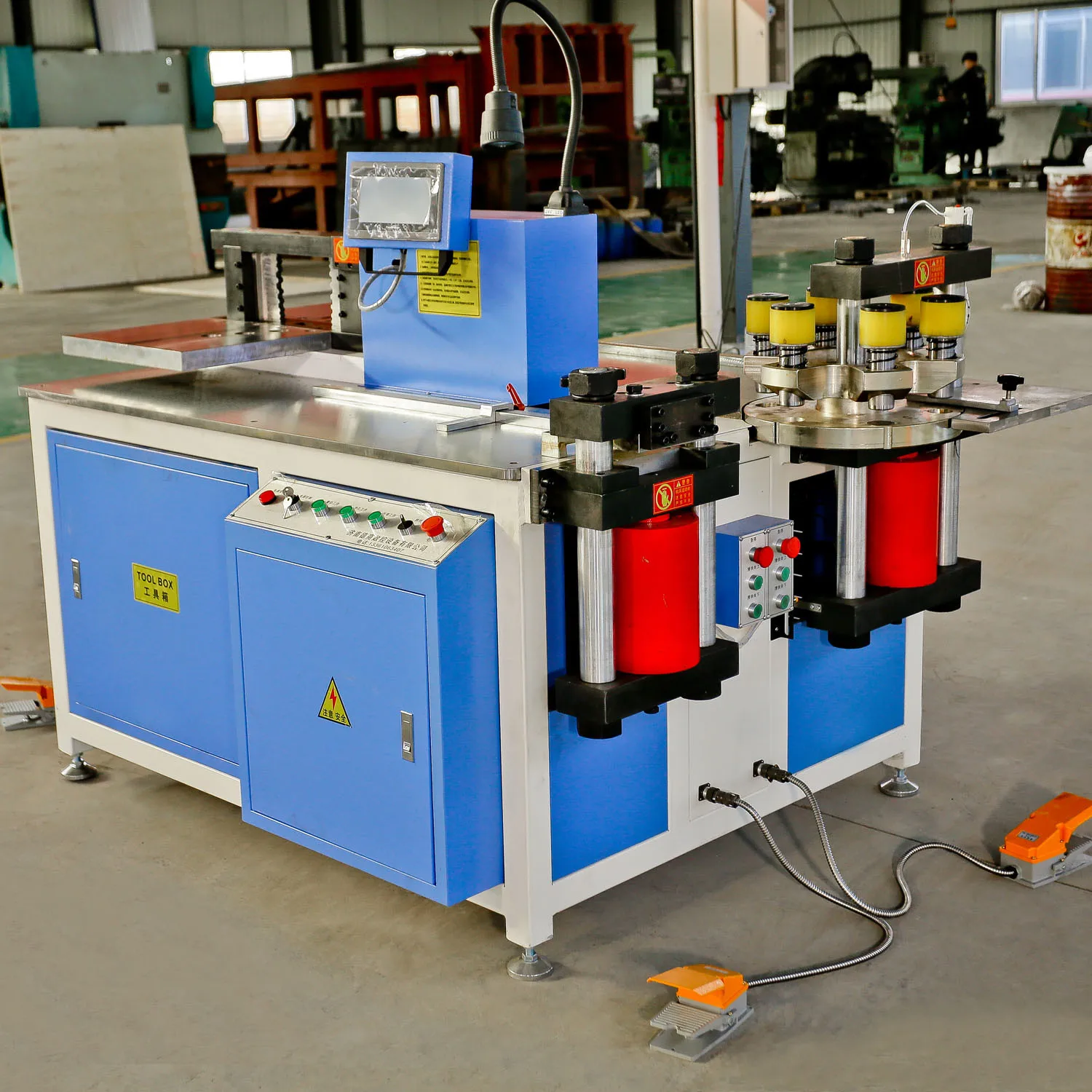

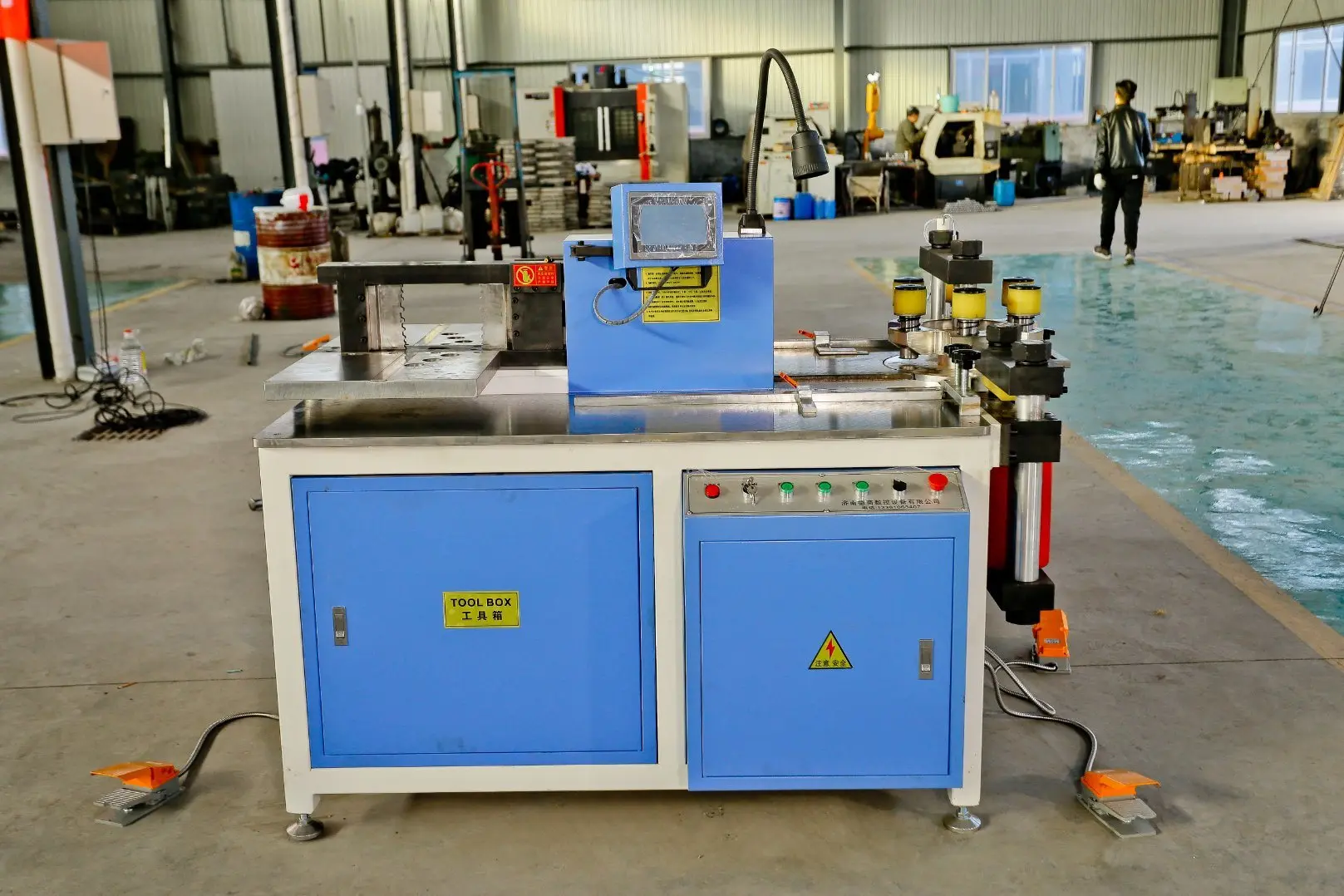

CNC Manufacturing Machine Busbar Processing Machine for Transformer Easy to Use
- Category: Electric Equipment Making Machinery >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1600318385397):
Product Overview
Description
Product Description
DESAN CNC Equipment Co.,Ltd.
Model No.DS-303SK-B

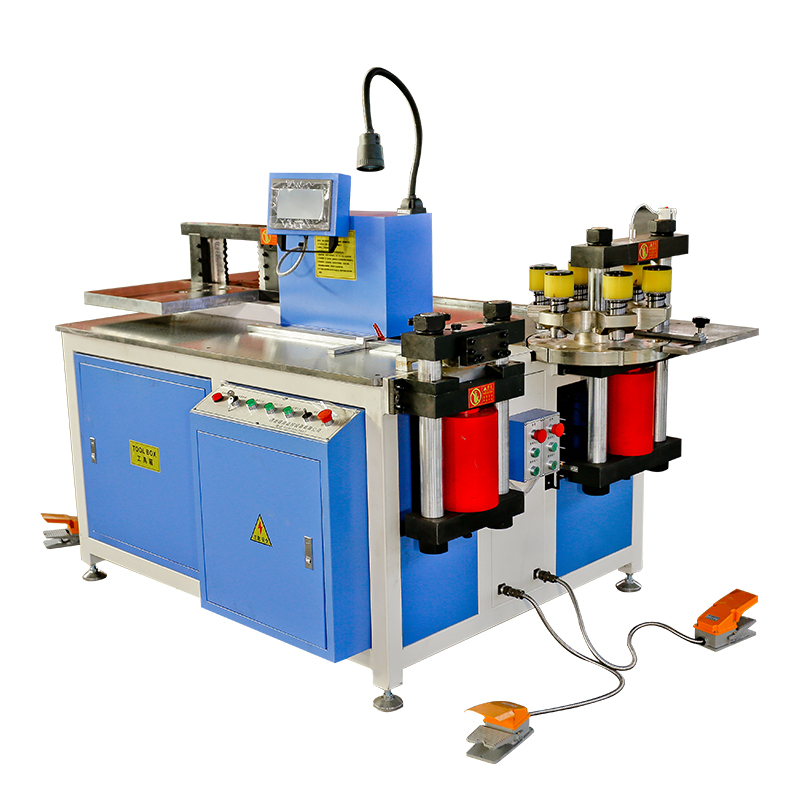

Our BUSBAR machine have three stations: Punching, Cutting and Bending. It can processed for copper and aluminum. Three stations can work at the same time so it will save your time and improve your work efficiency.
Function

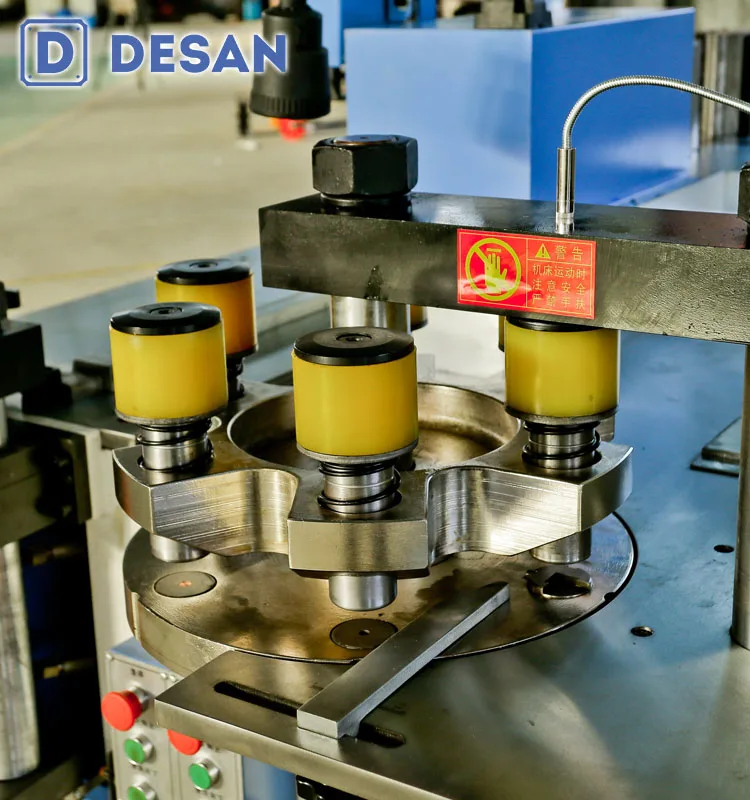

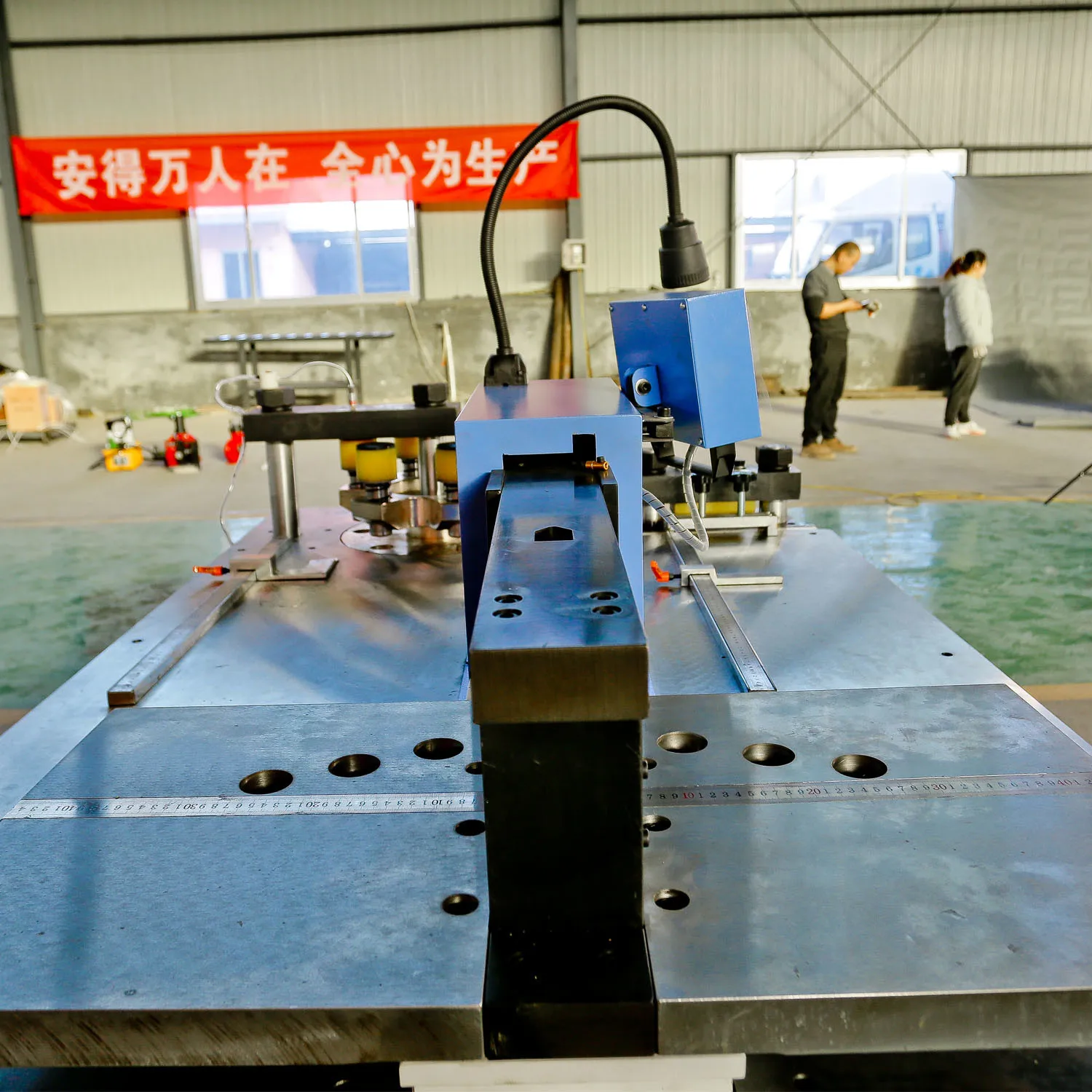

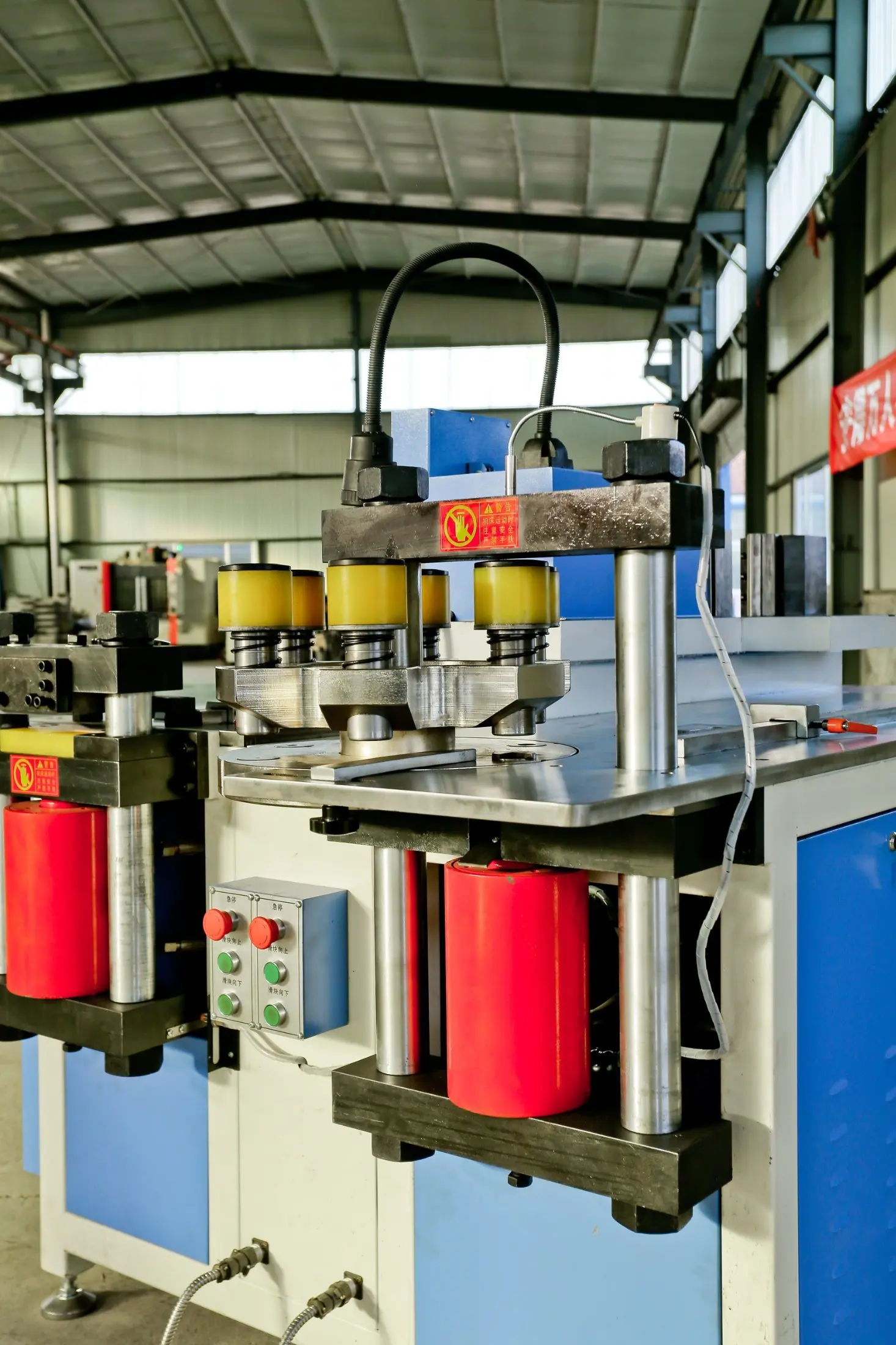

1. Punching
▶Six-dies turn-plate structure make sue the upper die and lower die are always in the center.

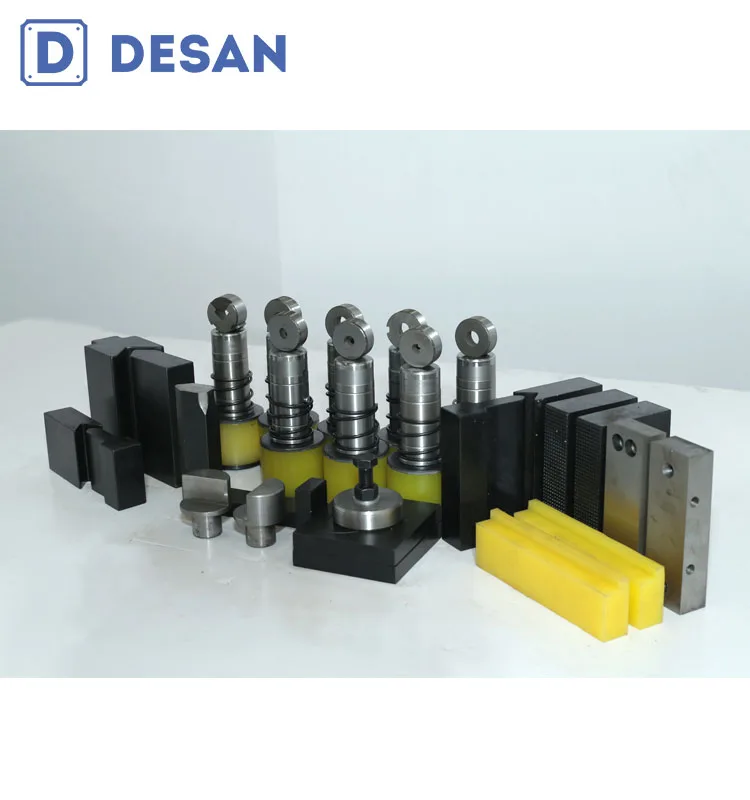

▶Six Punching dies can punch 6 different kinds of holes so you don’t have to replace the dies frequently.
▶It also can punch non-standard holes with special dies, such as square hole etc.
▶Our punching station also have mechanical two-way positioning rulers,laser light and position needles which can help you save time and improve work efficiency.
▶Electroplating technology which is not easy to be rust.

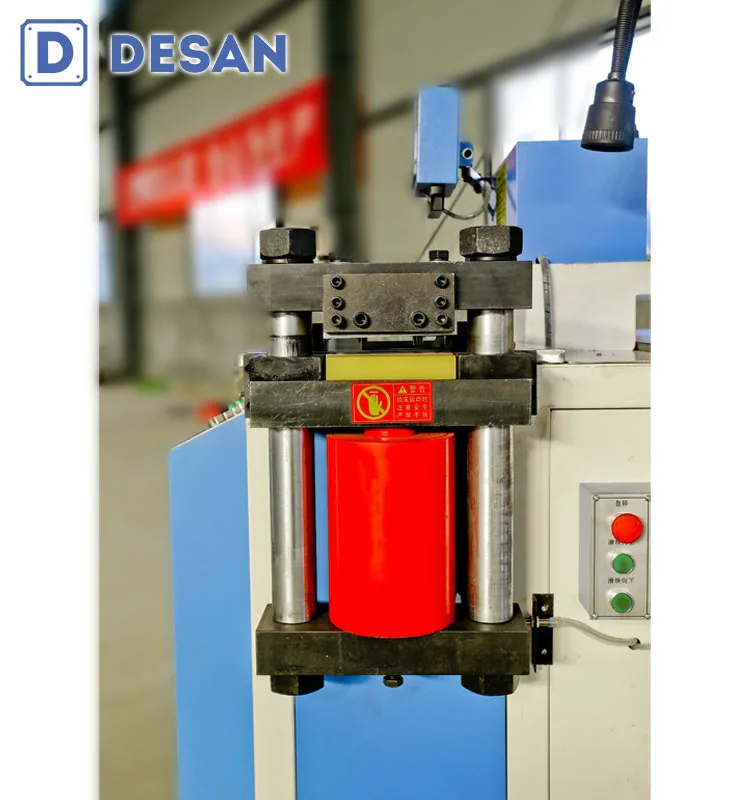

2.Cutting
▶We use sharp shearing. So the interface is really flat without droops burrs or any waste.
▶Two different pressure type to make sure no apex angle.
▶Foot switch and press button.
▶Two different pressure type to make sure no apex angle.
▶Foot switch and press button.
3. Bending
Our bending angle of bending station is controlled by cooperation of PLC and displacement sensor. It also has the function of memory and error compensation which ensure the accuracy and angle consistency of bending.
Advantage of our bending stations
▶ PLC system can automatically generate and process data according to the thickness and curvature of the material.
▶ It can supplement and reuse the field processing data at any time.
▶ The display screen adopts the color touch screen mode, which can display and operate the data.
▶According to the actual operation, the adjustment of elastic compensation and holding time can be set to ensure that the angle is more accurate after processing.
▶ The system also can set parameters of customized bending die to meet the needs of customers.
▶ It can supplement and reuse the field processing data at any time.
▶ The display screen adopts the color touch screen mode, which can display and operate the data.
▶According to the actual operation, the adjustment of elastic compensation and holding time can be set to ensure that the angle is more accurate after processing.
▶ The system also can set parameters of customized bending die to meet the needs of customers.
Product Advantage
▶Punching, blending and cutting stations are all equipped with gauge so you will be easier and quicker to produce the item.
▶For legs of our machine have leveling pads so it will suitable for any kinds of factory floor.
▶Our cutting station is more stable and will cut smooth cutting without any burr.
▶We have not only button but also foot control mode which means it will be much more convenience than before.
▶For legs of our machine have leveling pads so it will suitable for any kinds of factory floor.
▶Our cutting station is more stable and will cut smooth cutting without any burr.
▶We have not only button but also foot control mode which means it will be much more convenience than before.
Three Stations
▶Punching, blending and cutting stations are all equipped with gauge so you will be easier and quicker to produce the item.
Stable Legs
▶For legs of our machine have leveling pads so it will suitable for any kinds of factory floor.
Smoothing Cutting
▶Our cutting station is more stable and will cut smooth cutting without any burr.
Technical Parameters
Function | Item | DS-303SK-B | |
Punching | Max.Punching Power(KN) | 300 | |
Punching Diameter Range(MM) | ф4.3～ф30 | ||
Max.Thickness(MM) | 15 | ||
Max. Width(MM) | 160 | ||
Cutting | Max.Cutting Power(KN) | 500 | |
Max.Shearing Thickness(MM) | 15 | ||
Max. Shearing Width(MM) | 160 | ||
Bending | Max.Bending Power(KN) | 300 | |
Max.Thickness(MM) | 12 | ||
Max.Width(MM) | 150 | ||
Out Dimension | MM | 1890*1350*1400 | |
Power | KW | 3*4KW | |
Weight | KG | 1300 | |

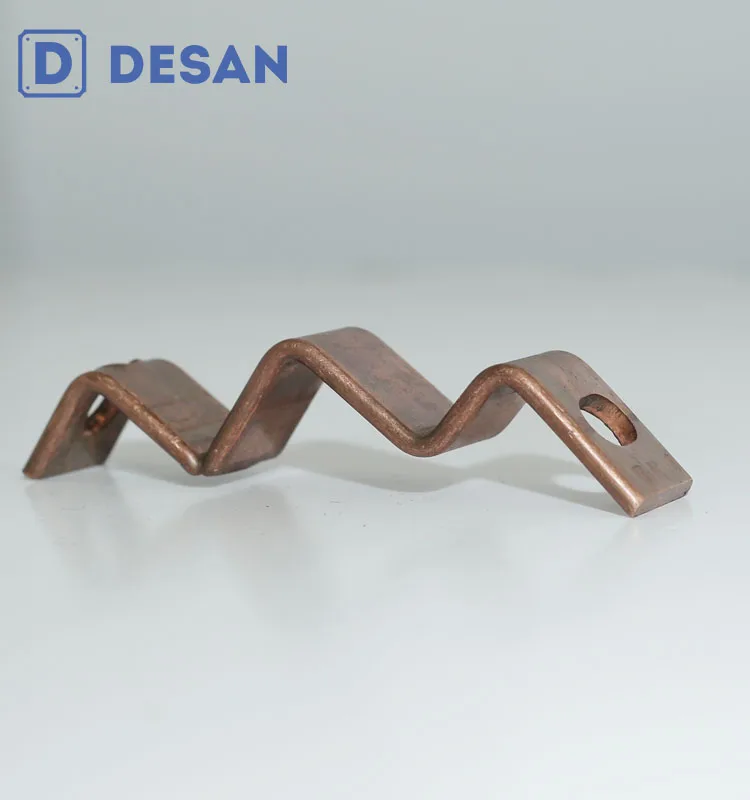

About CNC | We use Siemens PLC control which you can just enter the angle. The bending precision is ±1°and repeat bending precision ±0.5°.Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need. (as Z type blending) | ||

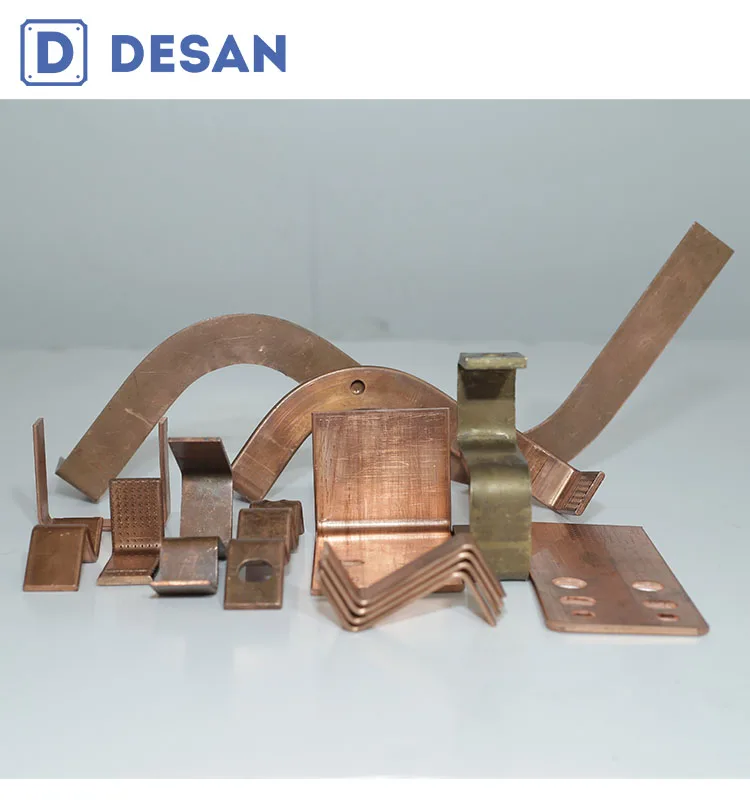

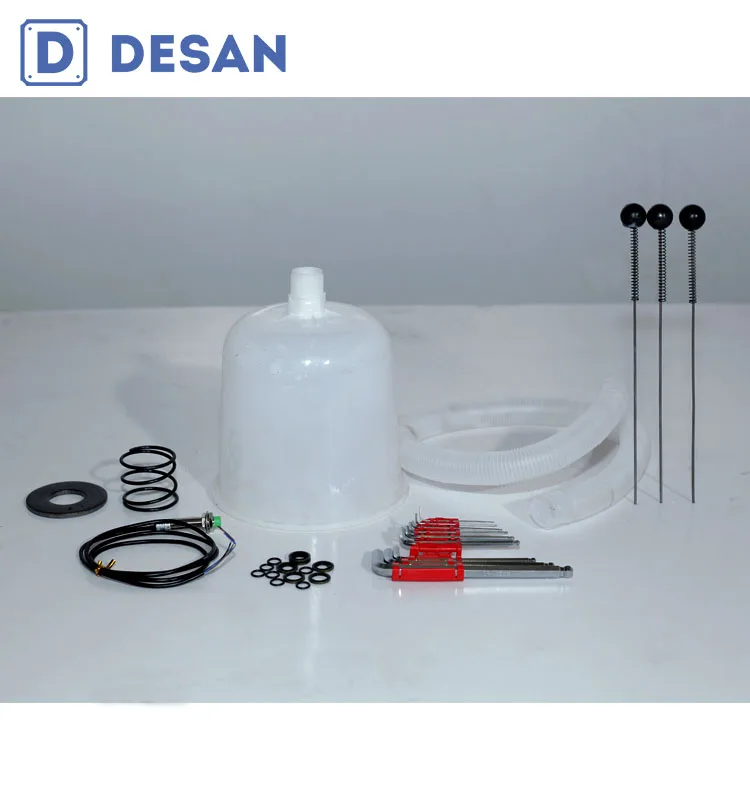

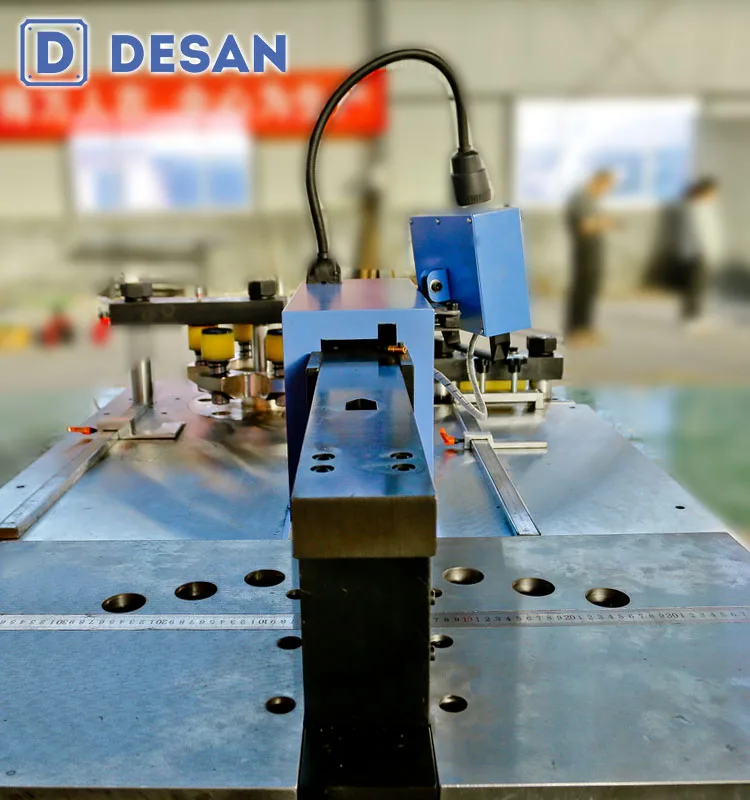

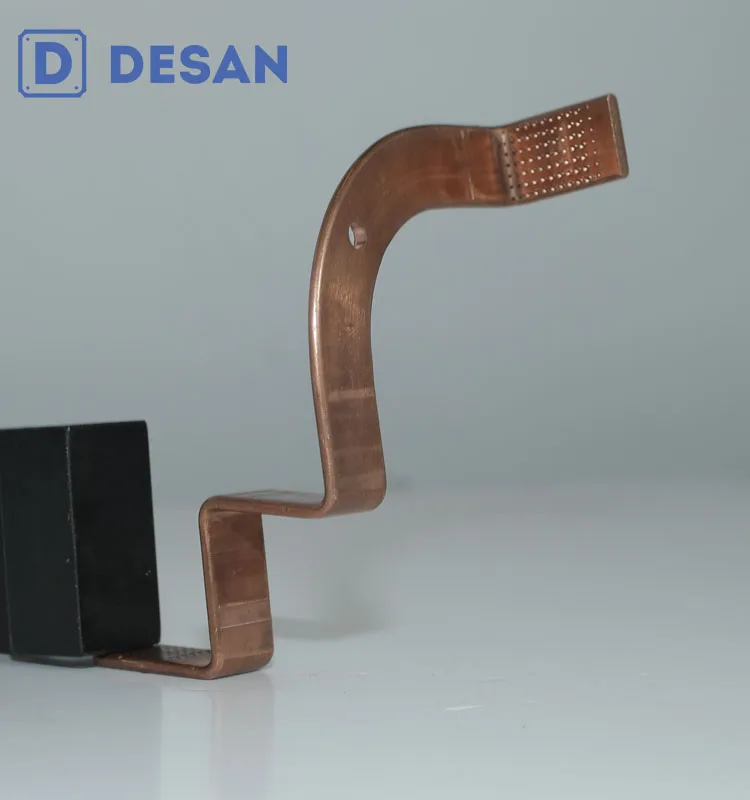

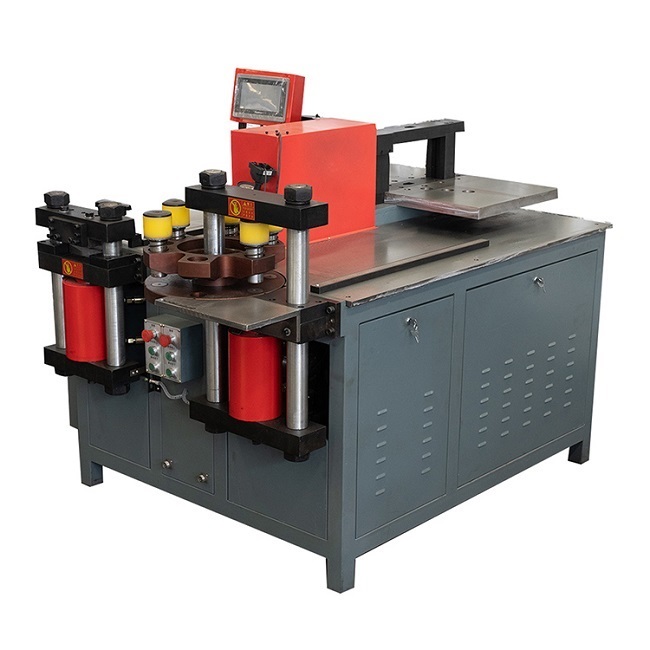

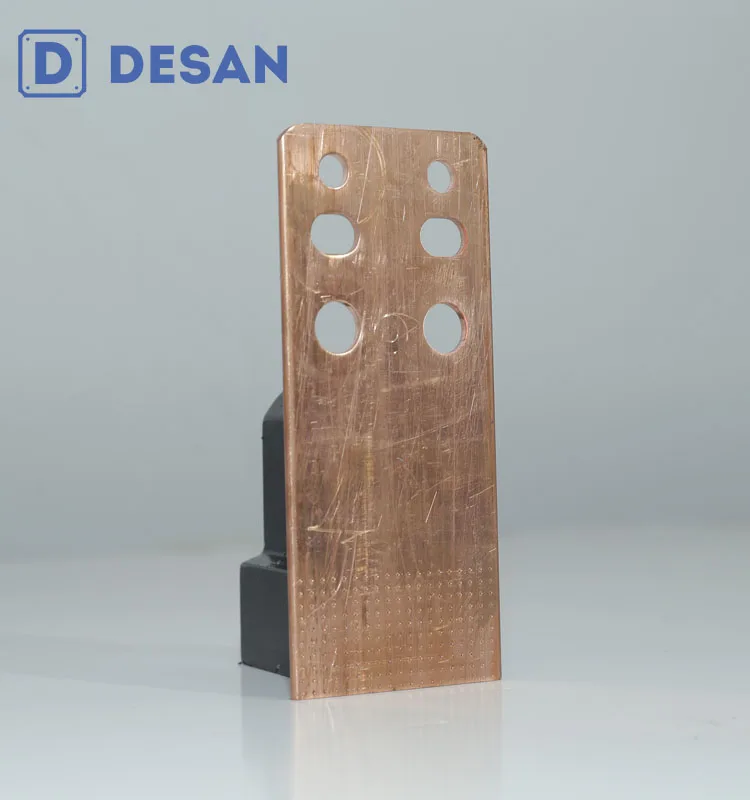

Details Images

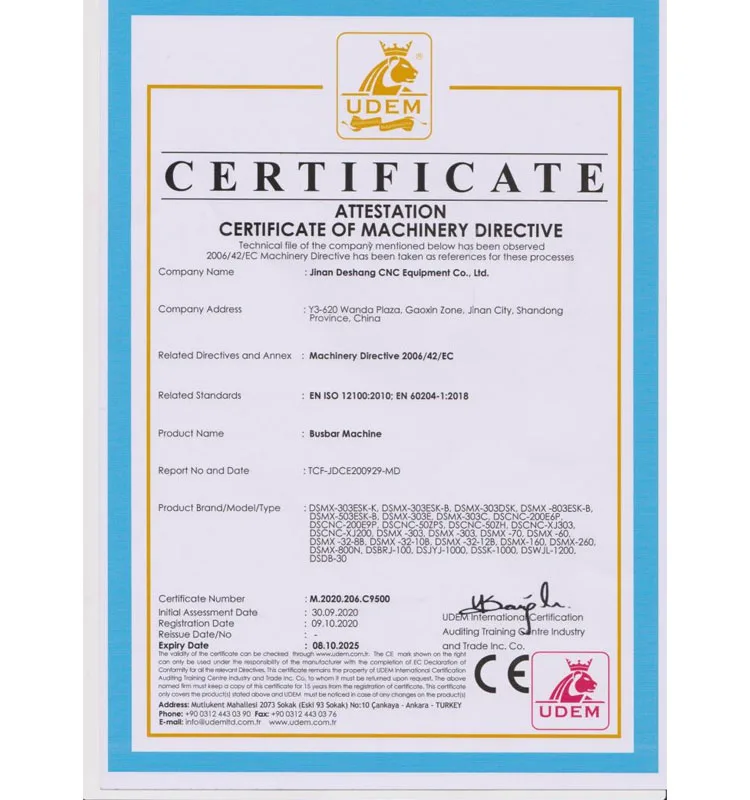

Certifications

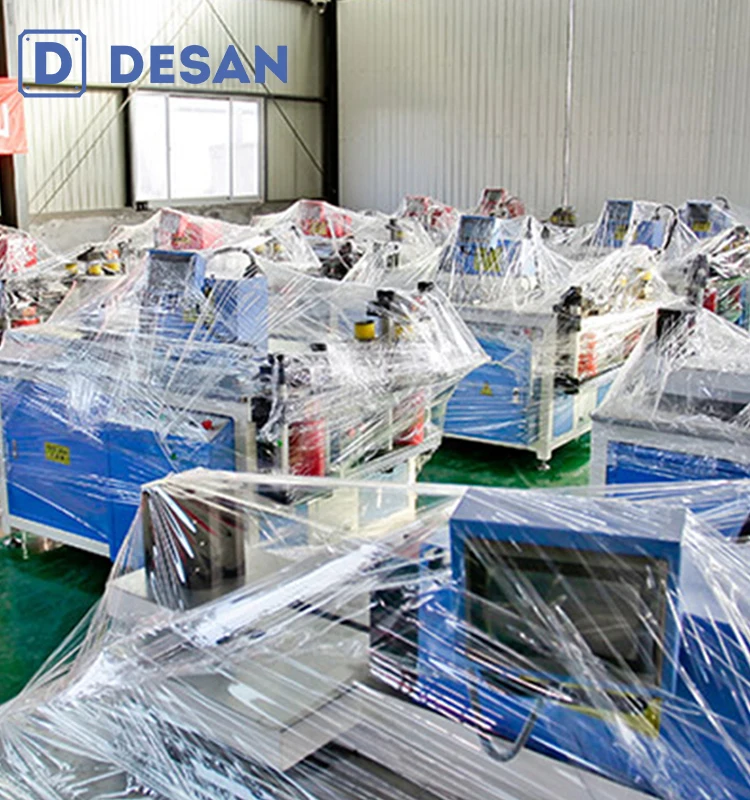

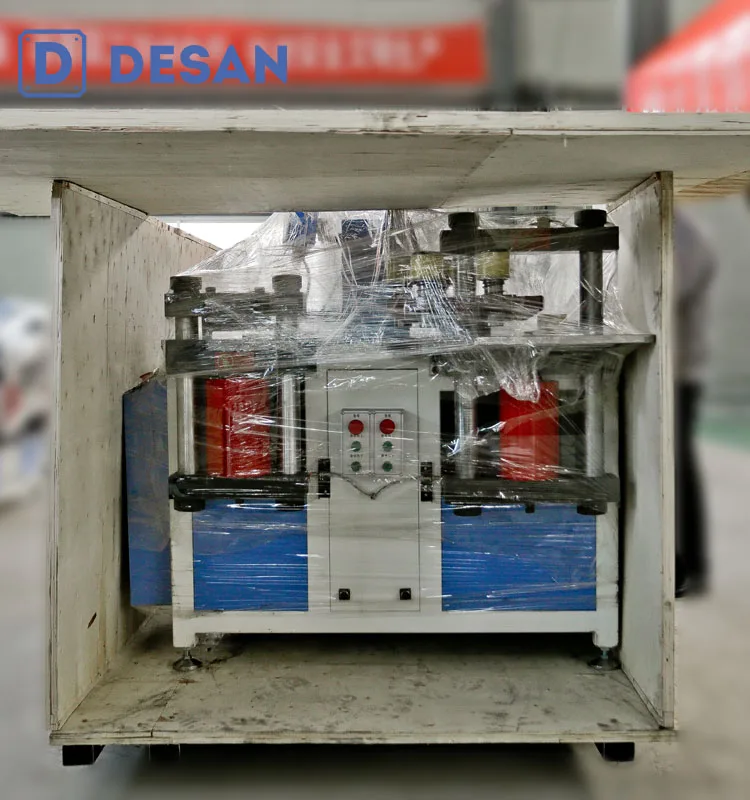

Product packaging
Company Profile
DESAN CNC Equipment Co.,Ltd.
We have more than 20 years Busbar Machine Experience!With Great customer service and Great Items.
Just contact us get your perfect busbar machine!

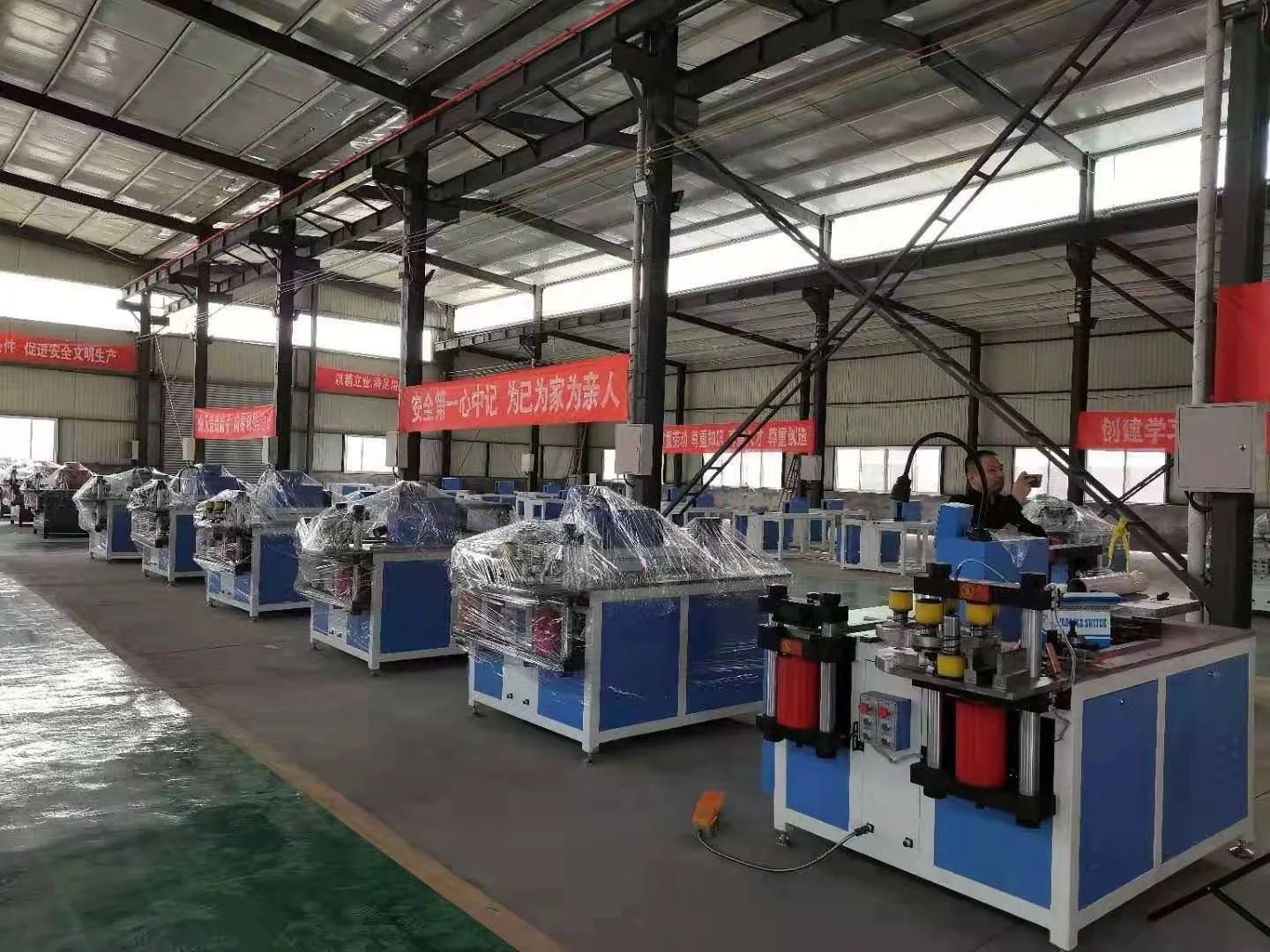

Factory Workshop
