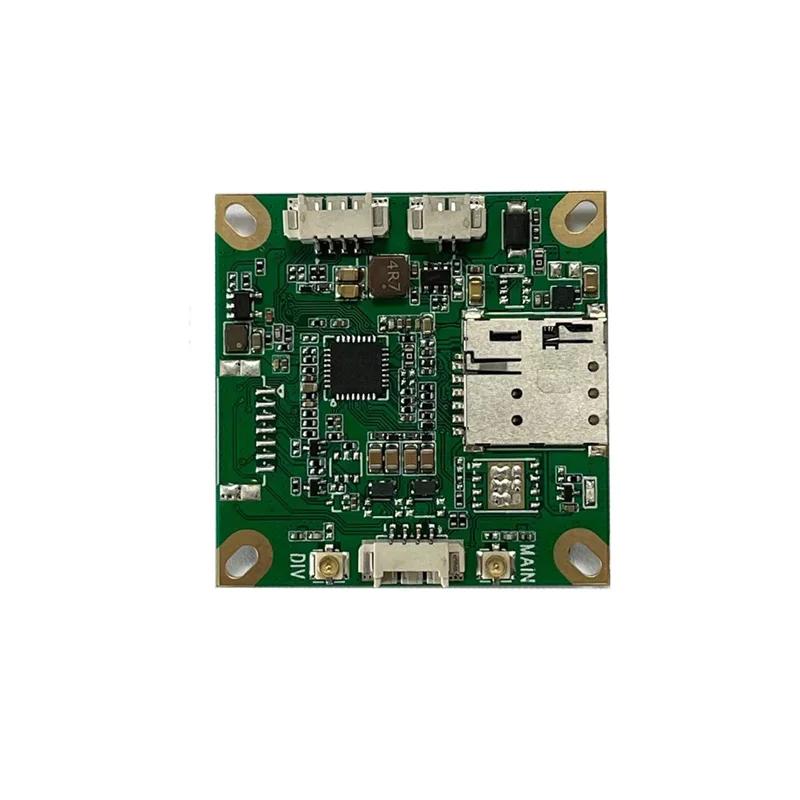

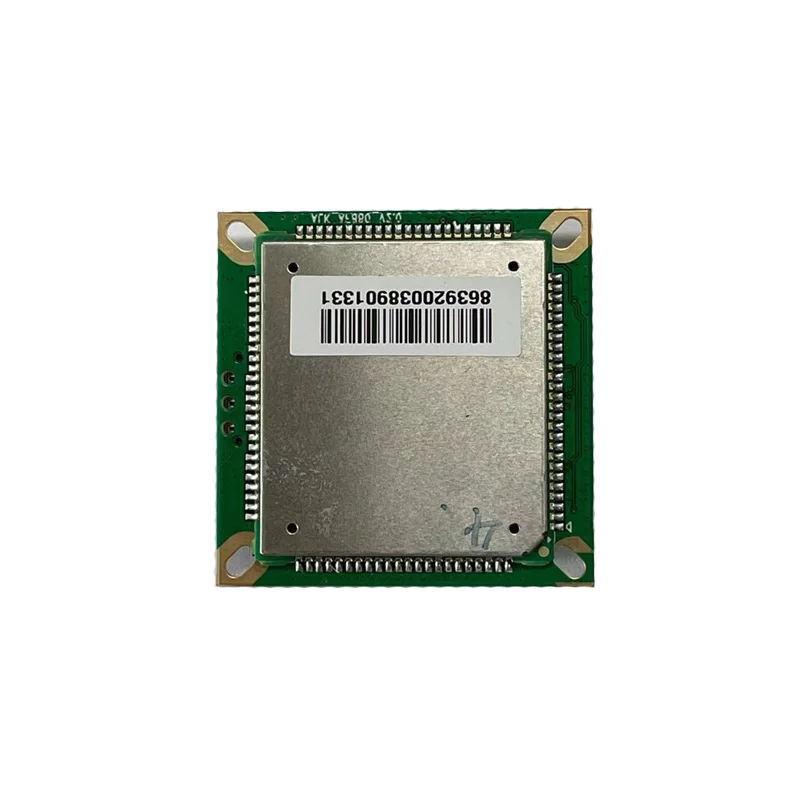

3G/4G LTE IOT MODULE 38*38MM Without WIFI Support Lan Low Cost Wireless Module
- Category: Wireless & IoT >>>
- Supplier: Shenzhen Jumping-Spider Technology Co. Ltd.
Share on (1600210107342):
Product Overview
Description
Product Description
Module Usage Application Example:
| Module -AF880 | |
| Model | AF880 |
| Main chip set | ZX297520V3 |
| Network Type | FDD-LTE, TDD-LTE, WCDMA/HSPA+ |
| TD-SCDMA, GSM/GPRS/EDGE | |
| Frequency Scope | LTE B1/B3/B5/B8/B38/B39/B40/B41 |
| TD-SCDMA B34/B39 | |
| WCDMA 2100/900MHz | |
| GSM/GPRS/EDGE 900/1800MHz | |
| Data Rate | LTE FDD/TDD (Cat. 4) DL 150Mbps, UL 50Mbps |
| 3G HSPA+ DL 21Mbps, UL 5.76Mbps | |
| 3G TD-SCDMA DL 2.8Mbps, UL 2.2Mbps | |
| Support System | Windows XP,Windows Vista,Windows 7,Windows 8/8.1 |
| MAC OS X 10.7+ | |
| Ethernet network | A RJ45 interface, 10/100M adaptive |
| USIM/SIM | Nano SIM card slot |
| LED | 2G/3G/4G signal indicator light |
| Power supply mode | DC 12V |
| Power | Input voltage: 12V/1A |
| maximum power consumption: < 2.5W | |
| Operation Temperature | -20℃~+70℃ |
| Operation Humidity | 10%-90% |
| Storage Temperature | -40℃~+85℃ |
| Dimensions/Weight | 38mm*38mm*7.5mm / 10g |
