Product Overview
Description
Good performance cooking oil mist cleaner | oil fume purifier exhaust ventilation system
Product Description
Application scope:
Oil Fume Purification equipment can be widely used in the purification of oil mist discharged in the process of hotel kitchens, canteens, lathes, food, machinery manufacturing, etc.

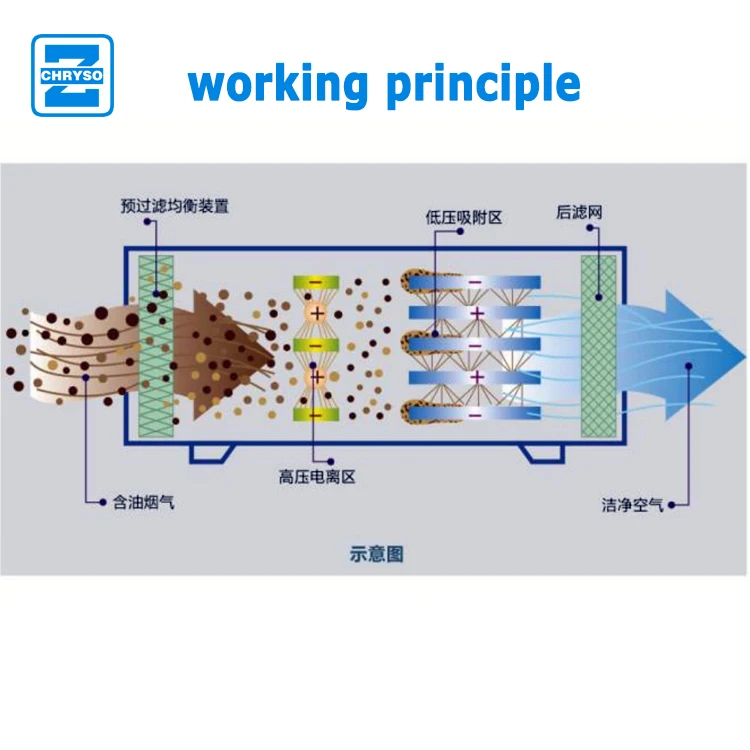

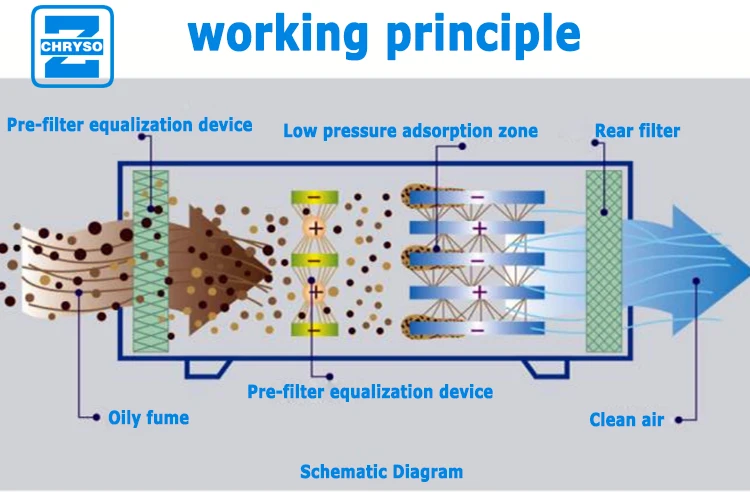

Working principle
Schematic Diagram
1.The primary purification separation and equalization device --- physically separate and balance the large-diameter oil mist particles
2.High-voltage electrostatic field --- two-stage high-low-voltage electrostatic separation.
3.Filter grille.
Product details
1. Ultra-low emission, no smoke by visual inspection, purification efficiency above 98%.
2. High standard and unique appearance design, the equipment shell is made of thicken cold-rolled steel plate and epoxy resin spray paint.
3. The internal use of aviation aluminum alloy electric field (super large and wide, adsorption area is 30% larger than similar products in the market, stronger effect and higher purification efficiency).
4. Intelligent power supply: open circuit protection / short circuit protection / flash circuit protection / over current protection / over humidity protection, automatically adjust the power according to the concentration of oil smoke.
5. Intelligent display panel, the operating status is clear at a glance.
Different types for your choice !
1.Electrostatic photolysis compound oil fume purifier
2.High-voltage electrostatic fume purifier
3.UV photolysis deodorizing equipment

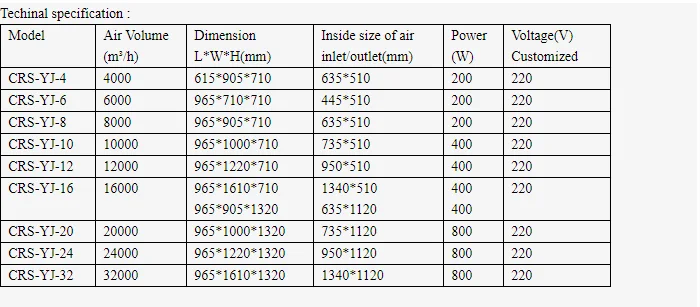

Techinical specification :
Fume purifier for catering
|
Model |
Volume (m³/h) |
Dimension (L*W*H) mm |
Flange inner diameter(mm) |
Power (W) |
Lamp Tube (Qty) |
|
CRS-UV-4A |
4000 |
585*865*710 |
610*510 |
160 |
4 |
|
CRS-UV-6A |
8000 |
585*865*710 |
610*510 |
320 |
8 |
|
CRS-UV-8A |
12000 |
895*1185*710 |
940*510 |
800 |
8 |
|
CRS-UV-10A |
16000 |
895*1575*710 |
1330*510 |
960 |
8 |
Fume purifier for industry
|
Model |
Volume (m³/h) |
Dimension (L*W*H) mm |
Door |
Power (W) |
Lamp Tube (Qty) |
|
CRS-UV-5B |
500 |
850*1240*820 |
Single floor/double door |
1440 |
12 |
|
CRS-UV--10B |
10000 |
1300*1240*820 |
Single floor /double door |
2880 |
24 |
|
CRS-UV-15B |
15000 |
900*1240*1340 |
Bilevel door |
4800 |
40 |
|
CRS-UV-20B |
20000 |
900*1240*1540 |
Bilevel door |
6000 |
50 |
|
CRS-UV-25B |
25000 |
1800*1240*1540 |
Bilevel door |
7200 |
60 |
|
CRS-UV-30B |
30000 |
1800*1240*1540 |
Bilevel door |
9600 |
80 |
Technical advantages
1.Internationally recognized electric field
the two-stage electrostatic purification technology of European and American international standards
2.Super insulating material
Alumina ceramics and military-grade pressure-resistant insulating materials

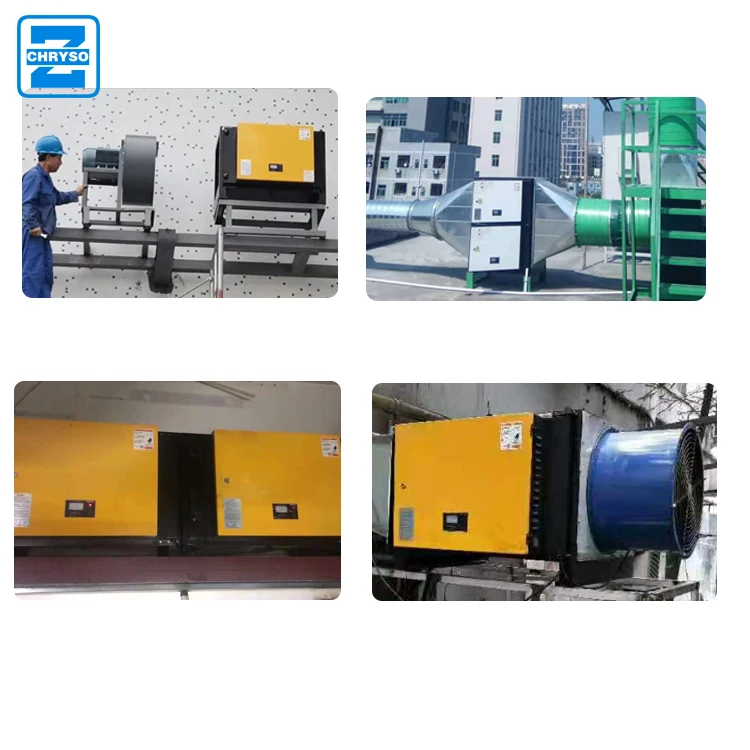

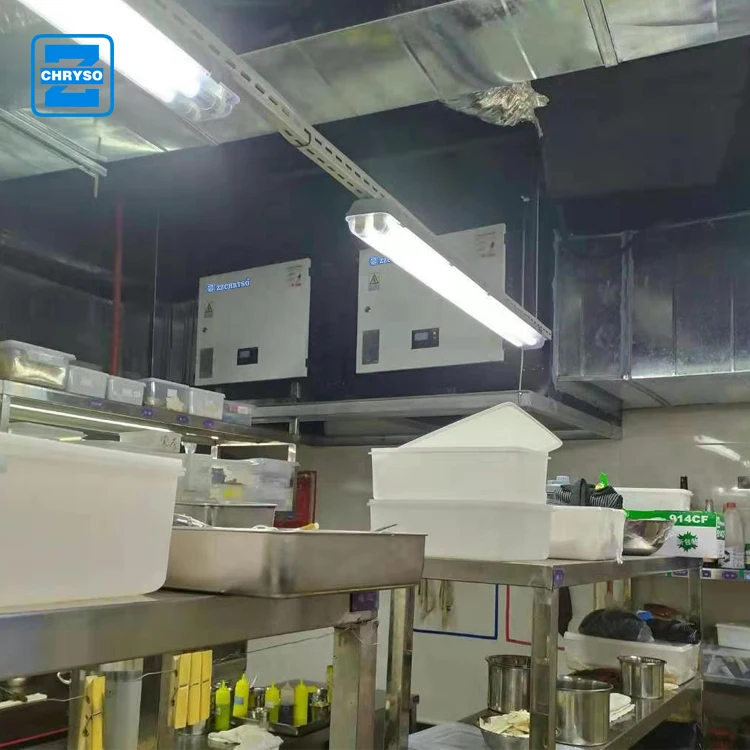

Engineering Case

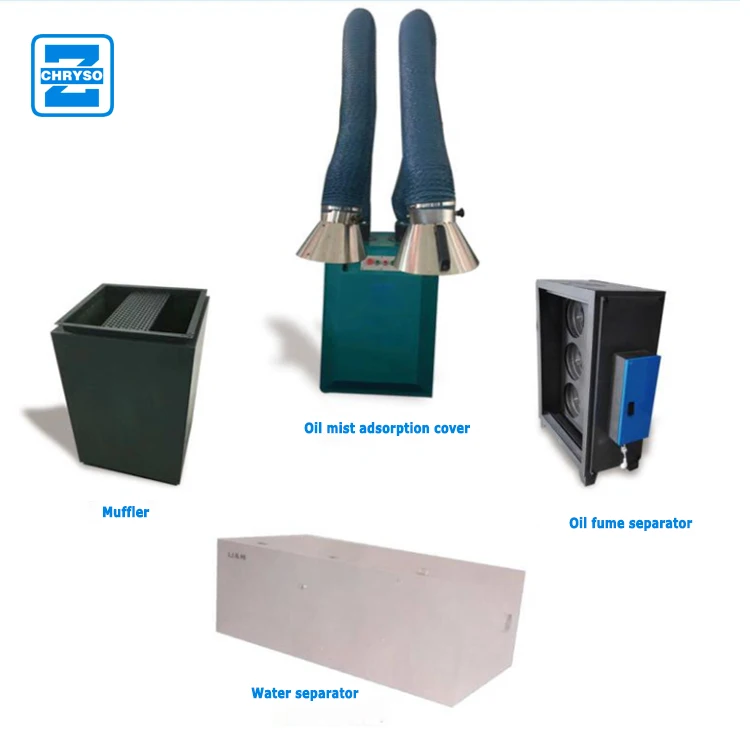

Related Products
Muffler
Oil mist adsorption cover
Smoke oil separator
Water separator
Transation cord
