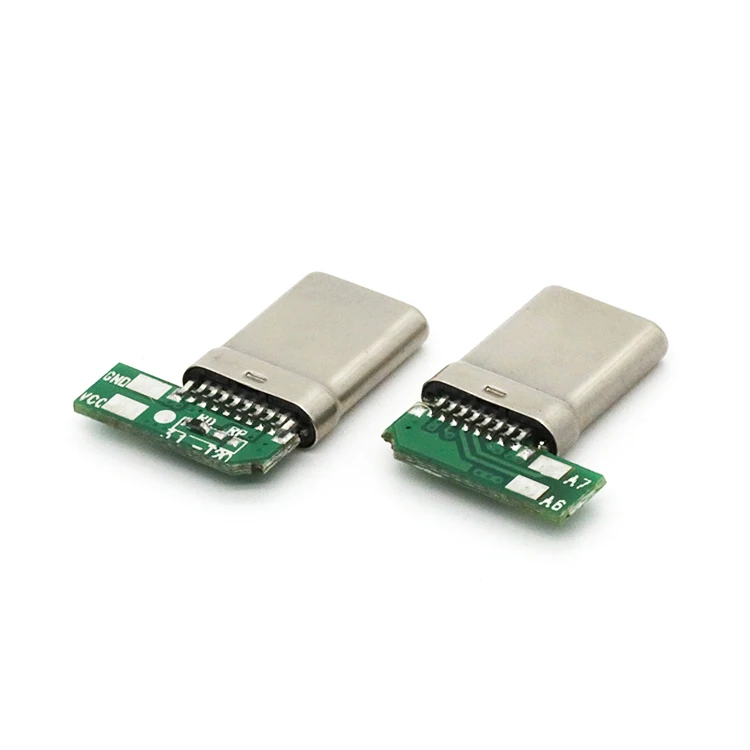

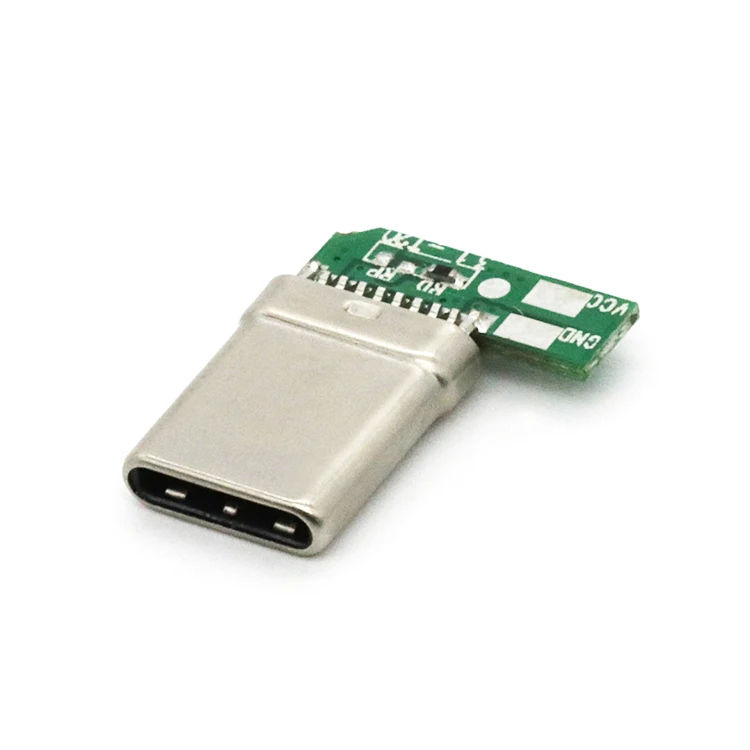

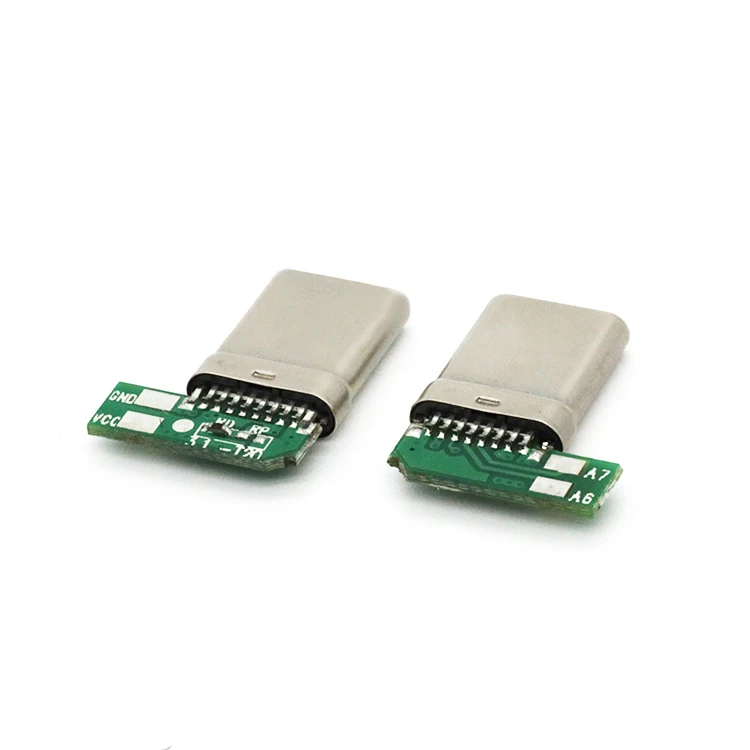

High quality 16P USB Type C Male with PCB Right Angle
High quality 16P USB Type C Male with PCB Right Angle
High quality 16P USB Type C Male with PCB Right Angle
High quality 16P USB Type C Male with PCB Right Angle
High quality 16P USB Type C Male with PCB Right Angle
High quality 16P USB Type C Male with PCB Right Angle

High quality 16P USB Type C Male with PCB Right Angle

Share on (1600212976759):


Price:$0.30 - $0.32

Quantity:


Product Overview

Description



Product
16P USB Type C Male with PCB Right Angle
Housing
LCP
Current
5A MAX
Voltage
20V MAX
Operation Temperature
-30°C ~ +80°C
Withstanding Voltage
100V AC
Insertion Force
5-20N
Removal Force
8-20N
Contact Resistance
40 mΩ MAX INITIAL; 50 mΩ MAX AFTER 10000 CYCLES
Certification
ROHS Approved
Durability
10000 CYCLES MIN

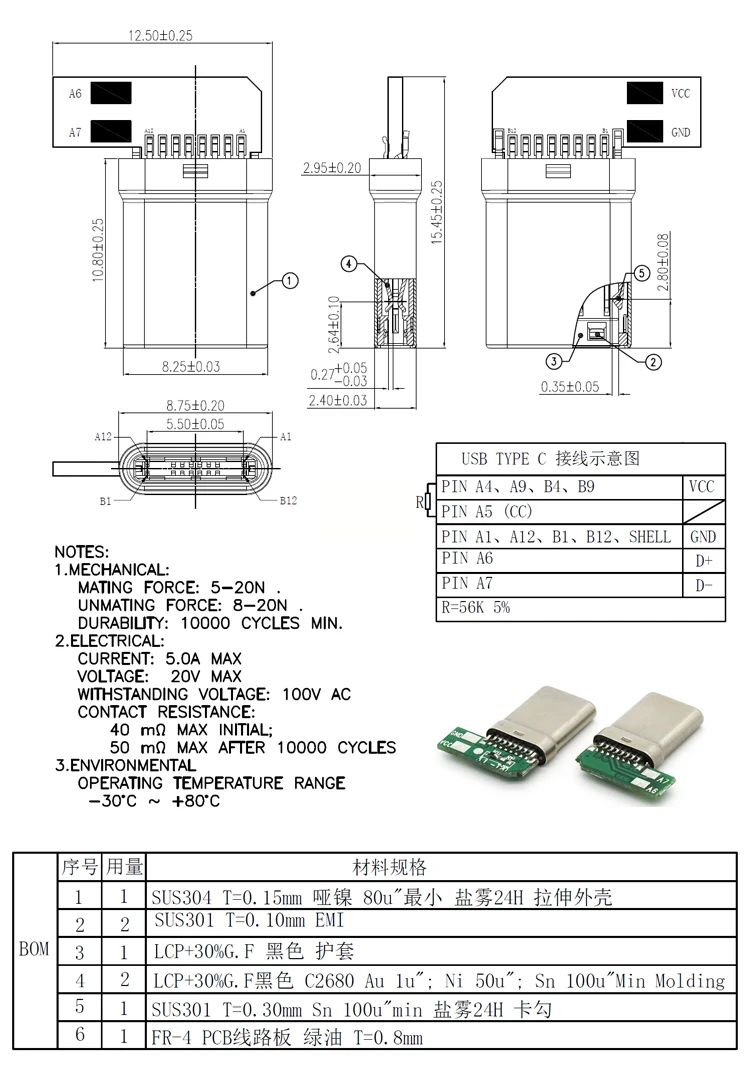

Drawing for reference:

Contact me to get PDF and 3D Drawing.
