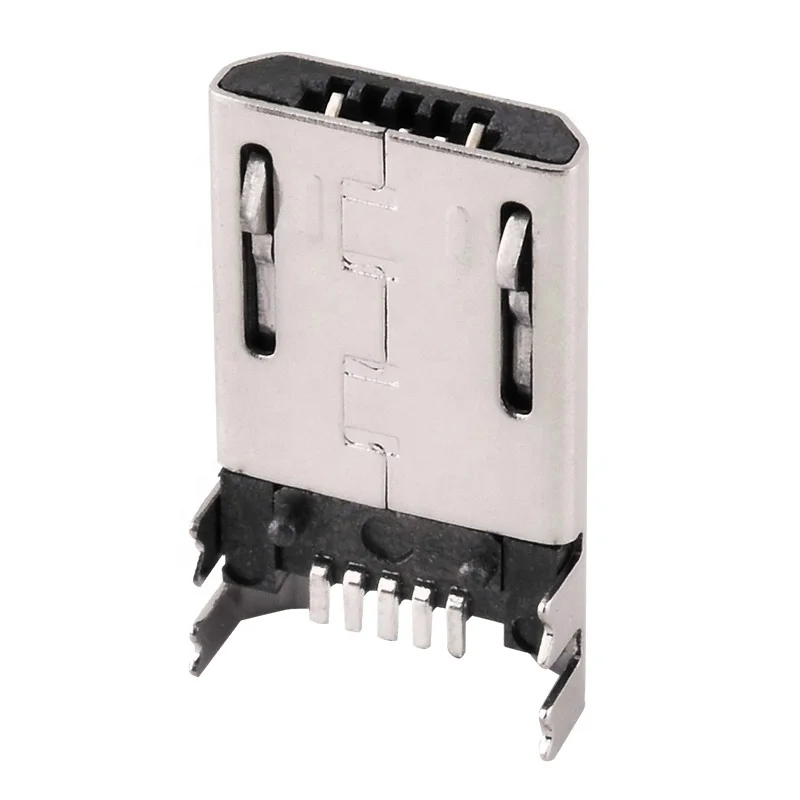

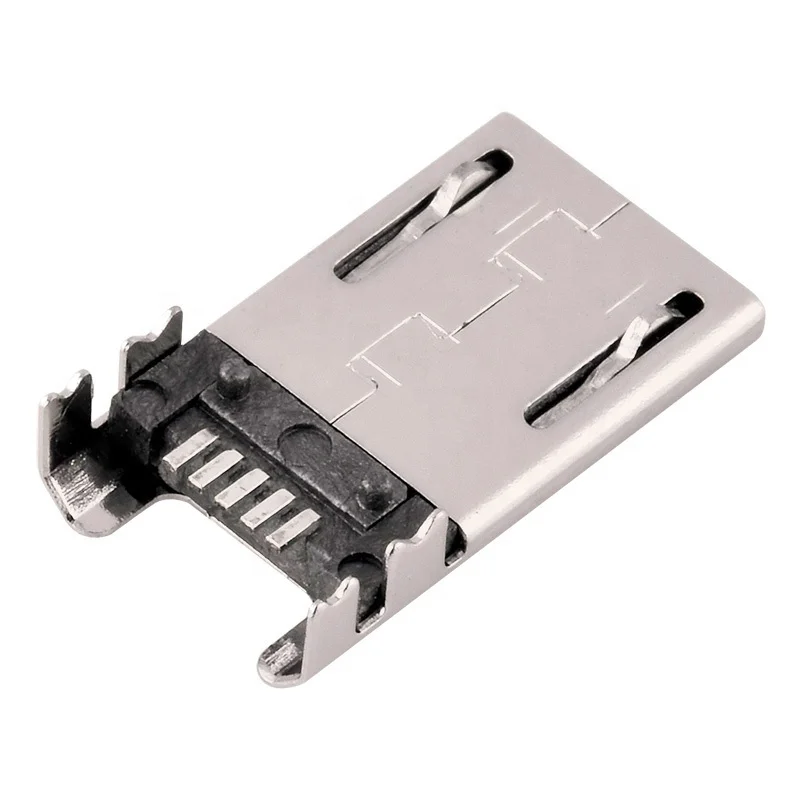

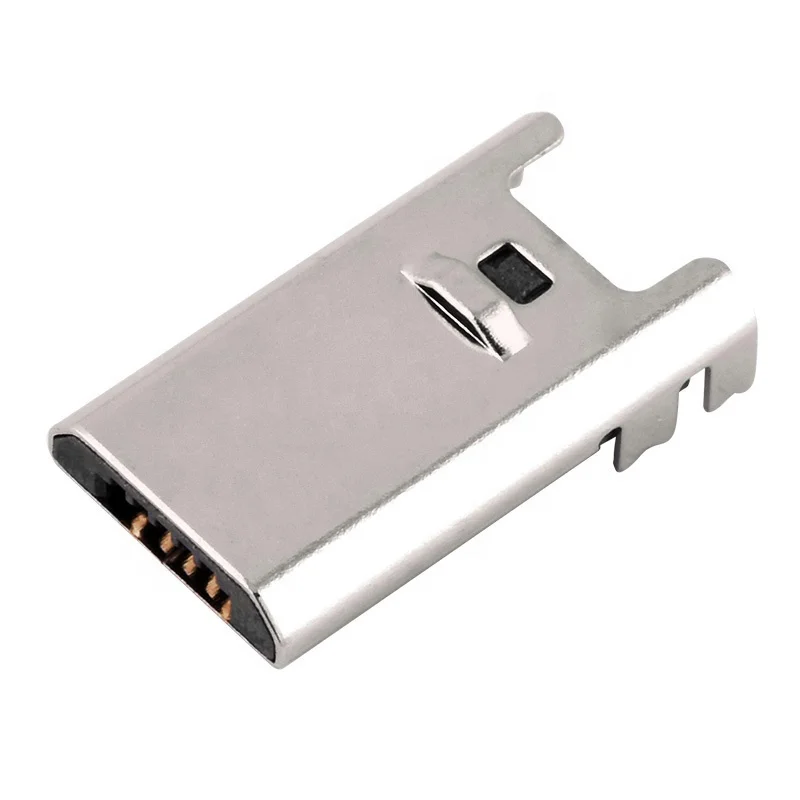

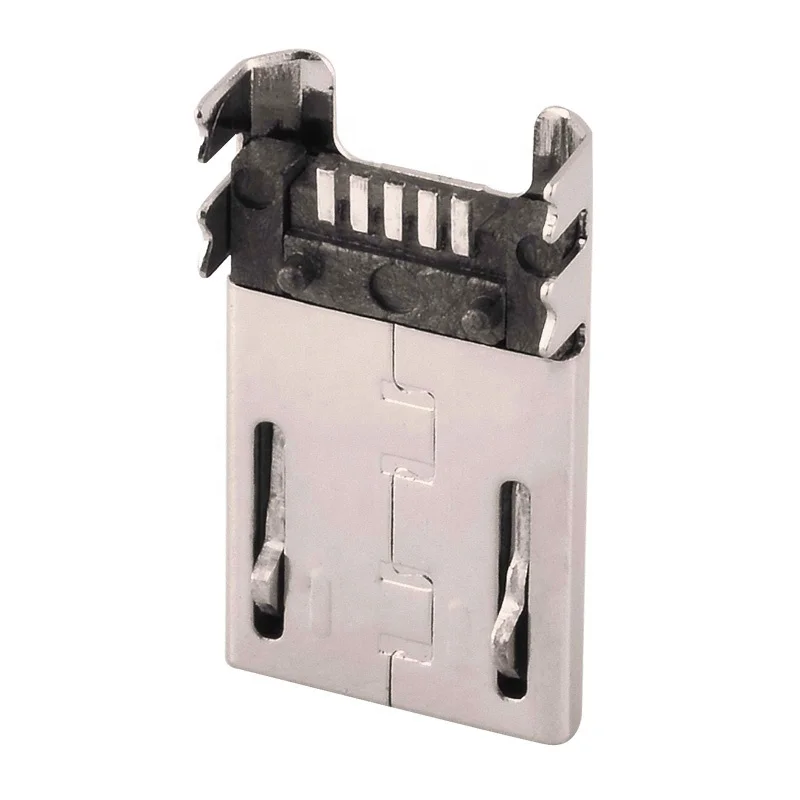

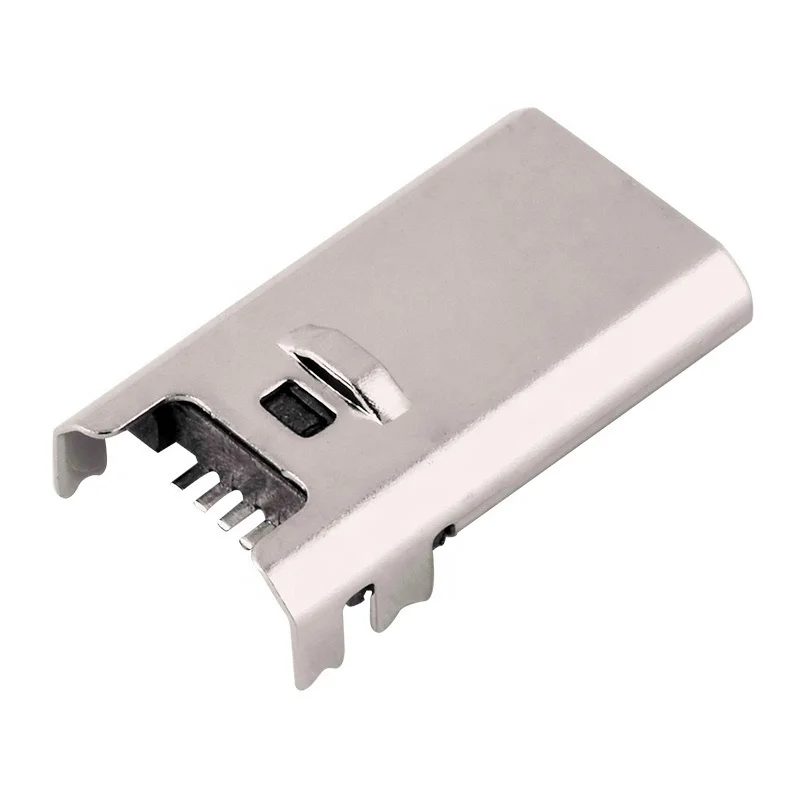

Micro USB 5 Pin Male SMT Type Connector MINI SMD For PCB
- Category: USB Connector >>>
- Supplier: Shenzhen Chuangqin Technology Co. Ltd.
Share on (62380478511):
Product Overview
Description

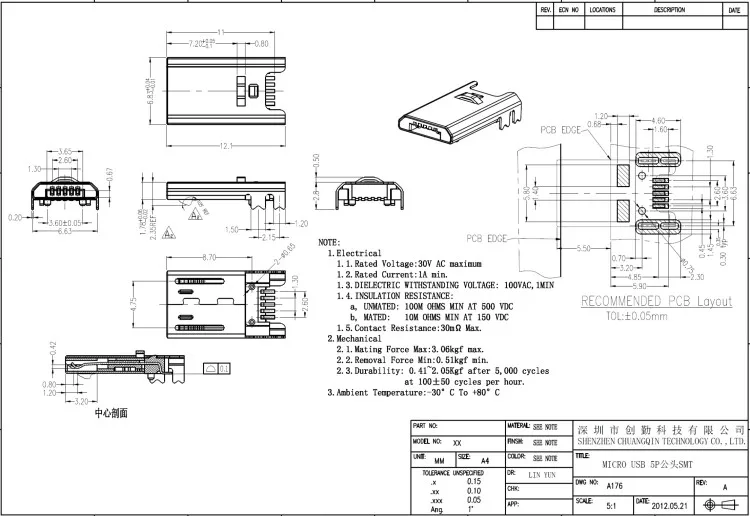

Product Description
| Rated Voltage | 30V AC maximum |
| Rated Current | 1A min |
| Dielectric Withstanding Voltage | 100VAC, 1Min |
| Contact Resistance | 30mΩ Max |
| Mating Force Max | 3.06kgf max |
| Removal Force Min | 0.51kgf min |
| Durability | 0.41~2.05kgf after 5,000 cycles at 100±50 cycles per hour |
| Ambient Temperature | -30℃ To +80℃ |
Company Information
FAQ
What can we do for you?
1. We can offer free samples.
2. Various operation force, height, and color for your choice.
3. Products can be developed according to customer requirements
Why us?
1. We have abundant production management to guarantee the quality.
2. Check quality one by one before shipping, We have good quality-control team and precision testing machine to control the quality seriously
3. According your design to produce quality product.
