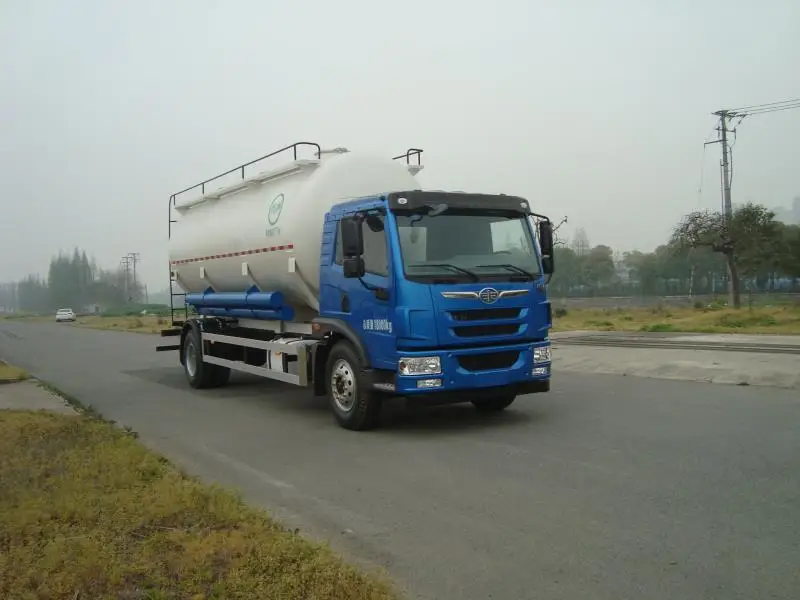

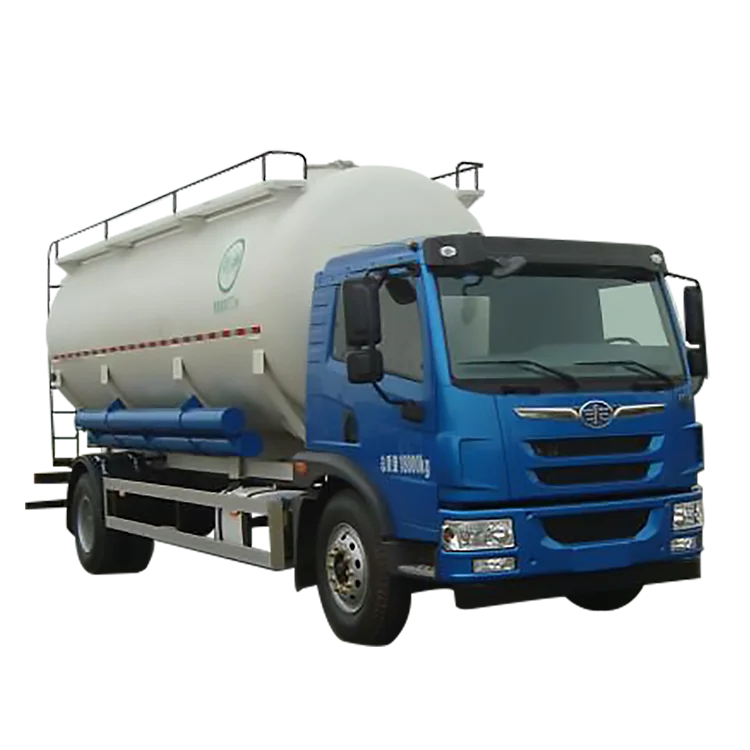

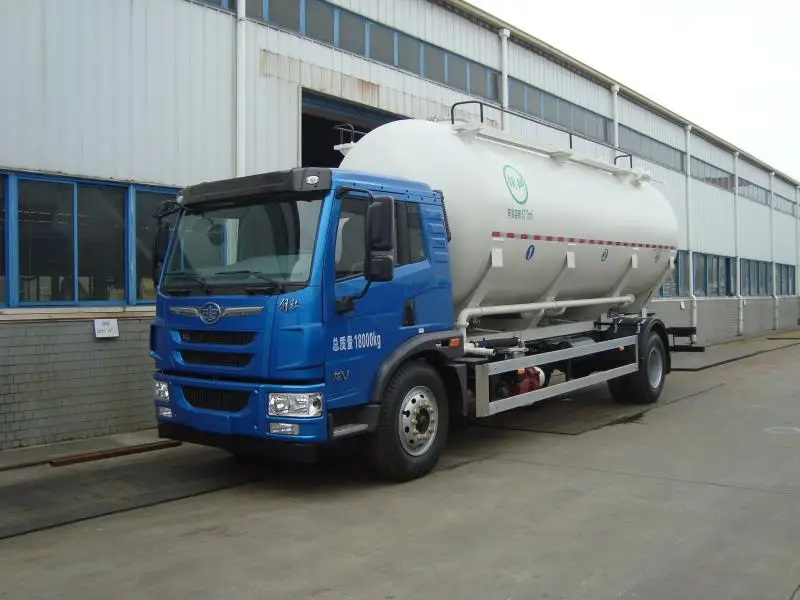

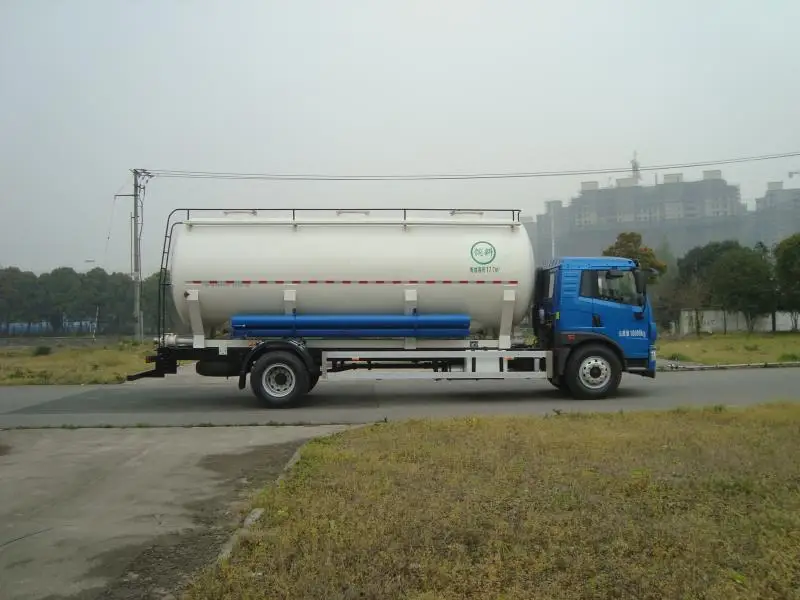

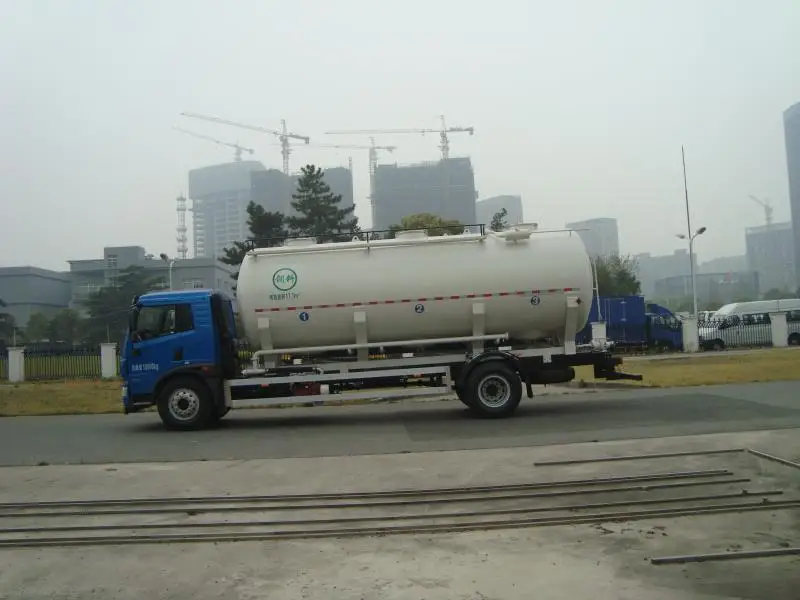

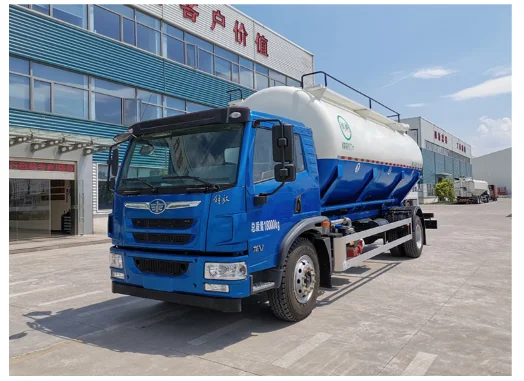

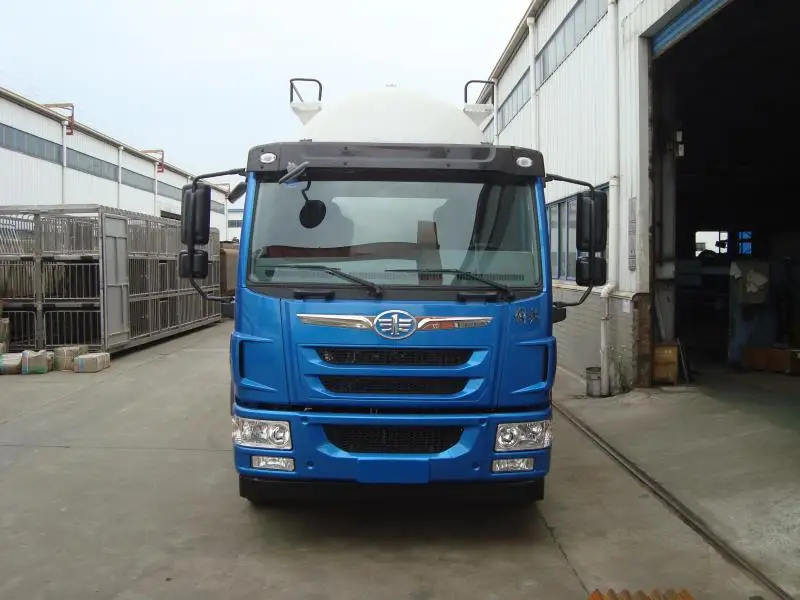

The fine quality popular product animal bulk feed delivery truck bulk feed tank transport bulk feed transport truck

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

9810*2500*3750

Tank Dimension
(Max DIA*L)(mm)

φ2360*8400

 Total Mass(kg)

 18000

 Curb Weight(kg)

 9400

Bulletin loading(kg)

8470

 Theoretical loading(kg)

 10000

Minimum turning radius(m)

≤12

Emission Standards

 Euro 4

Certification

ISO9001, 3C

Chassis Parameters

 Chassis Model/ Manufacturer

CA5189XXYPK2L5BE5A80/China FAW Group

Engine model / manufacturer

CA6DLD-18E5 /FAW Jiefang Automobile Wuxi Diesel Engine Works

Transmission model / manufacturer

CA6TB085M/FAW Jiefang Automobile Gearbox Company

Cab Type

flat proof, single sleeper, 4×2 rear wheel drive , capacity 2 people

 Max. output(kw)(r/min)

134/2300 (180hp)

Tire specifications

10.00R20 18PR

 Engine capacity(ml)

 6600

 Wheelbase(mm)

5700

  Tank Parameters

Tank gross volume (m³)

 22

Space quantity

4

 Conveying height(m)

 15

Max conveying distance(m)

 30

Discharge speed(Kg/min)

 500

 Residual rate(%)

 ≤0.22

 Oil-free screw air compressor model(m³/h)/pressure(bar)

 CS700/720/1.5

Tank drive form

Adopt Imported oil-free screw air compressor, pneumatic convey the feeds to long-distance, improve the level of epidemic prevention,  low feed breakage rate and residue rate.

Electrical configuration

 Schneider Electric Control System;Under-phase, under-voltage and other electronically controlled interlock protection

Painting

Professional anti-corrosion paint,Process: sandblasting,polishing, painting

Tank

Made of high quality carbon steel sheet;Round design, high strength, beautiful appearance; imported sealing device; strict welding process to ensure quality.
