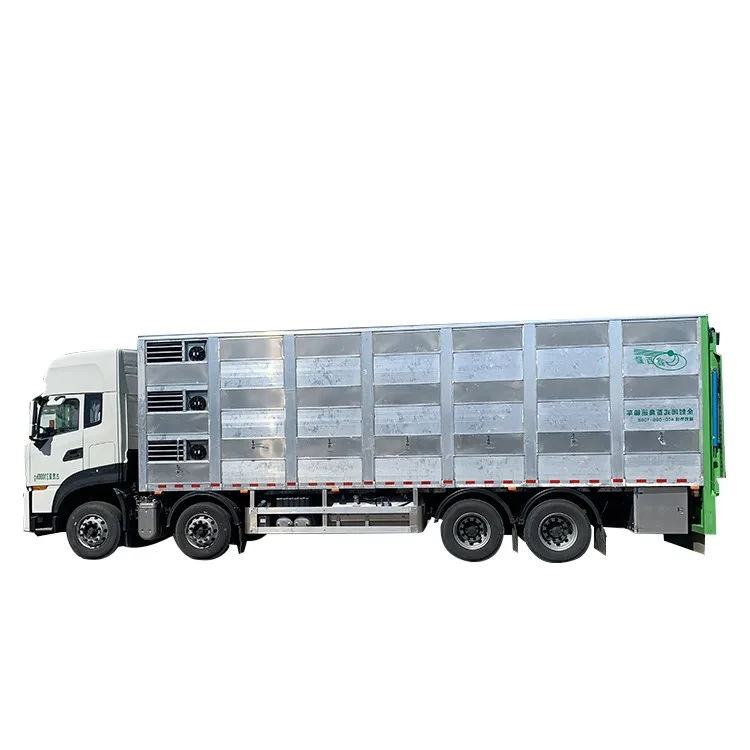

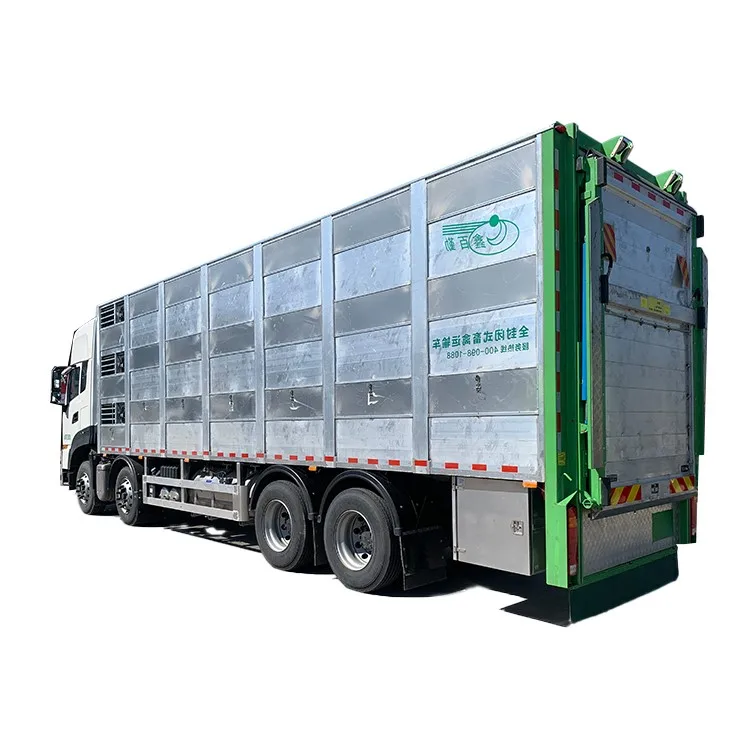

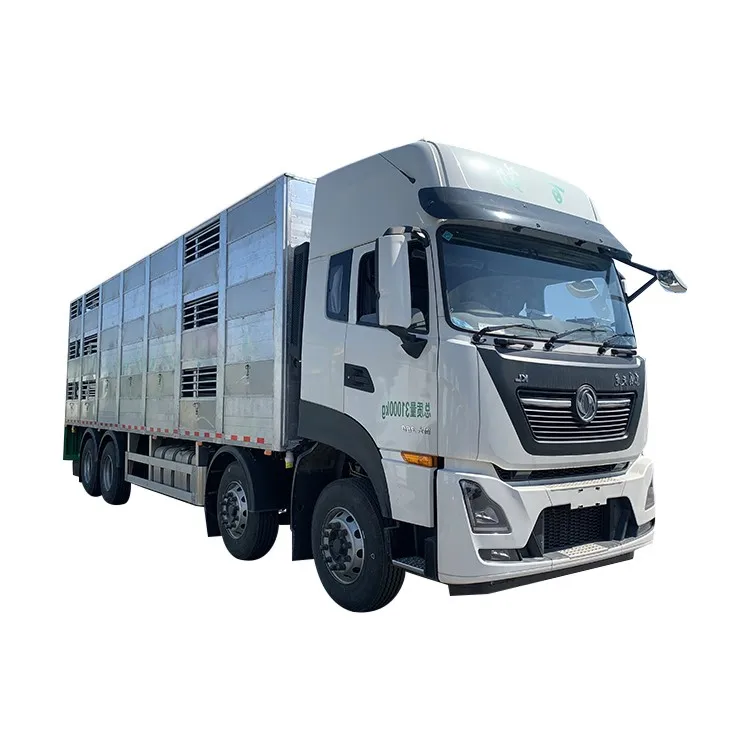

Economical custom 360 horsepower 3 floors optional 9.6m 8x4 livestock poultry pig animal transport truck with tail board

Vehicle

Parameters

Overall Dimensions(L*W*H)(mm)

 11800x2500x 3960

 Total Mass(kg)

31000

 Curb Weight(kg)

 13800

 Bulletin loading(kg)

17070

 Max speed(km/h)

 90

 Fuel consumption (l/100km)

 32.5

 Minimum turning radius(m)

 12

Chassis Parameters

 Chassis Model/ Manufacturer

DFH1310A1 /Dongfeng Trucks Company

 Engine model / manufacturer

ISL9.5-315E51A /Dongfeng Cummins Engine Co., Ltd

 Transmission model / manufacturer

2JSD160TA/Shaanxi Fast Gear Co., Ltd

 Drive Mode:

 8×4 rear wheel drive

 wheelbase(mm):

 1850+4600+1350

 Engine capacity(ml)

 9460

 Maximum torque and rated speed(n.m)/(r/min)

1600/1300

 Rated power and rated speed(kw)/(r/min)

 268/1900

 Tire specifications

295/80R22.5 18PR

 Cab Type:

 flat proof, capacity 2 people

Standard Configuration

The tank is designed with a fully enclosed structural frame, made of all-aluminum alloy profiles, with light weight, high strength and strong rust resistance.

Sliding windows are designed on both sides of the vehicle body for emergency use in high temperature and extreme weather.

 Layer height per floor (mm)

  815/815/865

Water system or spray system can be installed on each floor
