Chinese Manufacturer Light Gauge Steel Keel Roll Forming Machine For Villa House Building
- Category: >>>
- Supplier: Cangzhuo Max Automated Machinery Co. LtdCangzhuo Ltd
Share on (1600215203363):
Product Overview
Description
Product Description
1. Profile : Size: 89*41*10mm
1. Steel plate thickness:0.8-1.2mm
2. Suitable material:Q550 cold rolled steel and galvanized steel sheet

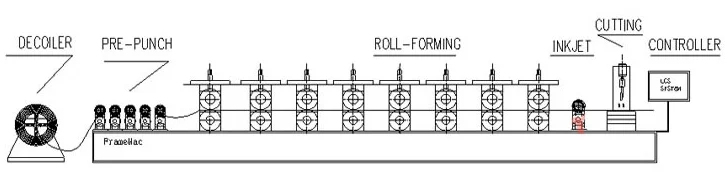

2. Working Flow and Layout:
Decoiling --- Levelling-----Punching ---- Roll Forming ----- Ink Code ----- Cutting ---- Profile
3. Technical parameters of machine:
SPECIFICATIONS FOR F1-C89 LIGHT GAUGE STEEL FRAMING EQUIPTION | ||
Machine overview | Profile Size | 89 x 41 MM |
Material Thickness | 0.8 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated ) | |
Material Width | 181.4 MM-184.6MM | |

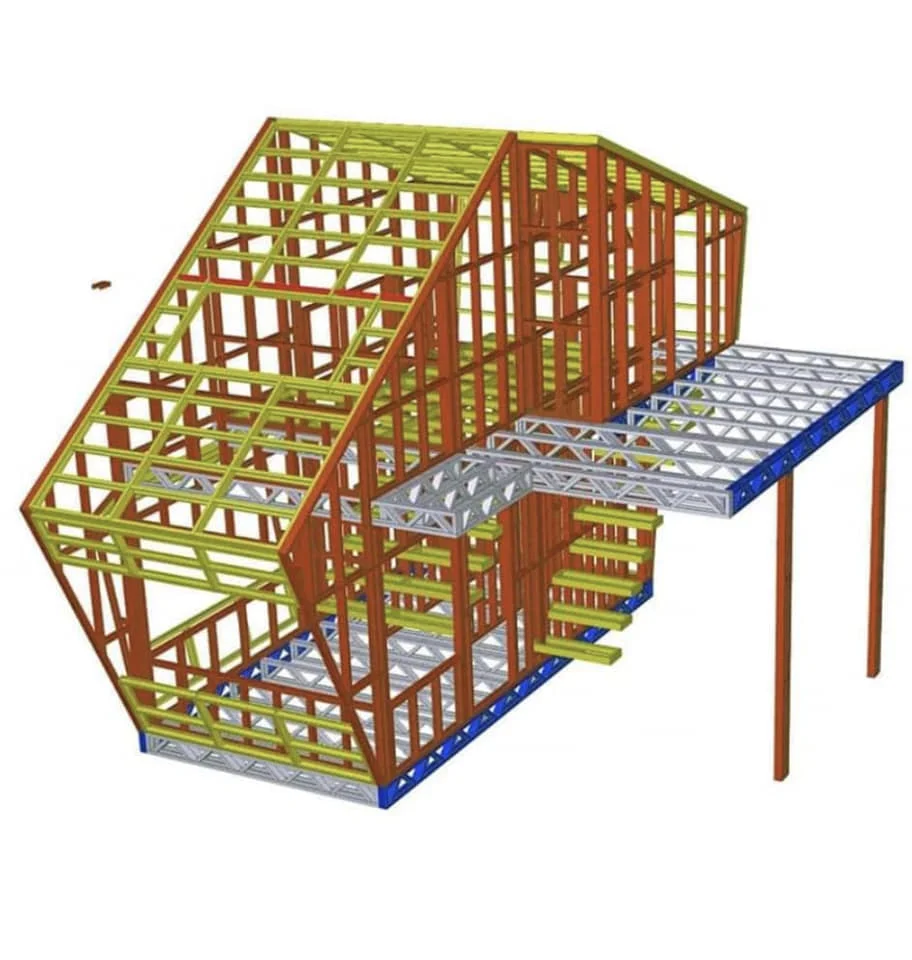

Design Software | Vertex BD | |
Production control software | YND | |
Profile Type | 1*C shape, 1*U Shape | |
Maximum Line Velocity | 2800 M / H | |
General Production Efficiency | 30m/min, 300 - 700 M /H | |

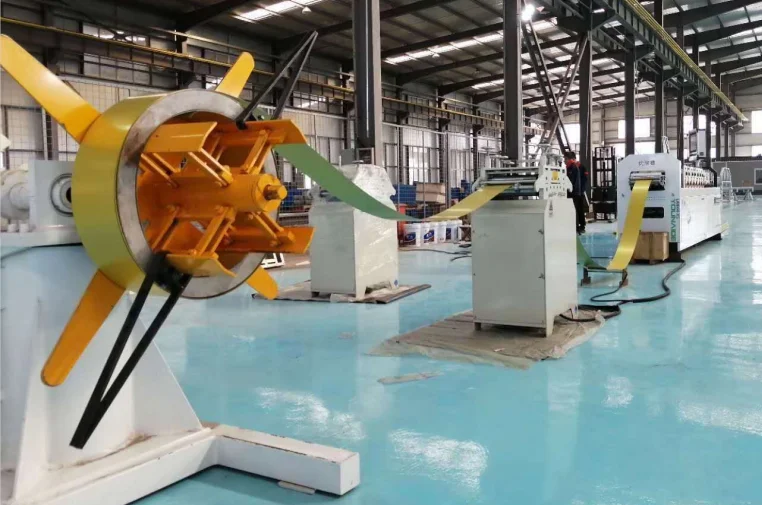

Decoiler | Automatic/ Electric single arm decoiler | Auto with Servo Motor ; Power - 1.5 Kw ; Max load 3 Tons ; |
Levelling | Automatic Levelling & Straightening machine | |

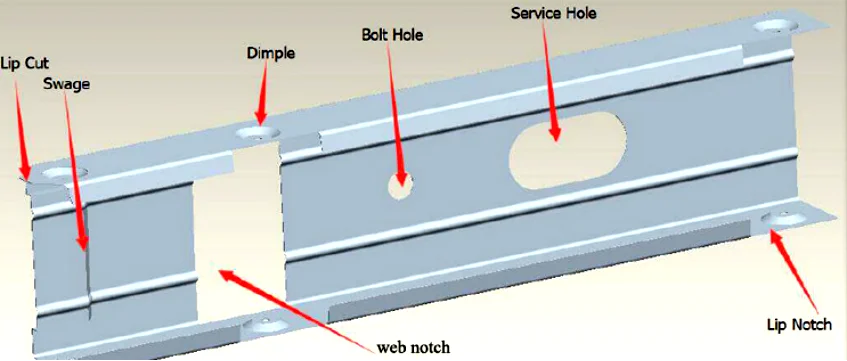

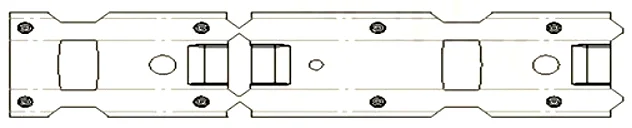

Main roll forming & punching system | Frame and roof truss die stamping | 8 stations. (Dimple,Chamber cut,Web Notch,Lip Cut,Service Hole,Swage,Shear,Bolt hole) |

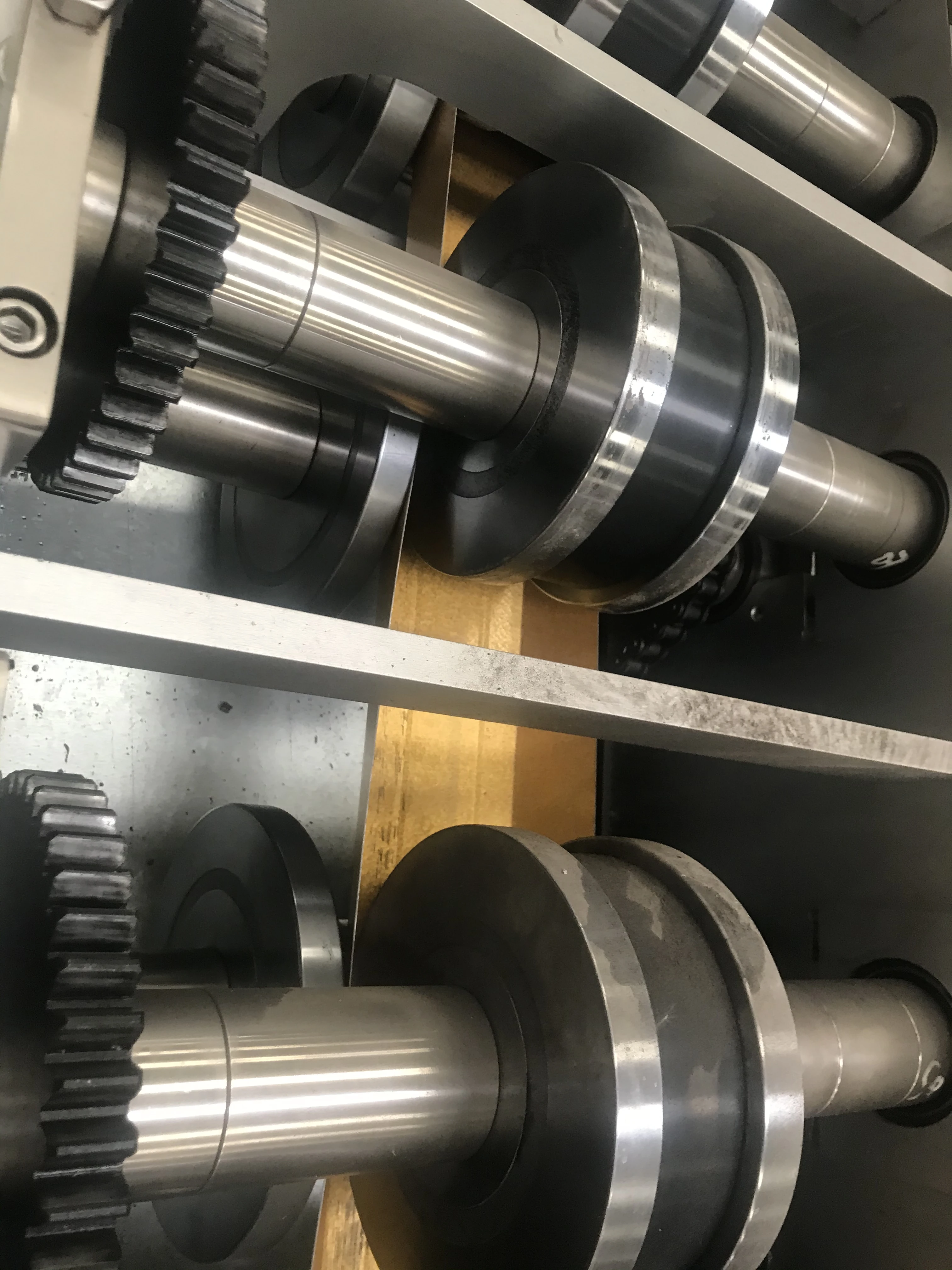

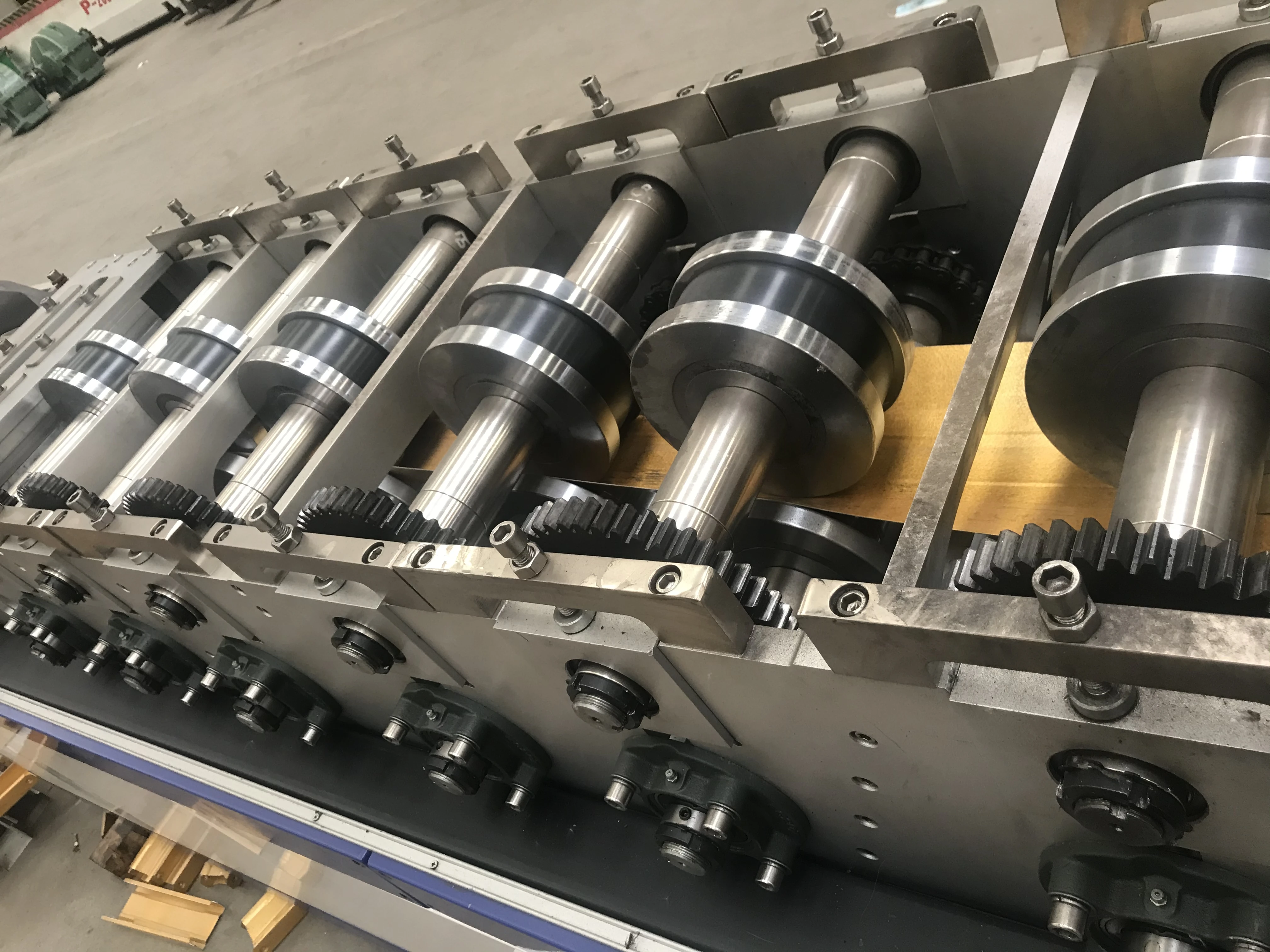

Rolling stations | 11 stations | |
Inkjet printer | dual print heads, waist height on both sides to print, inkjet content can be set | |
Cutting type | Hydraulic cutting; | |

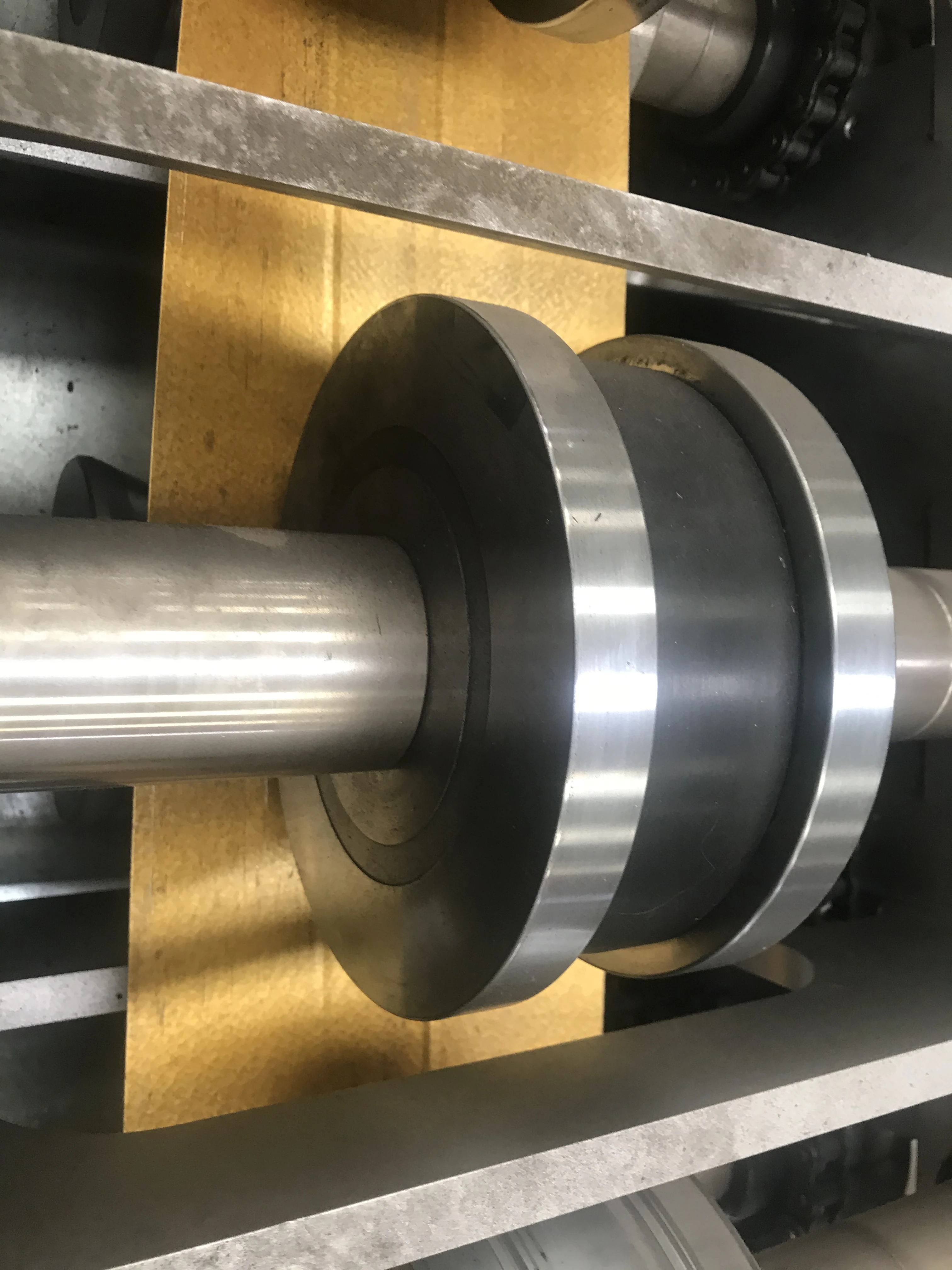

Material of rollers | Imported material, DC53. CNC center processing, HRC58-62°, fine grinding | |
Material of shafts | 40Cr after quenching and tempering processing, fine grinding | |
Main Unit Power | 7.5 Kw servo motor | |
Hydraulic cutting Power | 5.5 KW | |
Equipment Total Power | 14 Kw | |
Hydraulic Cylinder Volumn | 100 L | |
Control system | Function: | Directly transfer the design parameters to the control computer through the USB interface or the network, import and automatically read the BOM documents by the NC control software installed in the computer, and then select the production batch after importing. |
Adjustment of Oil Pressure | Computer setting | |
Voltage | 380V, 50HZ, 3Phrases | |
Control computer | 19 inch touch computer + one electrical main control cabinet | |
Origin of main parts | PLC (Mitsubishi), relay (Schneider), length encoder (OMRON), servo motor (INVT) | |
Main Unit Remote Control | Standard | |
Other info | Product Accuracy | 0.5 MM |
Machine Size | 4000 x 800 x 1200 MM | |
Machine Weight | 2000 Kgs ---3000Kgs | |
Capacity Of Auto Decoiler | 3 T | |
