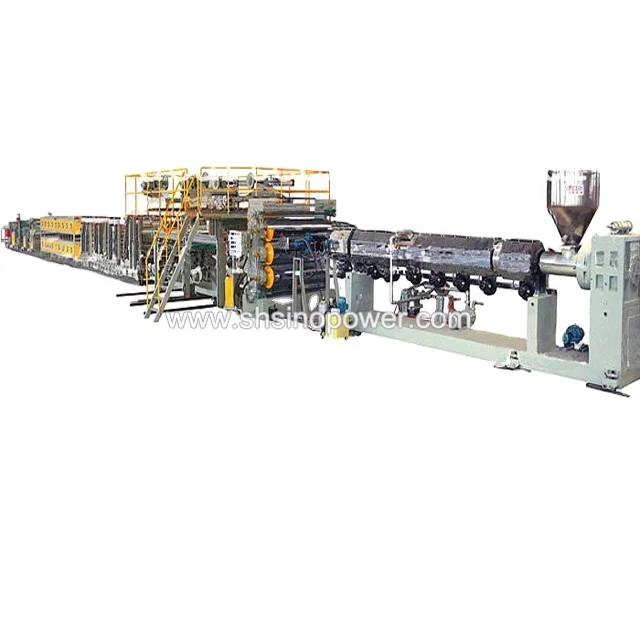

High quality PE coating Aluminum composite panel sheet production line

1. What is ACP produced by our machine?

ACP, Aluminium-plastic composite panel is a kind of composite panel with plastic as core material and surface composite decorative painting aluminum. ACP always use as building decorative panel.aluminum composite panel production line ACP sheet manufacturing machine

1.1) Finished aluminum plastic composite board
1.1.1: Width: 1000-1600mm
1.1.2: Thickness: 1.5-6mm (with the board difference ≤0.03mm)
1.1.3: Length: set according to production needs

3. Machine list of aluminum composite panel production line

1.  Screw feeder                                                                                   1 unit
2.  φ85 Conical-screw extruder                                                          1 unit
3.  Hydraulic screen exchange                                                            1 unit
4.  T-die                                                                                                  1 unit
5.  Three-roller calender                                                                       1 unit
6.  Three-roller temperature control system                                      1 unit
7.  Double working position adhesive film covering machine         1 unit
8.  PE panel trimming machine                                                            1 set
9.  Bottom aluminum hot rolling preliminary composite unit            1 unit
10. Heating compound unit                                                                1 unit
11. Thermal compound pure rolling unit                                           1 unit
12. Pure rolling unit                                                                             1 unit
13.Tension automatic proportional control type upper uncoiler
machine(with platform)                                                                           2 units
14. Tension automatic proportional control type lower uncoiler       2 units
16. IR heating unit                                                                                    1unit
17. Cooling unit                                                                                       2 units
18. Protective Film Covering Machine                                                 1 unit
19. Longitudinal Trimmer                                                                      1 unit
20. Five-roller flattener                                                                           1 unit
21. Towing device                                                                                  1unit
22.Transition frame                                                                               1 unit
1-23. Automatic cut-to-length machine                                                1 unit
24. Roller conveyor frame                                                                     1 set
25. Recoiler                                                                                             1unit
26. Hot oil type composite wheel thermostatic control unit            1 set
27. Electrical operation control box                                                   1 set
28. Main electrical box                                                                        1 set

4. Function of ACP production line

1.1 This equipment is designed for the special extruder continuous extrusion PE panel, through the T-die control core board thickness, after three-roller calander pressure compound with adhesive film. and then through the preheating roller re-heated for aluminum skin, reuse PE core board sweltering , compound PE material with aluminum coil on the 1st and 2nd compound group under the suitable temperature, and then the composite with hot rolling, pure rolling, cooling stereotypes, leveling, trimming ,covering protective film, cutting into a predetermined size sandwich type production line.

1.2 The coater aluminum coil, treated on the single wall on the mobile lower roll machine, with high precision magnetic powder tension control system, can ensure continuous production for tension tightness and stable flat aluminum coil into composite unit compound.

1.3. Composite three-layer plate forming by adjustable air cooled cooling device, ensure panel with stable curve way cooled to room temperature after composite unit, at the same time provide the temperature requirements to cover protective film.

1.4. The cooling panel through leveling and trimming, can make the shear machine automatic clamping panel synchronization to transfer course displacement by scale sensor of the feedback signal, then back off its normal position , can assurance accurate shear panel size.
