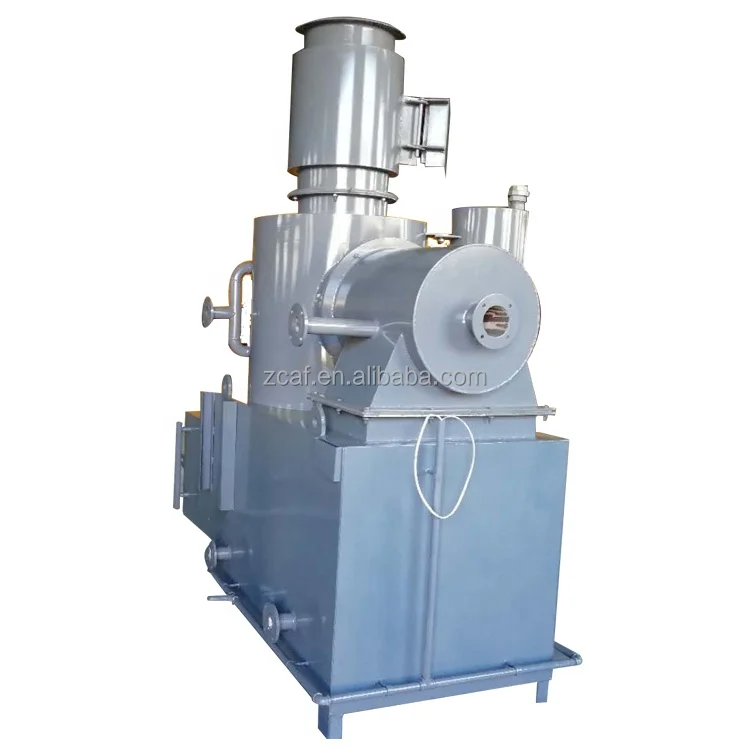

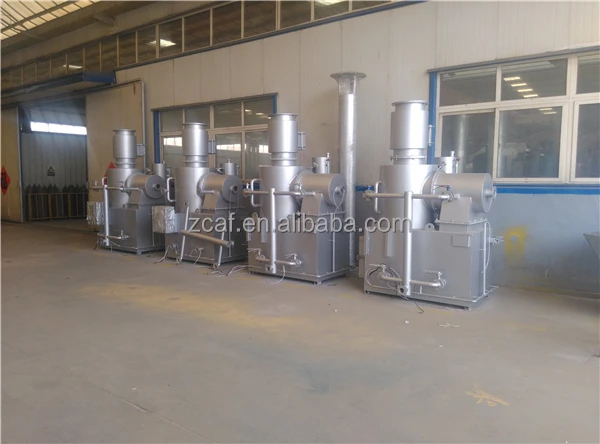

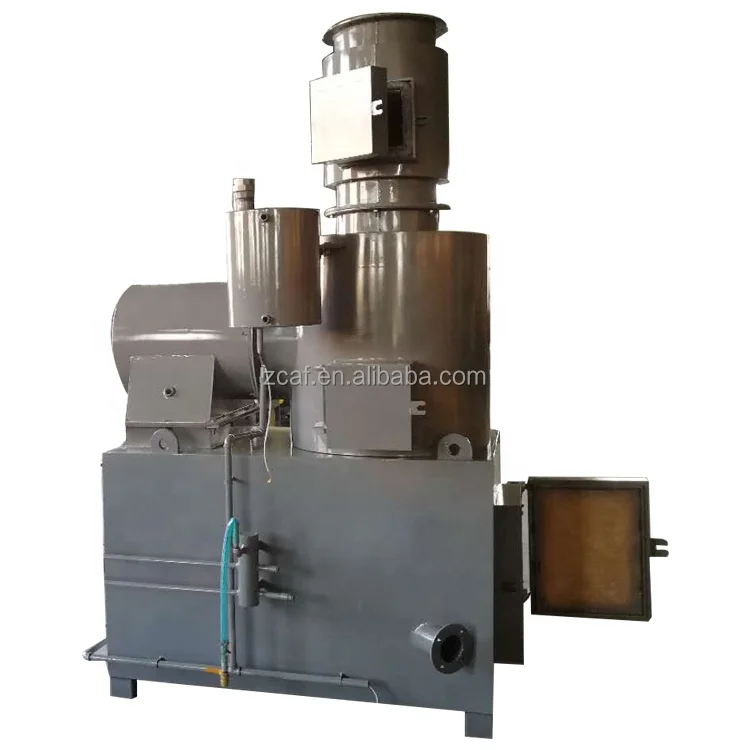

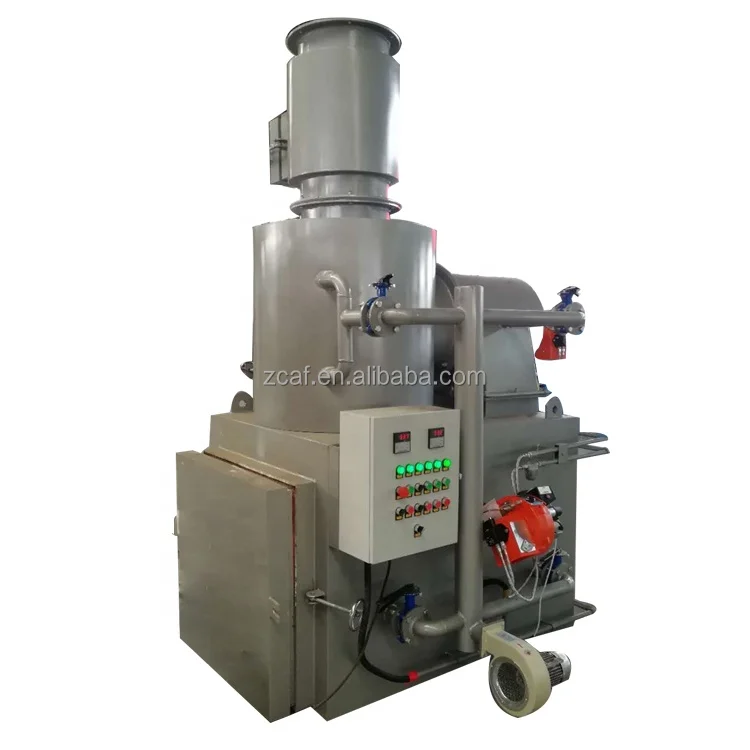

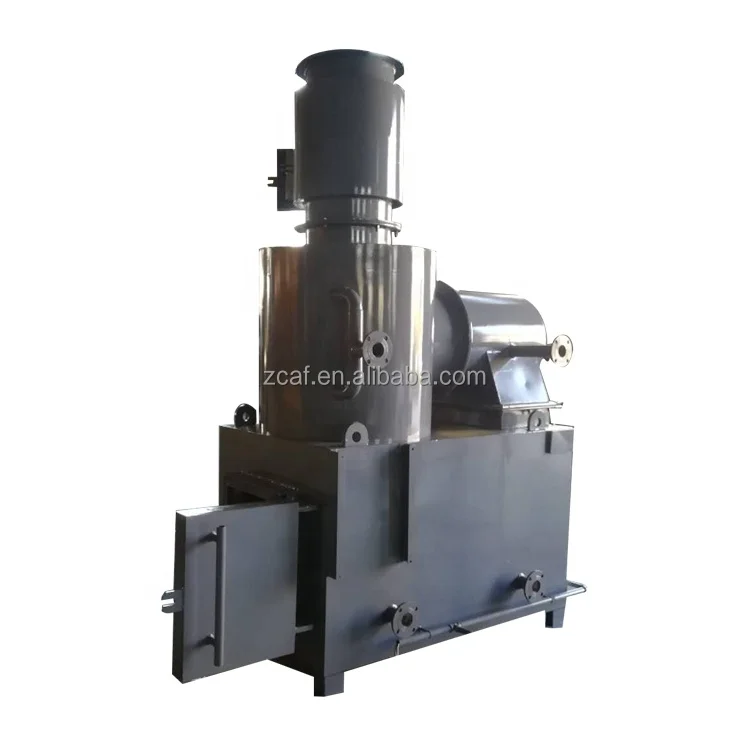

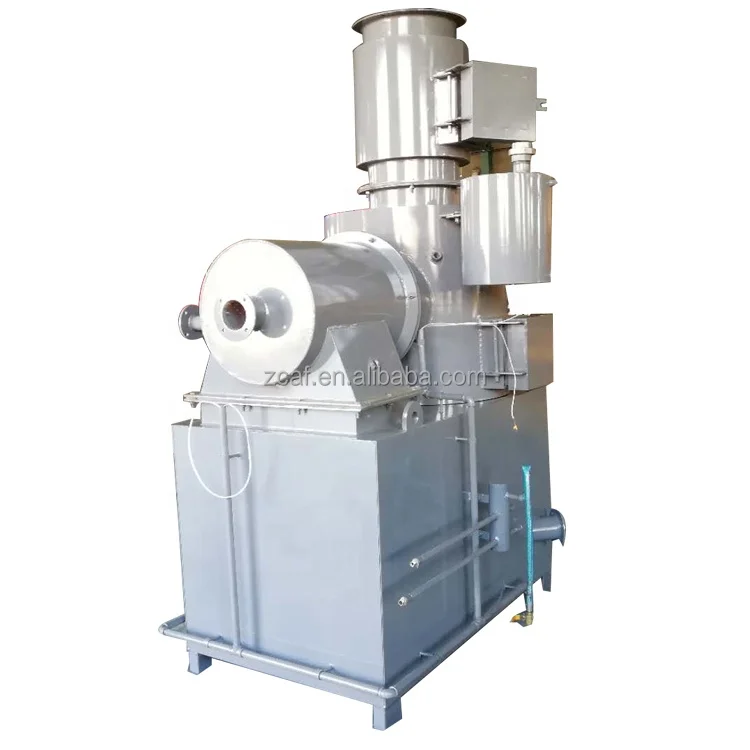

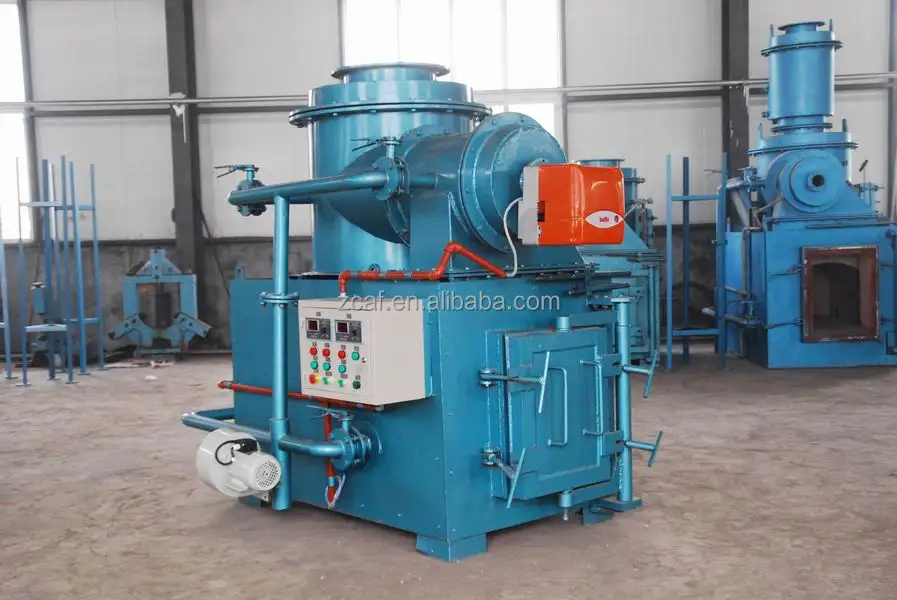

LDF Series Waste Incinerator is a kind of machine that was developed on the basis of Japanese technology, absorbs advantages of similar equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas.
1. Product Application:
1.Medical waste: syringes, neddles, gloves, straps, gauze, blood vessels, organs and other infectious waste.
2. Industrial waste(polymer waste): Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, bags, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on.
3. General garbage: cardboard, paper scraps, sawdust, leaves and so on.
4. Special waste: waste oil, waste solvents, oil sludge, ash dust, iron paint, mold filter residue and so on.
.Main Features：
(1)Gasified pyrolysis incineration is used for burning many kinds of waste.
(2)Waste can be burned once everyday by gasified incineration.
(3)Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust, dioxin etc.
(4)Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5)Compact structure and small land occupation.
Specification
NO
Item
Spec.
1
Model
LDF-50
2
Burning capacity
30-50kg/time (3-6 times/day)
3
Incinerator size
1.8m*1.15m*3m
4
Volume of incinerator
Gas room 0.5m³，Secondary burning room 0.3m³, Mixing combustion room 0.04m3
5
Size of waste inlet hole
620mm*800mm
6
Chimney
Height 10m，Outer diameter 280mm
7
Air blower
0.37kw
8
Combustion burner
0.11kw, fuel consumption 4-10kg/h
9
Re-combustion burner
0.11kw, fuel consumption 4-10kg/h
11
Running-voltage
220V or 380V
12
Weight
About 4000kg

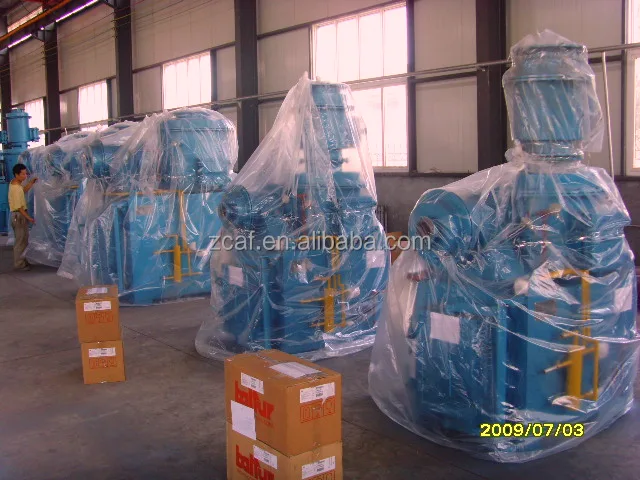

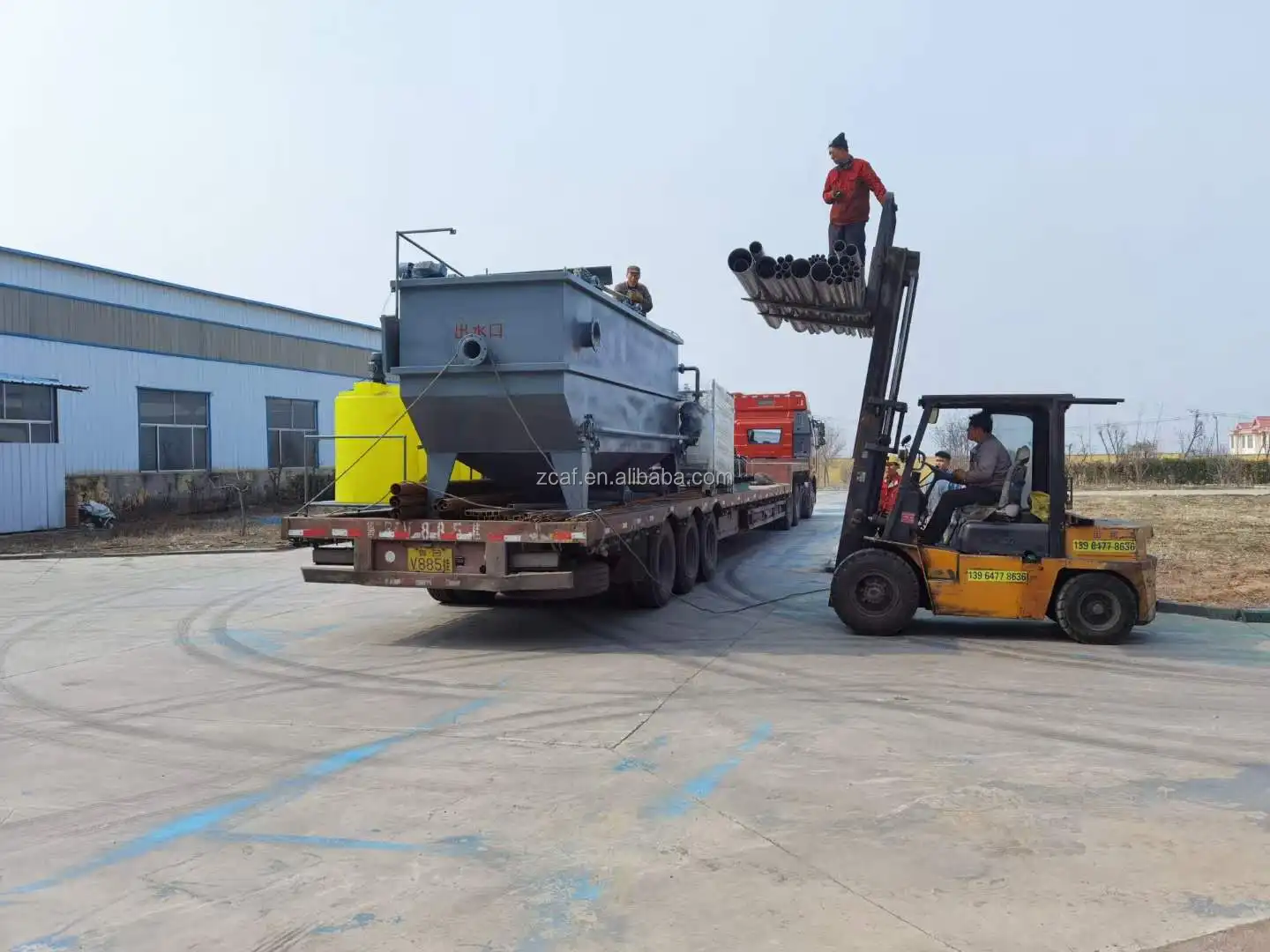

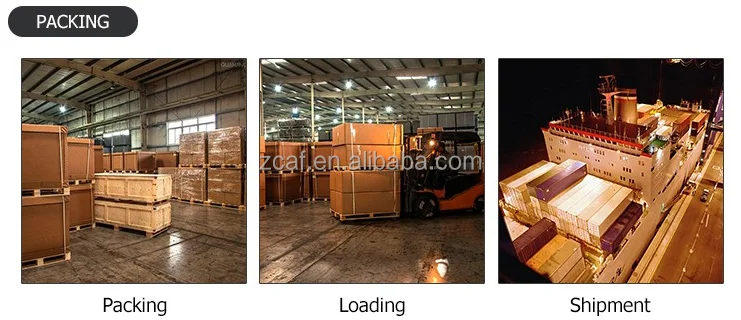

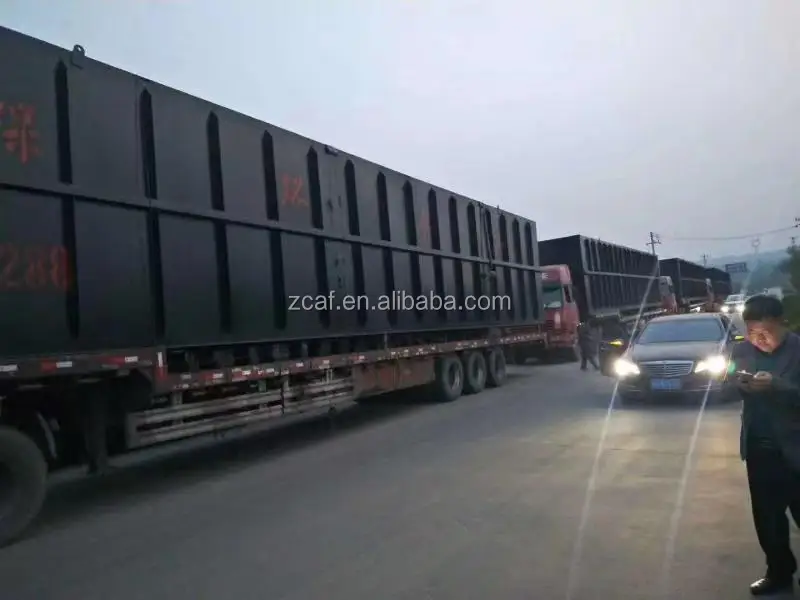

Packing & Delivery
Delivery time: 10-20 working days after payment receipt confirmed(based on actual quantity) Packing: standard export packing, or customized packing as your request. Professional goods shipping forwarder.

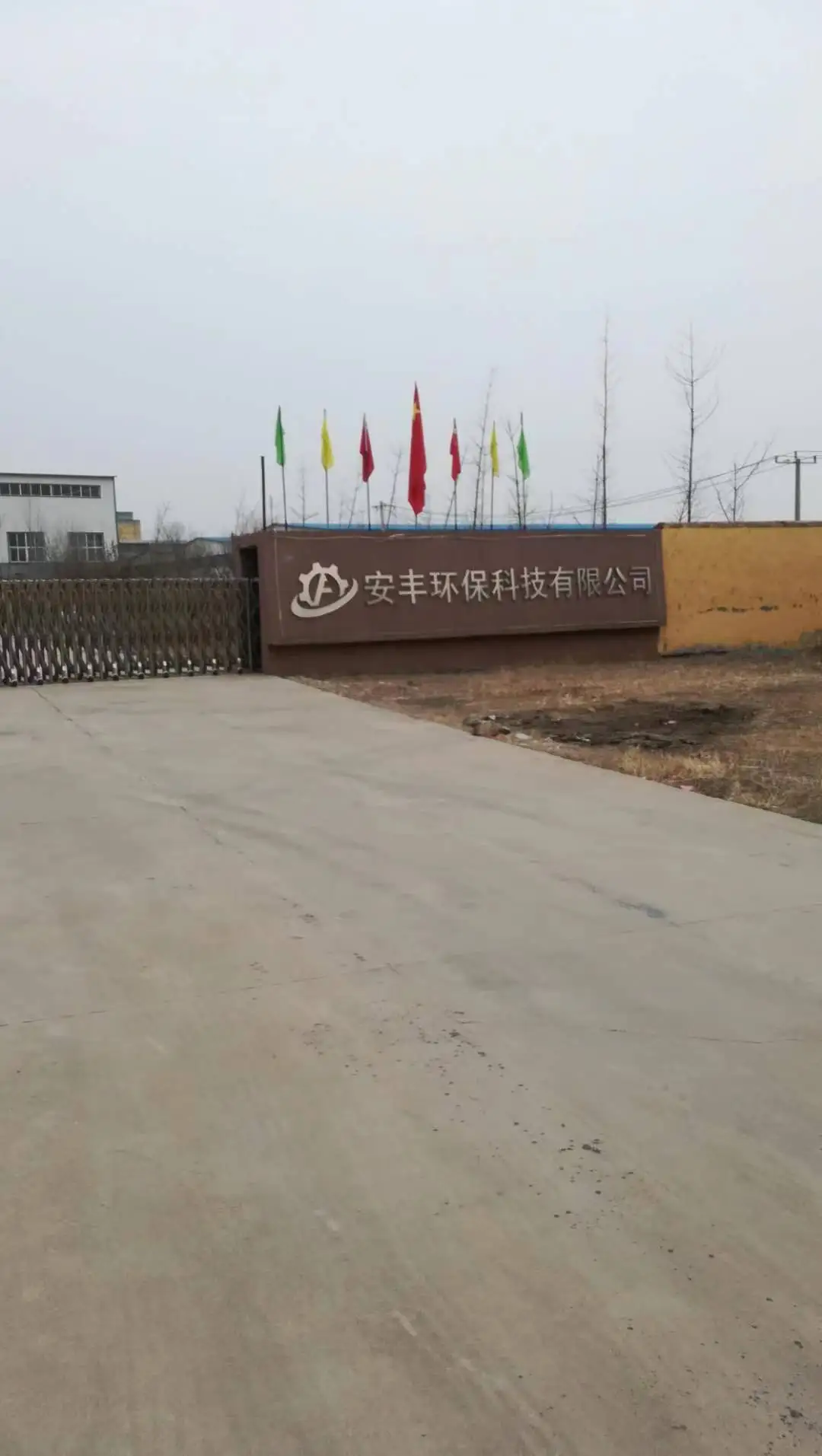

Company Profile

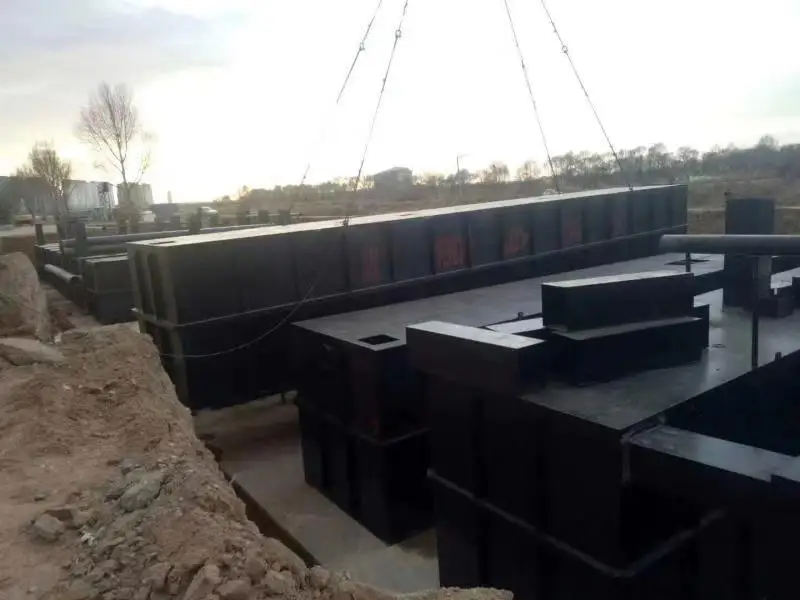

Zhucheng City Anfeng environmental protection Equipment Co., LTD. Is a high-tech enterprise integrating environmental protection engineering and general contracting, environmental protection equipment production and research and development. The company is established by a group of senior and professional environmental protection engineers with strong technical force, which can undertake all kinds of environmental protection projects and provide users with reasonable design schemes, excellent equipment configuration and high-quality engineering quality.

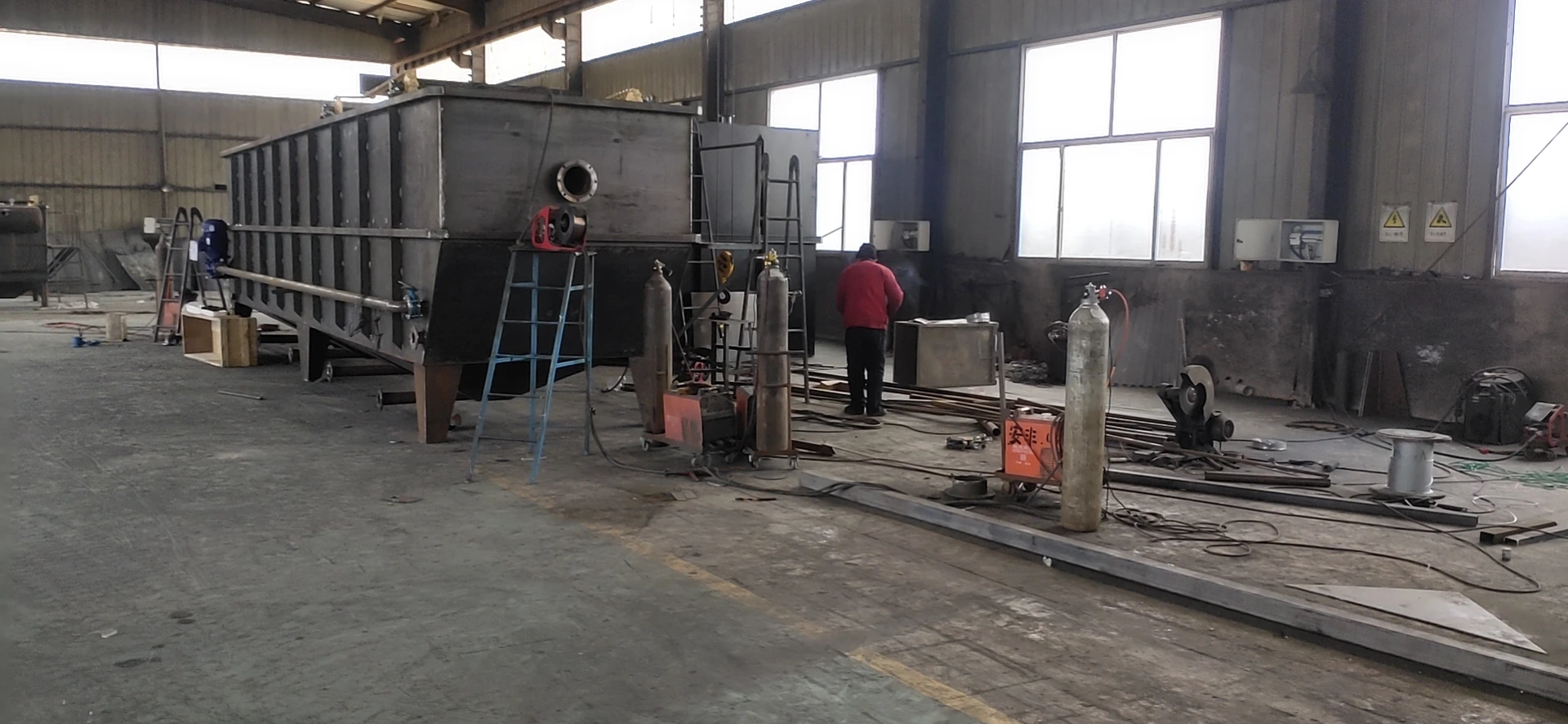

Our company has introduced advanced production equipment to manufacture all kinds of environmental protection equipment and accessories with high efficiency, high end and high cost performance for users. Company mainly undertake all kinds of environmental protection engineering, processing customized production of various kinds of environmental protection equipment, such as screen machine equipment, air flotation equipment, scraping the dredging equipment complete sets of equipment, filtration equipment, sewage treatment, industrial wastewater treatment equipment, sludge filter equipment, anaerobic tank, water-recovery equipment, desulfurization dust removal equipment, waste gas treatment equipment, incinerator, medical wastes treatment equipment, more than a dozen series, hundreds of products.
Our company adheres to the business philosophy of "quality, reputation, innovation and service", and constantly strengthens the development and innovation of products. While improving the quality of products, the after-sales service is more perfect, striving to produce excellent quality and reasonable price excellent products and provide high-quality and satisfactory services for the majority of users.

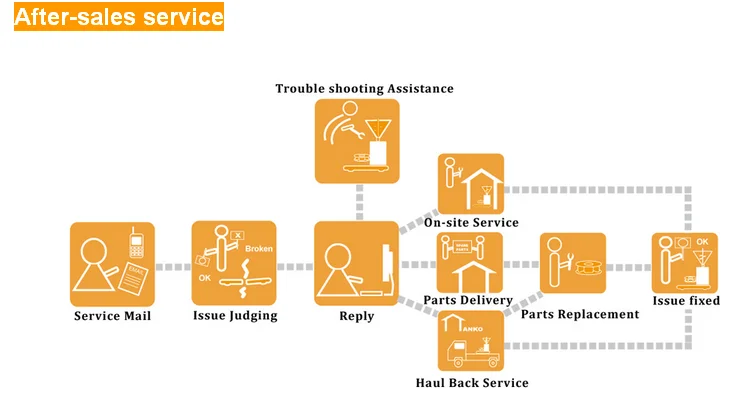

After-Sale Service
FAQ
1. What is the voltage/phase for this machine?
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as
the clients’ requirement.
2. What is the Mode of transportation?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
3. How long can we get the goods?
we usually delivery in 10-40 working days after deposit.
4. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
5. How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems. or dispatch our worker to your factory.
