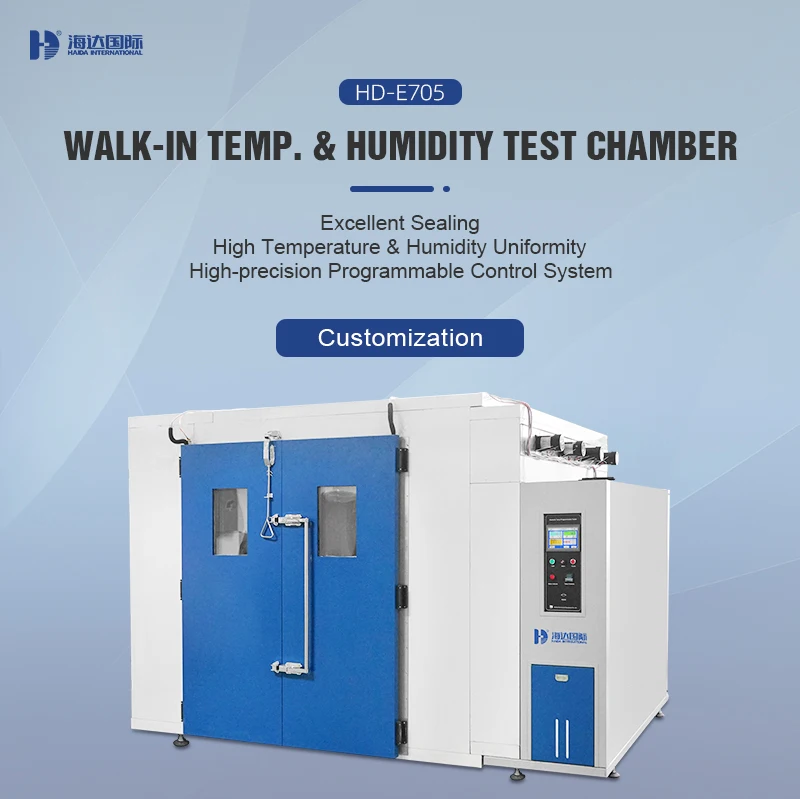

Lab Environmental Large Capacity Battery Test Machine Walk In Test Chamber
- Category: Testing Equipment >>>
- Supplier: Dongguan Haida Equipment Co. Ltd.
Share on (1600217431013):
Product Overview
Description
These walk-in chambers have an assembled structure and can be installed and debugged on site. The cavity has a large volume and can be used to simulate single or complex environmental factors in the atmosphere, such as temperature, humidity, salt spray, light, dust, rain, and vibration.
chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
Interior
Insulation
Cooling system
cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
Door
lockable front opening, with double door latch easy to open
with silicon gasket for perfect sealing
viewing window
Illumination
inernallight on viewing windows with external control
Electrical panel
Thermal cyclic chamber
chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
Interior
the conditioning with air circulation to maintain uniform temperatur
interior have provision for arranging stainless steel
interior have provision for arranging stainless steel
Insulation
insulation is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam
Cooling system
cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
Door
lockable front opening, with double door latch easy to open
with silicon gasket for perfect sealing
viewing window
viewing interlock is sealed to avoid leakage and provided with heating provision to prevent condensation
Illumination
inernallight on viewing windows with external control
Electrical panel
all power connectors, protection devices power control logic built in the control panel integrated to the chamber
all electrical cables tagged with id number
all electrical function circuit equipped with its own safety device that shuts down the relevant circuit or the entire test
chamber if a faulty develops
all electrical systems comply with recognized technical regulation as well as with the accident prevention regulations.
all electrical cables tagged with id number
all electrical function circuit equipped with its own safety device that shuts down the relevant circuit or the entire test
chamber if a faulty develops
all electrical systems comply with recognized technical regulation as well as with the accident prevention regulations.
Product Paramenters
SPECIFICATION | HD-E705-7-1 |
TEMPERATURE RANGE | -50C TO +100C |
HUMIDITY RANGE | 40% TO 98% RH |
DIMENSION (INTERNAL) (W X D X H) | 1500 X 1500 X 3000 MM |
DIMENSION (EXTERNAL) (W X D X H) | 2850 X 1700 X 3200 MM |
RAMP | VARIABLE, TEMP. 0~5C / MIN & HUMIDITY 0~5%/MIN IN AVERAGE, NO LOAD |
ACCURACY | TEMP. ±1C, HUMIDITY ±2.5%RH |
INTERIOR WALLS | STAINLESS STEEL 304 |
EXTERIOR WALLS | COLD ROLLED STELL PLATE WITH BAKING FINISH |
TEMPERATURE & HUMIDITY MEASUREMENT AND CONTROLLER | 32 BIT CONTROL AND MONITORING SYSTEM. INTERFACE FACILITY WITH RS232 PROGRAMMABLE TEMP. HUMID. CONTROLLER |
VIEWING WINDOW | MULTI PANE GLASS WINDOW SIZE |
PORT HOLES | 50 MM DIAMETER FOR WIRE ROUTING |
POWER SUPPLY REQUIREMENT | THREE PHASE, AC380 V ± 10 %, 50 HZ |
SOUND PRESSURE LEVEL | <72DB (A) |
CONDENSER COOLING | WATER COOLED |
