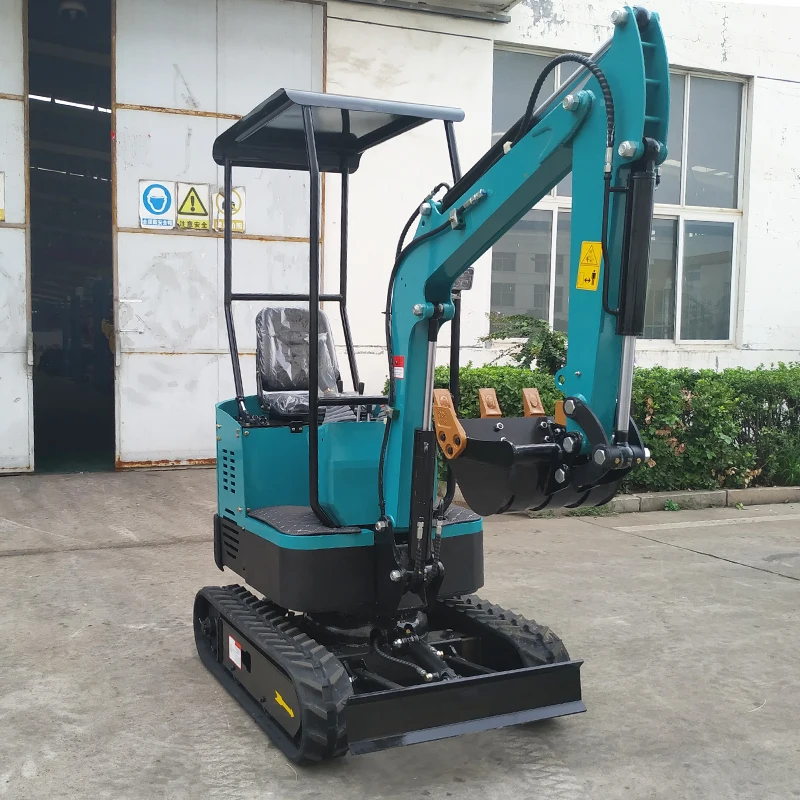

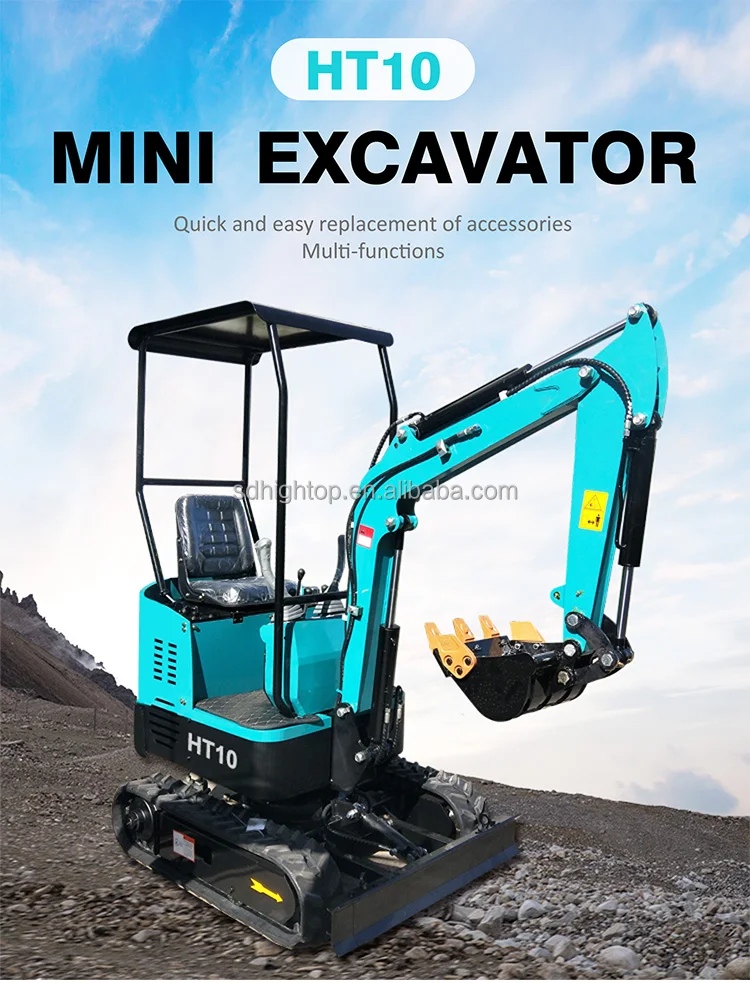

China popular brand 0.8ton 1ton hydraulic small digger machine mini excavator / Escavator machines mini excavator digger/electric mini excavator/mini excavator 1ton

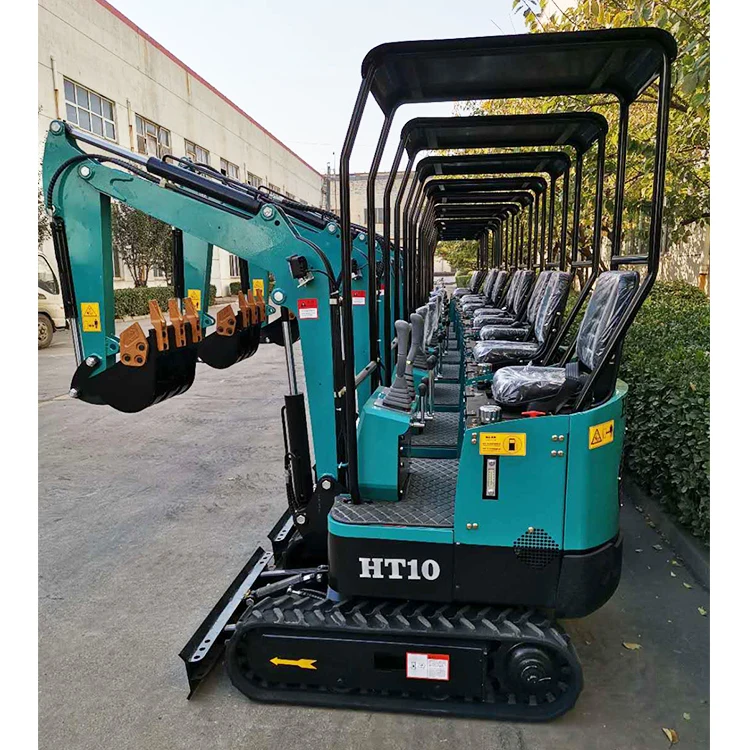

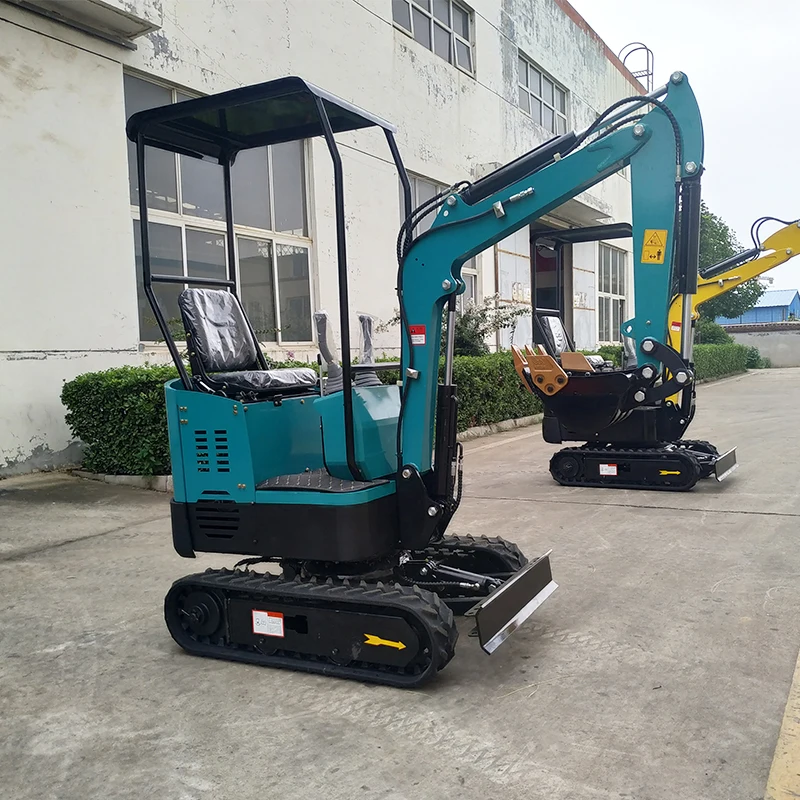

HT 10 mini excavator is a compact, lightweight, economic and multi-purpose excavator.It is also called compact excavator or small excavator. Mini excavators are flexible in narrow spaces. They are widely used for material handling, light demolition jobs, stump removal, ditching, construction projects, landscaping, road building, home garden use and so on.





Compared with large excavators, small excavators have the advantages of low fuel consumption, good quality, low failure rate, unlimited space and multi-function, which can be applied to the following aspects:


Orchard: digging fertilizer ditch, planting trees, weeding, soil cultivation, reclamation, etc;


Trenching: cable trench, water or sewage pipeline, natural gas pipeline, etc;


Landscaping: planting trees, digging ditches, etc;


Mountain contracting: planting trees, building terraces, digging ditches, opening paths, weeding, etc;


Indoor: indoor demolition, basement backfill;


Crushing: Road and ground concrete crushing, mountain stone crushing, etc;


Mine: tunnel and cave construction, various mines and shafts, etc;


Vegetable greenhouses: used for deep ploughing;


Dig medicine: used to dig yam, etc;


In addition: agriculture and forestry planting, farmland transformation, small earthwork engineering, municipal engineering, pavement repair, breeding farm, garden cultivation and river channel dredging engineering and other operating environment. It has the functions of digging, breaking, hook cleaning, drilling and bulldozing. It can quickly replace accessories and greatly improve the utilization rate of the machine.





*  It can install with EPA engine , Euro 5 engine. CE
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton , 2.2 ton and 3.5ton mini Excavator for you too choose!

 Machine technical parameters:




















































































































Machine model


HT 10 Mini excavator


Weight


1000kg


Digging bucket capacity


0.025cbm/120kg


Bucket width


380mm


Engine

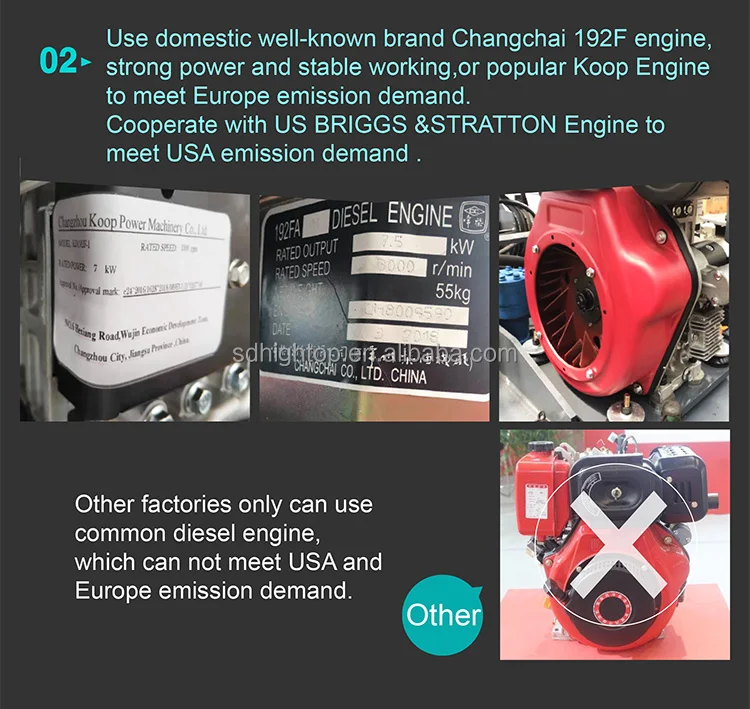

CHANGCHAI/KOOP (192FAM)


Optional EPA Engine


BRIGGS & STRATTON(G420FD)


Cylinders number


Single cylinder, fan cool


Rated power


8.2 kw/3600r/min or 9.9kw/3600r/min


Displacement


6.8ml/r


Travel speed


1.5km/h


Overall dimension( LxWxH)


2775x930x2219 mm


Wheelbase


910 mm


Total length of track


1230mm


Platform ground clearance


380 mm


Platform back turning radius


784 mm


Chassis width


896 mm


Track width


180 mm


Chassis ground clearance


132 mm


Track height


320 mm


Max. Digging depth


1650 mm


Max. Vertical digging depth


1375 mm


Max. Digging height


2610 mm


Max. Dumping height


1850 mm


Max. Digging radius on ground


2850 mm


Min. Rotation radius


1330 mm


Max. Upgrade height of bulldozer blade


345 mm


Max. Digging depth of bulldozer blade


255 mm

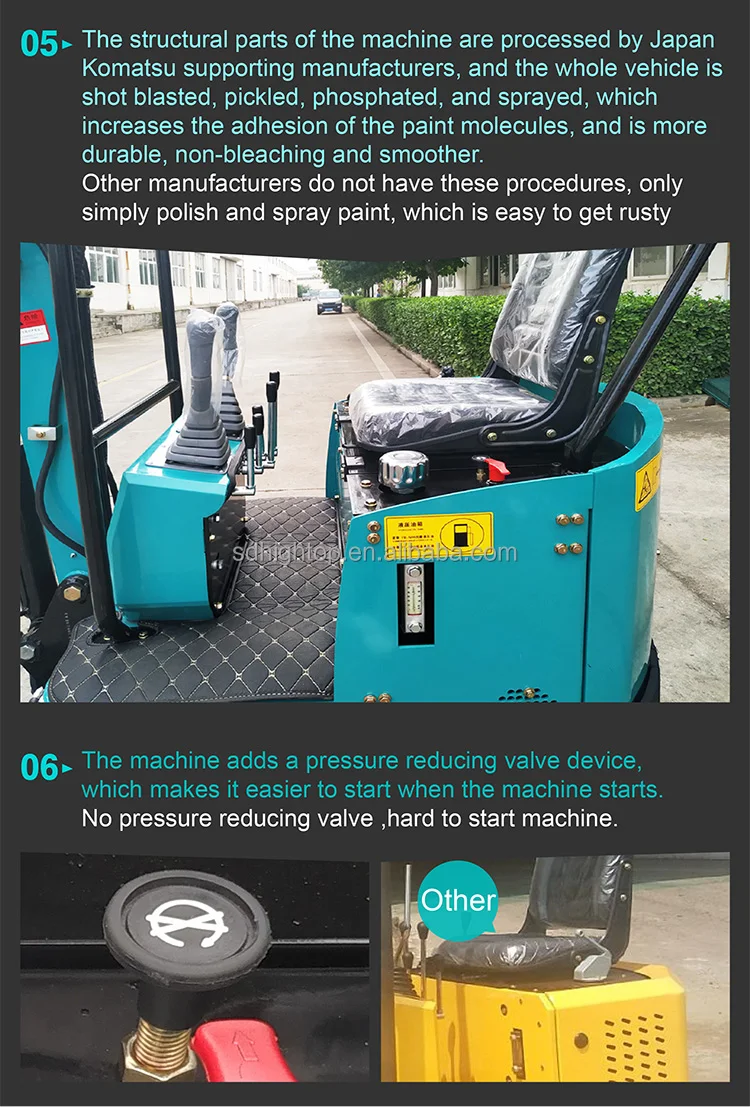

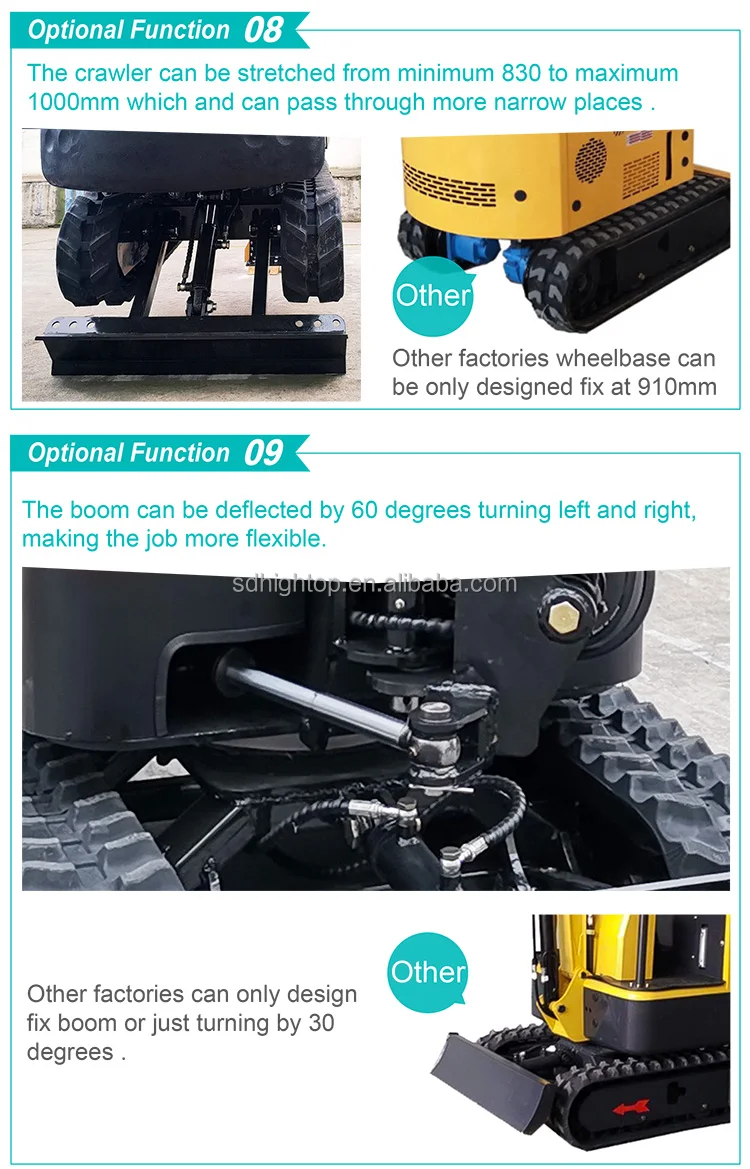

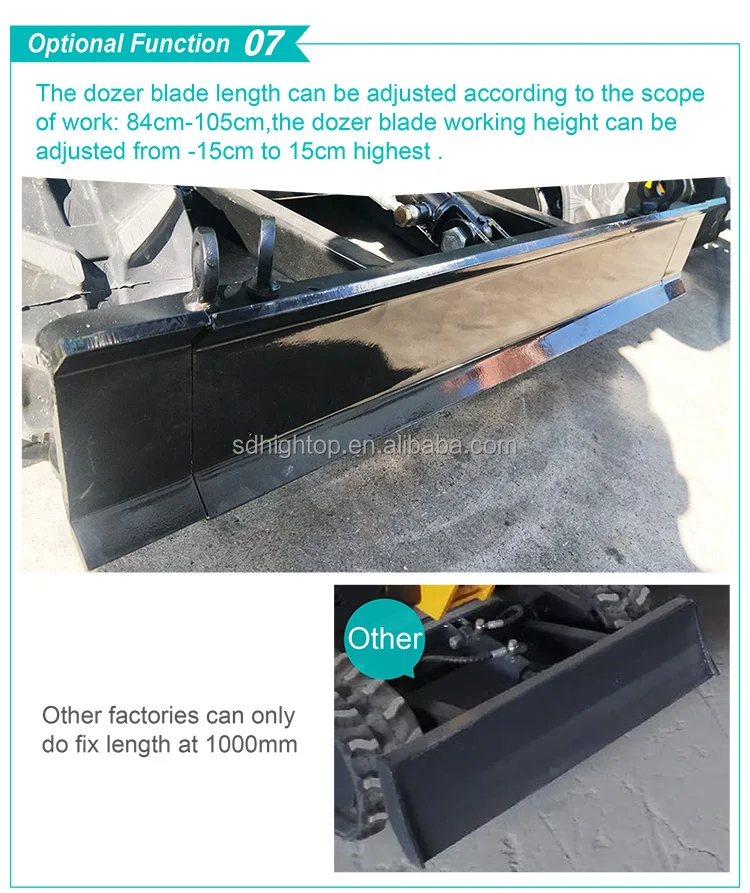

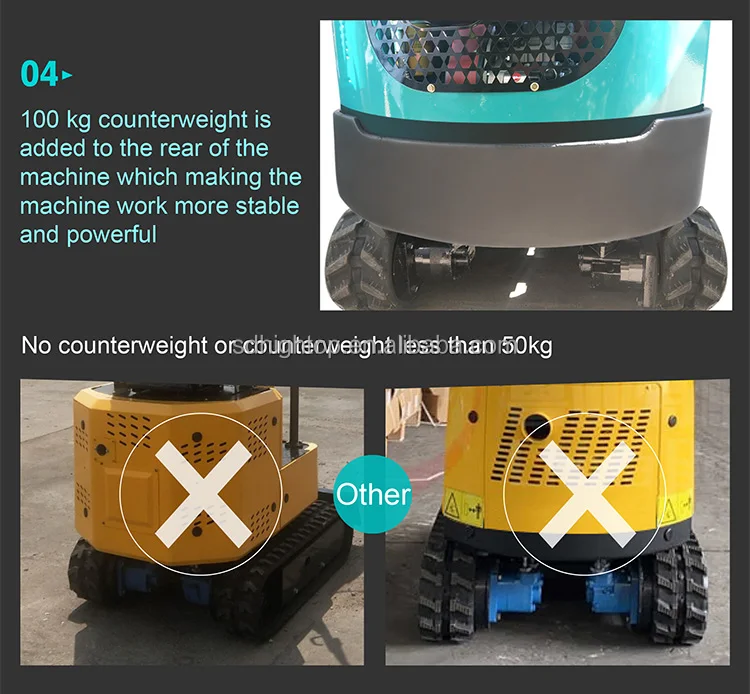

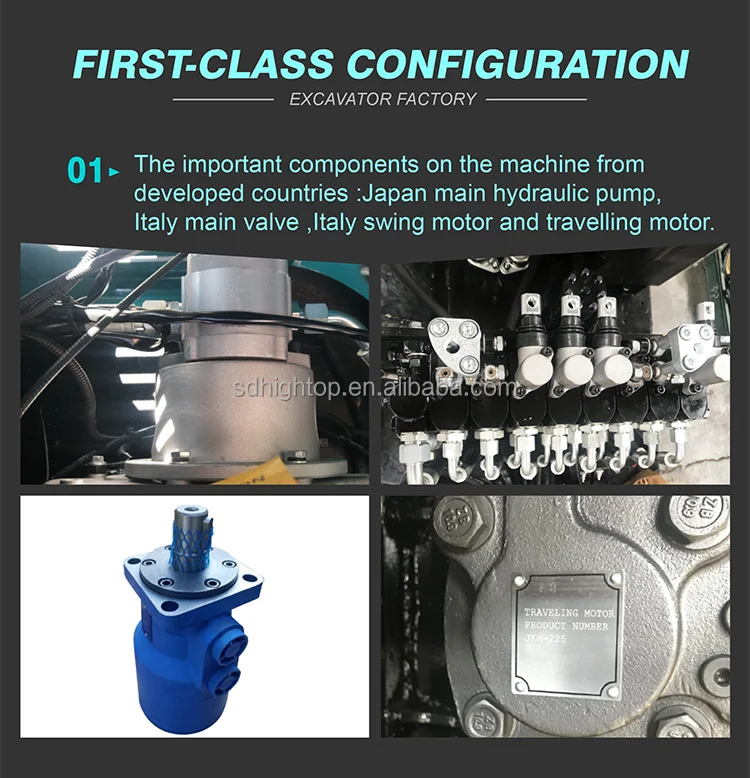

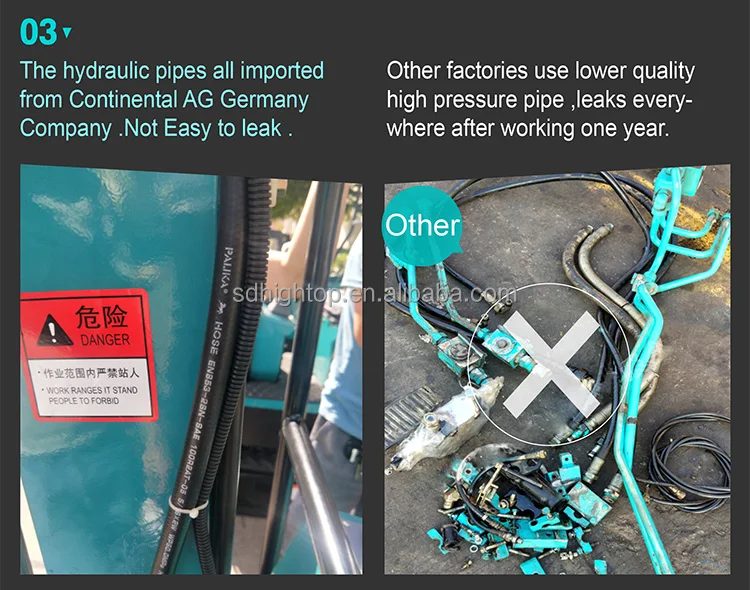

First-class configuration and advantages:
