7x7 12 мм 19 мм, оптовая продажа, Проволочный Трос из нержавеющей стали с такелажным оборудованием, аксессуары, гибкий авиационный стальной кабель
- Category: >>>
- Supplier: Xinghua City Tianli Stainless Steel Products Co. Ltd.
Share on (1600218998026):
Product Overview
Description

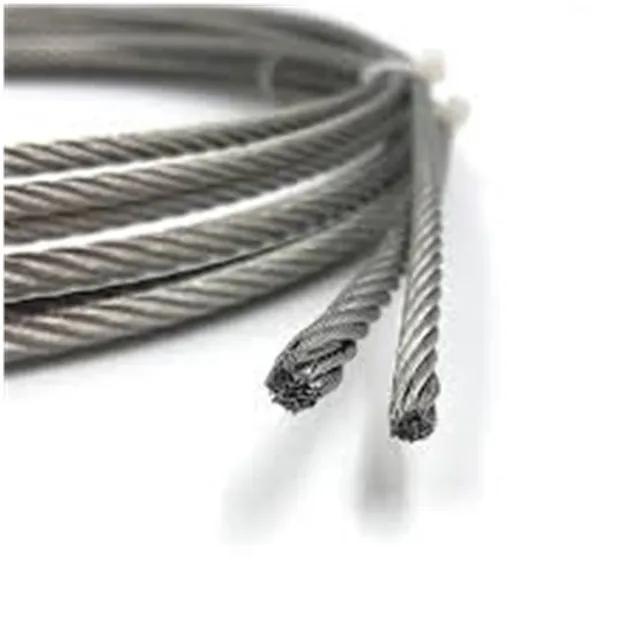

Wholesale stainless steel wire rope with Rigging Hardware Accessories Flexible Steel Cable 12mm 19mm
Tianli Stainless Steel offers a complete line of stainless steel cable for marine, industrial and architectural applications.
All of our stainless steel cable is made from 316 and 304 stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel cable will meet and exceed your expectations.
Our stainless steel cable can be supplied on a spool or cut to your specific request.
Product Description
7x19 Stainless Steel Wire Rope Specification:
| Structure | Rope diameter mm | kg/1000m | Minimum Breaking force N | Minimum Breaking force kg |
| 7x19 | 2.5 | 25 | 4410 | 450 |
| 3 | 36 | 6370 | 650 | |
| 3.2 | 40.96 | 7850 | 801 | |
| 4 | 64 | 8620 | 880 | |
| 4.5 | 81 | 12250 | 1250 | |
| 4.8 | 92.16 | 16510 | 1685 | |
| 5 | 100 | 16660 | 1700 | |
| 5.6 | 125.44 | 22250 | 2270 | |
| 6 | 144 | 23520 | 2400 | |
| 6.4 | 163.84 | 28500 | 2908 | |
| 8 | 256 | 40000 | 4082 | |
| 9 | 324 | 46000 | 4694 | |
| 9.5 | 361 | 53400 | 5449 | |
| 10 | 400 | 54000 | 5510 | |
| 12 | 576 | 73000 | 7449 | |
| 13 | 676 | 82000 | 8367 | |
| 14 | 784 | 89000 | 9082 | |
| 16 | 1024 | 124000 | 12653 | |
| 18 | 1296 | 157000 | 16020 | |
| 20 | 1600 | 194000 | 19796 | |
| 22 | 1936 | 235000 | 23980 | |
| 24 | 2304 | 280000 | 28571 | |
| 26 | 2704 | 328000 | 33469 | |
| 28 | 3136 | 381000 | 38878 | |
| 30 | 3600 | 437000 | 44592 | |
| 32 | 4096 | 497000 | 50714 | |
| other diameter and construction available | ||||
inch to mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :
| inch | mm | inch | mm | inch | mm | inch | mm | ||||||||||||||||
| 1/2 | 0.5 | 12.7 | 3/32 | 0.09375 | 2.381 | 3/64 | 0.046875 | 1.191 | 35/64 | 0.546875 | 13.891 | ||||||||||||
| 1/4 | 0.25 | 6.35 | 5/32 | 0.15625 | 3.969 | 5/64 | 0.078125 | 1.984 | 37/64 | 0.578125 | 14.684 | ||||||||||||
| 3/4 | 0.75 | 19.05 | 7/32 | 0.21875 | 5.556 | 7/64 | 0.109375 | 2.778 | 39/64 | 0.609375 | 15.478 | ||||||||||||
| 1/8 | 0.125 | 3.175 | 9/32 | 0.28125 | 7.144 | 9/64 | 0.140625 | 3.572 | 41/64 | 0.640625 | 16.272 | ||||||||||||
| 3/8 | 0.375 | 9.525 | 11/32 | 0.34375 | 8.731 | 11/64 | 0.171875 | 4.366 | 43/64 | 0.671875 | 17.066 | ||||||||||||
| 5/8 | 0.625 | 15.875 | 13/32 | 0.40625 | 10.319 | 13/64 | 0.203125 | 5.159 | 45/64 | 0.703125 | 17.859 | ||||||||||||
| 7/8 | 0.875 | 22.225 | 15/32 | 0.46875 | 11.906 | 15/64 | 0.234375 | 5.953 | 47/64 | 0.734375 | 18.653 | ||||||||||||
| 1/16 | 0.0625 | 1.588 | 17/32 | 0.53125 | 13.494 | 17/64 | 0.265625 | 6.747 | 49/64 | 0.765625 | 19.447 | ||||||||||||
| 3/16 | 0.1875 | 4.763 | 19/32 | 0.59375 | 15.081 | 19/64 | 0.296875 | 7.541 | 51/64 | 0.796875 | 20.241 | ||||||||||||
| 5/16 | 0.3125 | 7.938 | 21/32 | 0.65625 | 16.669 | 21/64 | 0.328125 | 8.334 | 53/64 | 0.828125 | 21.034 | ||||||||||||
| 7/16 | 0.4375 | 11.113 | 23/32 | 0.71875 | 18.256 | 23/64 | 0.359375 | 9.128 | 55/64 | 0.859375 | 21.828 | ||||||||||||
| 9/16 | 0.5625 | 14.288 | 25/32 | 0.78125 | 19.884 | 25/64 | 0.390625 | 9.922 | 57/64 | 0.890625 | 22.622 | ||||||||||||
| 11/16 | 0.6875 | 17.463 | 27/32 | 0.84375 | 21.431 | 27/64 | 0.421785 | 10.716 | 59/64 | 0.921875 | 23.416 | ||||||||||||
| 13/16 | 0.8125 | 20.638 | 29/32 | 0.90625 | 23.019 | 29/64 | 0.453125 | 11.509 | 61/64 | 0.953125 | 24.209 | ||||||||||||
| 15/16 | 0.9375 | 23.813 | 31/32 | 0.96875 | 24.606 | 31/64 | 0.484375 | 12.303 | 63/64 | 0.984375 | 25.003 | ||||||||||||
| 1/32 | 0.03125 | 0.794 | 1/64 | 0.01562 | 0.397 | 33/64 | 0.515625 | 13.097 | 64/64 | 1 | 25.4 | ||||||||||||
| Chemical Composition of common Stainless Steel Grades | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |

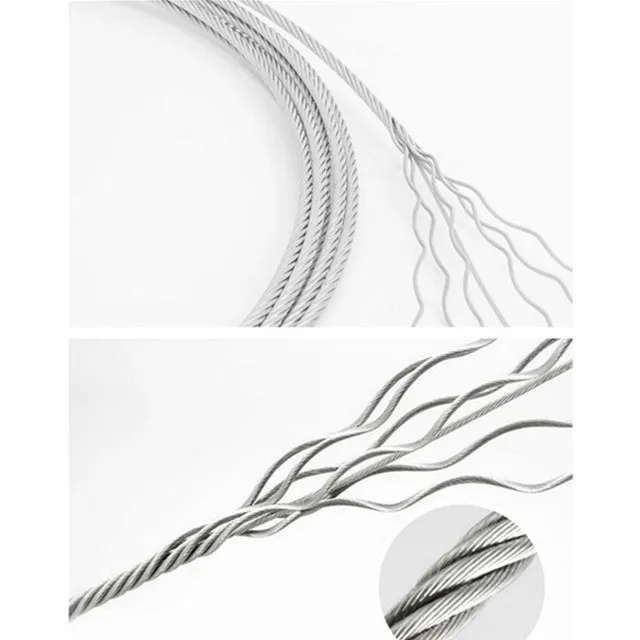

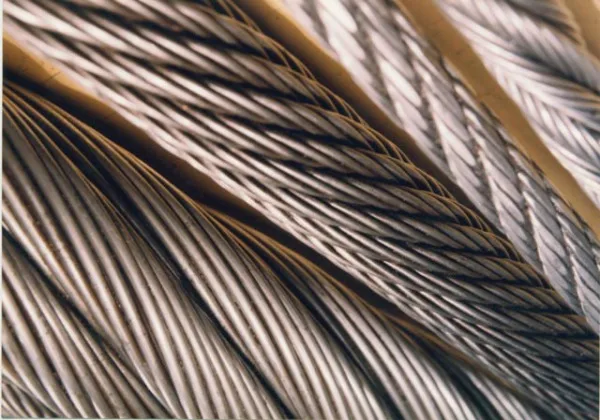

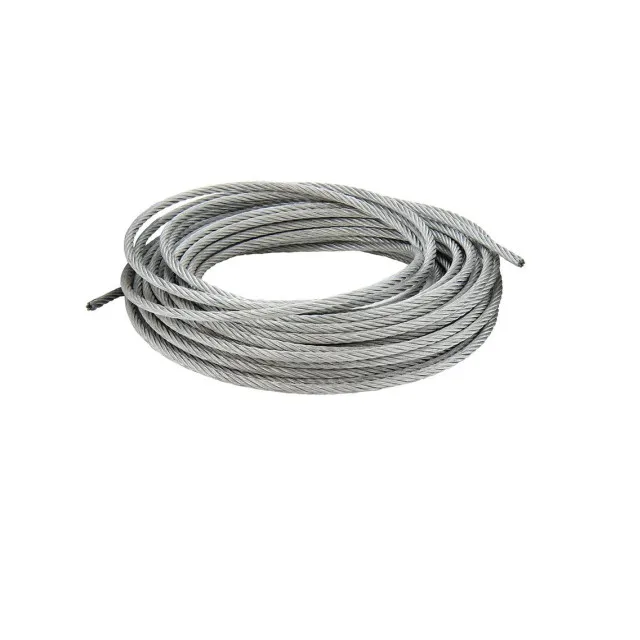

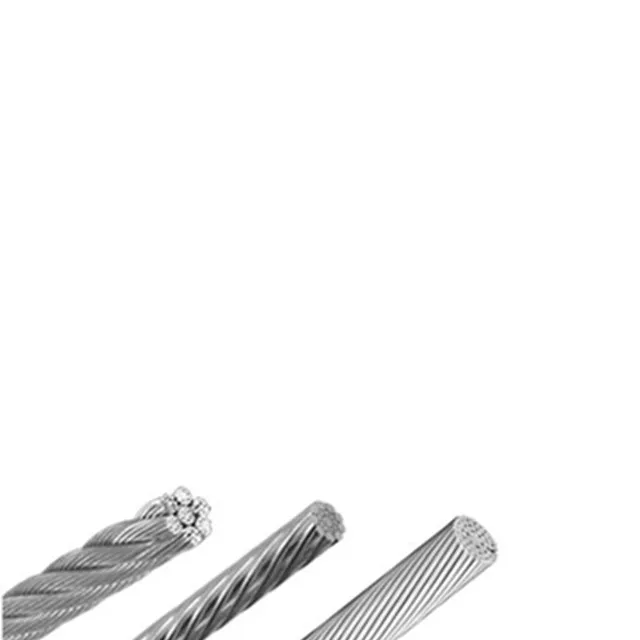

Detailed Images
Packaging & Shipping
packed with hard strong plywood spool , reel , bobbin . covered with clear plastic to aovid water or dirt
shipping mark as client requirement
1000m/reel 1500m/reel 2000m/reel 2500m/reel 3000m/reel and other length for your choice
