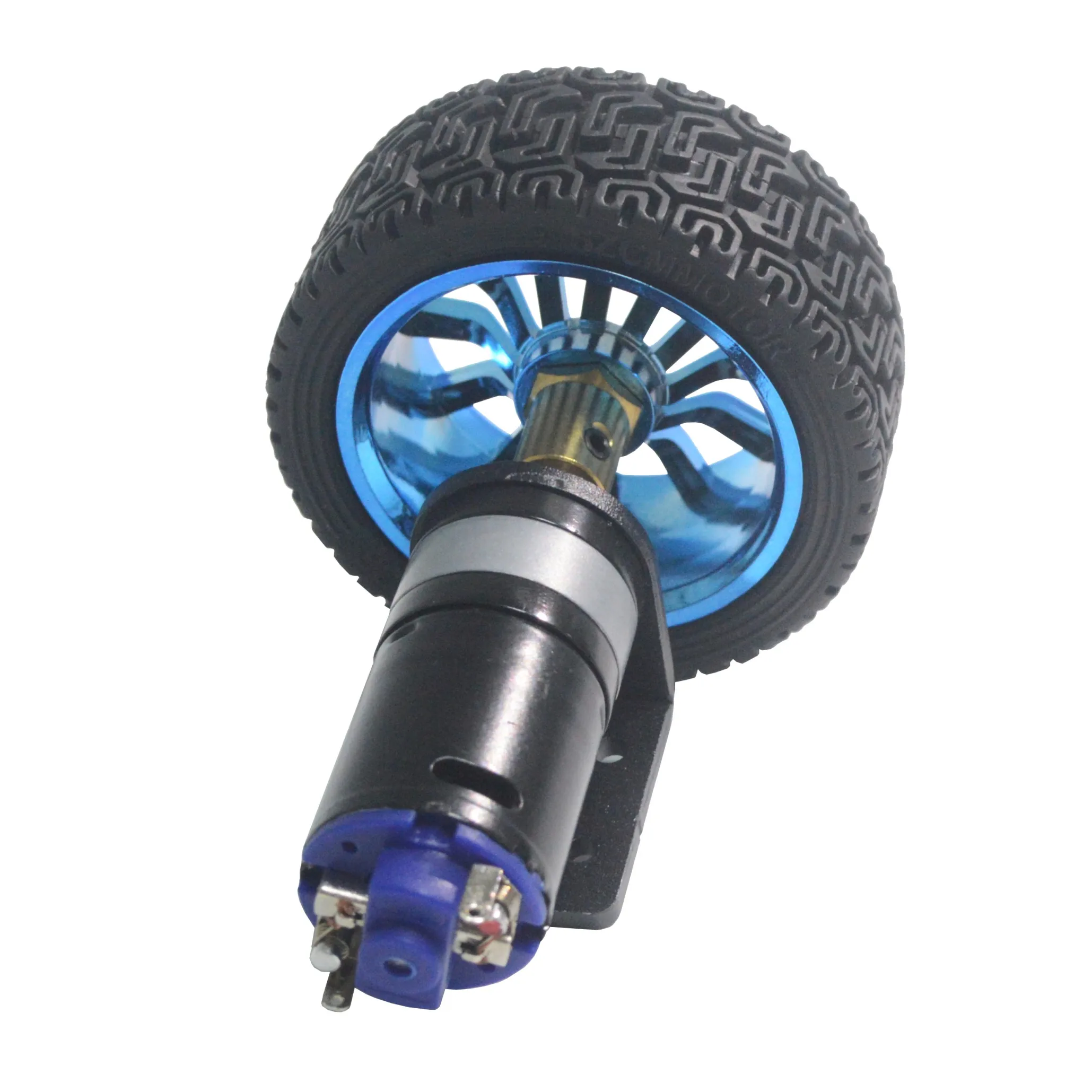

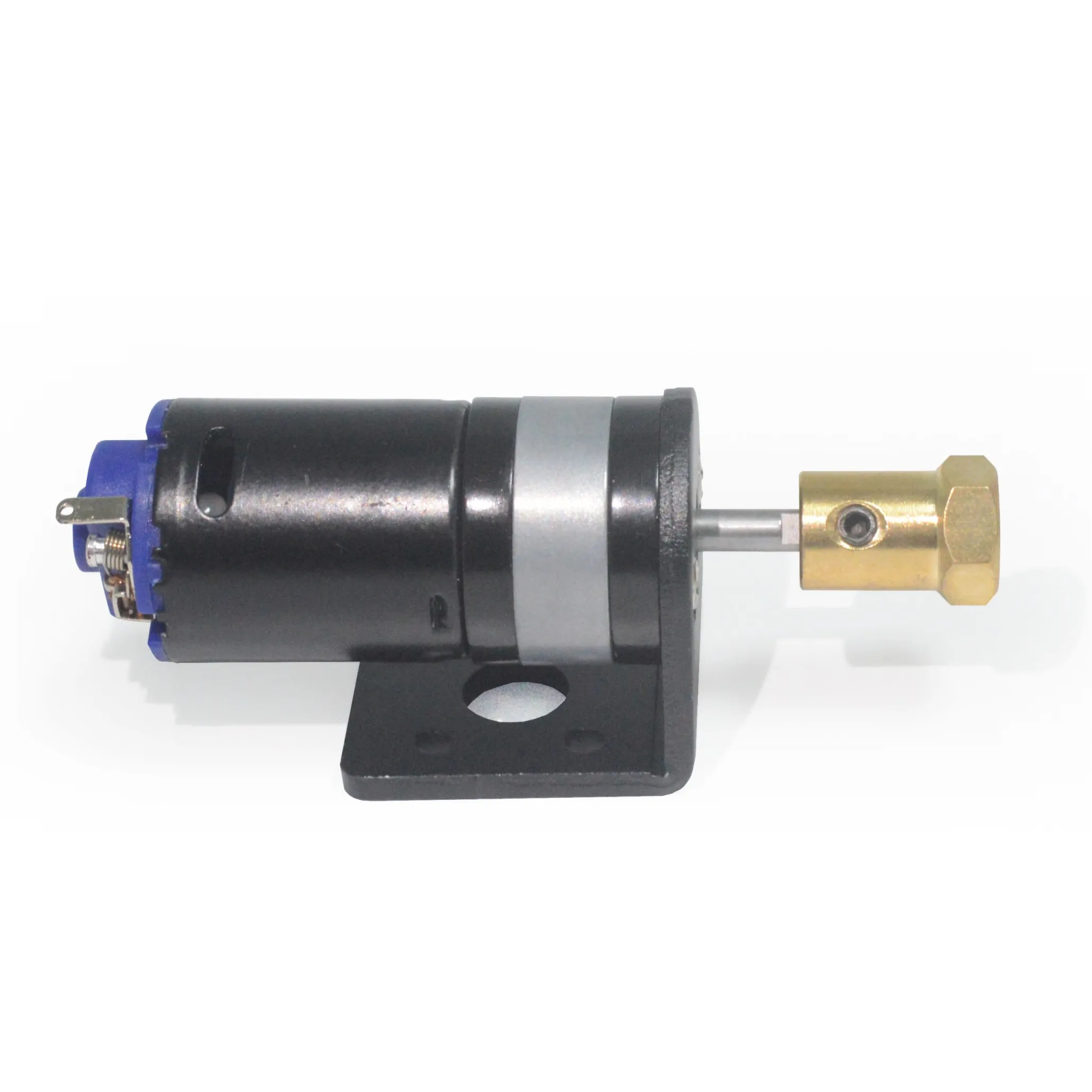

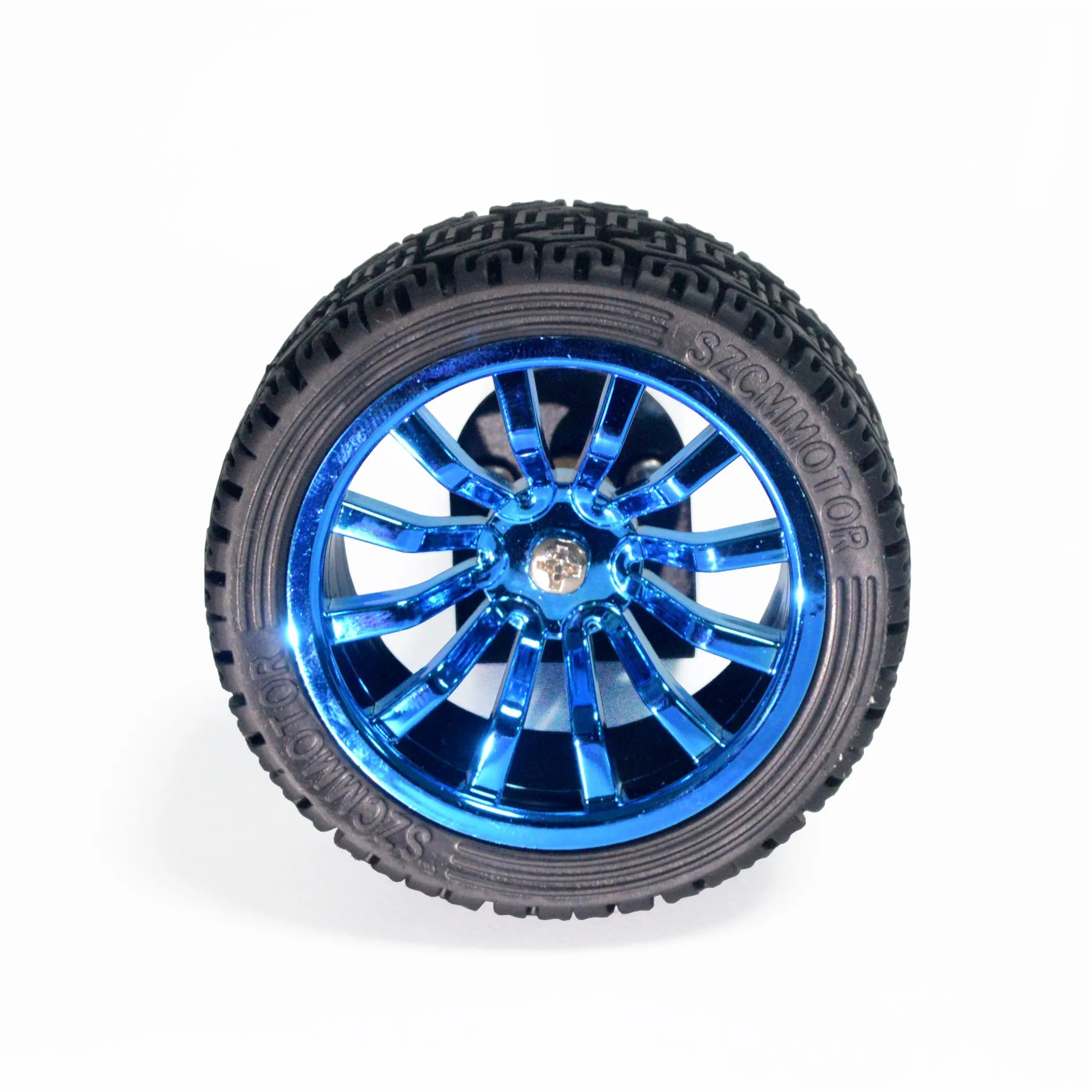

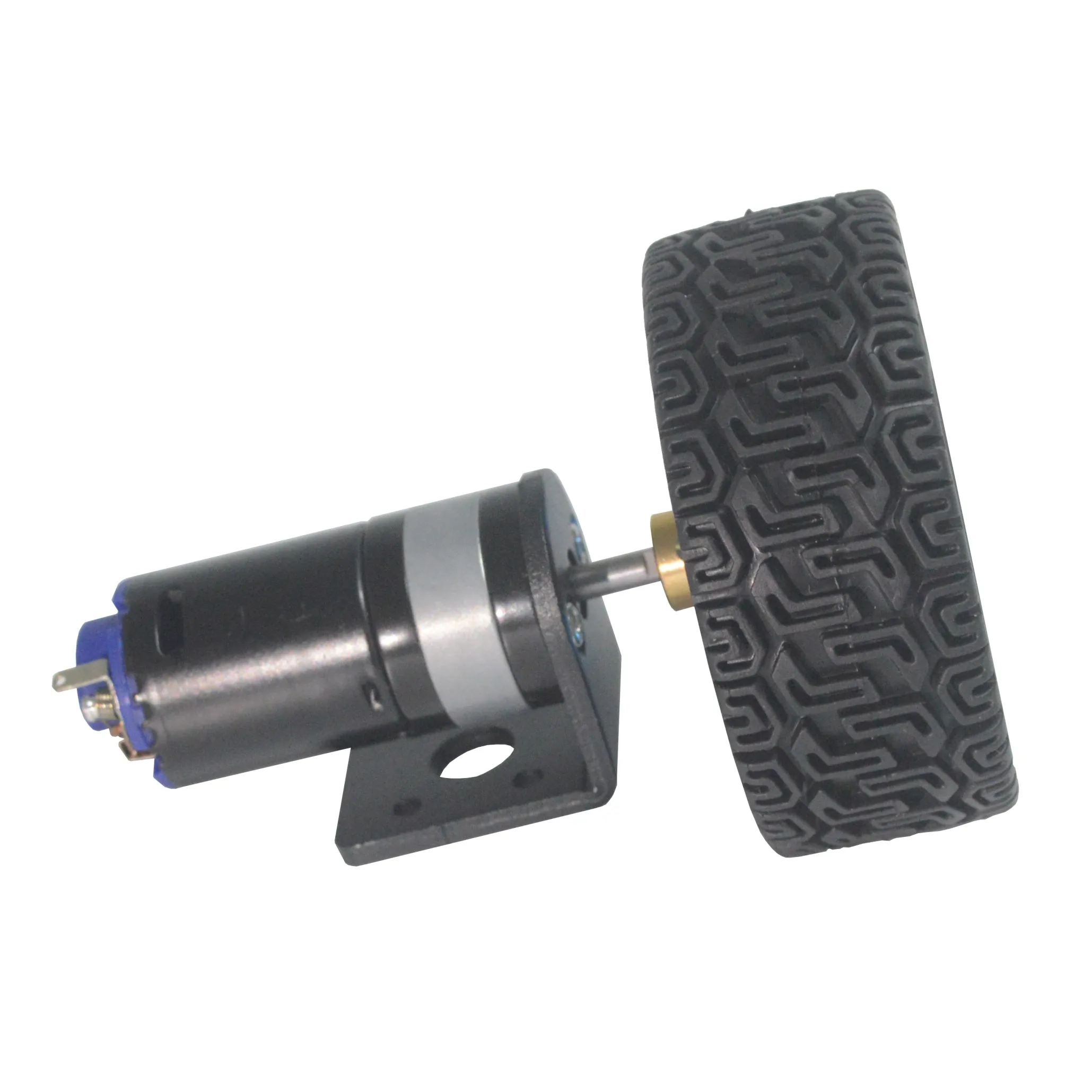

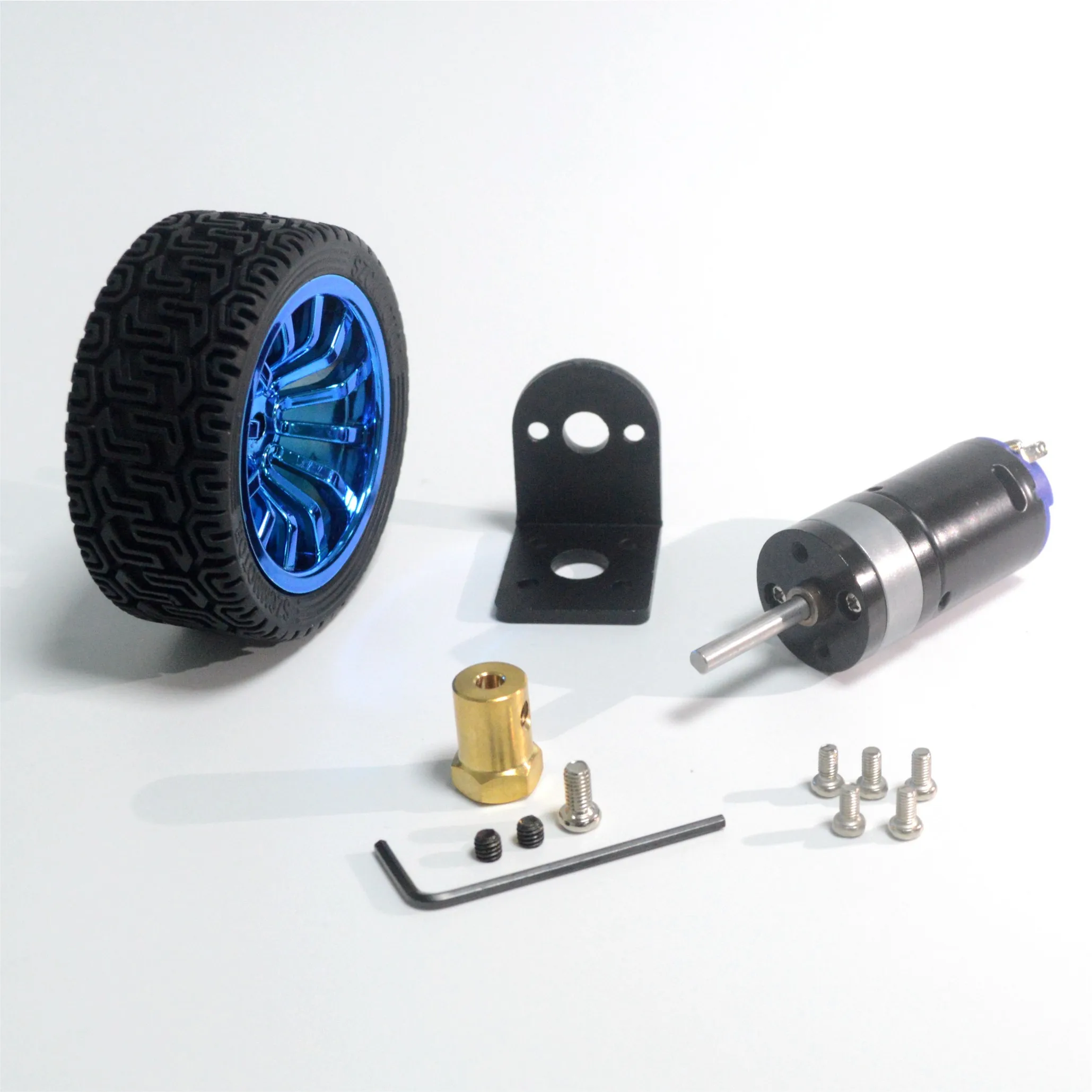

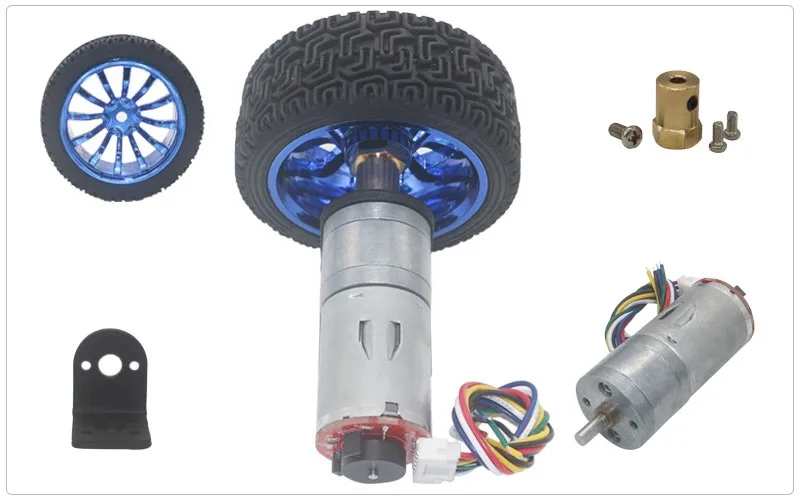

Заводская поставка, 6 в, 2273 об/мин, умная Автомобильная муфта Setracket 65 мм, модель колеса, самодельная Автомобильная шасси для комплекта умного автомобиля
- Category: DC Motor >>>
- Supplier: Shenzhen Chiming Motor Co. Ltd.
Share on (1600219016587):
Product Overview
Description
Product Detail
General specifications:
* Voltage:6V-12v-24V
* No-load speed:7-960RPM
* No-load current:0.07A
* Stall Torque:9kg.cm(0.9N.m)
* Stall current:6.5A
* with 11PPR encoder feedback ,cw&ccw
* No-load speed:7-960RPM
* No-load current:0.07A
* Stall Torque:9kg.cm(0.9N.m)
* Stall current:6.5A
* with 11PPR encoder feedback ,cw&ccw

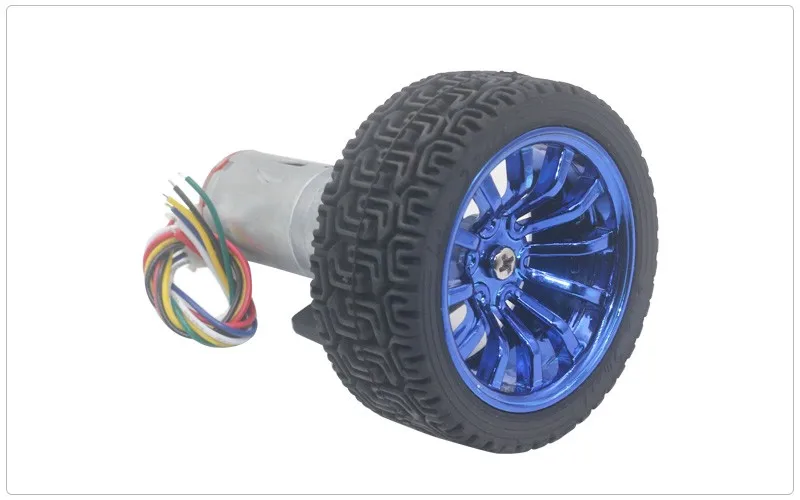

Encoder Wire Function:
*Red wire:Power+ for motor,exchange Power+-,reversing rotation of motors,
*White wire:Power- for motor,
*Blue wire:power+ for encoder(5v),
*Black wire:Power- for encoder,
*Yellow wire:pulse feedback,PPR=11(A),
*Green wire:pulse feedback,PPR=11(B)
*White wire:Power- for motor,
*Blue wire:power+ for encoder(5v),
*Black wire:Power- for encoder,
*Yellow wire:pulse feedback,PPR=11(A),
*Green wire:pulse feedback,PPR=11(B)
The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells youthe speed of the motor, and the order of the transitions tells you the direction

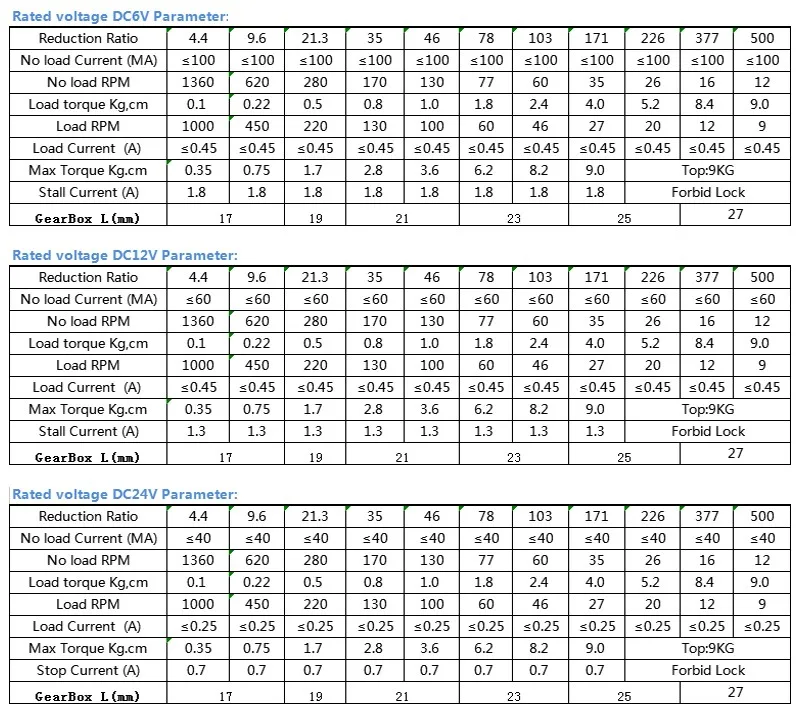

Datasheet of gear motor:

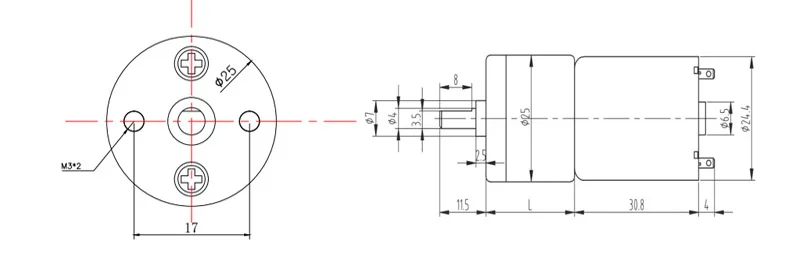

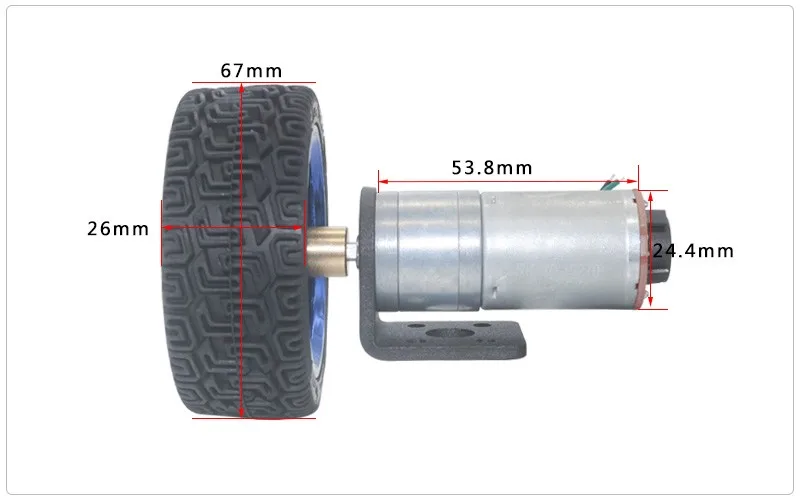

Dimensions &Pictures:
Certifications
Company Introduction
Packing & Delivery
*shockproof foam packing
*Suitable carton size
*stretch film and pallet packing
*DHL,EMS,UPS,Epacket,ocean shipping
*Sample order send out in 2 days.
*Suitable carton size
*stretch film and pallet packing
*DHL,EMS,UPS,Epacket,ocean shipping
*Sample order send out in 2 days.
Our Services & Strength
*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor- made
according to customer’s requirements.
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor- made
according to customer’s requirements.
