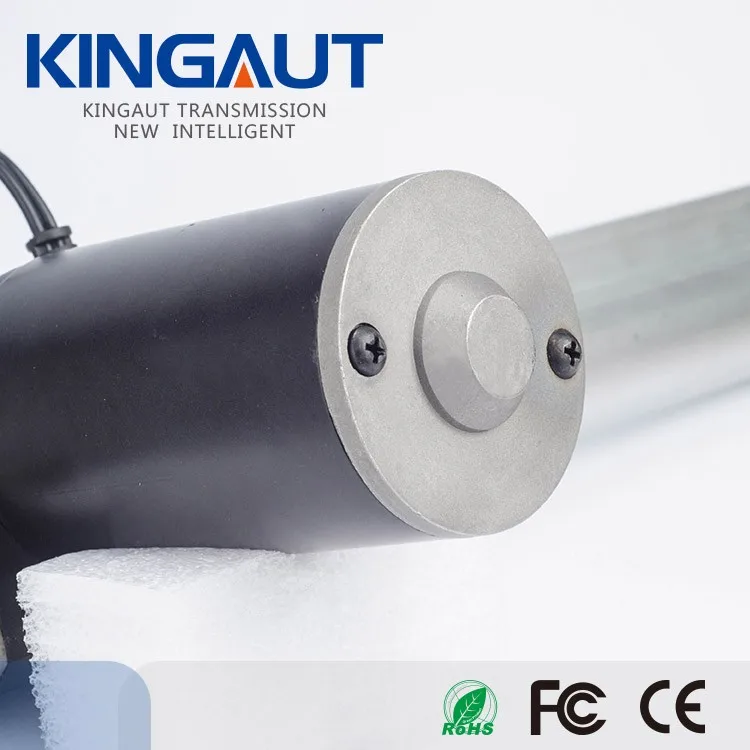

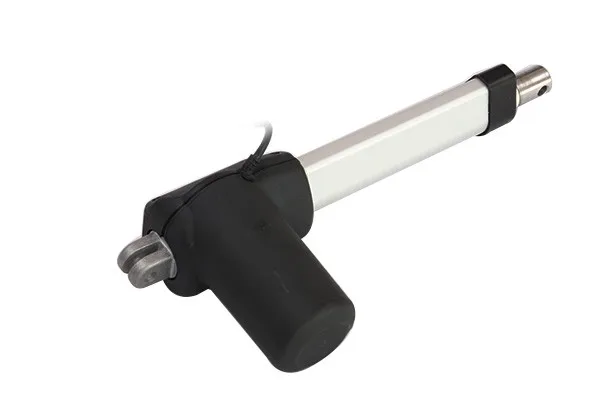

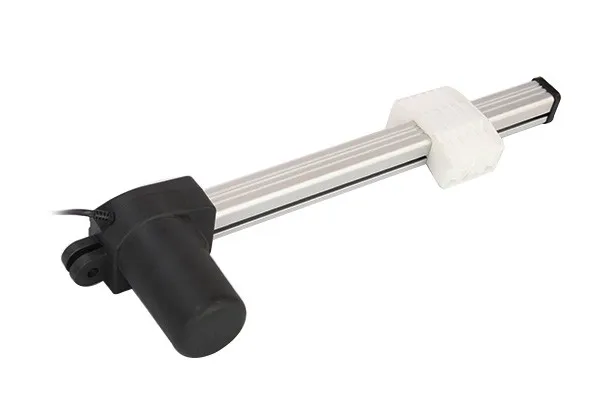

Linear actuator 8000N 24vdc electric linear actuator Specifications

Delicate design
                        High accuracy
                                              Complete Synchronization

Self-locking Performance   A good motor to drive dirextly


Actuator fo machine Specification


Features:
1) Quiet and powerful design

2) Up to 8000N load capacity

3) Idea for patient lift application


\t
Load capacity push                                                                     (N)
\t
8000N
\t
Speed at full load                                                                  (mm/s)
\t
3mm/s-----6mm/s
\t
Input                                                                                            (VDC)
\t
12 or 24
\t
Stroke length                                                                             (mm)
\t
100mm---400mm or option>400mm
\t
Color
\t
Black or grey
\t
Mounting position
\t
Option H or O
\t
Limit switch
\t
Built-in
\t
Overload protction
\t
Integrated in appropriate control box
\t
Duty cycle
\t
10% max 2 minutes continuous use
\t
Inner tube
\t
Aluminum  tube
\t
Top clevis
\t
Zinc--alloy
\t
End clevis
\t
Zinc--alloy
\t
IP Grade
\t
IP54

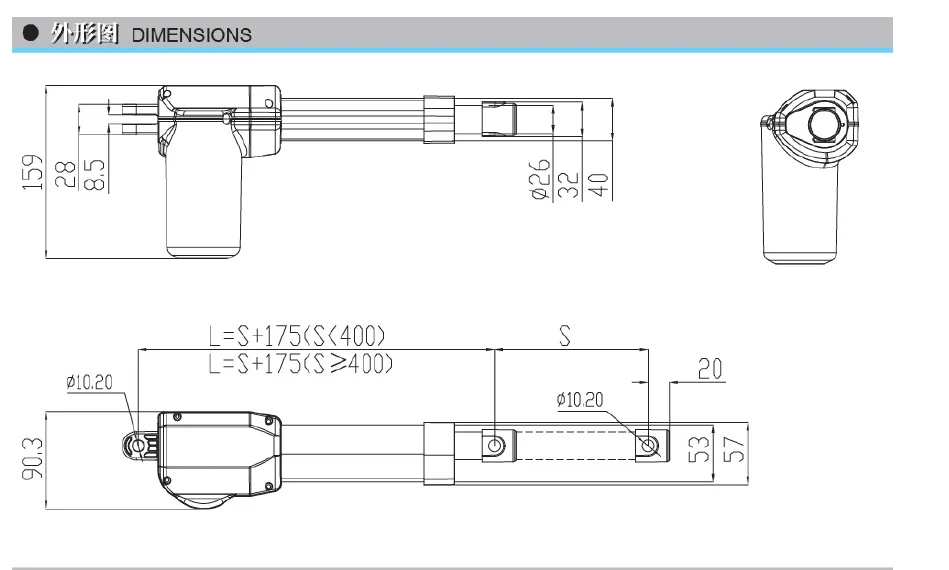

Linear actuator 8000N 24vdc electric linear actuators dimensions

Linear actuator 8000N 24vdc electric linear actuator

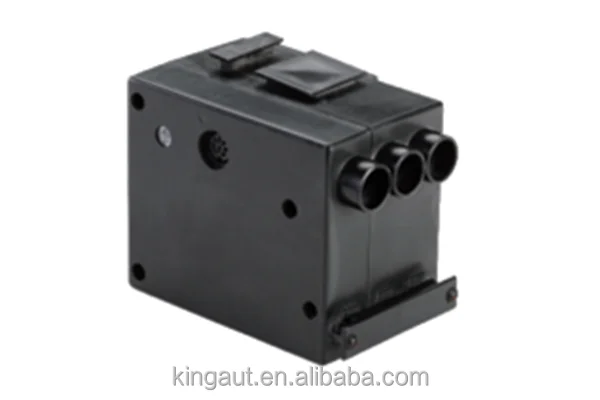

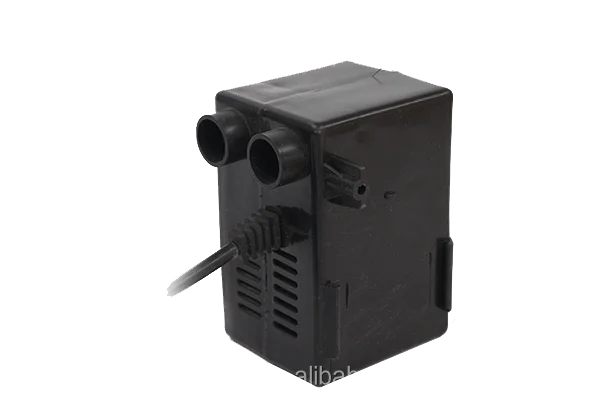

Control Box XK02



Features

1. Connection of max 4 actuators and 1 operating      element
2.Have battery charge option built-in and IP54


\t
Number of actuator outputs
\t
1-4 outputs
\t
Output Voltage
\t
24Volt
\t
Input Voltage
\t
110VAC or 230 VAC
\t
Transformer power
\t
50W
\t
Actuator plugs
\t
Din 4 bend plug
\t
Hand/Foot control plugs
\t
Bend plug
\t
Power plug
\t
Option
\t
Color
\t
Black or Grey
\t
Duty cycle
\t
10%, max 2 minutes continuous use
\t
Overload protection
\t
Shunt or total road protection (option)
\t
Optional feature
\t
9V * 2 batteries built-in
RF receiver built-in
\t
Fuse
\t
Can be changed from outer
\t
Cable length
\t
3m
\t
IP grade
\t
IP54
\t
Ambient temperature
\t
+5℃-40℃
\t
Standard
\t
CE Rohs Fcc

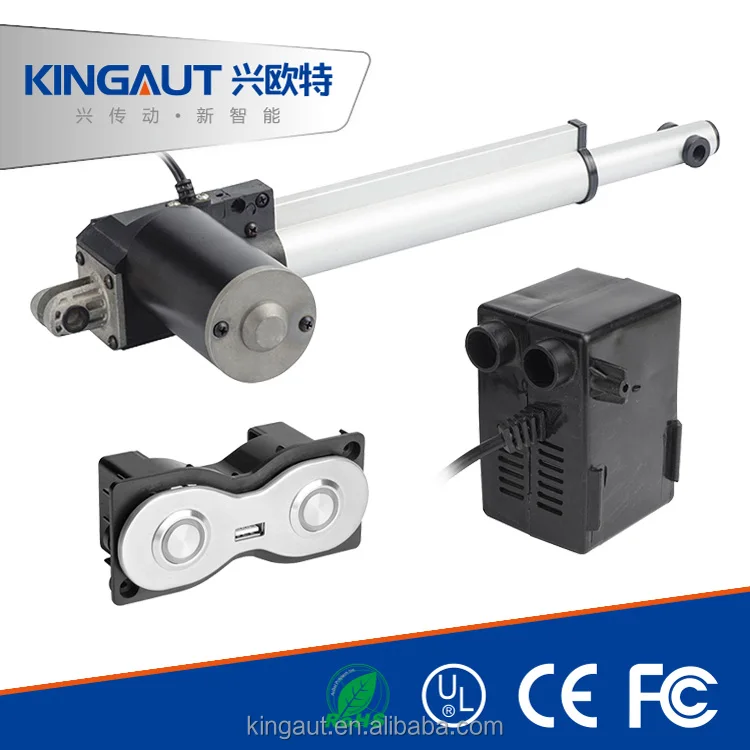

 Linear actuator 8000N 24vdc electric linear actuator

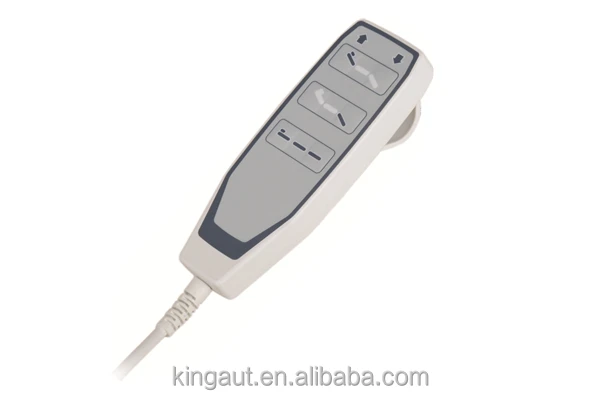

Kingaut hand controls
XS07A



Other option
Features
Up to 8000N load capacity

Applications

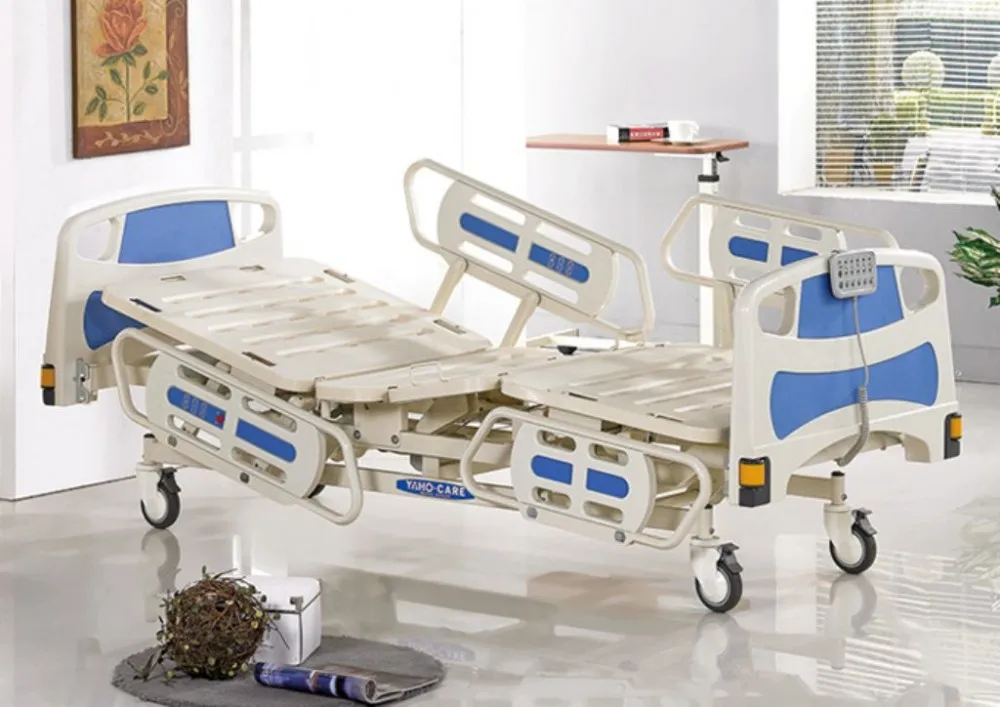

Massage sofa, dentist chair, medical market
Certifications
Linear actuator 8000N 24vdc electric linear actuator Certification
Detailed Images

Machine Parts

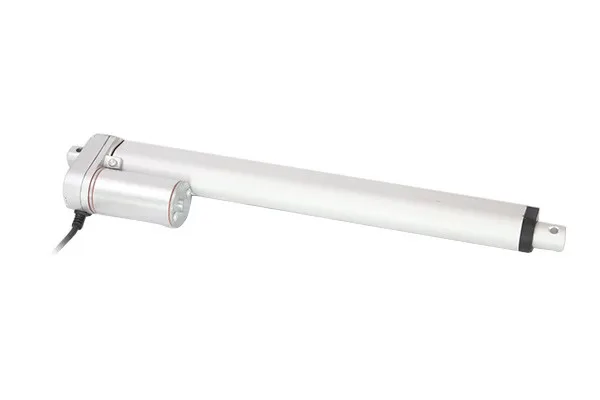

Name:Linear actuator 8000N 24vdc electric linear actuators

Brand: XT09

Original: Ningbo, China (Mainland)


Main Features

Name:Linear actuator 8000N 24vdc electric linear actuator part
Brand: XK04A


Machine Parts

Name:Linear actuator 8000N 24vdc electric linear actuators
Brand: XS02A-2
Original: Ningbo, China(Mainland)

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

 Our service

 OEM service is welcome

 We will provide all the details to you during the    mass productions.

Your requirements & complains are highly repected in the first time.

 Warmly welcome to factory visiting and order inspection.




Packing & Delivery
\t
Packaging
\t
Size
\t
70(L) * 35(W) * 15.5 (D)
\t
Weight
\t
3.5kg
\t



Packaging Details
\t
The normal package is wooden
box(Size: L*W*H).
