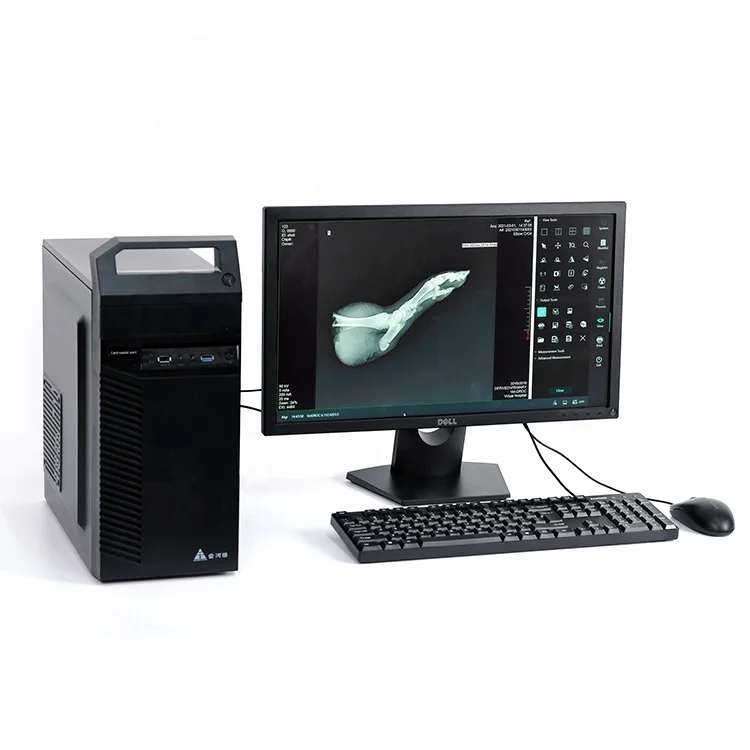

Animal Portable Computed Medical Xray Equipments High Frequency Veterinary Dog DR Detector X Ray Machine Digital Vet x Ray
- Category: Other Radiology Equipment & Accessories >>>
- Supplier: Guangzhou Yueshen Medical Equipment Co. Ltd.
Share on (1600219205532):
Product Overview
Description
Product Description

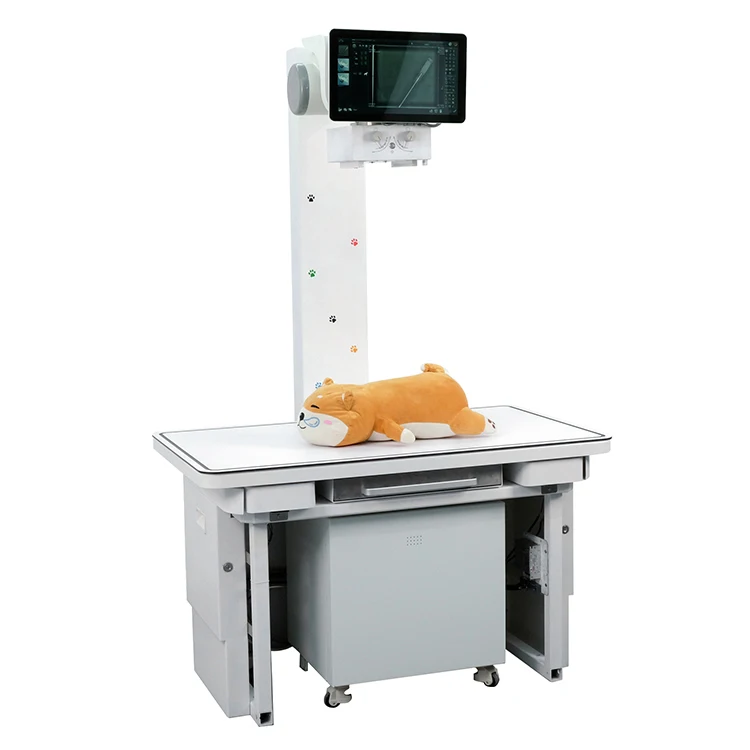

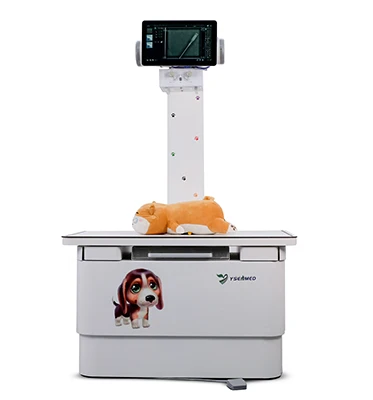

Pets X-ray Unit Medical Vet X Ray Machine Digital Veterinary Xray for Animal Hospital
Specification
Model Parameters | YSDR-VET200 | YSDR-VET320 | |||
Power | 20kW (can take clear images for the body no more than 35cm thickness ) | 32kW (can take clear images for the body no more than 50cm thickness ) | |||
Power supply | Single-phase 220V 50/60HZ (wire diameter>4mm², internal resistance<0.5Ω) | ||||
mA | 10~320 mA | 10~400 mA | |||
mAS | 1~320Mas, stepping by R’10 | 1~400mAS, stepping by R’10 | |||
KV | 40~125kV, stepping by 1kV | ||||
Exposure time | 0.003~6.3S adjustment: Increased /reduced by 1mS each time | ||||
Generator frequency | 400kHz | ||||
Installation Instructions
1. X-ray room: 20m2 room is recommended. 2. Lead glass size recommended: 40*60cm or 60*80 cm
3. X-ray protection preparation: use barium sulfate powder or lead sheet for the wall of the room, and lead sheet for the
ceiling;
4. A fan must be installed on the top to facilitate the discharge of ionized air
5. All surfaces of the x-ray room that people can reach need to be covered with lead sheet or barium sulfate powder. If it
is the first floor, the ground does not need to be covered; if it is the top floor and will not polluted the environment, lead
protection is not required.
Service and Support
1. With 18 years of X-ray product R&D and production experience, we can provide more cost-effective and suitable
protection is not required.
Service and Support
1. With 18 years of X-ray product R&D and production experience, we can provide more cost-effective and suitable
products;
2. The components of X-ray machine including flat panle detector, can be installed and debugged according to the
2. The components of X-ray machine including flat panle detector, can be installed and debugged according to the
specifications required by the customer;
3. OEM customization is available for table LOGO and software interface;
4. The x-ray table can be designed and made according to the customer's drawings, and a confidentiality agreement can
3. OEM customization is available for table LOGO and software interface;
4. The x-ray table can be designed and made according to the customer's drawings, and a confidentiality agreement can
be signed for the clients.
Details Images
Digital Images
①: Images from different brand X-ray tube
(Toshiba 7242 tube 50kv 0.8mAS )
(Chinese brand tube 50kv 0.8mAS)

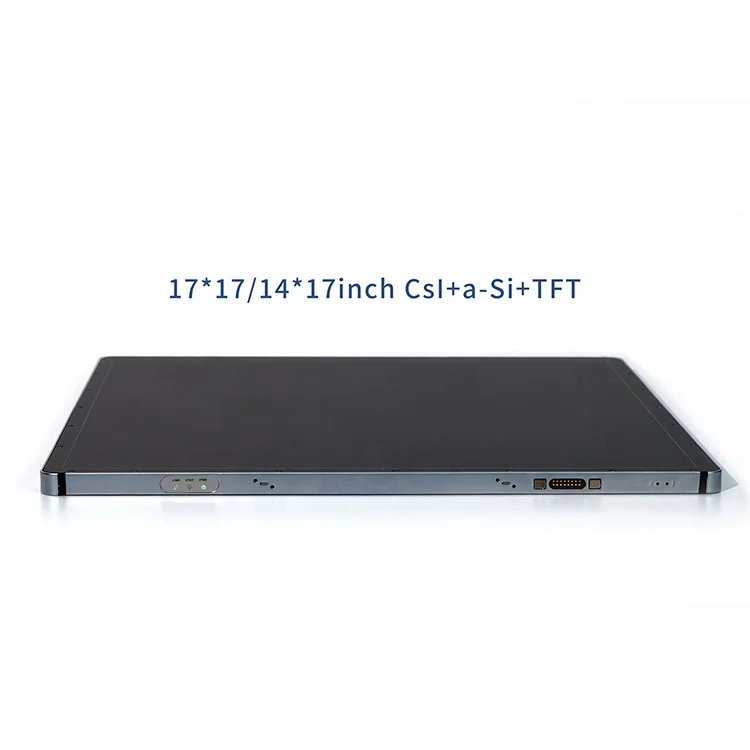

②: High quality flat panel dector with good performance to present item’s details

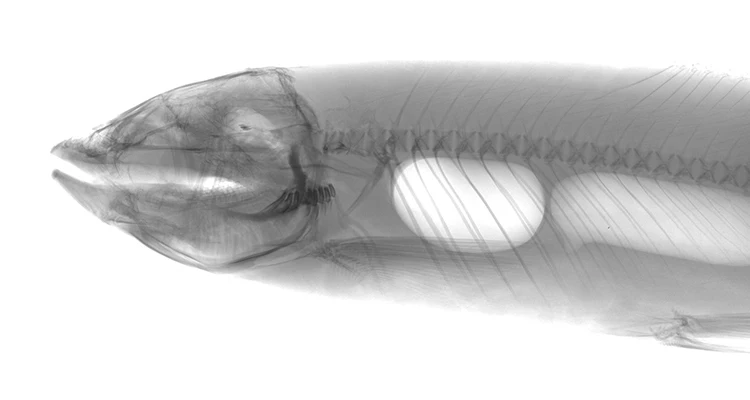

(Picture No. 2 shows high-contrast rendering of fishbone fine fibers)

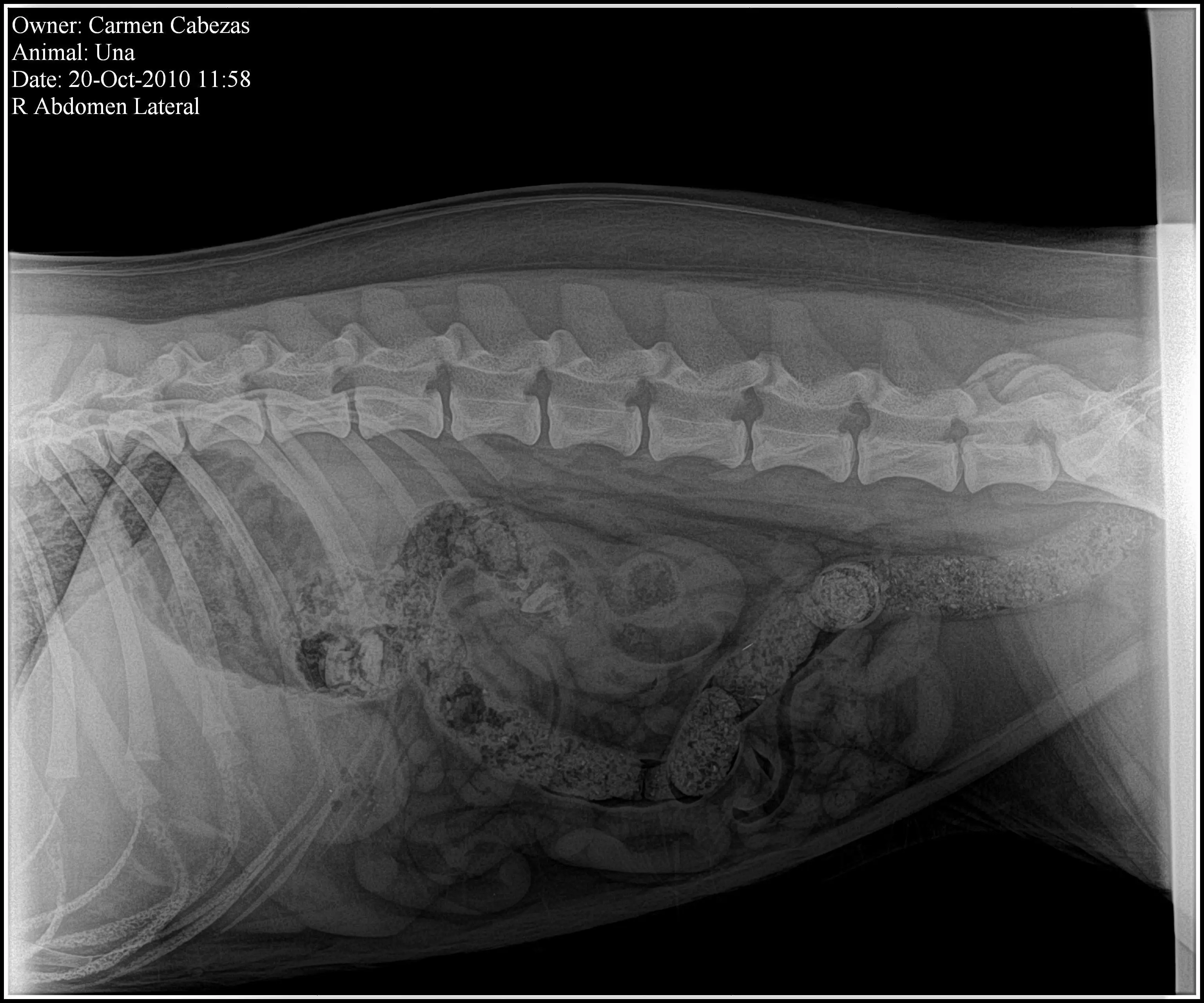

(Picture No. 2 Animals Belly Image)
