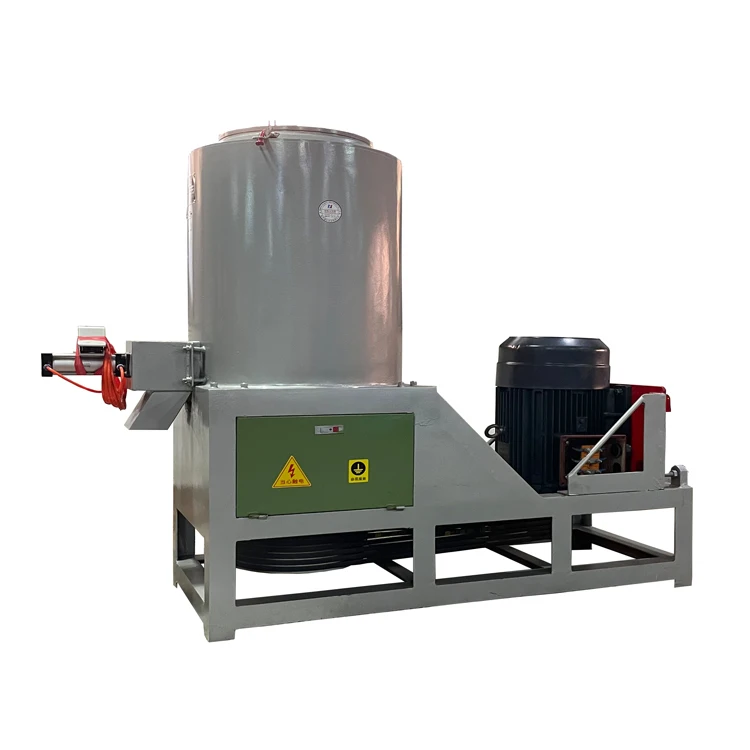

Stainless Steel Vertical Type 75L Plastic Raw Material Mixer PVC
- Category: Plastic Raw Material Machinery >>>
- Supplier: Shishi Xinhua Plastic Machinery Co. Ltd.
Share on (1600219648567):
Product Overview
Description
Stainless Steel Vertical Type 75L Plastic Raw Material Mixer PVC
Raw materials are put in to the hopper in batches. Every time add 15-30kg., for example, it takes 25 minutes for the first time blending and 20 minutes for the second time blending and 15 minutes for the third time blending. Blending time is controlled by time relay. When time is due, buzzer will buzz music to give indication. ( Or when temperature controlling device detects that temperature is about 50℃, the alarm light is on, then open the discharge gate to discharge the materials. In the normal situation, there is no need to stop the machine when feeding and discharging materials.
Working principle of the blender: pusher drives together with the speedy rotating of the cuttertool, which brings speedy rotating current of materials. The current of materials and the blocks on the barrel wall give reversed resistance which generates heat to vaporize water.
Technical Parameter
Structure | Vertical blender series | Horizontal blender series | ||||||
Spec. | 50 L | 75 L | 100 L | 125 L | 350 L | 500 L | 1000 L | 1500 L |
Heating power | Natural heating | Natural heating | Natural heating | 6 kw | 8 Kw | 10 kw | 15 kw | 18 kw |
Motor power | 11 Kw | 22 KW | 30 Kw | 4 Kw | 5.5 Kw | 7.5 kw | 11 kw | 15 Kw |
Main spiral rotate speed | 750 r/min | 750 r/min | 750 r/min | 22 r/min | 14 r/min | 12 r/min | 11 r/min | 10 r/min |
Capacity | 50 L | 75 L | 100 L | 125 L | 350 L | 500 L | 1000 L | 1500 L |
Output | 50 Kg/ time | 75 Kg/ time | 100 Kg/ time | 100 Kg/ time | 350 Kg/ time | 500 kg/ time | 1000 Kg/ time | 1500 Kg/ time |
Mixing time | 15-20 Min/time | 15-20 Min/time | 15-20 Min/time | 35-45 Min/time | 35-45 Min/time | 40-50 Min/time | 40-50 Min/time | 40-50 Min/time |
Overall dimensions | 1500×650 ×1200 mm | 1800×750 ×1400 mm | 2000×950 ×1700 mm | 2300×900 ×1300 mm | 2100×920 ×1650 mm | 2450×1000 ×2100 mm | 2820×2355 ×1305 mm | 3315×2525 ×1500 mm |
Weight | 650 Kg | 900 Kg | 1200 Kg | 750 Kg | 1000 Kg | 1400 Kg | 2000 Kg | 2500 Kg |

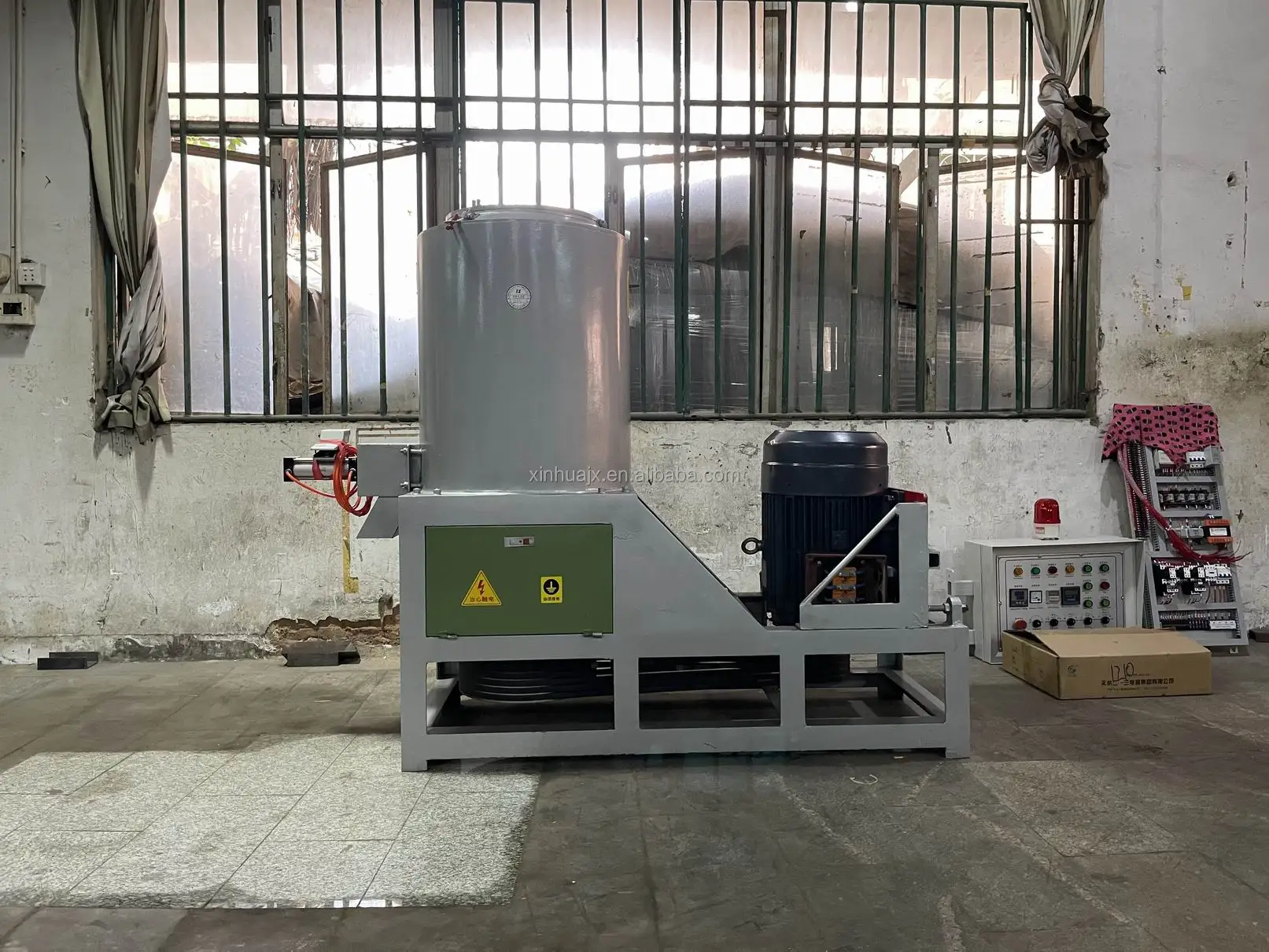

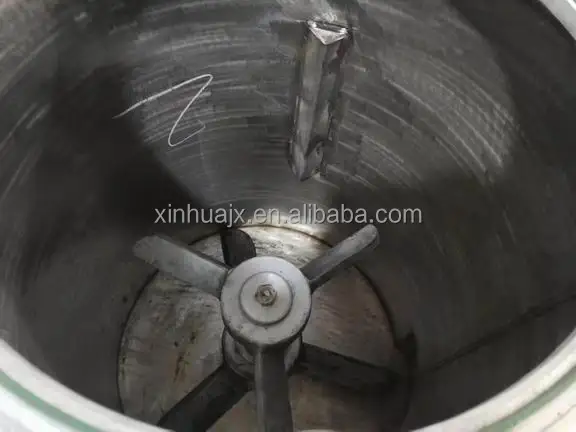

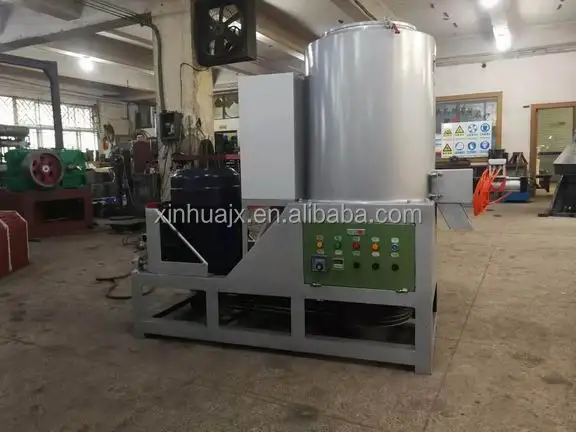

Detailed Images
Company&Factory
Our Certifications
Exhibition&Customers
Why Choose Us
1, XINHUA MACHINERY are a customer-oriented enterprise.
2, Professional techinicians can help abroad installation and training.
3, Multiple patents have been obtained.
4, Solutions offered to meet your requirements.
5, 12 months guarantee of the machine can be offered.
6, Soon reply after getting your inquiry.
