Product Overview

Description

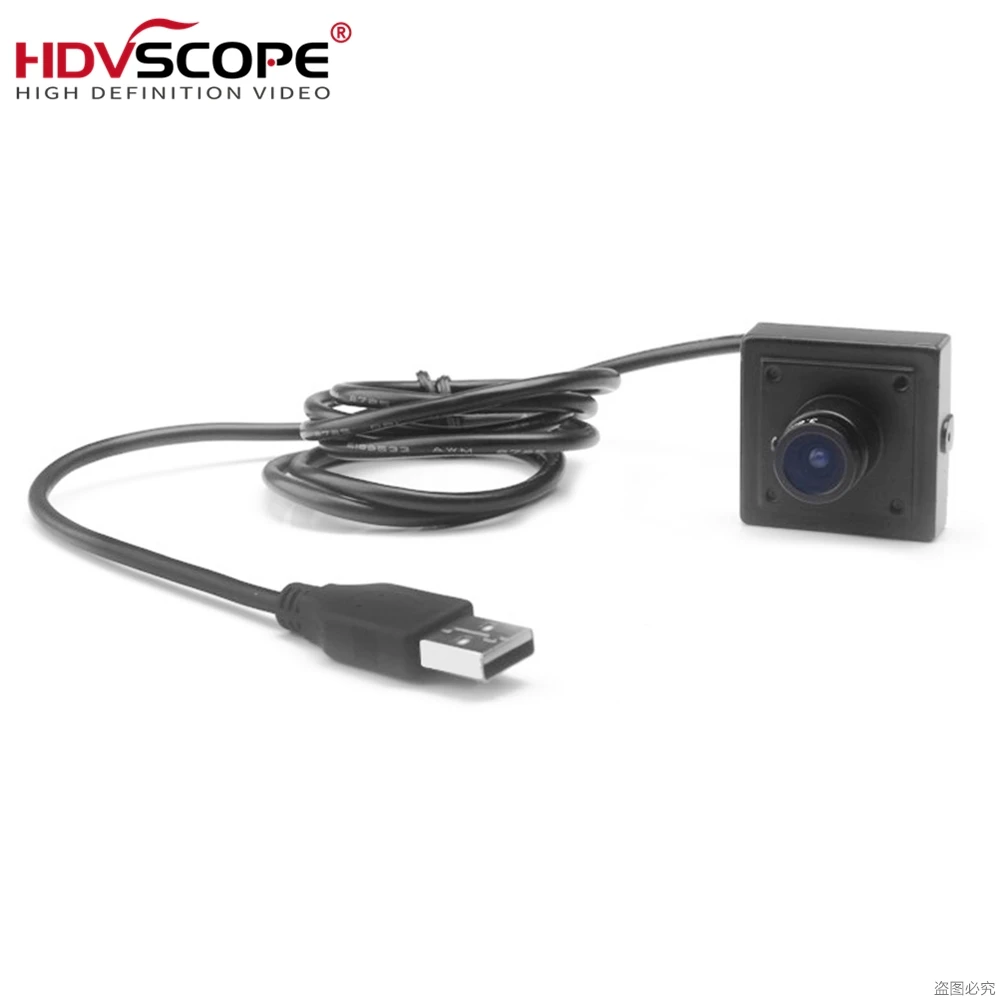

1/4'' OV9281 high-speed 120fps global shutter 1MP monochrome B/W USB Camera 1280x800 face recognition Astrophotography FPV Drone



Order Symbol:

• HDV-USB100MP40-L2.1     1MP USB Camera with 2.1mm Wide Angle Lens


• HDV-USB100MP40-L2.8     1MP USB Camera with 2.8mm Wide Angle Lens


• HDV-USB100MP40-L3.6     1MP USB Camera with 3.6mm Lens


• HDV-USB100MP40-L4.2     1MP USB Camera with 4.2mm Lens


• HDV-USB100MP40-L6        1MP USB Camera with 6mm Lens


• HDV-USB100MP40-L8        1MP USB Camera with 8mm Lens


• HDV-USB100MP40-L12      1MP USB Camera with 12mm Lens


• HDV-USB100MP40-L16      1MP USB Camera with 16mm Lens

Features:

• Image sensor 1/4" 1MP MONO CMOS


• Audio Optional


• Free Driver USB 2.0 (UVC)


• USB2.0 HIGH SPEED, compression USB1.1



• Manual focus


• View angle: 15-170 degree optional


• Compression YUY2 & MJPEG


• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;


• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system


• Standard 1.8m cable, Can be connected through 10 meters USB cable


• Dimension:40*40mm


• USB Power: 5V±10%DC,50mA


• Applications: Intelligent machine, Consumer and industrial computer vision applications, including augmented reality (AR), virtual reality (VR), Collision avoidance in drones, bar code scanning and factory automation. Iris and face recognition, Astrophotography, Gesture and eye tracking,Depth and motion detection, Home video surveillance system etc.


• Can be customized by your requirements

USB Series	Model	HDV-USB100MP40-L3.6
	Name	120fps high-speed global shutter 1MP mono usb camera module
Camera	Image sensor	1/4" OV9281 MONO progressive Sensor
	Resolution	1MP (1280*800 pixels)
	Pixel Size	3.0 µm x 3.0 µm
	Lens Standard	3.6mm Board Lens F1.2
	Effective Pixels	1280x720@ 120fps MJPEG / 5fps YUY2 1024 x 768@ 120fps MJPEG / 5fps YUY2 800 x 600@ 120fps MJPEG / 20fps YUY2 640x480@ 120ps MJPEG / 30fps YUY2 320x240@ 120fps MJPEG / 30fps YUY2
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	Image area	3896 um X 2453 um
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	1.8m, 2-10m for optional purchase-USD0.5/m
Industrial Standard	Power source	DC 5V (3.6-5V) / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	40*40mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)
