Share on (1600222775166):


Price:

Quantity:


Product Overview

Description



Products Description


Rubber material
Letter abbreviation
hardness
temperature
Attributes
Nitrile rubber
NBR
standard 70°
customizable 40°~90°
Limit temperature
-40°~120℃
Oil resistant wear resistant
Viton
FKM/VITON
standard 75°
customizable 50°~90°
Limit temperature
-40°~240℃
High temperature resistant
Oil resistant
Chemical resistance
Silica gel
SIL/VMQ
standard 70°OR60°
customizable 40°~90°
Limit temperature
-60°~250℃
High temperature resistant
Low temperature resistant
Avirulent insipidity
Food grade
EPDM
EPDM
standard 70°
customizable 40°~90°
Limit temperature
-40°~150℃
Strong acid and alkali resistance
Resistant to 150° steam
anti-aging
Resistance to ozone
Hydrogenated nitrile
HNBR
standard 70°
customizable 40°~90°
Limit temperature
-40°~150℃
Wear oil resistantResistance to cold media
Polar-resistant solvent
The deformation resistance
Chlorosilicone rubber
CR
standard 70°
customizable 40°~90°
Limit temperature
-40°~120℃
Ozone resistant
Weather resistance
Chemical resistance
Anti-aging
Fluorosilicone rubber
FVMQ
standard 70°
customizable 45°~70°
Limit temperature
-60°~177℃
Oil resistance, acid and alkali resistance
Heat resistance, cold resistance, high voltage resistance, atmospheric aging resistance, hydrocarbon solvent resistance
Perfluoroether rubber
FFKM
standard 75°
customizable 50°~90°
conventional
250℃
Special formula
320°~330℃
Very excellent performance, can almost be used in all kinds of bad conditions, PTFE as excellent high temperature resistance,
chemical resistance, corrosion resistance, can resist all kinds of solvents, while having the elasticity of rubber
Polyurethane
PU
standard 70°
customizable 60°~90°
Limit temperature
-40°~90℃
Resistance to abrasion, high pressure, aging and hydrolysis
PTFE
PTFE/F4
Generally 55°~65°
Generally
-80°~260℃
Reachable
-190°~260℃
Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance, aging resistance, high pressure
resistance, organic solvents (almost insoluble in all organic solvents)


Details Images




Related Products








Product Paramenters


product name
O-ring
Material type
NBR,FKM,SIL/VMQ,EPDM,HNBR,CR,FVMQ,FFKM,PU,PTFE/F4
Hardness range
40°-90°C
colour
brown, white, red, etc.
size
AS568
Certificate
SGS, ATC
OEM/ODM
available
package
cartons
delivery time
A: The product is in stock and the delivery time is 1 day.
B: The product is out of stock, and the mold is also in stock. Delivery time is 7 days.
C: The product is out of stock, the mold is out of stock, and the delivery time is 25 days.
Packing port
Dongguan City

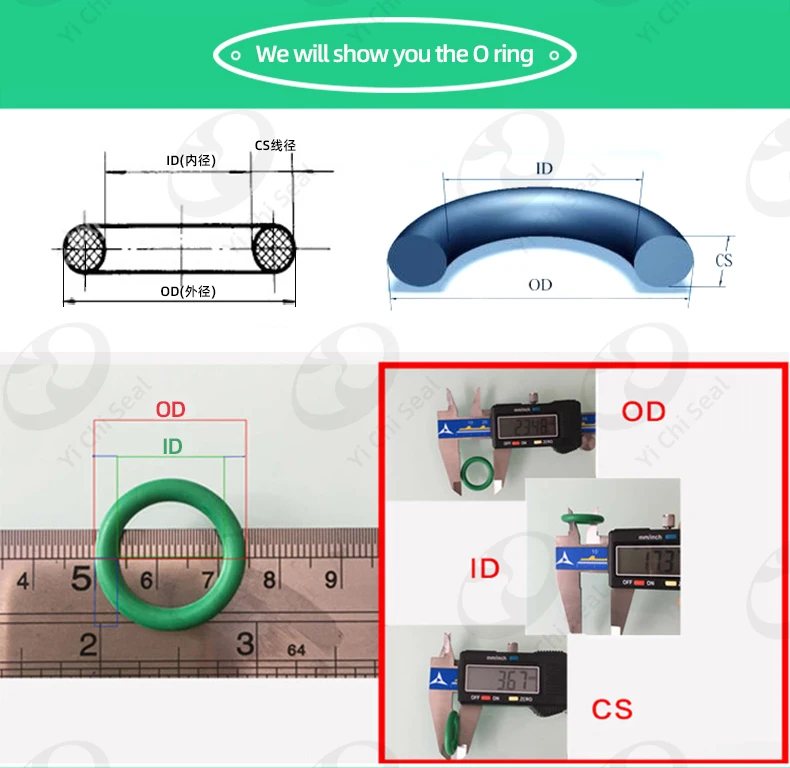

Specifications for O-rings (AS-568 series)


serial number
ID(内径)
OD(外径)
C/S(线径)
serial number
ID(内径)
OD(外径)
C/S(线径)
AS-001
0.74
2.78
1.02
AS-026
31.47
35.03
1.78
AS-002
1.07
3.61
1.27
AS-027
33.05
36.61
1.78
AS-003
1.42
4.48
1.53
AS-028
34.65
38.21
1.78
AS-004
1.78
5.34
1.78
AS-029
37.82
41.38
1.78
AS-005
2.57
6.13
1.78
AS-030
41.00
44.56
1.78
AS-006
2.90
6.46
1.78
AS-031
44.17
47.73
1.78
AS-007
3.69
7.25
1.78
AS-032
47.35
50.91
1.78
AS-008
4.47
8.03
1.78
AS-033
50.52
54.08
1.78
AS-009
5.29
8.85
1.78
AS-034
53.70
57.26
1.78
AS-010
6.07
9.63
1.78
AS-035
56.70
60.43
1.78
AS-011
7.65
11.21
1.78
AS-036
60.04
63.60
1.78
AS-012
9.25
12.81
1.78
AS-037
63.22
66.78
1.78
AS-013
10.82
14.38
1.78
AS-038
66.40
69.96
1.78
AS-014
12.42
15.98
1.78
AS-039
69.57
73.13
1.78
AS-015
14.00
17.56
1.78
AS-040
72.75
76.31
1.78
AS-016
15.60
19.16
1.78
AS-041
75.92
79.48
1.78
AS-017
17.17
20.73
1.78
AS-042
82.27
85.83
1.78
AS-018
18.77
22.33
1.78
AS-043
88.62
92.18
1.78
AS-019
20.35
23.91
1.78
AS-044
94.97
98.53
1.78
AS-020
21.95
25.51
1.78
AS-045
101.32
104.88
1.78
AS-021
23.52
27.08
1.78
AS-046
107.62
111.18
1.78
AS-022
25.12
28.68
1.78
AS-047
114.02
117.58
1.78
AS-023
26.70
30.26
1.78
AS-048
120.37
123.93
1.78
AS-024
28.30
31.86
1.78
AS-049
126.72
130.28
1.78
AS-025
29.87
33.43
1.78
AS-050
133.07
136.63
1.78
AS-102
1.24
6.48
2.62
AS-140
56.82
62.06
2.62
AS-103
2.05
7.29
2.62
AS-141
58.42
63.66
2.62
AS-104
2.84
8.08
2.62
AS-142
60.00
65.24
2.62
AS-105
3.63
8.87
2.62
AS-143
61.60
66.84
2.62
AS-106
4.42
9.66
2.62
AS-144
63.17
68.41
2.62
AS-107
5.23
10.47
2.62
AS-145
64.77
70.01
2.62
AS-108
6.02
11.26
2.62
AS-146
66.35
71.59
2.62
AS-109
7.59
12.84
2.62
AS-147
67.95
73.19
2.62
AS-110
9.19
14.43
2.62
AS-148
69.52
74.76
2.62
AS-111
10.77
16.01
2.62
AS-149
71.12
76.36
2.62
AS-112
12.37
17.61
2.62
AS-150
72.70
77.94
2.62
AS-113
13.95
19.19
2.62
AS-151
75.87
81.11
2.62
AS-114
15.54
20.78
2.62
AS-152
82.22
87.46
2.62
AS-115
17.12
22.36
2.62
AS-153
88.57
93.81
2.62
AS-116
18.72
23.96
2.62
AS-154
94.92
100.16
2.62
AS-117
20.29
25.53
2.62
AS-155
101.27
106.51
2.62
AS-118
21.90
27.14
2.62
AS-156
107.62
112.86
2.62
AS-119
23.47
28.71
2.62
AS-157
113.97
119.21
2.62
AS-120
25.07
30.31
2.62
AS-158
120.32
125.56
2.62
AS-121
26.65
31.89
2.62
AS-159
126.67
131.91
2.62
AS-122
28.25
33.49
2.62
AS-160
133.02
138.26
2.62
AS-123
29.82
35.06
2.62
AS-161
139.37
144.61
2.62
AS-124
31.42
36.66
2.62
AS-162
145.72
150.96
2.62
AS-125
32.99
38.23
2.62
AS-163
152.07
157.31
2.62
AS-126
34.60
39.84
2.62
AS-164
158.42
163.66
2.62
AS-127
36.17
41.41
2.62
AS-165
164.77
170.01
2.62
AS-128
37.77
43.01
2.62
AS-166
171.12
176.36
2.62
AS-129
39.35
44.59
2.62
AS-167
177.47
182.71
2.62
AS-130
40.95
46.19
2.62
AS-168
183.82
189.06
2.62
AS-131
42.52
47.76
2.62
AS-169
190.17
195.41
2.62
AS-132
44.12
49.36
2.62
AS-170
196.52
201.76
2.62
AS-133
45.70
50.94
2.62
AS-171
202.87
208.11
2.62
AS-134
47.30
52.54
2.62
AS-172
209.22
214.46
2.62
AS-135
48.90
54.14
2.62
AS-173
215.57
220.81
2.62
AS-136
50.47
55.71
2.62
AS-174
221.92
227.16
2.62
AS-137
52.07
57.31
2.62
AS-175
228.27
233.51
2.62
AS-138
53.65
58.89
2.62
AS-176
234.62
239.36
2.62
AS-139
55.25
60.49
2.62
AS-177
240.97
246.21
2.62
AS-178
247.32
252.56
2.62
AS-201
4.34
11.40
3.53
AS-243
104.37
111.43
3.53
AS-202
5.94
13.00
3.53
AS-244
107.54
114.60
3.53
AS-203
7.52
14.58
3.53
AS-245
110.72
117.78
3.53
AS-204
9.12
16.18
3.53
AS-246
113.89
120.95
3.53
AS-205
10.69
17.75
3.53
AS-247
117.07
124.13
3.53
AS-206
12.29
19.35
3.53
AS-248
120.24
127.30
3.53
AS-207
13.87
20.93
3.53
AS-249
123.42
130.48
3.53
AS-208
15.47
22.53
3.53
AS-250
126.59
133.65
3.53
AS-209
17.04
24.10
3.53
AS-251
129.77
136.83
3.53
AS-210
18.64
25.70
3.53
AS-252
132.94
140.00
3.53
AS-211
20.22
27.28
3.53
AS-253
136.12
143.18
3.53
AS-212
21.82
28.88
3.53
AS-254
139.30
146.36
3.53
AS-213
23.40
30.46
3.53
AS-255
142.47
149.53
3.53
AS-214
25.00
32.06
3.53
AS-256
145.65
152.71
3.53
AS-215
26.57
33.63
3.53
AS-257
148.82
155.88
3.53
AS-216
28.17
35.23
3.53
AS-258
152.00
159.06
3.53
AS-217
29.75
36.81
3.53
AS-259
158.35
165.41
3.53
AS-218
31.34
38.40
3.53
AS-260
164.70
171.76
3.53
AS-219
32.92
39.98
3.53
AS-261
171.05
178.11
3.53
AS-220
34.52
41.58
3.53
AS-262
177.40
184.46
3.53
AS-221
36.10
43.16
3.53
AS-263
183.75
190.81
3.53
AS-222
37.70
44.76
3.53
AS-264
190.10
197.16
3.53
AS-223
40.87
47.93
3.53
AS-265
196.45
203.51
3.53
AS-224
44.05
51.11
3.53
AS-266
202.80
209.86
3.53
AS-225
47.22
54.28
3.53
AS-267
209.15
216.21
3.53
AS-226
50.40
57.46
3.53
AS-268
215.50
222.56
3.53
AS-227
53.57
60.63
3.53
AS-269
221.85
228.91
3.53
AS-228
56.75
63.81
3.53
AS-270
228.20
235.26
3.53
AS-229
59.92
66.98
3.53
AS-271
234.55
241.61
3.53
AS-230
63.10
70.16
3.53
AS-272
240.90
247.96
3.53
AS-231
66.27
73.33
3.53
AS-273
247.25
254.31
3.53
AS-232
69.44
76.50
3.53
AS-274
253.60
260.66
3.53
AS-233
72.62
79.68
3.53
AS-275
266.30
273.36
3.53
AS-234
75.79
82.85
3.53
AS-276
279.00
286.06
3.53
AS-235
78.97
86.03
3.53
AS-277
291.70
298.76
3.53
AS-236
82.14
89.20
3.53
AS-278
304.40
311.46
3.53
AS-237
85.32
92.38
3.53
AS-279
329.80
336.86
3.53
AS-238
88.49
95.55
3.53
AS-280
355.20
362.26
3.53
AS-239
91.67
98.73
3.53
AS-281
380.60
387.66
3.53
AS-240
94.84
101.90
3.53
AS-282
405.26
412.32
3.53
AS-241
98.02
105.08
3.53
AS-283
430.66
437.72
3.53
AS-242
101.19
108.25
3.53
AS-284
456.06
463.12
3.53
AS-309
10.46
21.12
5.33
AS-352
123.19
133.85
5.33
AS-310
12.07
22.73
5.33
AS-353
126.37
127.03
5.33
AS-311
13.64
24.30
5.33
AS-354
129.54
140.20
5.33
AS-312
15.24
25.90
5.33
AS-355
132.72
143.38
5.33
AS-313
16.81
27.47
5.33
AS-356
135.89
146.55
5.33
AS-314
18.42
29.08
5.33
AS-357
139.07
149.73
5.33
AS-315
19.99
30.65
5.33
AS-358
142.24
152.90
5.33
AS-316
21.59
32.25
5.33
AS-359
145.42
156.08
5.33
AS-317
23.16
33.82
5.33
AS-360
148.59
159.25
5.33
AS-318
24.77
35.43
5.33
AS-361
151.77
162.43
5.33
AS-319
26.34
37.00
5.33
AS-362
158.12
168.78
5.33
AS-320
27.94
38.60
5.33
AS-363
164.47
175.13
5.33
AS-321
29.51
40.17
5.33
AS-364
170.82
181.48
5.33
AS-322
31.12
41.78
5.33
AS-365
177.17
187.83
5.33
AS-323
32.69
43.35
5.33
AS-366
183.52
194.18
5.33
AS-324
34.29
44.95
5.33
AS-367
189.87
200.53
5.33
AS-325
37.47
48.13
5.33
AS-368
196.22
206.88
5.33
AS-326
40.65
51.31
5.33
AS-369
202.57
213.23
5.33
AS-327
43.82
54.48
5.33
AS-370
208.92
219.58
5.33
AS-328
46.99
57.65
5.33
AS-371
215.27
225.93
5.33
AS-329
50.16
60.82
5.33
AS-372
221.62
232.28
5.33
AS-330
53.34
64.00
5.33
AS-373
227.97
238.63
5.33
AS-331
56.52
67.18
5.33
AS-374
234.32
244.98
5.33
AS-332
59.69
70.35
5.33
AS-375
240.67
251.33
5.33
AS-333
62.87
73.53
5.33
AS-376
247.02
257.68
5.33
AS-334
66.04
76.70
5.33
AS-377
253.37
264.03
5.33
AS-335
69.22
79.88
5.33
AS-378
266.07
276.73
5.33
AS-336
72.39
83.05
5.33
AS-379
278.77
289.43
5.33
AS-337
75.57
86.23
5.33
AS-380
291.47
302.13
5.33
AS-338
78.74
89.40
5.33
AS-381
304.17
314.83
5.33
AS-339
81.92
92.58
5.33
AS-382
329.55
340.21
5.33
AS-340
85.09
95.75
5.33
AS-383
354.97
365.63
5.33
AS-341
88.27
98.93
5.33
AS-384
380.37
391.03
5.33
AS-342
91.44
102.10
5.33
AS-385
405.26
415.92
5.33
AS-343
94.62
105.28
5.33
AS-386
430.65
441.31
5.33
AS-344
97.79
108.45
5.33
AS-387
456.06
466.72
5.33
AS-345
100.96
111.62
5.33
AS-388
481.46
492.12
5.33
AS-346
104.14
114.80
5.33
AS-389
506.86
517.52
5.33
AS-347
107.32
117.98
5.33
AS-390
532.26
542.92
5.33
AS-348
110.49
121.15
5.33
AS-391
557.66
568.32
5.33
AS-349
113.67
124.33
5.33
AS-392
582.65
593.31
5.33
AS-350
116.84
127.50
5.33
AS-393
608.10
618.76
5.33
AS-351
120.02
130.68
5.33
AS-394
633.50
644.16
5.33
AS-395
658.85
669.51
5.33
AS-401
37.47
51.45
6.99
AS-429
126.37
140.35
6.99
AS-402
40.64
54.62
6.99
AS-430
129.54
143.52
6.99
AS-403
43.82
57.80
6.99
AS-431
132.72
146.70
6.99
AS-404
46.99
60.97
6.99
AS-432
135.89
149.87
6.99
AS-405
50.17
64.15
6.99
AS-433
139.07
153.05
6.99
AS-406
53.34
67.32
6.99
AS-434
142.24
156.22
6.99
AS-407
56.52
70.50
6.99
AS-435
145.42
159.40
6.99
AS-408
59.69
73.67
6.99
AS-436
148.59
162.57
6.99
AS-409
62.87
76.85
6.99
AS-437
151.77
165.75
6.99
AS-410
66.04
80.02
6.99
AS-438
158.12
172.10
6.99
AS-411
69.22
83.20
6.99
AS-439
164.47
178.45
6.99
AS-412
72.39
86.37
6.99
AS-440
170.82
184.80
6.99
AS-413
75.57
89.55
6.99
AS-441
177.17
191.15
6.99
AS-414
78.74
92.72
6.99
AS-442
183.52
197.50
6.99
AS-415
81.92
95.90
6.99
AS-443
189.87
203.85
6.99
AS-416
85.09
99.07
6.99
AS-444
196.22
210.20
6.99
AS-417
88.27
102.25
6.99
AS-445
202.57
216.55
6.99
AS-418
91.44
105.42
6.99
AS-446
215.27
229.25
6.99
AS-419
94.62
108.60
6.99
AS-447
227.97
241.95
6.99
AS-420
97.79
111.77
6.99
AS-448
240.67
254.65
6.99
AS-421
100.97
114.95
6.99
AS-449
253.57
267.35
6.99
AS-422
104.14
118.12
6.99
AS-450
266.07
280.05
6.99
AS-423
107.32
121.30
6.99
AS-451
278.77
292.75
6.99
AS-424
110.49
124.47
6.99
AS-452
291.47
305.45
6.99
AS-425
113.67
127.65
6.99
AS-453
304.17
318.15
6.99
AS-426
116.84
130.82
6.99
AS-454
316.87
330.85
6.99
AS-427
120.02
134.00
6.99
AS-455
329.57
343.55
6.99
AS-428
123.19
137.17
6.99
AS-456
342.27
356.25
6.99
AS-901
4.70
7.54
1.42
AS-457
354.97
368.95
6.99
AS-902
6.07
9.33
1.63
AS-458
367.67
381.65
6.99
AS-903
7.65
10.91
1.63
AS-459
380.37
394.35
6.99
AS-904
8.92
12.58
1.83
AS-460
393.07
407.05
6.99
AS-905
10.52
14.18
1.83
AS-461
405.26
419.24
6.99
AS-906
11.89
15.85
1.98
AS-462
417.96
431.94
6.99
AS-907
13.46
17.62
2.08
AS-463
430.66
444.64
6.99
AS-908
16.36
20.78
2.21
AS-464
443.36
457.34
6.99
AS-909
17.94
22.86
2.46
AS-465
456.06
470.04
6.99
AS-910
19.18
24.10
2.46
AS-466
468.76
482.74
6.99
AS-911
21.92
27.82
2.95
AS-467
481.46
495.44
6.99
AS-912
23.47
29.37
2.95
AS-468
494.16
508.14
6.99
AS-913
25.04
30.94
2.95
AS-469
506.86
520.84
6.99
AS-914
26.60
32.50
2.95
AS-470
532.26
546.24
6.99
AS-916
29.75
35.65
2.95
AS-471
557.66
571.64
6.99
AS-918
34.42
40.32
2.95
AS-472
582.65
596.63
6.99
AS-920
37.46
43.46
3.00
AS-473
608.10
622.08
6.99
AS-924
43.68
49.68
3.00
AS-474
633.50
647.48
6.99
AS-928
53.09
59.09
3.00
AS-475
658.85
672.83
6.99
AS-932
59.36
65.36
3.00




Our Advantages


1. Specializing in O-ring silicone products for 17 years
2. Complete specifications and a large number of stocks
3. Possess ROHS, EN71, LFGB food grade certification, etc.
4. High temperature resistance, wear resistance, pressure resistance, corrosion resistance, durable
5. Customize with drawings and samples, and design product schemes for free
6. Self-built mold room, sample out in 2 days, free mold repair, zero risk of mold opening




Company Profile




Customer Photos




FAQ


Q1, are you a manufacturing or trading company?
Answer: We are production. Our company is located in Dongguan City, Guangdong Province. We have two factories located in Dongguan
City, Guangdong Province.

Q2, what is your sample policy?
Answer: We provide existing samples for free, but customers may need to pay for shipping.

Q3, How long is the delivery time?
Answer:
A: Product inventory, delivery time is 1 day.
B: The product is out of stock, and the mold is in stock, the delivery time is 7 days.
C: The product is out of stock and the mold is out of stock,The delivery time is 25 days.

Q4, can you produce according to samples?
Answer: Yes, we can use your samples or technical drawings to produce, but you may need to pay the mold fee. When your cumulative
order quantity reaches a certain quantity, we will refund your mold fee.

Q5, what is your standard packaging?
Answer: All goods will be packed in PE bags, outer cartons, and pallets. All packages are signed with our logo. Custom packaging
requirements are also acceptable.

Q6, Do you test all the goods before delivery?
Answer: Yes, we have an automatic inspection machine that can test all products before delivery.




We Recommend

New Arrivals

New products from manufacturers at wholesale prices

0.0792 s.
