KDAS DAS Double Acting Seal for Hydraulic Piston manufacture standard and nonstandard hydraulic cylinder piston seal
- Category: Seals >>>
- Supplier: Chengdu,Dingfeng,Sealing,Material,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
KDAS is a double-acting composite seal, consisting of three parts: one elastic seal A, two support rings B, and two guide rings C.
Elastic seal A has a special section and three sealing lips are close to the cylinder wall (dynamic seal). The middle lip is thicker and plays the main sealing role, while the other two lips play the auxiliary sealing role. The bottom side is close to the bottom of the piston groove (static seal), and the contact is large for the above three lips.
Support ring B is placed on both sides of A for positioning. Support the elastic seal A and prevent the radial seal clearance of A. The support ring B is stepped, and there are many bumps on the side contacting the sealing element to prevent the sealing ring from rotating during operation.
The guide ring C is rectangular and installed on the piston to guide and absorb axial force. Several axial grooves are opened at the top and bottom of the guide ring so that the pressure oil can pass through the guide ring, so the elastic seal A can feel all the working pressure and quickly release the pressure when changing direction. This prevents continuous overpressure in front of elastic seal A.
Elastic seal A has a special section and three sealing lips are close to the cylinder wall (dynamic seal). The middle lip is thicker and plays the main sealing role, while the other two lips play the auxiliary sealing role. The bottom side is close to the bottom of the piston groove (static seal), and the contact is large for the above three lips.
Support ring B is placed on both sides of A for positioning. Support the elastic seal A and prevent the radial seal clearance of A. The support ring B is stepped, and there are many bumps on the side contacting the sealing element to prevent the sealing ring from rotating during operation.
The guide ring C is rectangular and installed on the piston to guide and absorb axial force. Several axial grooves are opened at the top and bottom of the guide ring so that the pressure oil can pass through the guide ring, so the elastic seal A can feel all the working pressure and quickly release the pressure when changing direction. This prevents continuous overpressure in front of elastic seal A.
specifications | 80*60*35.1 |
Place of Origin | Chengdu, Sichuan Province |
Brand Name | NO |
Material | PU NBR POM |
Certifications

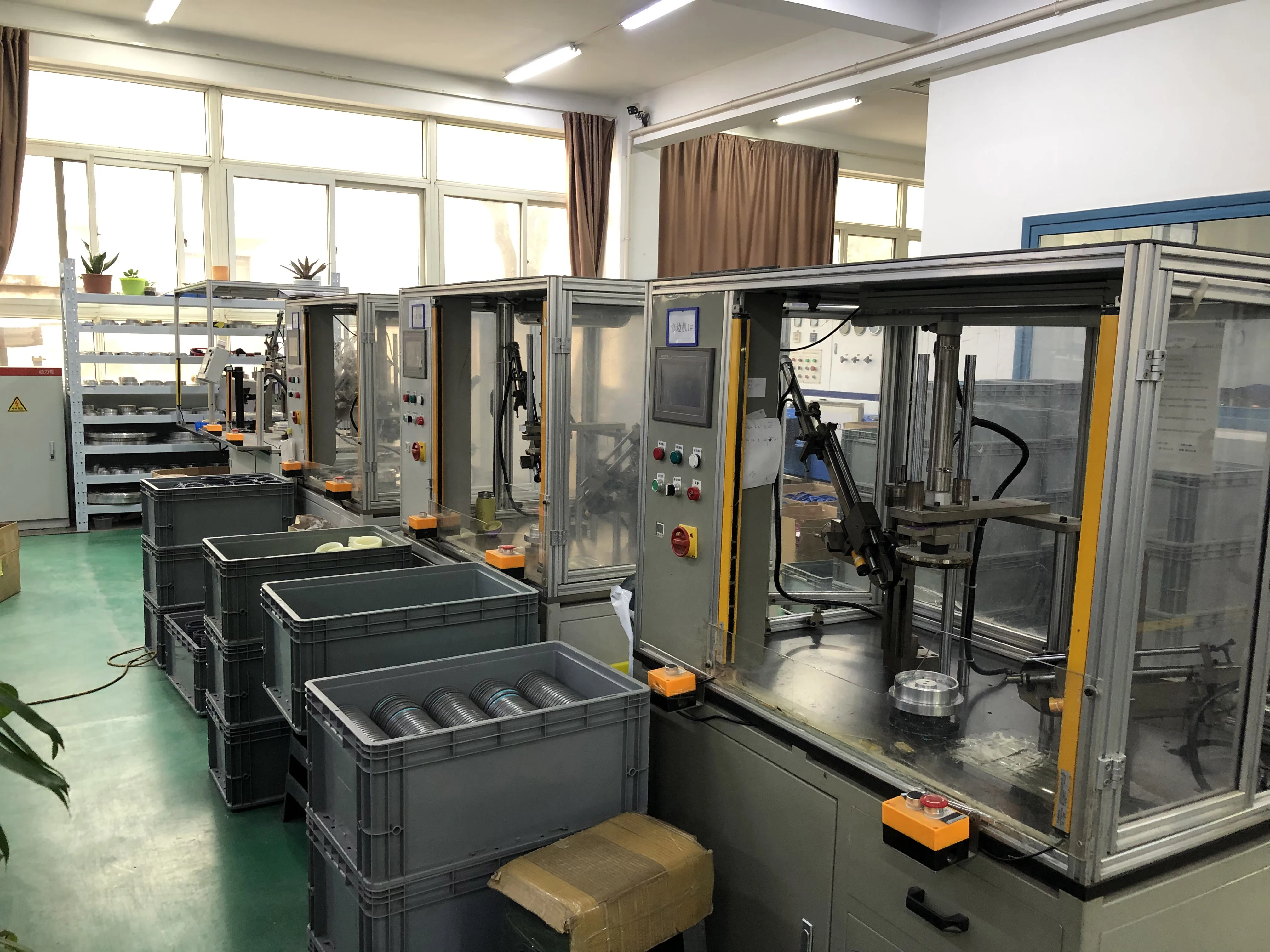

Company Profile
Chengdu Dingfeng Sealing Material Co., Ltd. was established in 2003. After more than ten years of experience, in 2013, it cooperated with the British DLL company to develop high-end seals. After continuous improvement and innovation, the research and development is finally successful, both in appearance and performance are excellent.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Sichuan, China, start from 2013,sell to Central America(20.00%),Mid East(15.00%),Southeast Asia(15.00%),North America(15.00%),Western Europe(15.00%),South Asia(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
seals,oil seal,Oil seal repair kit,Pump truck accessories,Excavator accessories
4. why should you buy from us not from other suppliers?
From the selection of materials, production, and after-sales service, every detail of the product is strictly controlled.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian CONTACT US
E-mail:[email protected]@outlook.comWhatsapp/Mob:0086 18639530752
We are based in Sichuan, China, start from 2013,sell to Central America(20.00%),Mid East(15.00%),Southeast Asia(15.00%),North America(15.00%),Western Europe(15.00%),South Asia(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
seals,oil seal,Oil seal repair kit,Pump truck accessories,Excavator accessories
4. why should you buy from us not from other suppliers?
From the selection of materials, production, and after-sales service, every detail of the product is strictly controlled.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian CONTACT US
E-mail:[email protected]@outlook.comWhatsapp/Mob:0086 18639530752
