Мини ПК 5 дюймов Сенсорная панель Zigbee 3,0 настенное крепление планшетный ПК с системой андроида для домашней автоматизации
- Category: Tablet PC >>>
- Supplier: Shenzhen Sibo Industrial & Development Co. Ltd.
Share on (1600223658871):
Product Overview
Description
Product Description
Product Name | Mini PC 5 Inch Touch Panel Wall Mount Android Tablet With Zigbee 3.0 For Home Automation |
Material | Indusrtial standard material |
Main Function | POE, LED Light, proximity Sensor, RS232, RS485, GPIO |
Warranty | 12 months |
Installation | Inwall, onwall, on glass wall, on desktop |

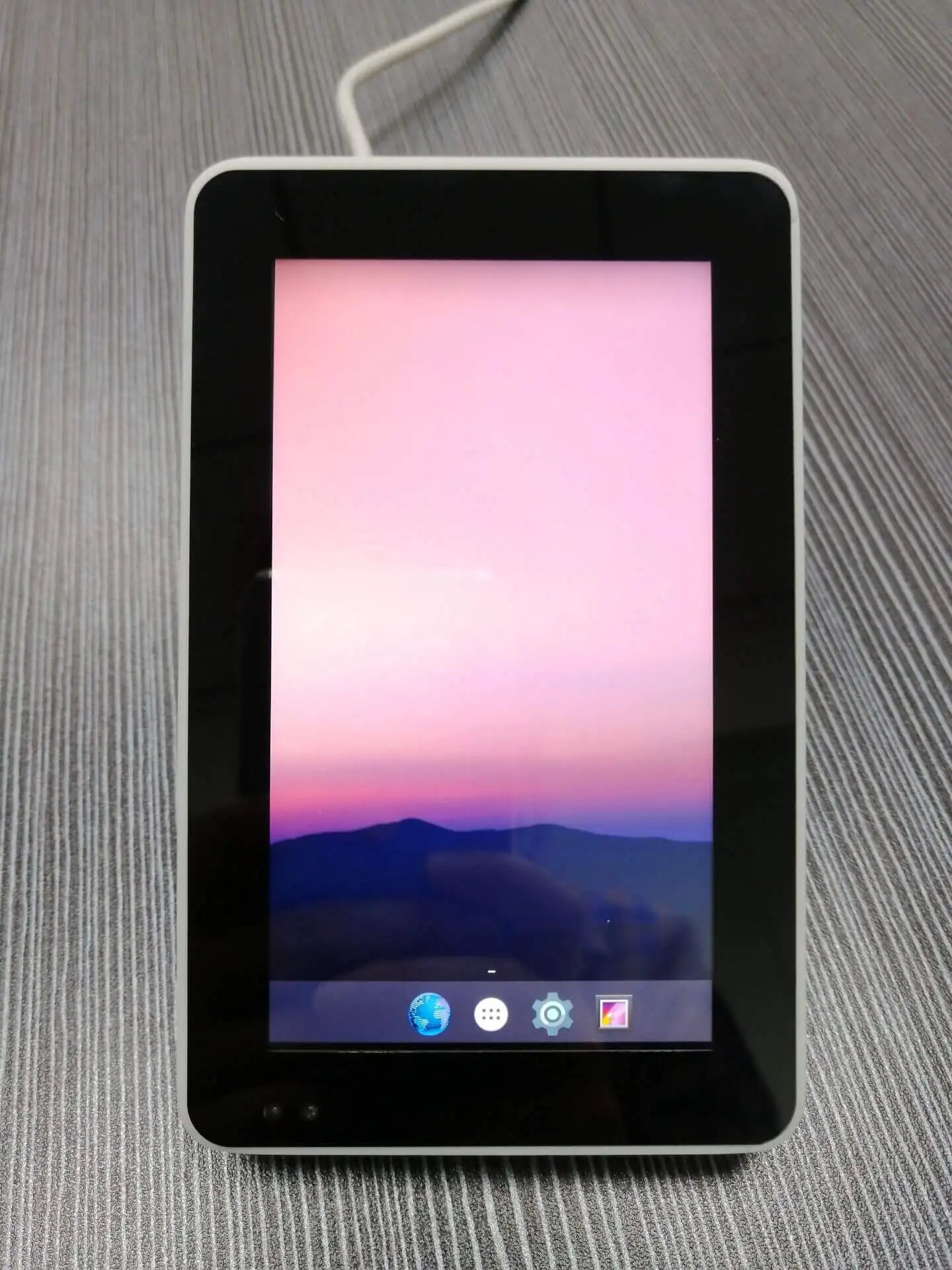

Mini PC 5 Inch Touch Panel Wall Mount Android Tablet With Zigbee 3.0 For Home Automation:
-Android 7.0 OS, rooted right.
-IPS touch screen, resolution:1280x720
-POE, IEEE802.3af, 48V
-Support source code to integrate with your software
-Brackets for installation
-Custom boot up logo
Details Images
SIBO 5'' POE Tablet For HVAC Control:
Nowadays, small screen tablet is a trend for environmental purpose. SIBO 5 inch tablet Q5 is definitely designed for HVAC control with high resolution screen 1280x720 meet the environmental concept. This tablet has poe function that just need one Ethernet cable to supply both network and power at the same time. Also with proximity & ambient light sensor, the tablet can automatically turn to be dark when nobody surrounding. This 5 inch touch tablet has other optional functions, such as NFC reader, Zigbee coordinator, echo cancellation circuit, serial port, UART, one wire. Meanwhile, it has many kinds of brackets for wall mounting.
Customized tablet in accordance with your requirements:
1.Support small quantity and sample order.
2.Sample lead time is 5-7 working days.
Proximity Sensor

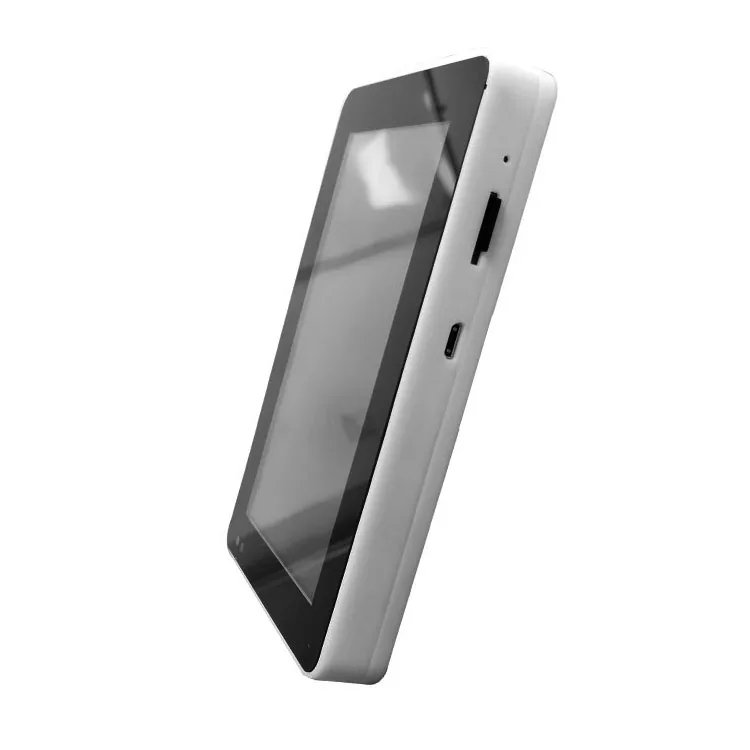

Micro USB(TOG) and TF slot on side, UBoot for reboot
Front dimension is 140x88mm, and the thickness is 15mm

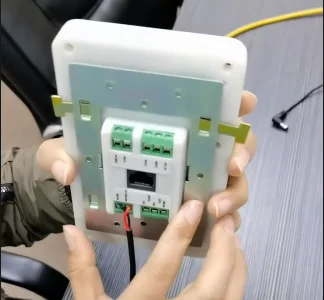

Interfaces:
Back interfaces:
J1: GPIO 1, GND
J2: 3.3V/5V DC Output, GPIO 2 GND (optional one wire)
J3: DC IN(12V), GND (optional DC IN 12-36V)
J4: UART TX, UART RX, GND (optional RS232, RS485)
Middle: RJ45(optional POE)
Front interface:
Proximity & ambient light sensor
Zigbee coordinator(optional NFC reader)

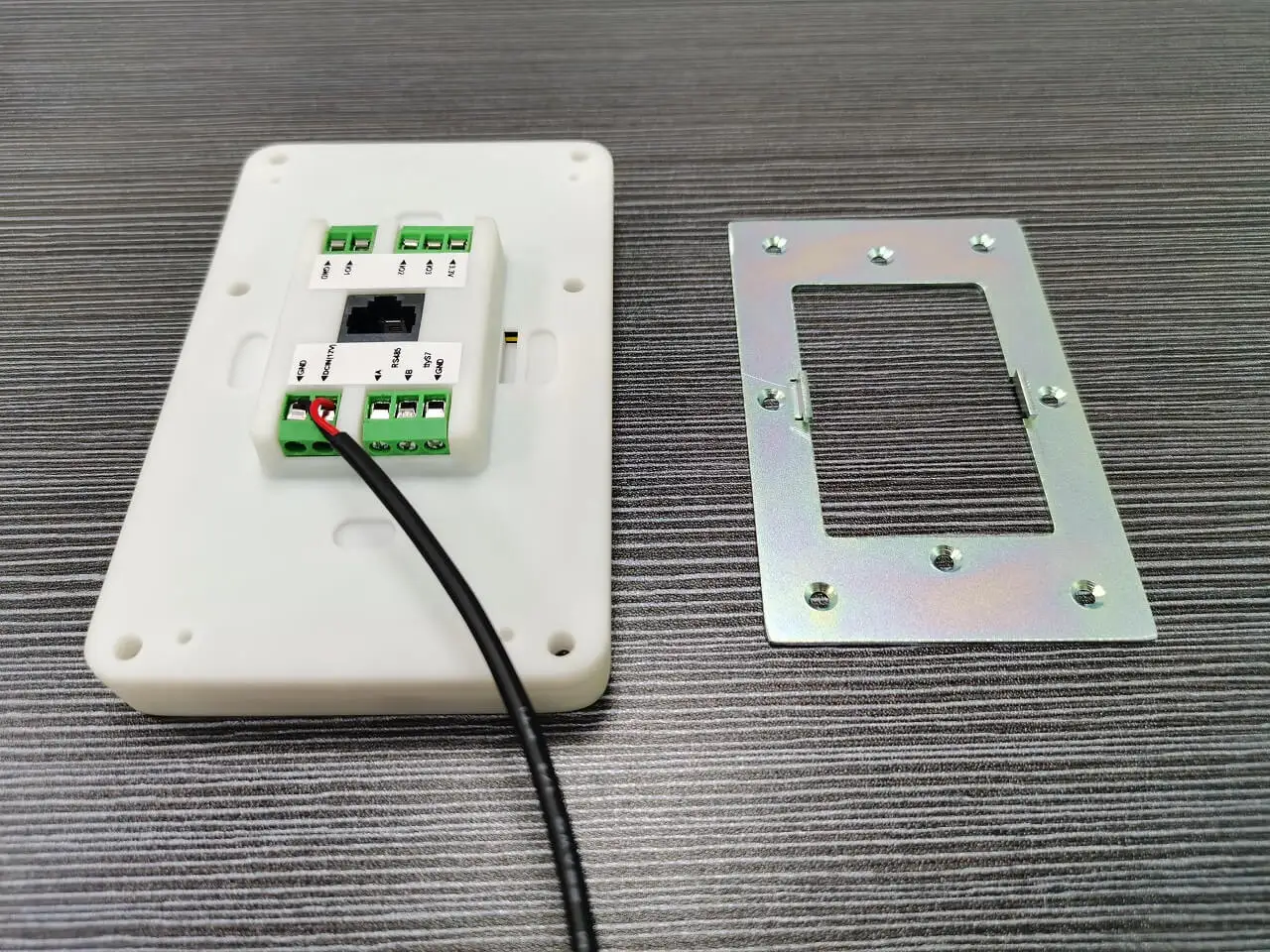

Installation Instructions
Vertical Installation
Horizontal Installation
Packing&Shipping
Packaging | 10 units/ ctn | |||
Carton dimension | 28.5x27.8x31.5cm | |||
Weight | 7.5kg/ctn | |||
Shipping | Fedex/DHL/UPS/TNT or your option | |||
Delivery day | Sample:5-7 days, batch goods:20-25 days | |||
Warranty | 12 months |
Company Introduction
About us:
Since established in 2001, Shenzhen SIBO Industrial & Development Co., Ltd already had an 18-year experience in tablet industry as a manufacturer. Right now, our mian product are 7'' , 9'' and 10.1'' custom tablets. With the good quality control and humanized customized service, SIBO company has already earned a good reputation from domestic and oversea. We will devote our expertise and technique to meet your business needs from designing to manufacuring the right products.
Our Services & Strength
* 18 Years Experiences in Tablet PC for Automation
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery
FAQ
Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.
Question: What is your company mainly products?
Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital signage, access & security control, home automation, industrial control, energy & power management...
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.
Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.
Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.
Question: What is your company mainly products?
Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital signage, access & security control, home automation, industrial control, energy & power management...
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.
Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.
Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
