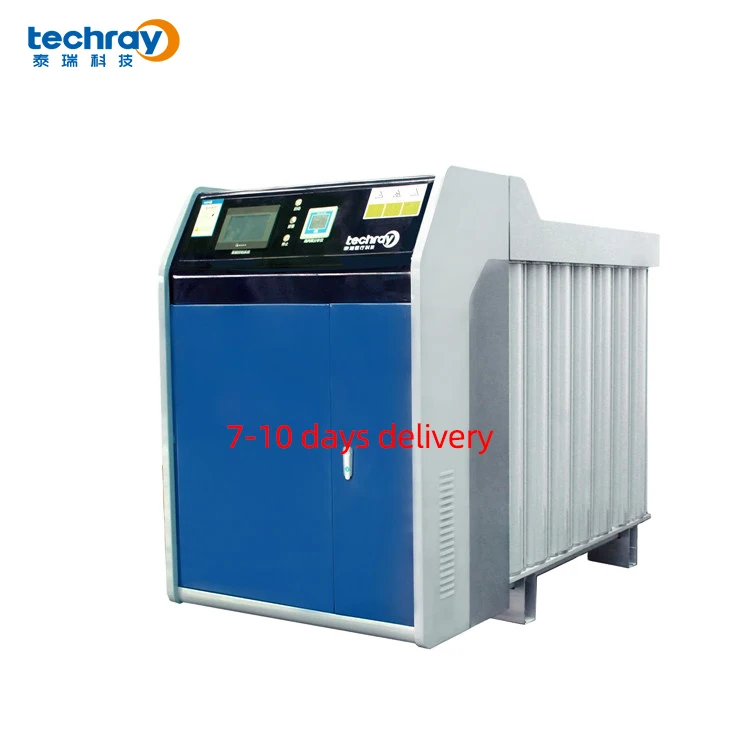

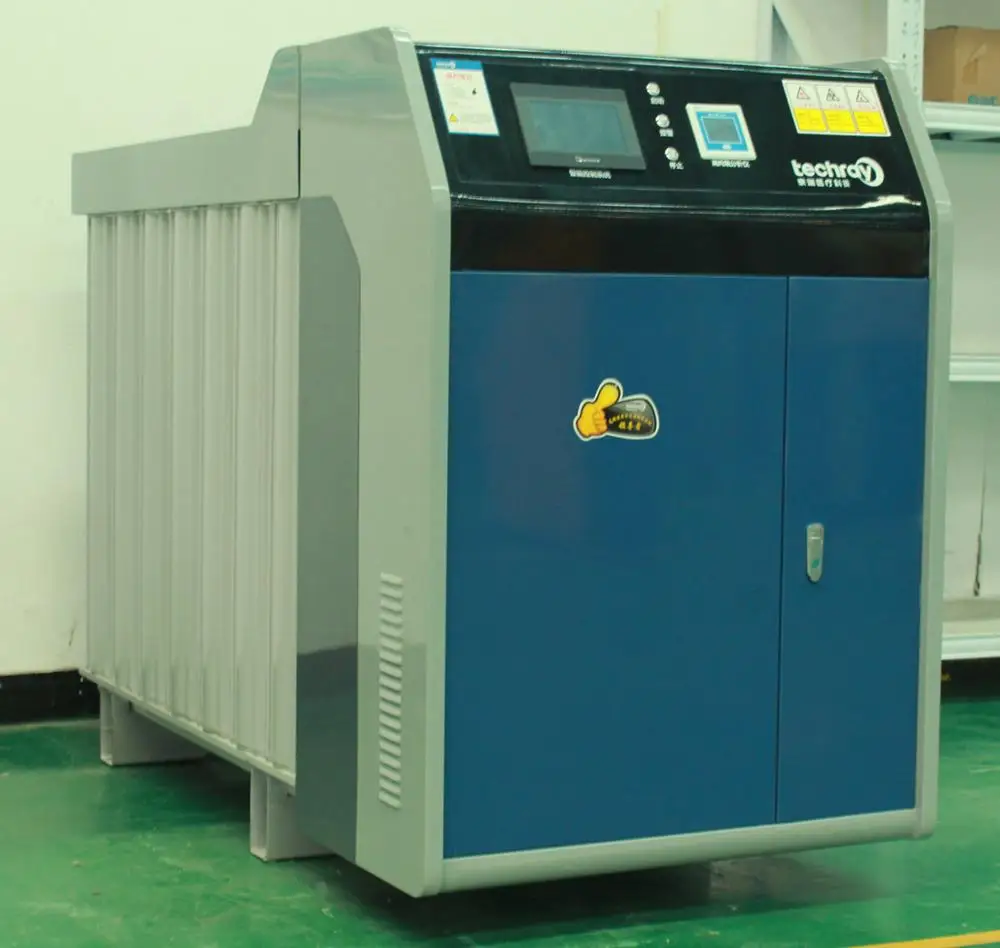

Oxygen Generator for High Temperature and High Humidity,High-Land Region

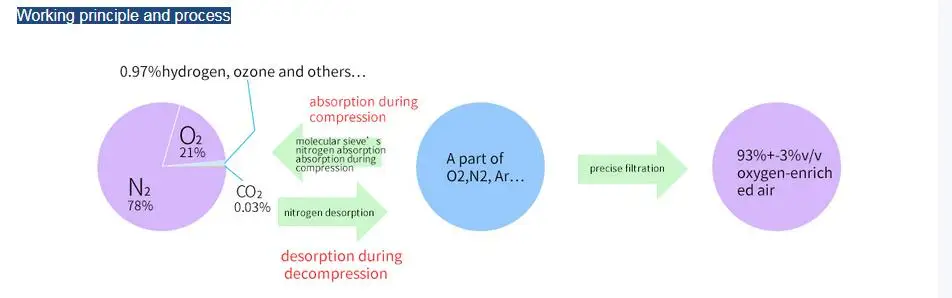

With air as material and molecular sieve as absorbent, TECHRAY'S Modular PSA oxygen generator system is to adopt advanced PSA air separation technique to form a circulation process of absorption during compression and desorption during decompression so as to produce oxygen by separating oxygen and nitrogen in the air by using the physical property that under normal temperature and low pressure, so that the purity of oxygen is exceeded 93%+-3%v/v.

PLANT DATA:
Production capacity: 1m³-5m³/H
Purity: 93+/-3%
Pressure: 0.25~0.5MPa
Brand Name: TECHRAY
Certification: ISO
Full Service Provided: Overseas service center available
Dew point: -45ºC - -60ºC

Guaranteed the safe use of oxygen in township and community hospitals with four characteristics

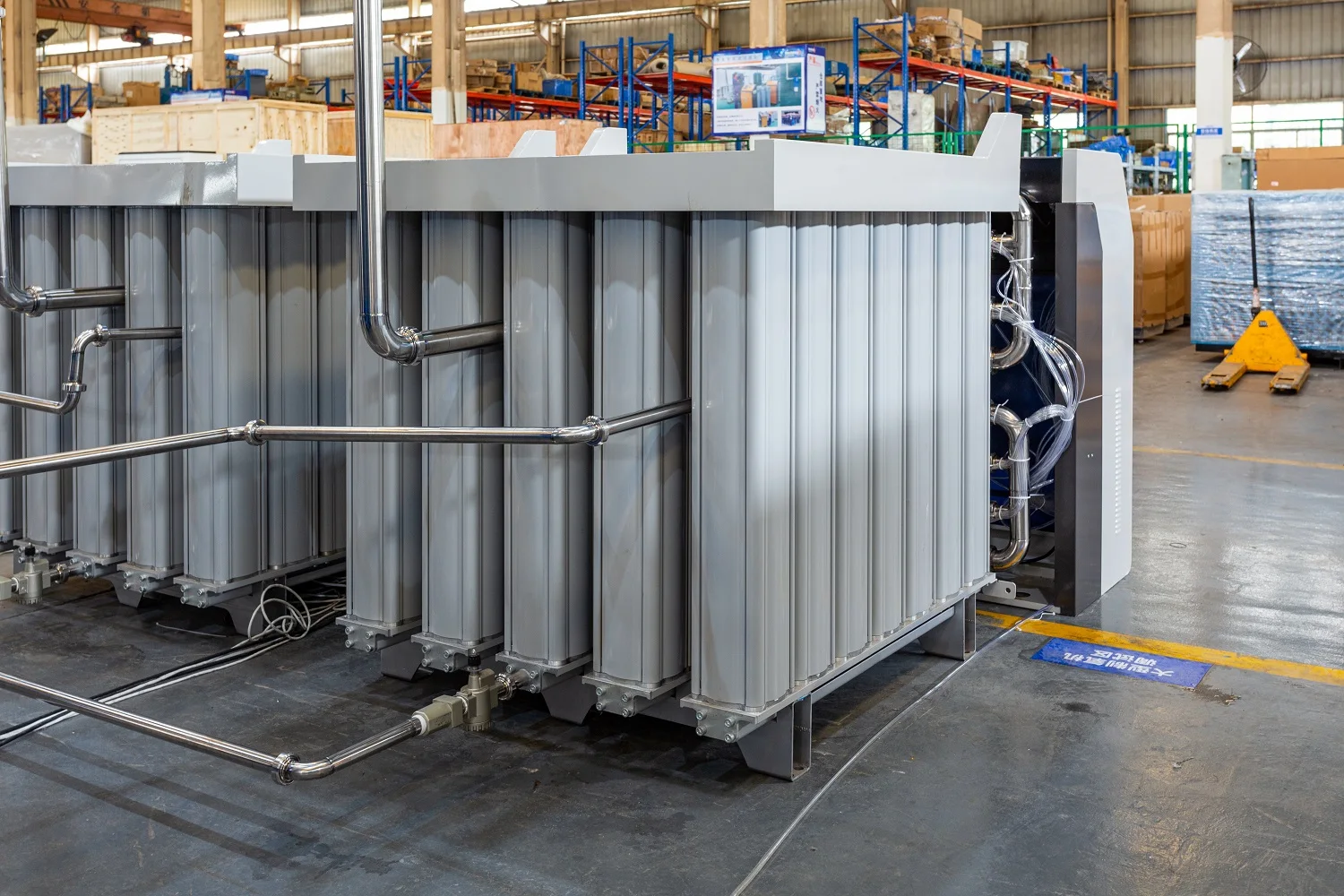

1. Modular oxygen generator
  Launched new design of modular oxygen generator in the world with its advantage of preventing molecular sieve powder, precise control, high output and low consumption, convenient maintaining and repairing, low noise and no need certification of pressure vessel.

2. Air processor
  Exclusively equipped a new components named AIR PROCESSOR, which can be solving the problems of
  removing water, oil and impurities, regulation of temperature and controlling gas supply. It also can be         made our whole system to work in the different enviromental, like as:
       High-cold type of oxygen generation system
       Highland type of oxygen generation system
       High temperature and humidity type of oxygen generation system
       High-salt type of oxygen generation system

3. Air compressor and Air dryer
  Deeply Cooperated with the global top 500 companies--KOBELCO for air compressor and dryer customization. And equipped return temperature device in Dryer

4.  Lithium molecular sieve
  The particles are large and hard which is difficult to be pulverized, the adsorption capacity of nitrogen is 150% higher than that of traditional adsorbent and the separation coefficient of oxygen and nitrogen has increased from 3 times to 6 times.

5. PCL  controller (SIMENS)
  Programmable controller which is more precise, stable control and customized programming can control single,double or multi units

6. Optimal pneumatic shuttle valve
  Adopted optimal pneumatic shuttle valve has advantages of small appearance, compact structure, high
 sensitivity, precise execution, rapid switching, top sealing performance and the life is more than 1 million times.

7. Oxygen analyzer
  Adopted variable frequency ion flow oxygen analyzer with ion flow oxygen sensor. It has a high-performance ARM microprocessor, high purity measurement and high precision detection

8. Impedance compound silencer
  The impedance compound silencer has the advantages of wide frequency band, wide application and 5-10 times noise reduction

9. Remote monitoring system
  24 hours unguarded ¦ Human-computer interaction ¦ Alarm function ¦ Data monitoring ¦ Full network connection

Application:

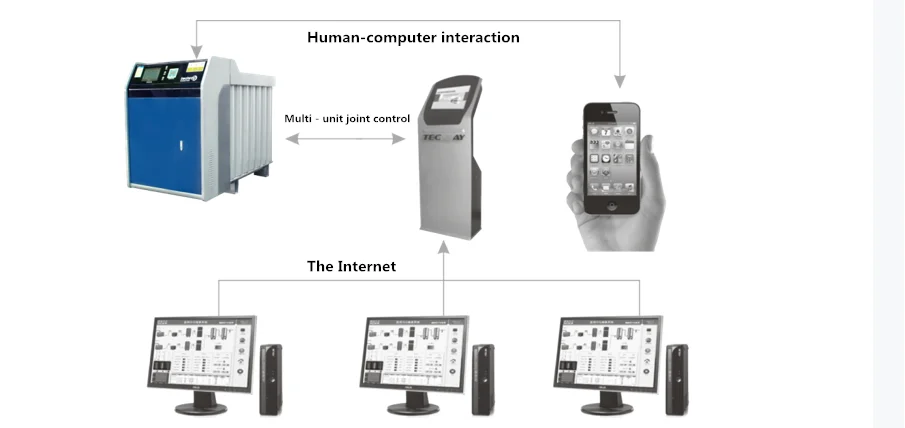

Innovative technology - Remote monitoring system

Full intelligent central control system, wireless remote monitoring system: multiple monitoring methods, no matter where you are, just a mobile phone can easily manage the devices.

Wired and wireless multiple choices/intelligent monitoring, remote maintenance, man-machine interaction, acousto-optic and over-the-horizon alarm/whole-course network connection/data storage, report printing/online fault analysis, for quick solution.
