Product Overview
Description
Product Description

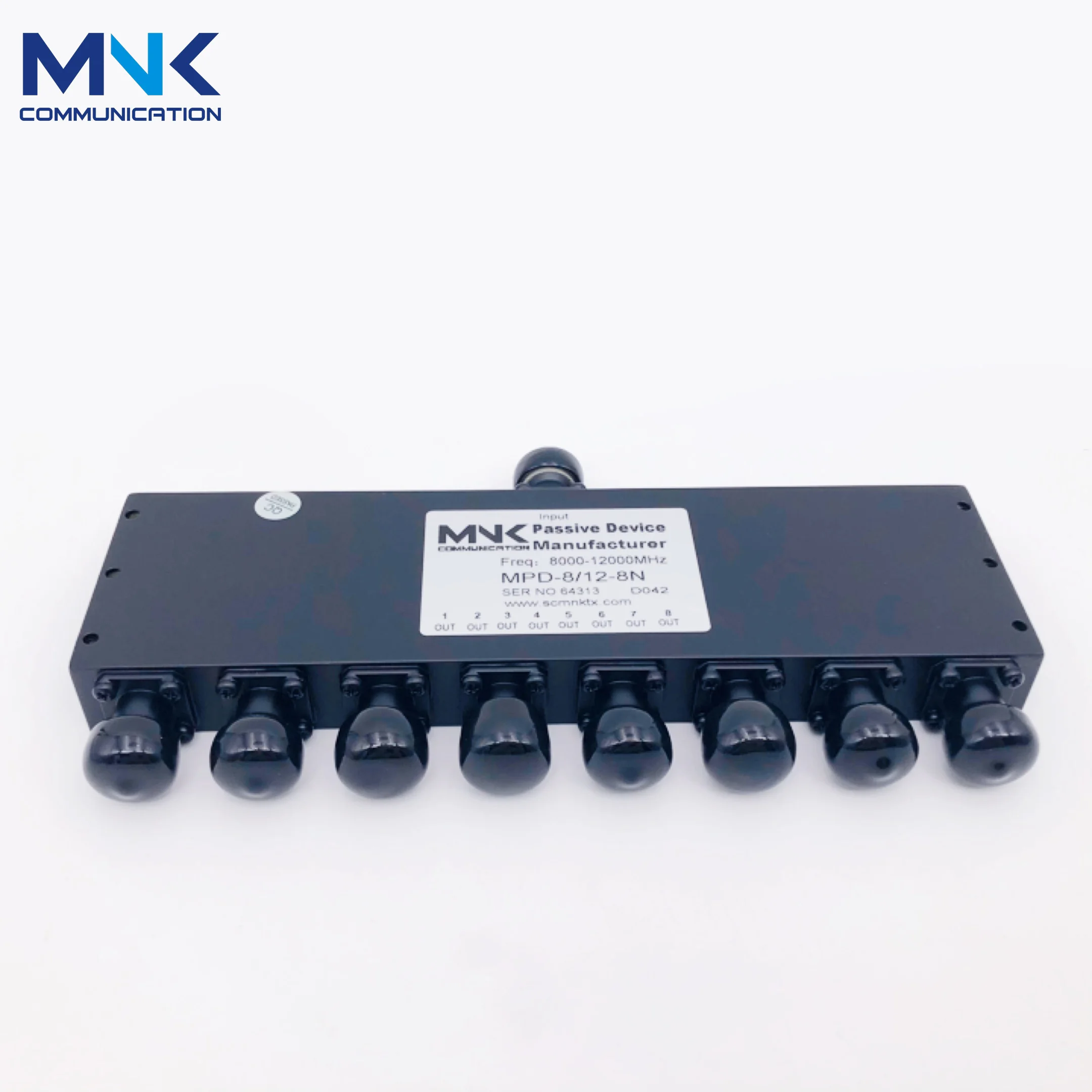

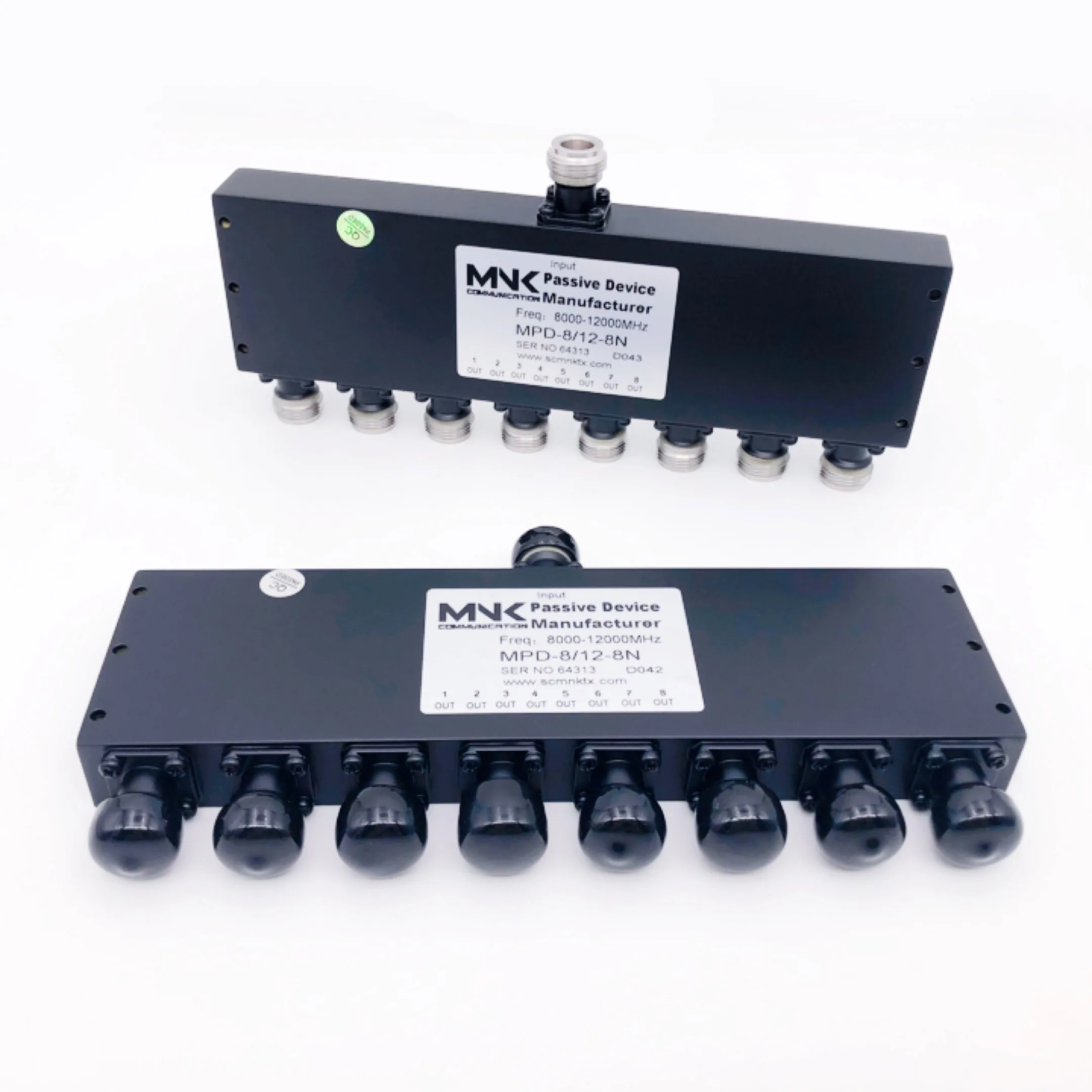

Eight-Way Power Divider
Microstrip Power divider, full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.

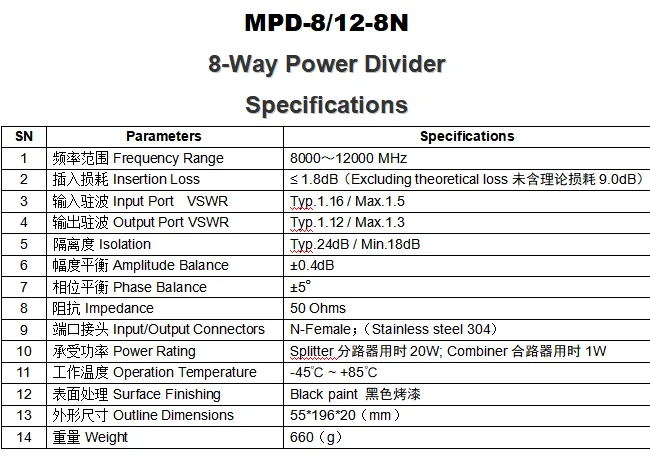

Specification
SN | Parameters | Specifications |
1 | Frequency Range | 8000～12000 MHz |
2 | Insertion Loss | ≤1.8dB（Excluding theoretical loss 9.0dB） |
3 | Input Port VSWR | Typ.1.16 / Max.1.5 |
4 | Output Port VSWR | Typ.1.12 / Max.1.3 |
5 | Isolation | Typ.24dB / Min.18dB |
6 | Amplitude Balance | ±0.4dB |
7 | Phase Balance | ±5° |
8 | Impedance | 50 Ohms |

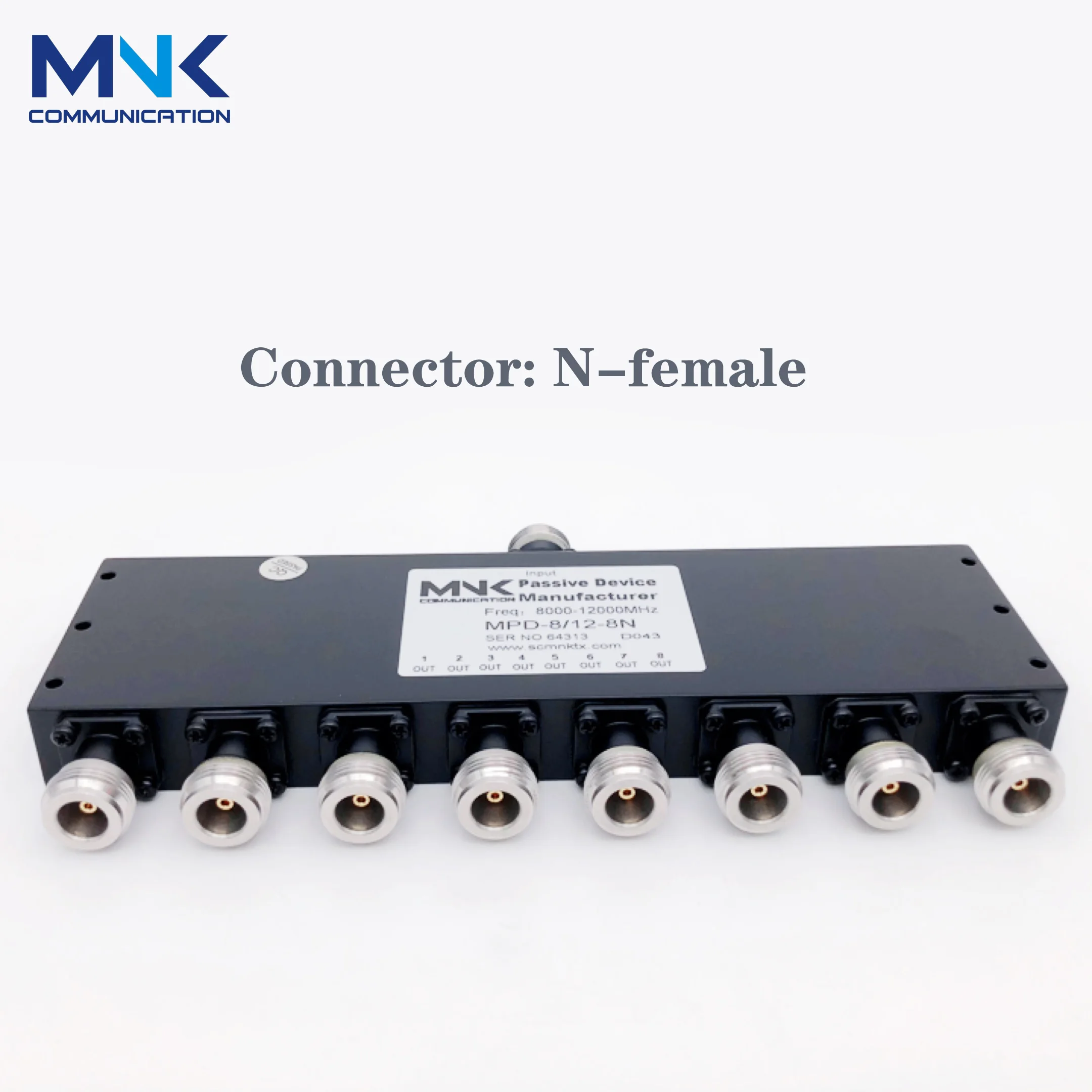

9 | Input / Output Connectors | N-Female (Stainless steel case) |
10 | Power Rating | Splitter≤20W; Combiner≤1W |
11 | Operation Temperature | -45℃ ~ +85℃ |
12 | Surface Finishing | Black paint |

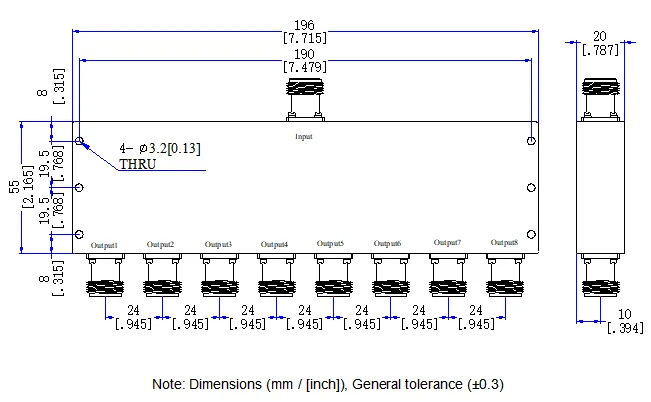

13 | Outline Dimensions | 55*196*20（mm） |
14 | Weight | 660（g） |
Company Profile
Sichuan Minnik Communication Technology Co., Ltd. was established in 2008, located in Wuhou District, Chengdu City, specializing in microwave communication, passive RF devices research and development, production and sales.
The company is committed to power dividers, Bridges, couplers and other passive devices to provide high quality products and quality services. We produce our own brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!
The company is committed to power dividers, Bridges, couplers and other passive devices to provide high quality products and quality services. We produce our own brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!
