Материнская плата для ноутбука bga с общей топливной магистралью ZM R720A горячий воздух и инфракрасная паяльная станция и паяльник

Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

1, Main Features:

• Widely used in the Chip Level Repair in laptop, PS3,PS4,XBOX360, Moblie Phone, etc. soldering rework station


• Rework BGA,CCGA, QFN, CSP, LGA, Micro SMD,LED etc.


• Automatic Romoving,Mounting and Soldering.


• HD Optical Alignment system for precisely mounting BGA and Components.


• Laser Positioning function for Fast Positioning BGA Chip and motherboard.


• BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.


• Superior Safety Functions, with Emergency protection.


• User-friendly operation system. soldering rework station

2, Specification:   soldering rework station



1	Total power	Max 5800W soldering rework station
2	Top hot air heater	1200W soldering rework station
3	2nd hot air heater	1200W soldering rework station
4	3rd IR preheater	3200Wsoldering rework station
5	Voltage	220V-240V,50/60HZ soldering rework station
6	Main structure parts	Touch screen+ PLC+ High sensitive temp control module+ Optical alignment System
7	Temp control	K-Sensor closed-loop soldering rework station
8	PCB positioning	V-groove ,with universal fixture ,can move easily
9	PCB size	Max 410×370mm; Min65×65mm
10	BGA chip size	1×1~ 80×80mm soldering rework station
11	External temp sensor	1 piece soldering rework station
12	Dimensions	640×630×900mm soldering rework station
13	Machine net weight	65kg soldering rework station

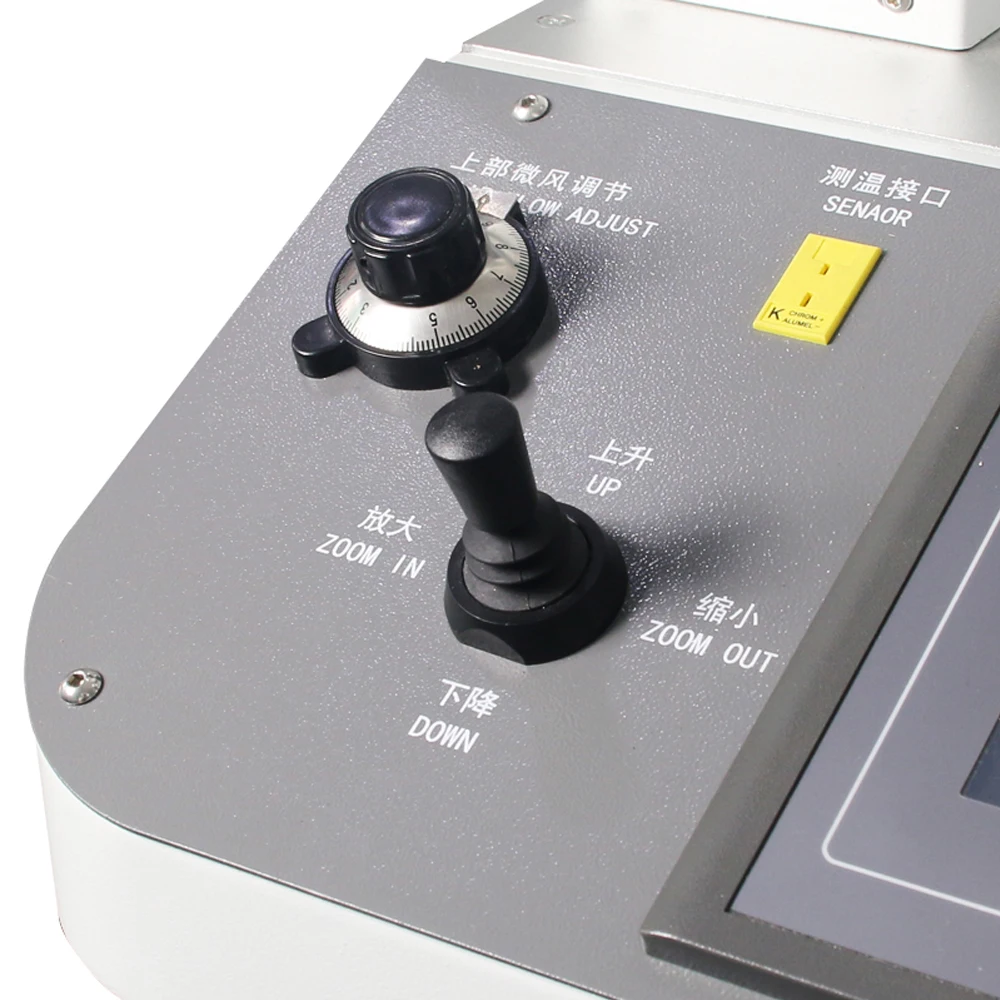

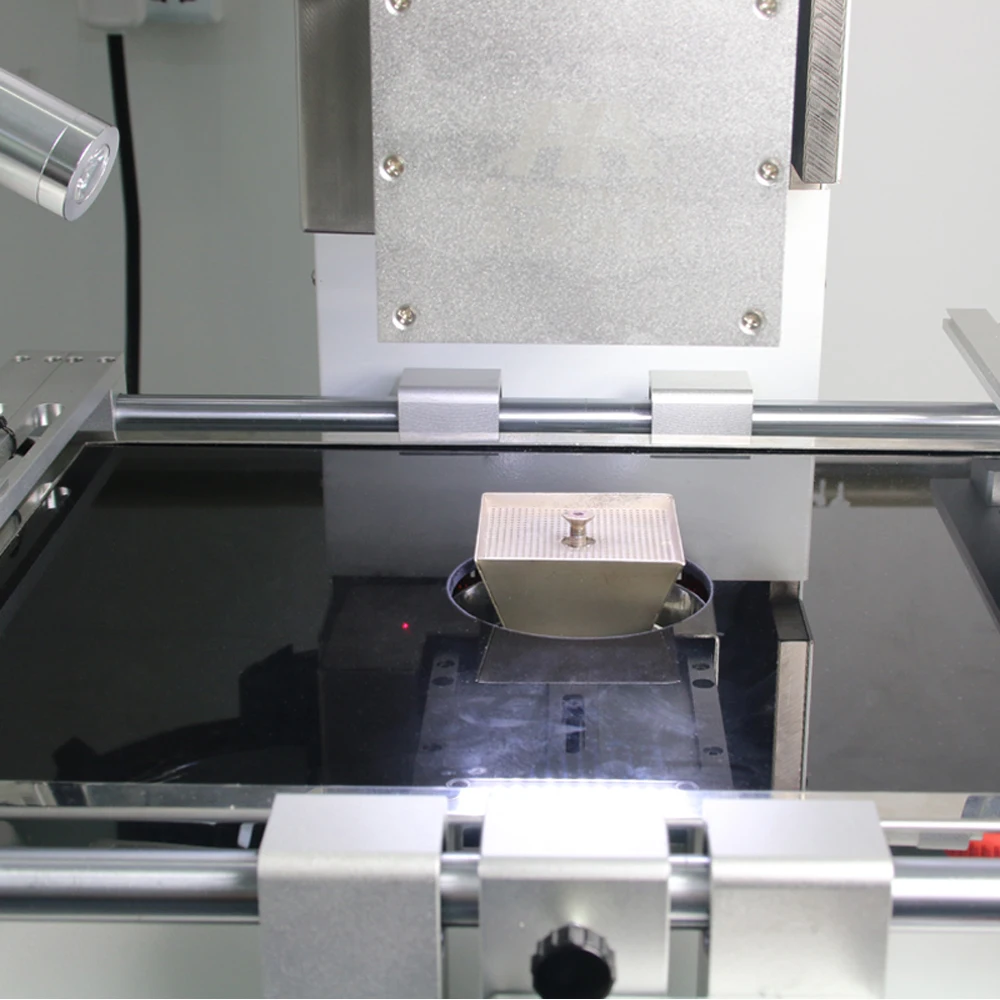

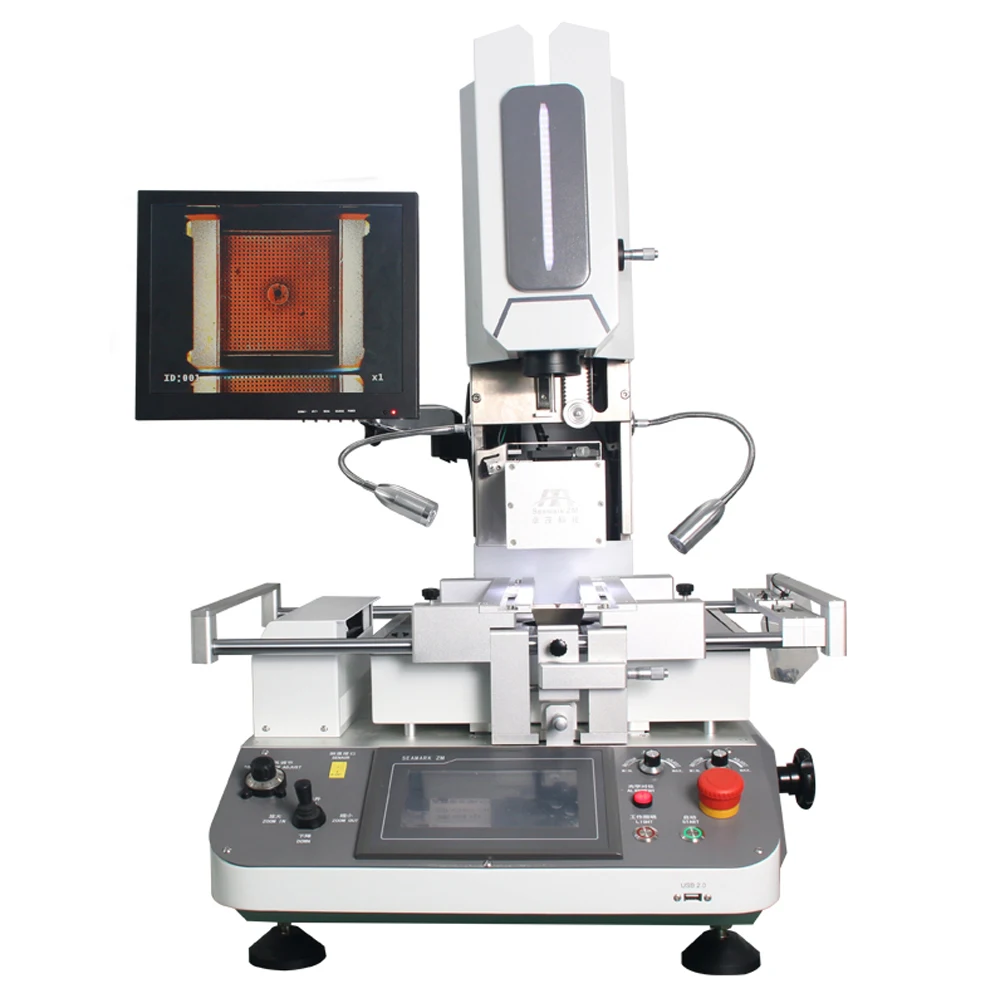

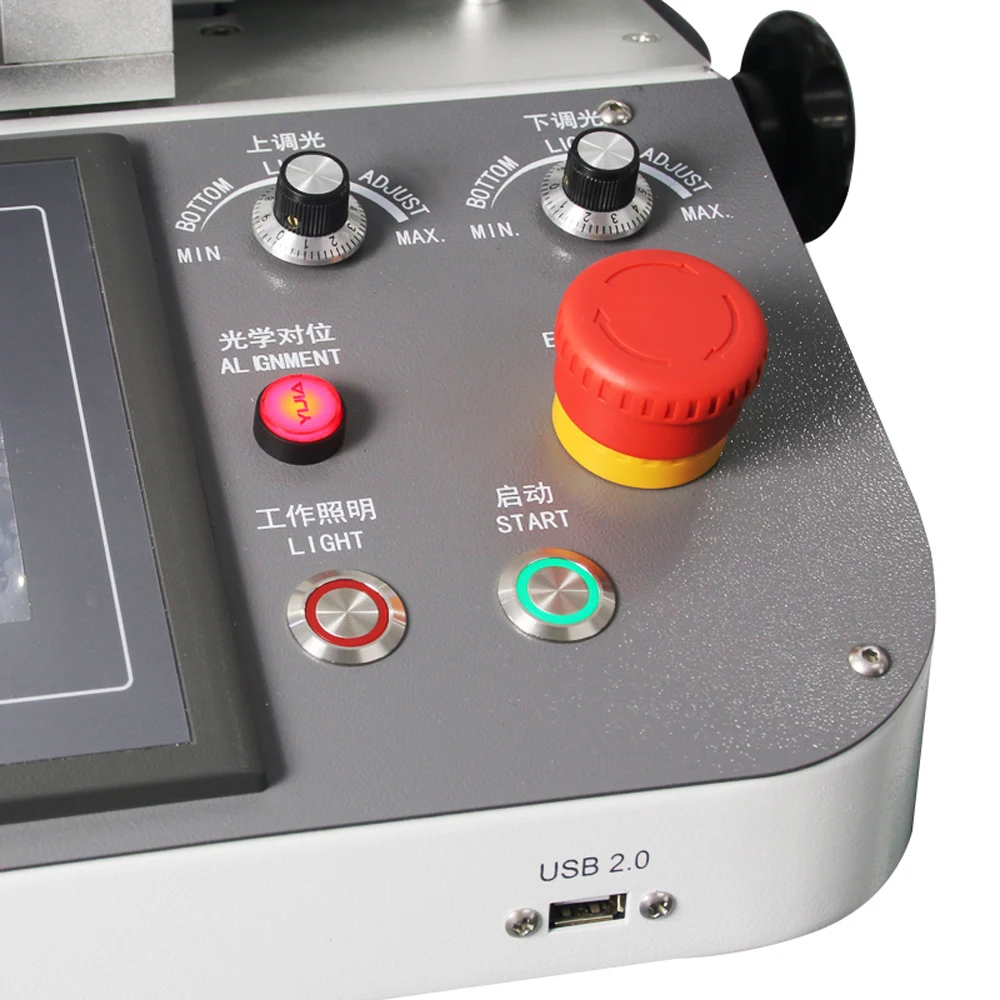

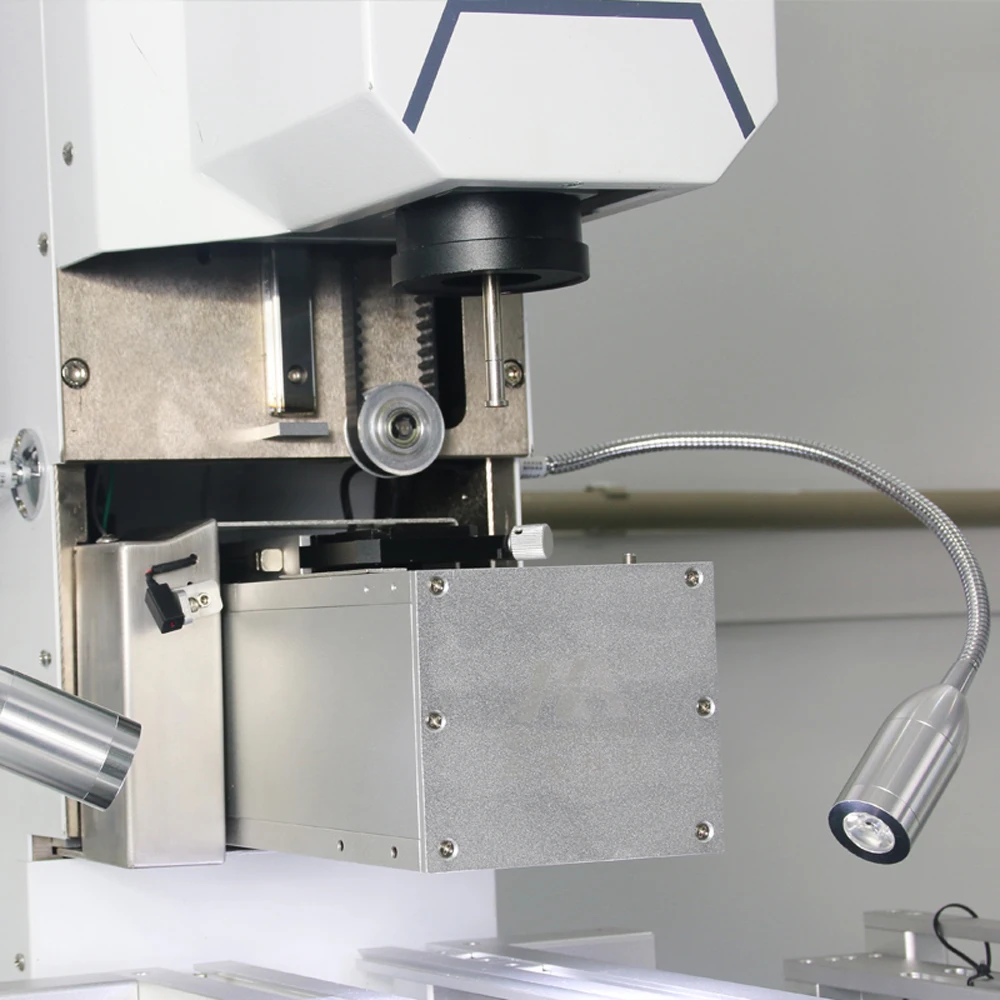

 3, Illustration



4, Operation DEMO Video :

https://www.youtube.com/watch?v=Bl0SzczIzy0&feature=youtu.be

5, BGA Reballing Kit and Accessory Available

  ZhuoMao Technology is based in Shenzhen, China, We are manufacturer for 12 years, and has been the Biggest Factory in the BGA Rework field in China. All material is of high quality under inspection and control,and all BGA Station go through 2 times of test before shipment.  High Quality Assurance is our task and also what we are doing now.

All BGA rework Station is approved by CE and ISO Certification. We also get the certification of National High-Tech Enterprise, "Seamark" Brand Registation ,Software copyright, and machine design paten, etc.

Nearly every day some customers from home and abroad come to visit our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory !

1. How about the package ? Is it safe during the delivery ?

All BGA machine is packed Safely, by standard strong wooden carton with foam inside.

Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

2. What is the delivery way ? How many days will the machine arrrive us ?

We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.

Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.

Or by Sea to the seaport,  Minium CBM requirement : 1 CBM, around 30days to arrive.

Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

3. Do you provide the Warranty ? How about the after sales service ?

1 year warranty free for spare parts, Whole life technicial support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

4, This machine is easy to use ? if I have no experience, I can also operate it well ?

Do you provide the user manual and operating videos to support us ?

Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.

 Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

5, If we come to your factory, you will provide the free training ?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

 Laptop motherboard bga repair machine ZM-R720A hot air and infrared bga soldering rework station and soldering iron

6. What is the payment way ?

We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.

More details ,welcome to contact us.

whatsapp/Tel/Wechat : +86 13544216017
