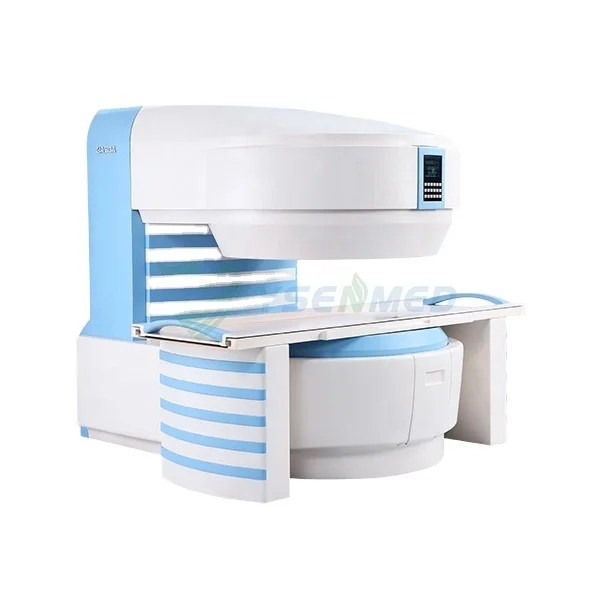

Advanced MRI China YSMRI 042 0.42T Full Digital Permanent MRI System MRI Scanner Price

No.

Item

Specification

1

Magnet System

1.1

Magnet Type

Permanent magnet with automatic constant temperature system

1.2

Field strength

0.42T

1.3

Magnet shape

C-shape

1.4

Homogeneity (40cm, DSV, VRMS)

2ppm

1.5

Shim method

Active/Passive/Dynamic

1.6

Magnet vertical gap

40cm

1.7

Accessibility (Horizontal opening angle)

250°

1.8

5 Gauss fringe field

2.5m*2.5m*2.5m

2

Gradient System

2.1

Gradient field strength (Single Axis)

31mT/m

2.2

Gradient slew rate (Single Axis)

107mT/m/ms

2.3

Rise time

0.29ms

2.4

Gradient cooling system(Gradient coils and power electronics)

Air

3

RF System

3.1

Spectrometer

Fully digital

3.2

RF system type

Digital Transmit and Receive

3.3

Number of RF channel

4

3.4

Transmitter amplifier peak power

6kW

3.5

RF bandwidth of receiver

Each 400KHz

3.6

Dynamic range

80dB

3.7

Noise factor

0.3dB

3.8

Coil type

phase array

3.9

Head coil

Yes

3.10

Neck coil

Yes

3.11

Body coil (small)

Yes

3.12

Body coil (large)

Yes

3.13

Knee coil

Yes

3.14

Ankle coil

Yes

3.15

Shoulder coil

Optional

3.16

Soft coil

Optional

4

Patient communication

4.1

Max. patient weight

210Kg

4.2

High accurate position assist

Yes

4.3

Localizer

Yes

4.4

Position accurate

1mm

4.5

Position accessories

Yes

4.6

Emergence call

Yes

4.7

Communication system

Yes
