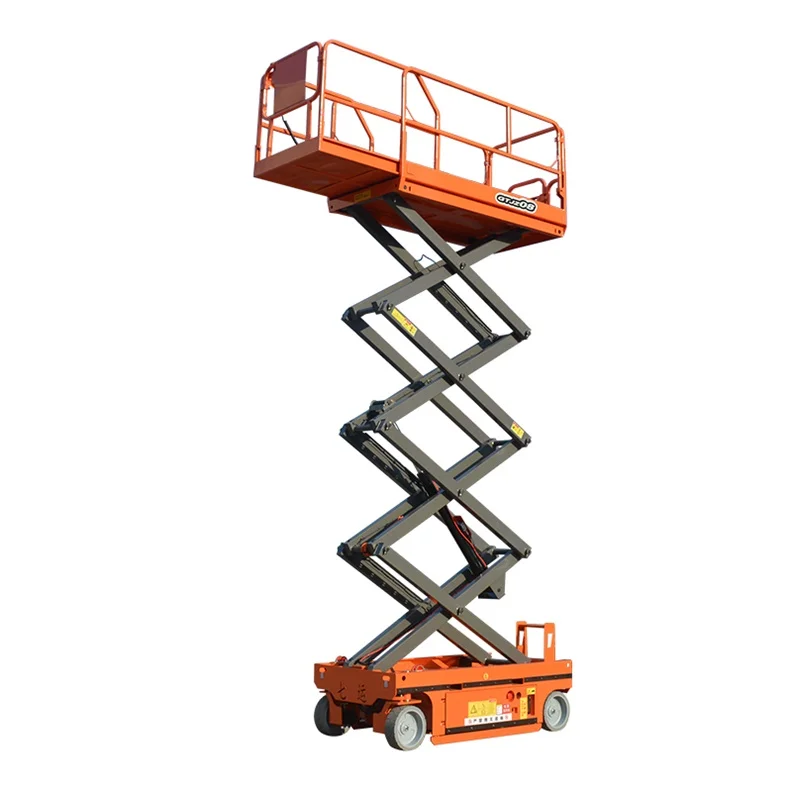

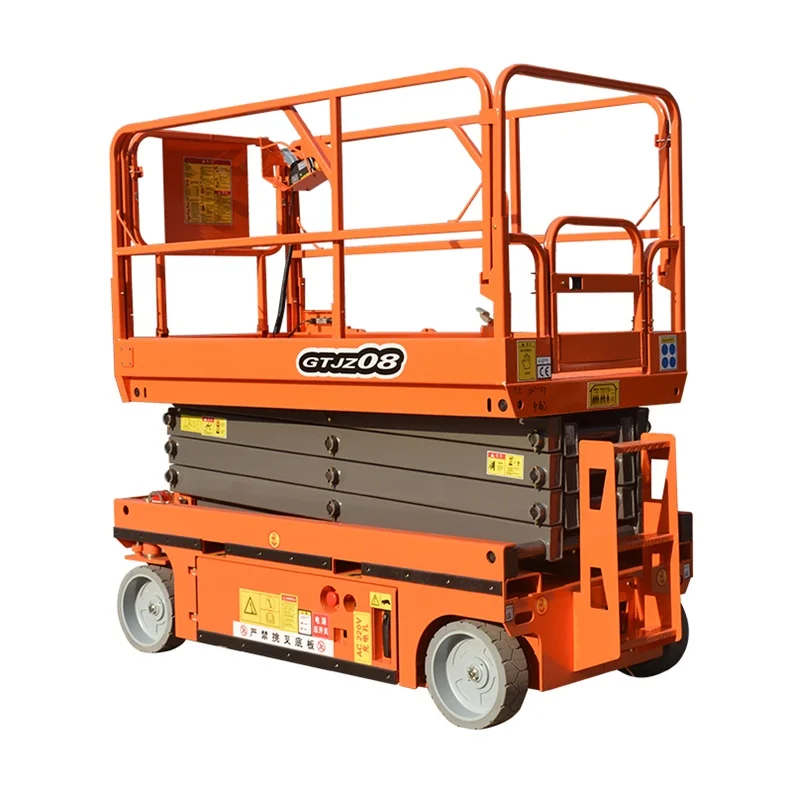

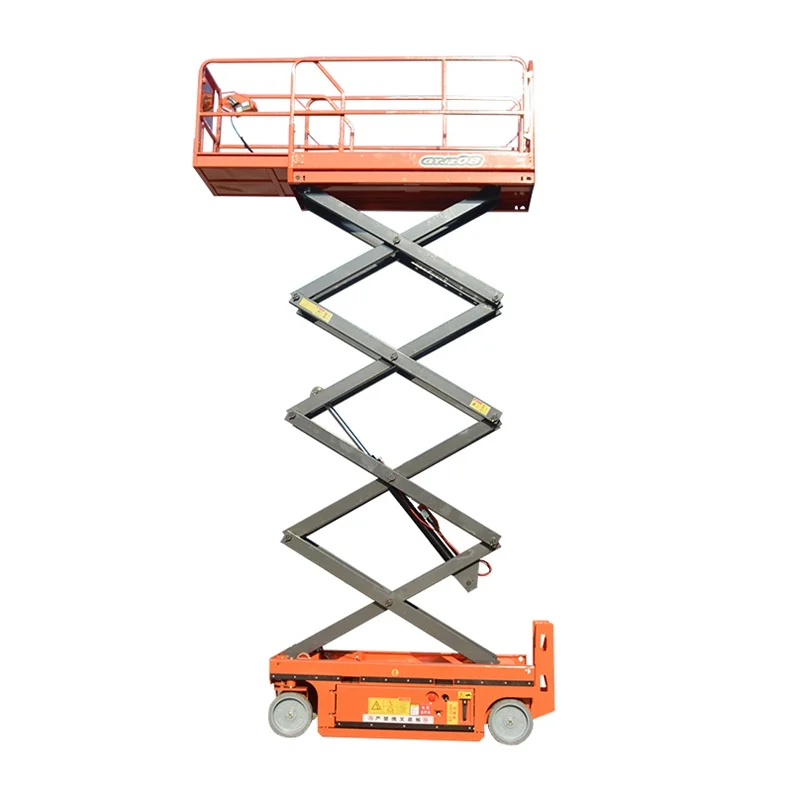

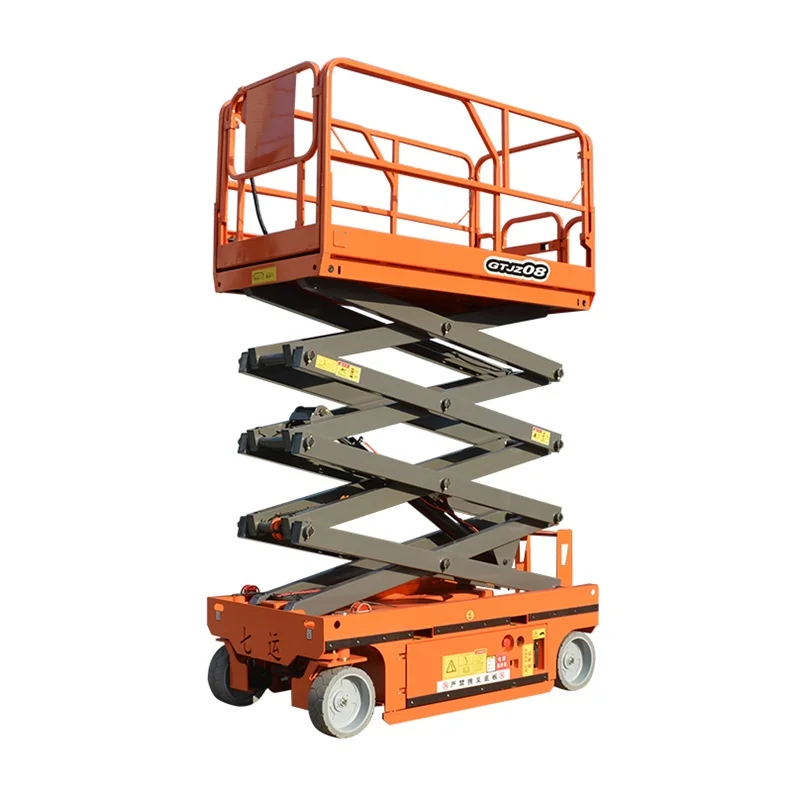

Qiyun factory supply 12m 320kg two man stand Battery Hydraulic Electric Man Lift Self Propelled Scissor Lift Platform

Product Overview

Description

Qiyun factory supply 12m 320kg two man stand Battery Hydraulic Electric Man Lift Self Propelled Scissor Lift Platform for Painting







Product description

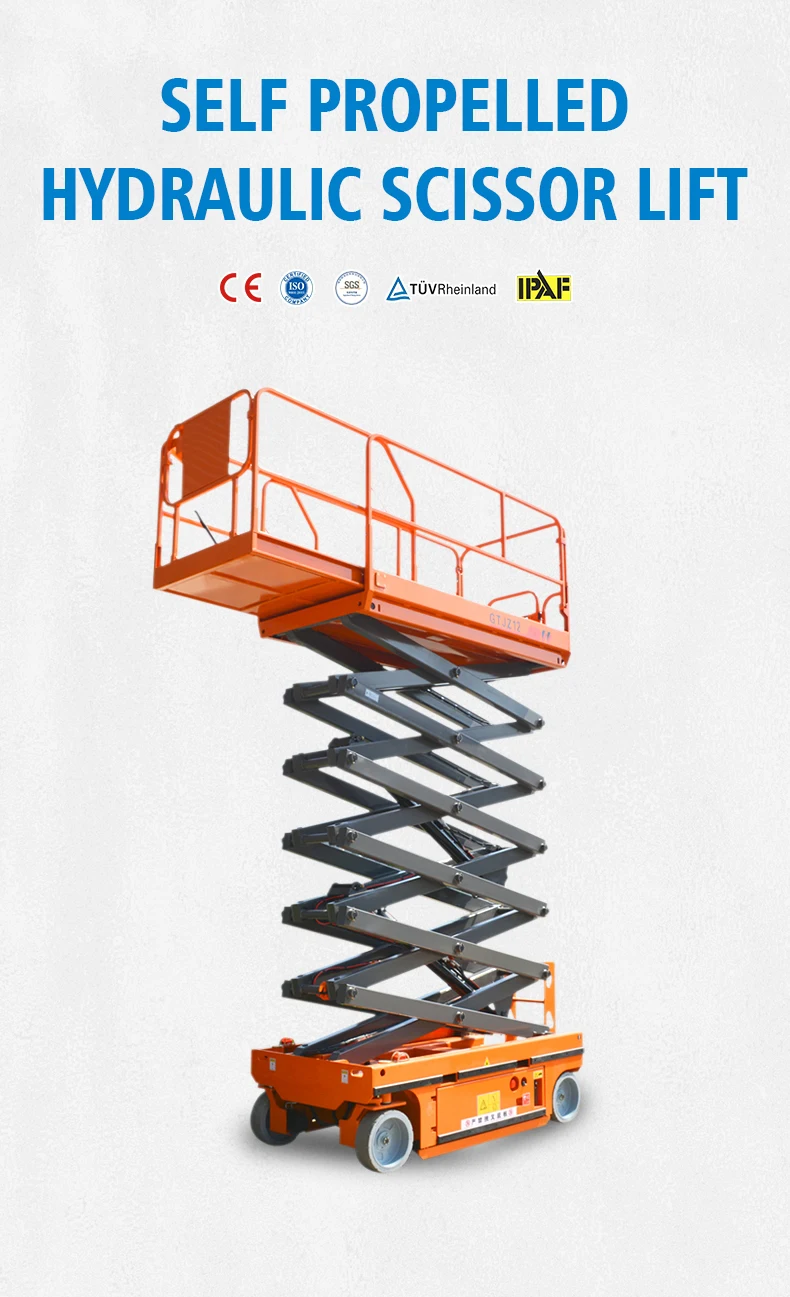

Self-propelled scissor lift can move by itself without external force and external power source. It can work only with one person and it is very convenient and efficient. It can walk even in the highest height. It is widely used for building. It is made up of rack, bracket and under frame. Its platform height is from 3m to 14m. Load capacity is from 230 to 550 kilogram. The extension of platform can be 90centimeter and carry 113 kg. The rack is made of square tube, and can be folded. The bracket is made from Q235 manganese steel, and for high configuration, it is made from Q500 manganese steel.













Products size



Model	Platform size	Load capacity	Net lifting height	Overall dimensions	Table extension	Machine weight
GTJZ-6	2.26*1.13	550	6	2.475*1.15*2.158	0.9	2060
GTJZ-8	2.26*1.13	450	8	2.475*1.15*2.286	0.9	2190
GTJZ-10	2.26*1.13	320	10	2.475*1.15*2.414	0.9	2430
GTJZ-12	2.26*1.13	320	11.8	2.475*1.15*2.542	0.9	2960
GTJZ-14	2.64*1.13	227	13.8	2.84*1.39*2.59	0.9	3320

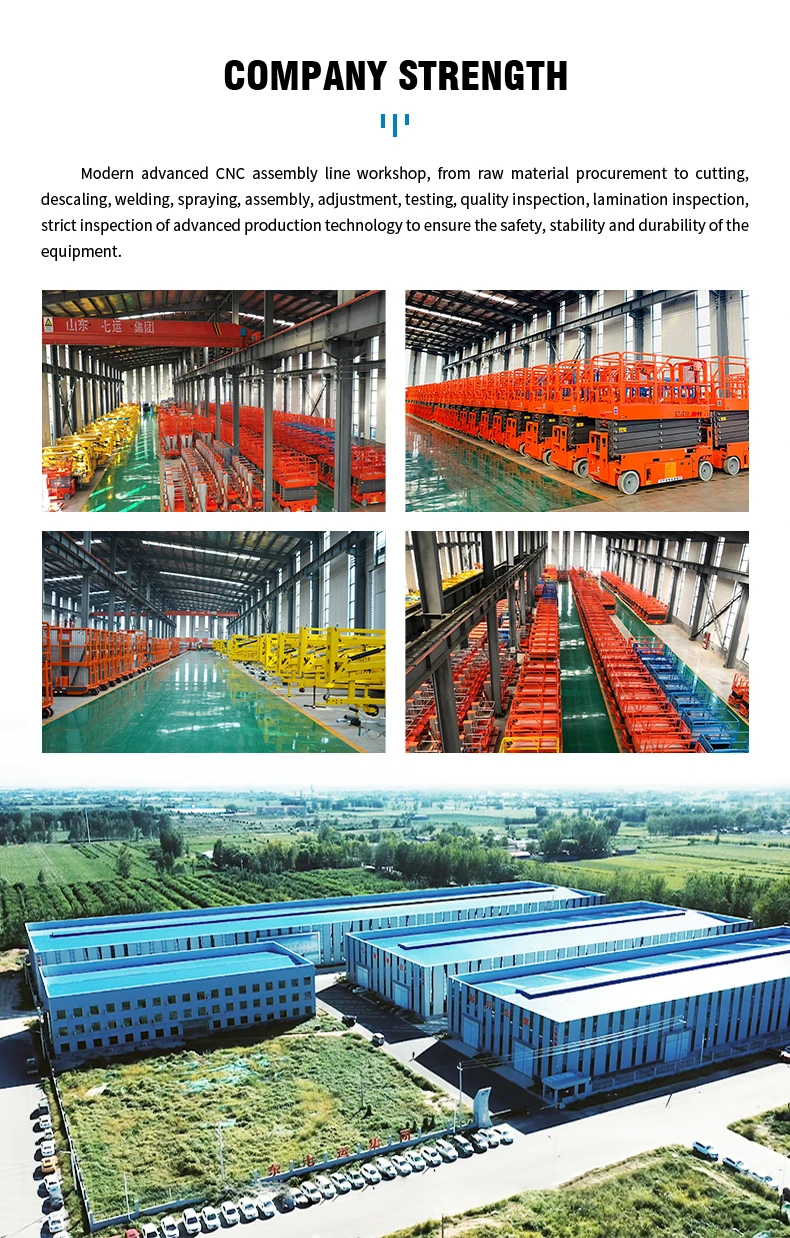

Shandong Qiyun Group Co., Ltd. was established in 2014. The company is located in Jiyang, Shandong, which is known as "the hometown of China's hydraulic lifting platform". Initially formed by seven companies specializing in the production and sales of elevator products, it has now developed into a professional group company integrating R&D, production, sales and export. We not only have all kinds of advanced conventional hydraulic lifts, but also customize products according to customer needs.

Shandong Qiyun Group Co., Ltd. has various certification systems such as ISO, CE, SGS, etc. It can undertake OEM and ODM mass production. Now the company is vigorously developing export, and recruiting agents and distributors for the world.

Now our products have been sold all over the world and are widely used in various industries and places such as plant maintenance, equipment maintenance, warehousing and logistics, airports and ports, villa exhibition halls, aerial work, etc., and are recognized by our customers.











FAQ

Q1. What about the delivery time? Answer: It usually takes about 10 working days after we receive the deposit. Q2. What kind of payment do you support? Answer: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually. Q3. How to proceed an order for the lift? Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better. Secondly, we send you our suggestions and quote according to the practical. Q4. How to transfer the lift machine? Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container. Q5. Is it OK to print my LOGO on the lift? Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO. Q6. How can I get the after-sales service? Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
