Dimensions

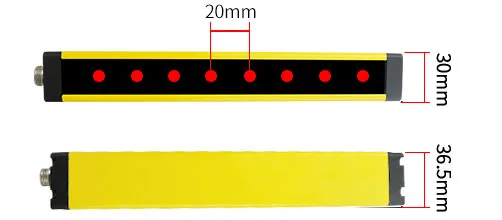

20 mm beam distance
Unit: mm

| Item Code | Beam Quantity | Protection Height | Dimensions | Mounting Height |
| SW-NC0420 | 4 | 60 | 36.5*30*136 | 176 |
| SW-NC0620 | 6 | 100 | 36.5*30*176 | 216 |
| SW-NC0820 | 8 | 140 | 36.5*30*216 | 256 |
| SW-NC1020 | 10 | 180 | 36.5*30*256 | 296 |
| SW-NC1220 | 12 | 220 | 36.5*30*296 | 336 |
| SW-NC1420 | 14 | 260 | 36.5*30*336 | 376 |
| SW-NC1620 | 16 | 300 | 36.5*30*376 | 416 |
| SW-NC1820 | 18 | 340 | 36.5*30*416 | 456 |
| SW-NC2020 | 20 | 380 | 36.5*30*456 | 496 |
| SW-NC2220 | 22 | 420 | 36.5*30*496 | 536 |
| SW-NC2420 | 24 | 460 | 36.5*30*536 | 576 |
| SW-NC2620 | 26 | 500 | 36.5*30*576 | 616 |
| SW-NC2820 | 28 | 540 | 36.5*30*616 | 656 |
| SW-NC3020 | 30 | 580 | 36.5*30*656 | 696 |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
40 MM BEAM DISTANCE
Unit: MM

| SW-NC0440 | 4 | 120 | 36.5*30*216 | 256 |
| SW-NC0640 | 6 | 200 | 36.5*30*296 | 336 |
| SW-NC0840 | 8 | 280 | 36.5*30*376 | 416 |
| SW-NC1040 | 10 | 360 | 36.5*30*456 | 496 |
| SW-NC1240 | 12 | 440 | 36.5*30*536 | 576 |
| SW-NC1440 | 14 | 520 | 36.5*30*616 | 656 |
| SW-NC1640 | 16 | 600 | 36.5*30*696 | 736 |
| SW-NC1840 | 18 | 680 | 36.5*30*776 | 816 |
| SW-NC2040 | 20 | 760 | 36.5*30*856 | 896 |
| SW-NC2240 | 22 | 840 | 36.5*30*936 | 976 |
| SW-NC2440 | 24 | 920 | 36.5*30*1016 | 1056 |
| SW-NC2640 | 26 | 1000 | 36.5*30*1096 | 1136 |
| SW-NC2840 | 28 | 1080 | 36.5*30*1076 | 1216 |
30 - 100 beams are also available, please contact us for more information.

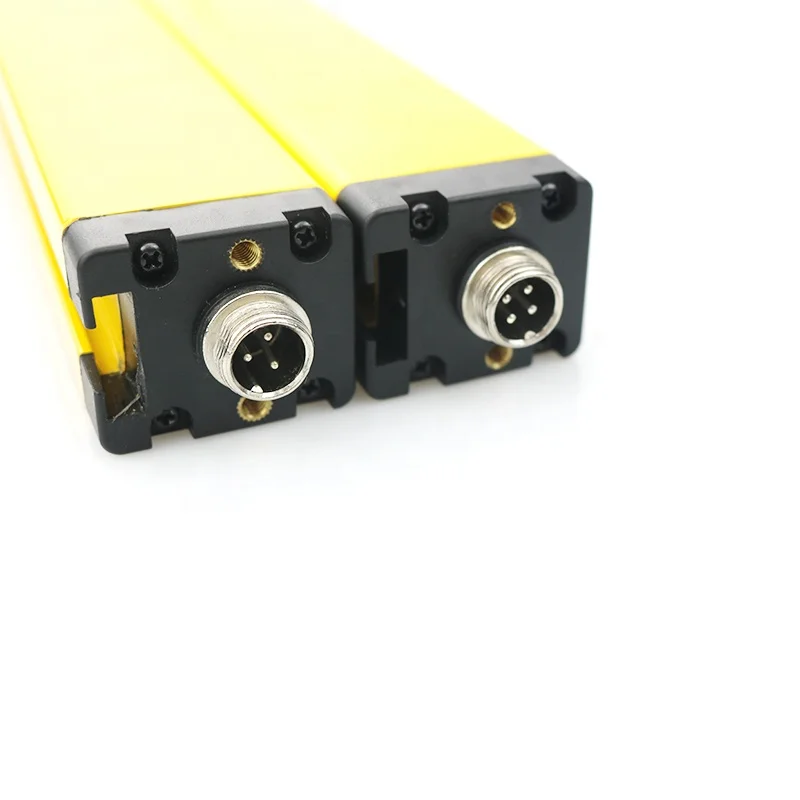

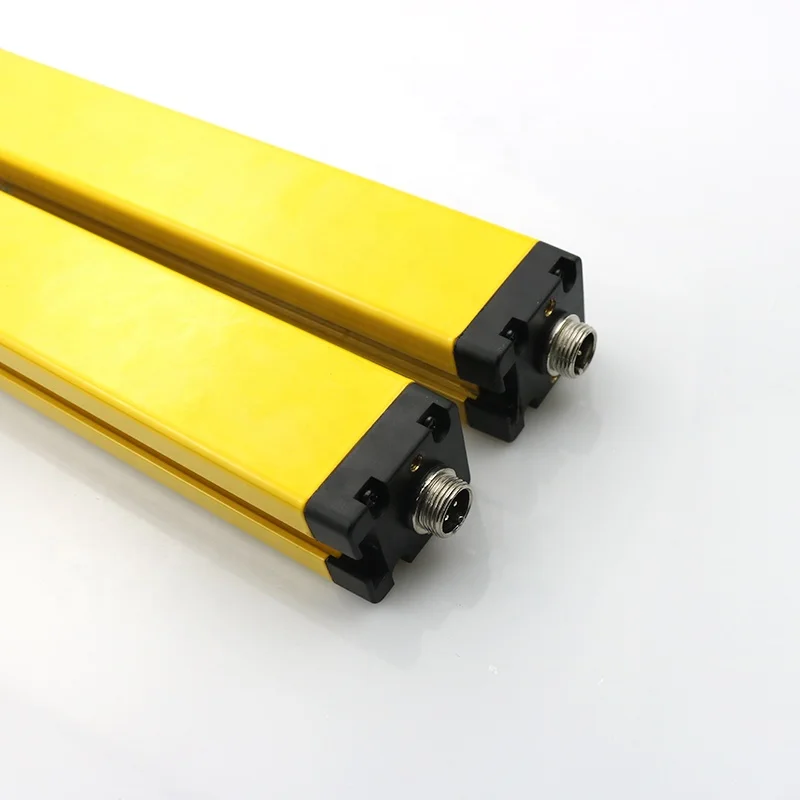

Mounting height = the whole height + 40 mm (Aviation plug length)
Standard testing distance: 3m. Longer Testing distance can be customized.
For the exact price of each item , pls check with our sales directly.
Professional service will be provided immediately.
