Tunnel greenhouse is widely used in the cultivation of vegetables, fruits and flowers. Tunnel greenhouse can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters. It can bring forward or backward the provision, remitting the contradictions of provision and demand.
Structure for Greenhouse We have many types and configurations of greenhouse to choose.to help you increased your crop growth.Tunnel Greenhouse allows growers to extend their crop growing seasons. longer growing seasons result in an increased product yield and higher profits.Help to create ideal growing conditions in any climate. plants grow healthier and faster in optional environments.
Specification
Specification
Products Name

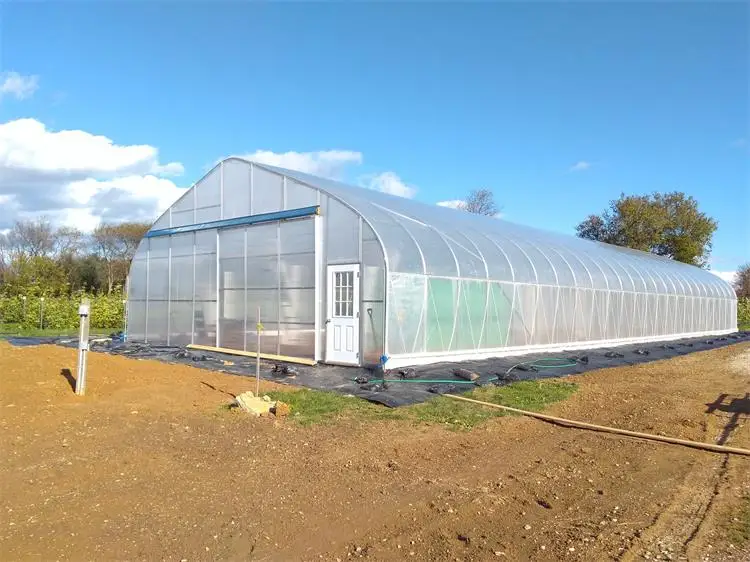

Poly TUnnel Greenhouse/Hoop House
Width
30ft
Length
100ft
Ridge Height
12ft
Structure
Hot Dip Galvanized with Zinc
Covering
150micron
Ventilation
Roll-up side curtain
aterial
100% new PE with UV
Color
white , blue, green or as your request
Light transmittance
more than 90% depends on sunlight of the area
Span width
6m,8m,10m or as your request
Length
24-100m or as your request
Span quantity
2-10 ,more for your choose
Gutter high
3m or as your request
Roof high
1.8m or as your request
Resistance to wind load
>0.5kn/m2
Resistance to snow load
0.45kn/m2
Dead load
15kg/m2
Hang load
15kg/m2
Anti-knock
8 grade
System Support
Ventilation system (roof & side) Cooling system Shading System(inside & outside) hydroponic system Irrigation System Heating System seedbed system
Product details
Product details
Constructed from hot dip galvanized structure steel tubing.
Arch Pipe: 1.6'' or 1.9'' or 2.35''x1.5'' Sidewall Height: 5' Ridge Height: 12' Covering: single layer. 6mil 3-5 years warranty greenhouse film Ventilation: Roll-up side curtain by manual or electricity. Purlins: 1.315' three rows Our factory can accept any size to be customized.
Roll-up sidewall curtain for ventilation
Easy to ventilate with roll-up curtain.Sidewall roll-up curtain can be manual or electricity
Attach plastic to greenhouse structure
wiggle wire to lock channel to fasten plastic to greenhouse structure. lock channel is optional between steel and aluminium alloy lock channel.
Covering Material
Outer layer :LDPE, Transparency. High strength Medium layer: LDPE. Thermal insulation properties. Excellent flexibility Inner layer: Anti-dripping UV Transmission, 300-390,,(%)Thickness: 150micron or 200micron Certificate: ISO9001:2008.
