433 MHz LORA 0 ~1500W m2 Wireless Radiation Sensor G7 iot agriculture











G7-AD                   Wireless Analog Sensor System


With G7 wireless analog sensor and Base Station, you can start monitoring sensor measurement online remotely.


Wireless sensor G7 transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol.


G7-Centre App receives data from Base Station over Internet or LAN.


G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2.








Model:   G7-AD


[Product Name_1]               Wireless Transmitter for Analog Sensor


[Product Name_2]               Wireless 4~20mA Sensor


[Product Name_3]               Wireless 0~5VDC Sensor


[Product Name_4]               Industrial Wireless Analog Sensor System


[Product Name_5]               RF Wireless Analog Signal Sensor


[Product Name_6]               Radio Wave Wireless Analog Signal Sensor


[Product Name_7]               Wireless Analog Signal Gateway


[Product Name_8]               Wireless Analog Signal Sensor System


[Product Name_9]               64 Channels Wireless Analog Signal Sensor


[Product Name_10]             1200m Wireless Analog Signal Sensor





[Product Name]    Wireless Load Cell, Wireless Pressure Sensor, Wireless Level Sensor, Wireless Weather Station


Wireless Wind Direction Speed Sensor, Wireless Analog Temperature Sensor, Wireless PM2 Air Quality Sensor





[listing_1]


G7-AD is a wireless analog sensor.


It transmits analog sensor data wireless via RF.





[listing_2]


G7-AD is a wireless sensor system supporting up to 60 analog sensor.


It works on 433 MHz RF.





[listing_3]


RF Station receives wireless sensors readings, and uploads to central over Internet or LAN.





[listing_4]


G7-AD is a system with wireless sensor and Base Station.


Sensor reading will be uploaded to central via Ethernet.





[listing_5]


Wireless sensor transmits measurement to Base Station wireless.


RF Station uploads data to central over Ethernet.





[listing_6]


Up to 64 wireless sensors are supported by one Base Station.


Temperature, Humidity, Analog Sensor or Digital Alarm Input can be used in one single system.





[listing_7]


Max. 1200m wireless distance and 64 wireless sensors in one single system.


Temperature, Humidity, Analog Sensor or Digital Alarm Input can be used in one single system.

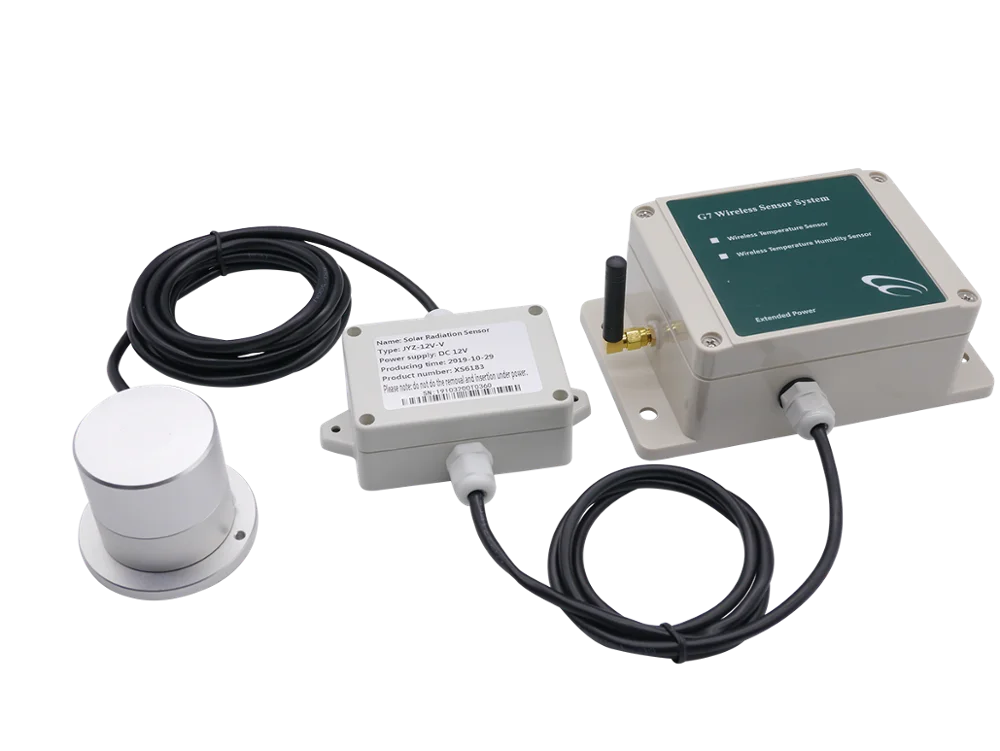

Wireless Radiation Sensor
* 0 ~ 1500W/m2





appications:
- agriculture, farming, green house
- environment
- solar power industry








[In the Package]


1 x Base Station & RF Antenna


1 x AC/DC Adaptor


1 x Ethernet Cable


Up to 64 x Wireless Sensors in one single system

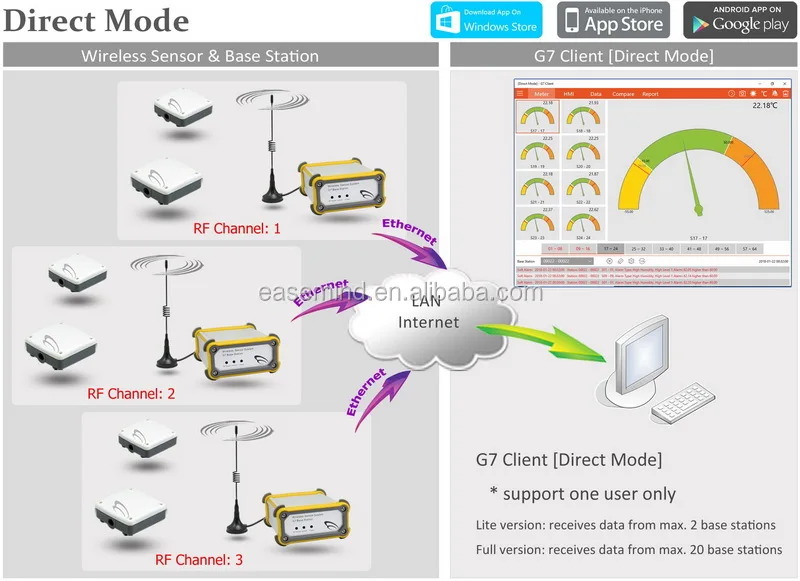

[How it Works]


(1)     Wireless Sensor


The sensor transmits the analog sensor reading to Base Station wireless over radio frequency up to 1200 meter unblocked. Its internal battery operates for average one year. All sensors are waterproof and internal/external antenna adjustable.


* G7-AD                                 Wireless Analog Sensor


* G7-D2                                 Wireless Digital Alarm Input


* G7-T2/TX                            Wireless Temperature Sensor


* G7-H2/H3                           Wireless Temperature Humidity Sensor


* G7-T2/TX-Ex                       Wireless Temperature Sensor [Extended Power]


* G7-H2/H3-Ex                     Wireless Temperature Humidity Sensor [Extended Power]

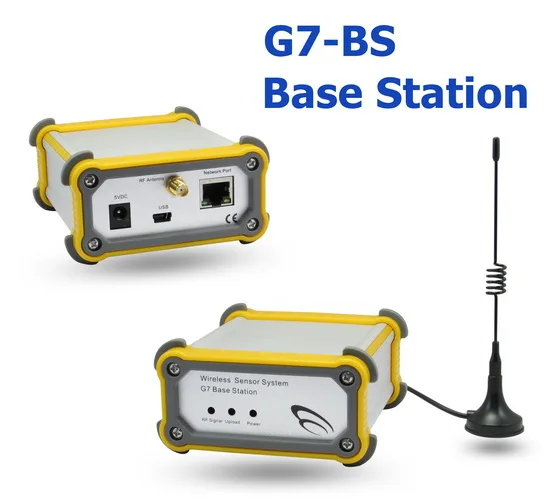

(2)     Base Station


It is a gateway between user and sensors. Base Station receives reading from max. 64 wireless sensors in a range of 1200m. This station is connected to the Internet or LAN connection. Information of all sensors collected in one data record is then sent to the central computer over LAN or Internet in Modbus TCP protocol.

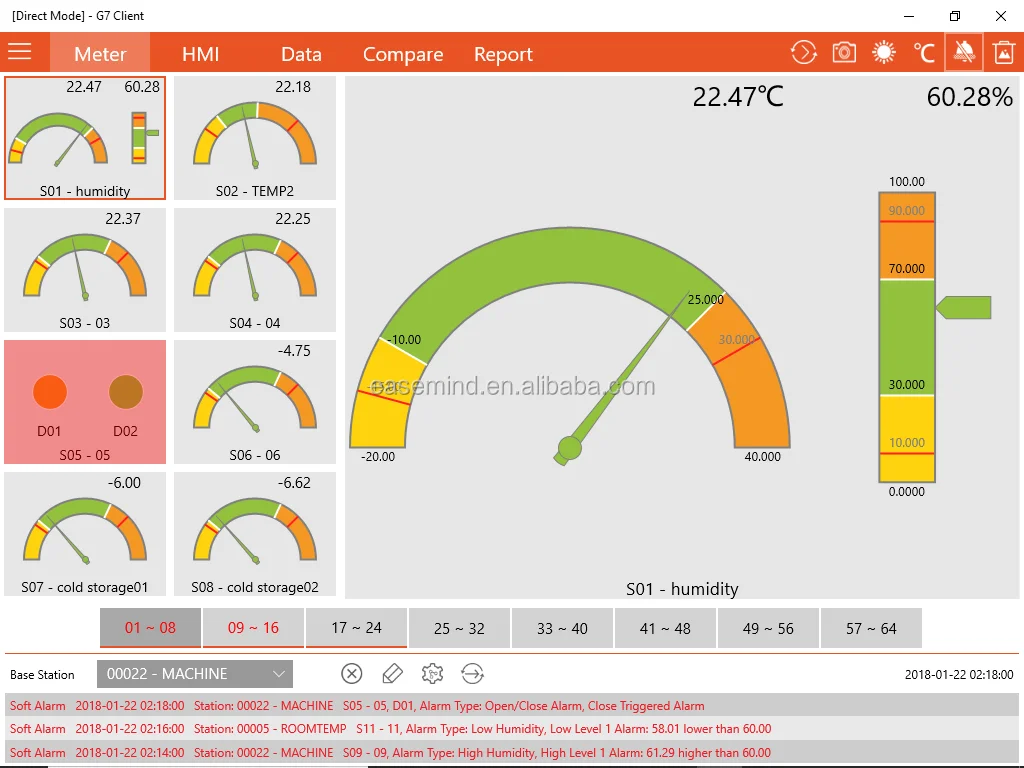

(3)     G7 Wireless Client App for Windows, iPad, Android


By using free G7 Client Lite, users receive data from Base Station over LAN or Internet. Data will be saved into file for future analysis and displayed in graphics with live alarm alert.











 G7-D2_1g7 base station














[Technical Specification]





























































G7-AD



Wireless Analog Sensor



Analog Sensor



4~20mA signal input







0~5VDC signal input



Transmission Interval:



User Programmable 5s ~ 4 hours



Sensor ID:



Unique 8 digits



RF Wireless:



433 MHz, 4.8Kbit/s



RF Power:



10dBm



Wireless Distance:



1200 meter (unblock)



Operation Rating:



80mA (data transmission)



Standby Rating:



~3.0uA (sleep mode)



Operating Voltage:



7~10V DC



Battery Life:



Average 1~2 year



Dimension:



115 x 90 x 55 mm






















































Base Station







Protocol:



Active TCP







Modbus TCP



Network Port:



10/100M Ethernet



Data Packet:



Instant on incoming data of connected sensors



RF Wireless:



433 MHz, 4.8Kbit/s



RF Address/Band:



255/15



Operating Voltage:



5 ~ 20V DC



Rating:



< 130mA



Operating Temperature:



-35 ~ 75 °C



Dimension:



70 x 65 x 35 mm





































































[Applications]








* water pipes network real time monitoring – flow rate or pressure sensor


* oil/gas pipes network, pump stations – flow rate or level sensor


* underground water level real time monitoring


* environmental monitoring system - wind/CO2/pressure/light sensors


* remote Industrial equipment monitoring


* wide area equipment monitoring e.g. power plant, antenna tower


* measuring equipment data capture and report via Wi-Fi


* food chain, storage, transport industry, building management


* agricultural, farming, laboratory, medical industry – load cell, CO2, light sensors





 sensor-g7-adsensors











G0G01g1G2G3G5












software


Software
(1) Setup Software
Free and User-Friendly Setup Software for Windows provides a user-friendly graphics interface of configuring the Smart Data Logger.
It allows user to save, export and import the configuration file.

(2) Centre Software
Free Centre Software is a small tool to receive data via GPRS, Ethernet or Wi-Fi for testing purpose.

(3) NET Client App for Windows, iPad, Android
Free NET Client accesses the live data or logged data from Smart Data Logger directly. It then displays the sensor readings in graphics modes on PC, iPad or Android tablet.

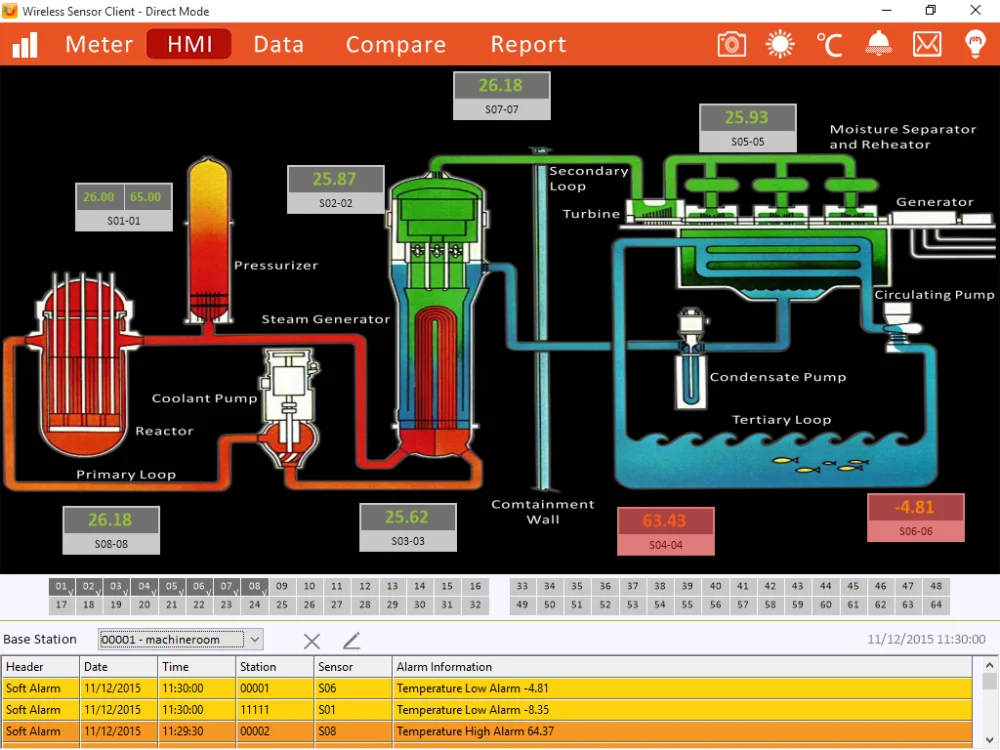

It allows user to monitor the real time sensor reading in graphics chart or HMI.

(4) Ultimate Server Client Software Package [Optional]
Ultimate Server is designed to manage a large number of Smart Data Loggers. It handles the data receiving via GPRS, Ethernet, Wi-Fi and SMS in both UDP and TCP protocol simultaneously. It manages the database of incoming data, data loggers and remote client users.
Ultimate Client allows user to monitor both real time data and historical data in graphics chart or HMI.











g7_software_3premier client




















Company Information





Easemind Technology Ltd. is established by a team of engineers and programmers specialized in industrial and telecommunication fields.


We have been in business of hardware and software development of wireless data logging devices and industrial telemetry equipment since 1989.


The business and marketing concept of the company consists of:
• Development according to the actual market needs and customer demands,
• Utilization of reliable, trust-worthy and right-to-the-edge technology,
• Turn-around product delivery and service fulfillment within time limits,
• Cost-effective solutions: the right price for the right product, and
• One Stop Solution of hardware, software and user applications


EASEMIND is now a group of companies specialized in RF wireless sensor & mobile data tracking devices for consumer and industrial sectors. Our sales offices are located in US, Hong Kong and China with manufacturing facilities in Zhejiang and Shenzhen, China.
