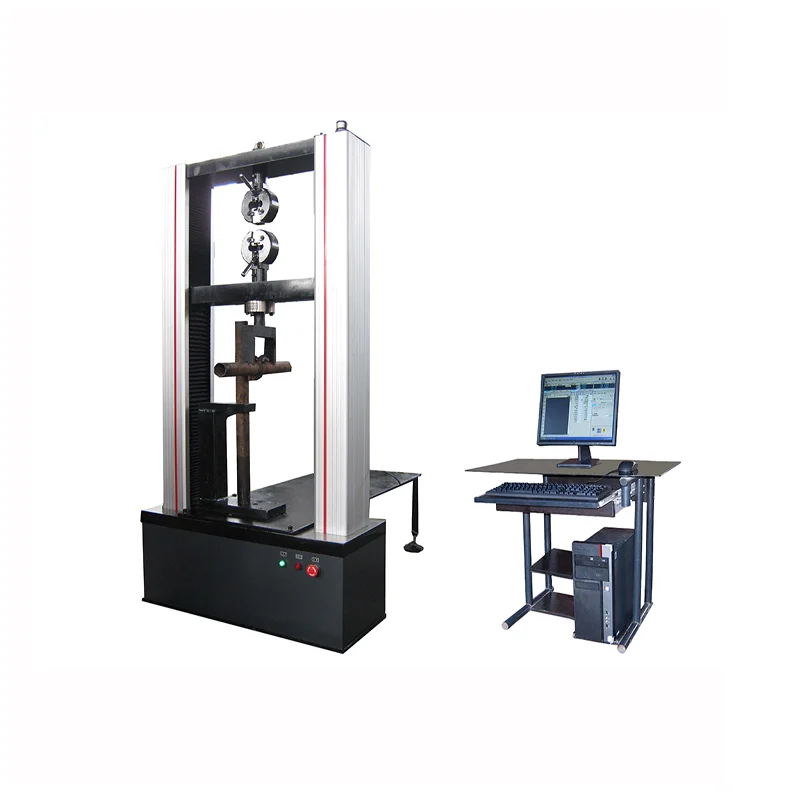

WDW G150 New 2021 Metal Pipe Elongation Tensile Breaking Strength Testing Machine
- Category: Testing Equipment >>>
- Supplier: Jinan Xinguang Test Machine Manufacturing Co. Ltd .
Share on (1600237106403):
Product Overview
Description

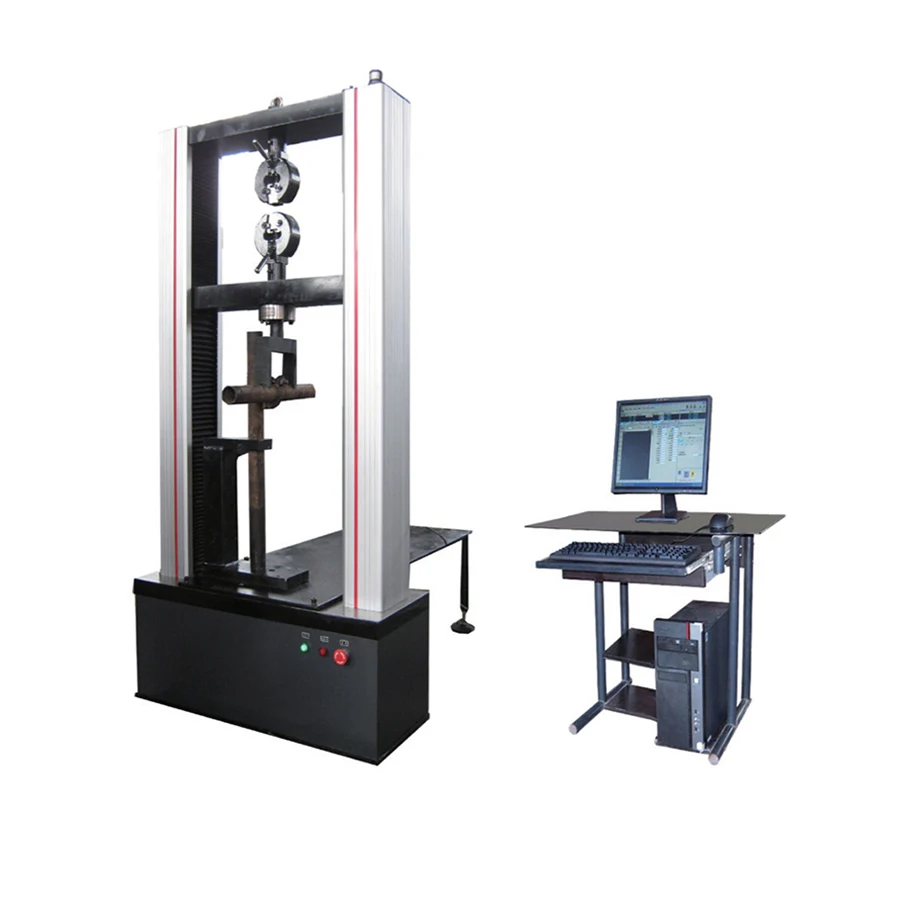

WDW-G150 fastener testing machine
The dual-space structure is driven by AC servo motors and combined with high-precision sensors to realize the high-precision, wide-range, and multi-functional servo control of the electronic universal testing machine. Make full use of computer technology to perform various parameter presets, automatic measurement, control, data processing, drawing various curves and printing on the testing machine.Applicable to steel scaffold fasteners for inspection of anti-sliding, anti-destructive, tensile and compressive items. At the same time, it can detect electric safety belts, etc. This machine can test and analyze the mechanical properties of various metals, non-metals and composite materials.
It adopts a desktop double-space structure, pulls up and presses down, and the crossbeam can be steplessly adjusted in speed. The test space can be changed after the column, screw and cover are replaced. The transmission system is composed of a special servo-controlled reducer, an arc synchronous toothed belt, and a screw pair. It runs smoothly, with high efficiency and low noise. No pollution.
Maximum test force | 150kN |
Test force measurement range | 2%~100% |
Relative error of test force indication | ±1% of indicated value |
Displacement resolution | 0.01mm |
Stretching space | 600mm (customizable) |
Displacement speed control range | 0.01~200mm/min |
Compressed space | 600mm |
Effective test width of two columns | 480mm |
Power supply power | 220V, 50Hz |
