Double column tensile strength testing machine universal tensile testing machine
- Category: Testing Equipment >>>
- Supplier: Guangdong Huda Technology Co. Ltd.
Share on (1600237557848):
Product Overview
Description
Product Description

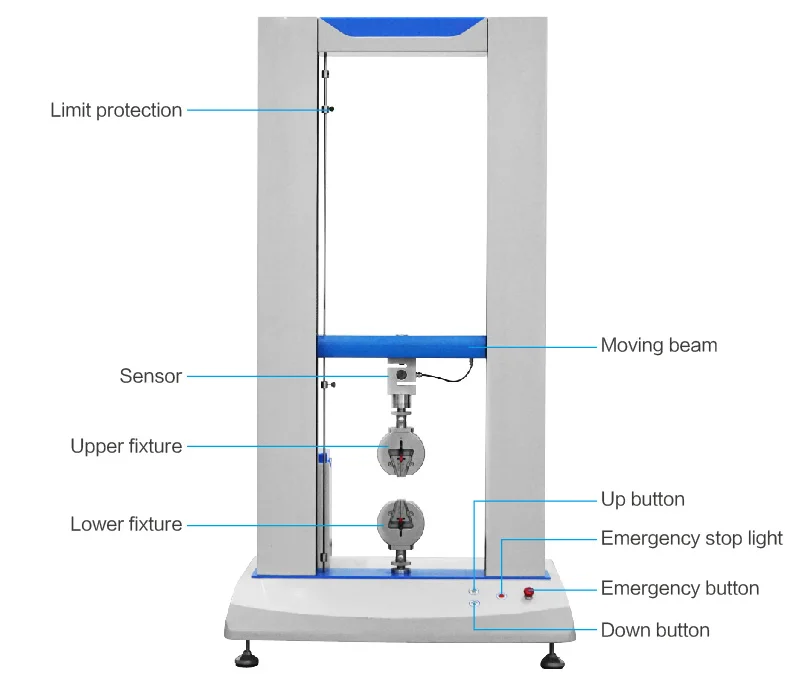

HUD-B604-S Computerized servo double column universal test machine, it is suitable for testing and analysis the mechanical properties of plastic film, composite film, flexible packaging material, adhesive tape, rubber, paper and other products, it can do tensile, peeling, tearing, bonding, compression, bending test and so on. And it also can test and analysis of compression,bending and other mechanical properties of containers such as corrugated cardboard boxes, honeycomb panels, flexible packaging bags, plastic barrels (edible oil, mineral water), paper barrels, paper cans, IBC barrels, and hollow containers.
Product Paramenters
No | Description | Parameters |
1 | Model | HUD-B604-S |
2 | Load capacity | 5KN, 10KN, 20KN (optional ) |
Load cell brand | Germany brand TECSIS load cell | |
Motor | Panasonic servo motor | |
Driver | 400w Panasonic driver | |
Screw | High precision ball screw | |
Control system | Computer control | |
3 | Test speed | 0.1-500mm/min(Adjustable) |
4 | Stroke | 1200mm (Including clamp) |
5 | Load resolution | 1/250,000 |
6 | Load accuracy | ≤0.5% |
7 | Unit | gf/kgf/N//kN/LBf/T |
8 | Dimension | (L*W*H)880*505*1470mm |
9 | Weight | 90KG Approx |
10 | Power | 1∮ AC 220V |
Features
● A tester integrates multiple independent testing functions such as tensile, deformation, peeling, tearing, and compression, and provides a variety of test items for users to choose;
● Provide data analysis of constant tensile stress, elastic modulus, stress and strain;
● Double-pillar ball nut and screw drive to ensure high precision and smooth operation;
● The equipment adopts miniaturization and structural integration design, which can meet the test requirements of various occasions;
● 1~500mm/min stepless speed change, which provides convenience for users to test under different test conditions;
●Intelligent configuration such as multi-level limit protection, overload protection, automatic high-speed return, and fault
notification to ensure the user's operation safety;
● Embedded system and membrane key switch, which are convenient for users to conduct test operations quickly;
● The embedded control system effectively guarantees the security of the system and improves the reliability of data management and test operations;
● The system is equipped with 4 USB ports and 2 network ports to facilitate data transmission and external access of the system;
● Professional software provides statistical analysis of group test curve overlay analysis, maximum, minimum, average, and standard deviation.
● Provide data analysis of constant tensile stress, elastic modulus, stress and strain;
● Double-pillar ball nut and screw drive to ensure high precision and smooth operation;
● The equipment adopts miniaturization and structural integration design, which can meet the test requirements of various occasions;
● 1~500mm/min stepless speed change, which provides convenience for users to test under different test conditions;
●Intelligent configuration such as multi-level limit protection, overload protection, automatic high-speed return, and fault
notification to ensure the user's operation safety;
● Embedded system and membrane key switch, which are convenient for users to conduct test operations quickly;
● The embedded control system effectively guarantees the security of the system and improves the reliability of data management and test operations;
● The system is equipped with 4 USB ports and 2 network ports to facilitate data transmission and external access of the system;
● Professional software provides statistical analysis of group test curve overlay analysis, maximum, minimum, average, and standard deviation.
Company Profile
We are a professional environmental reliability testing enterprise integrating R&D, manufacturing, sales and service. Since its establishment, it has gathered a group of experienced and skilled R&D personnel and an efficient and professional after-sales service team. With the spirit of innovation, focus, professionalism, and integrity, through the spirit of continuous improvement, we have created large-scale customized and complex experiments with design and manufacturing.
