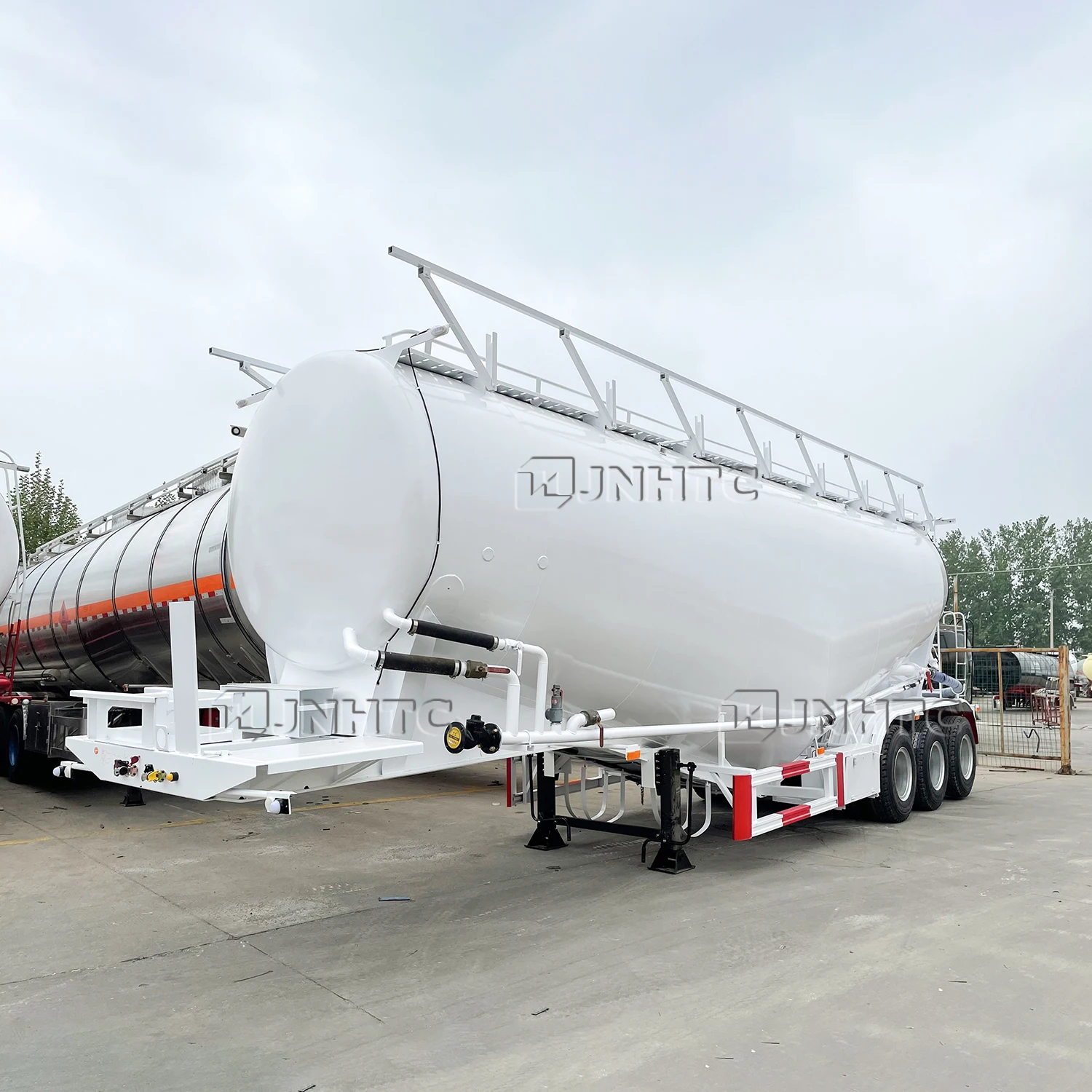

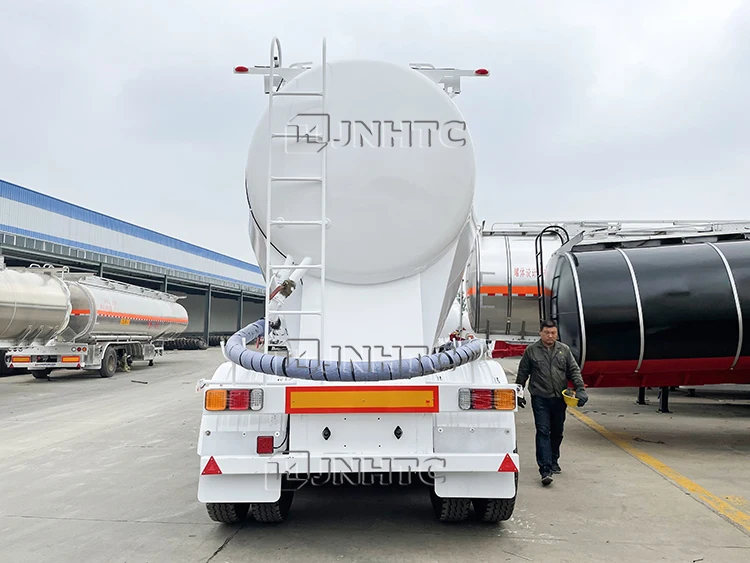

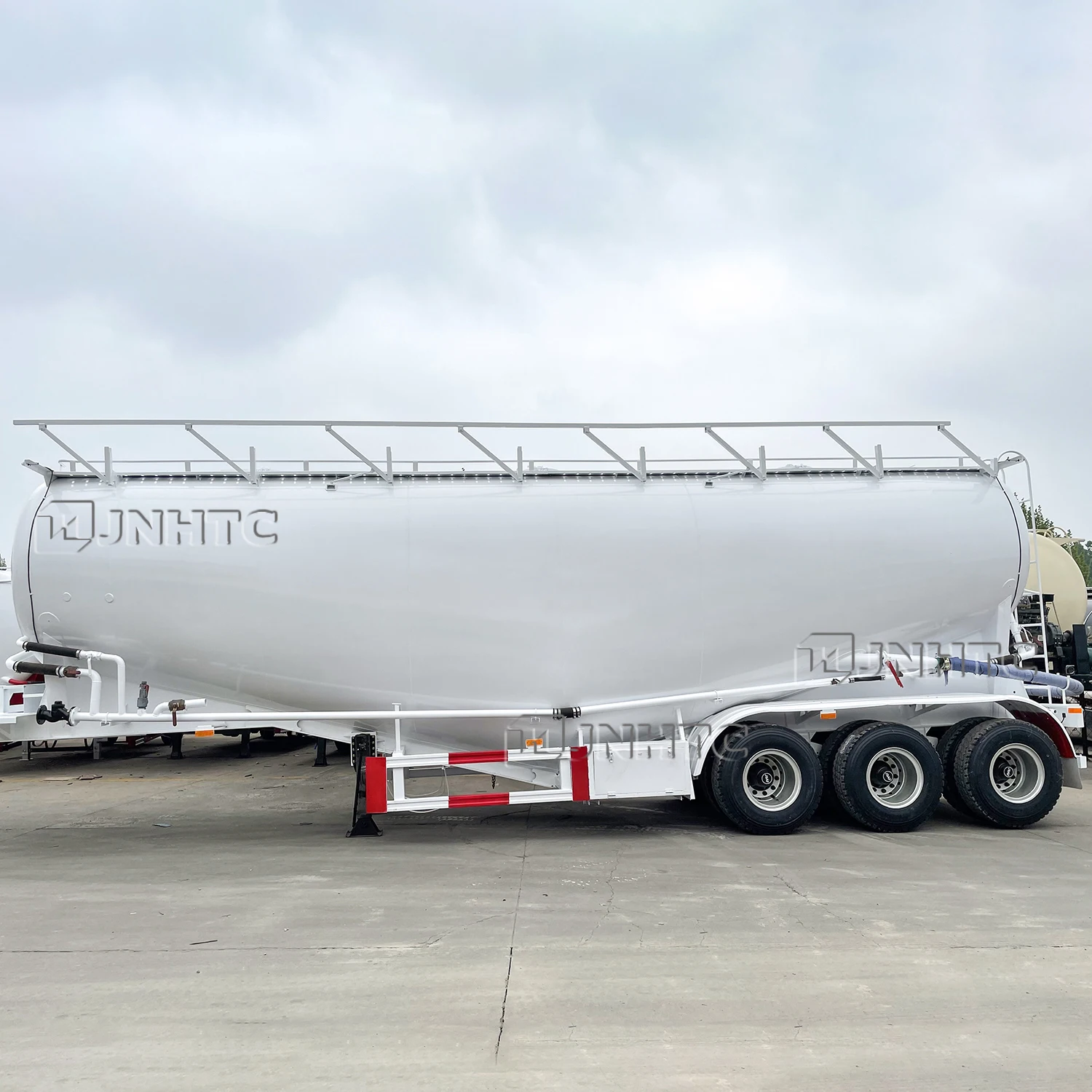

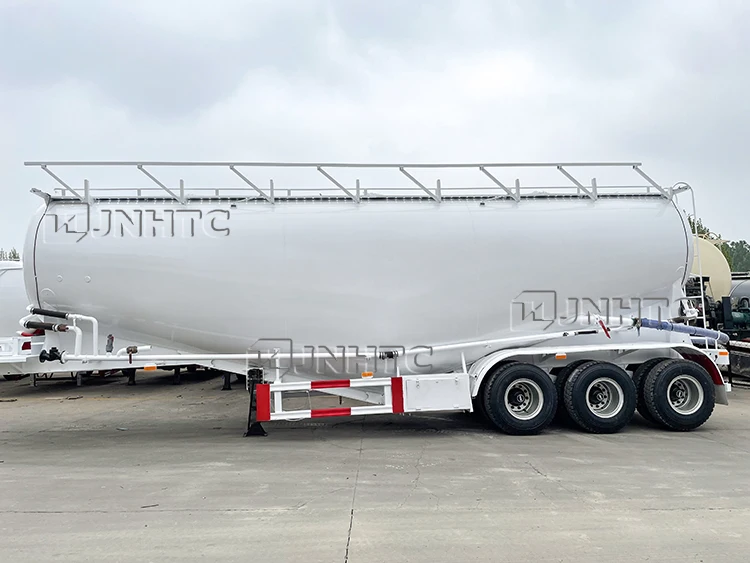

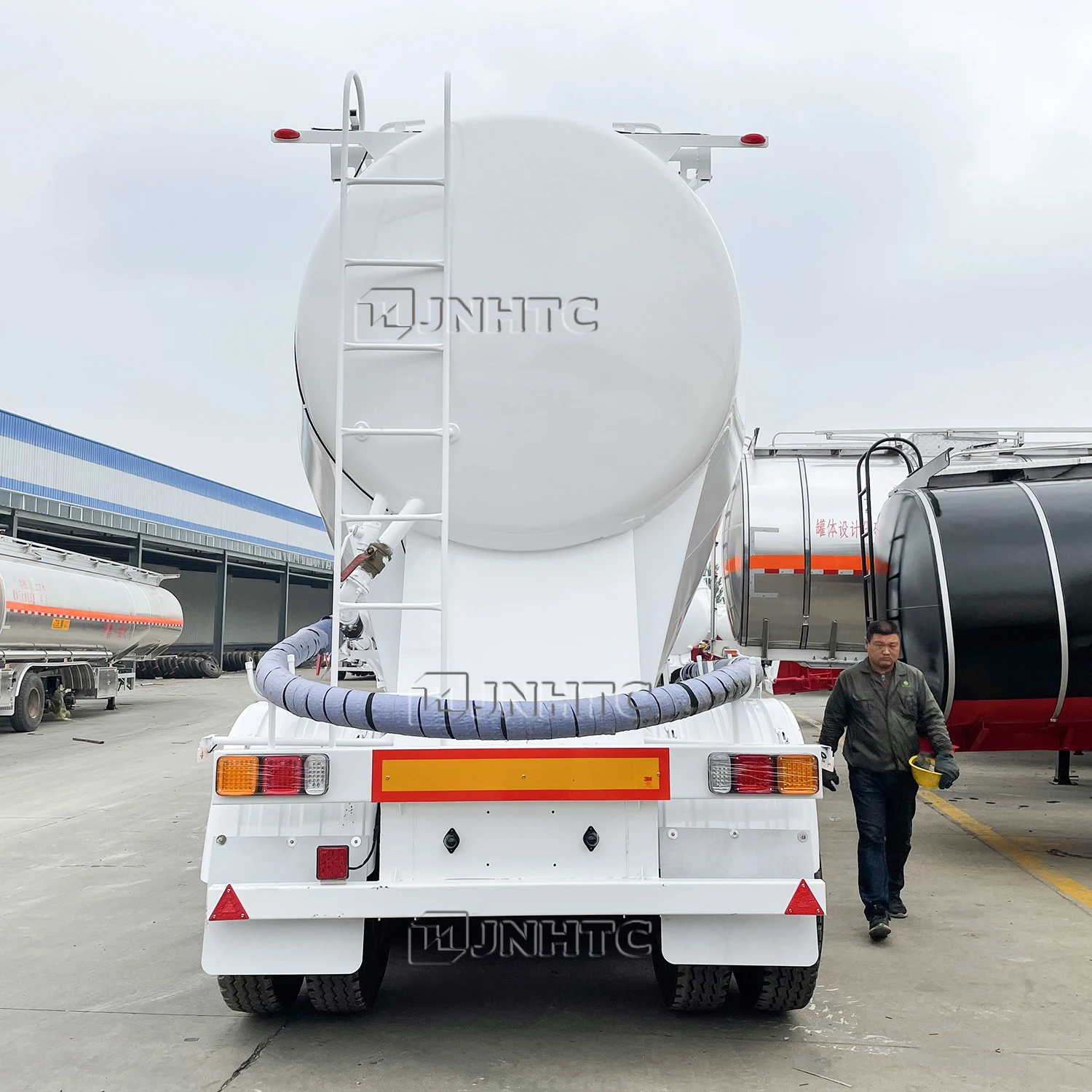

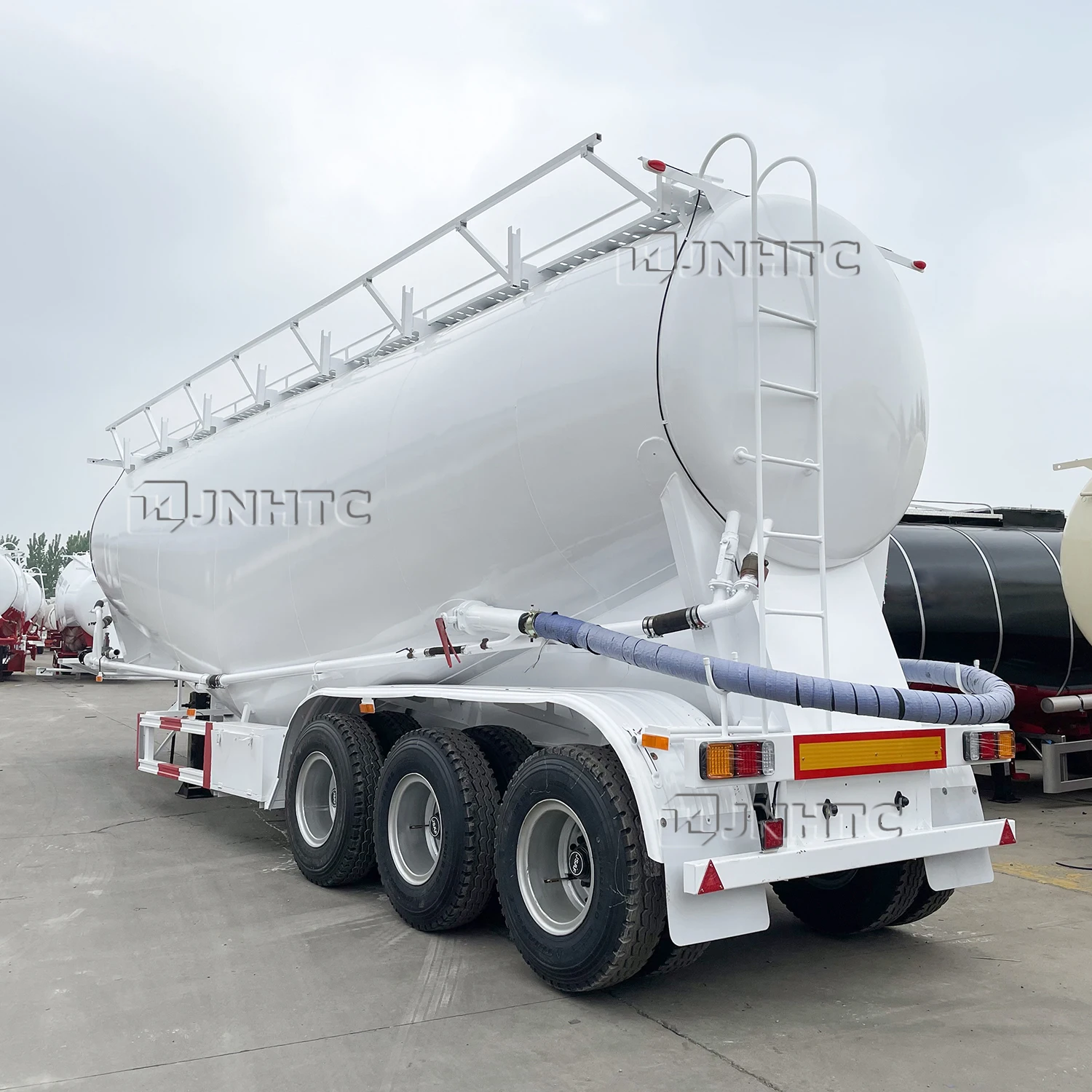

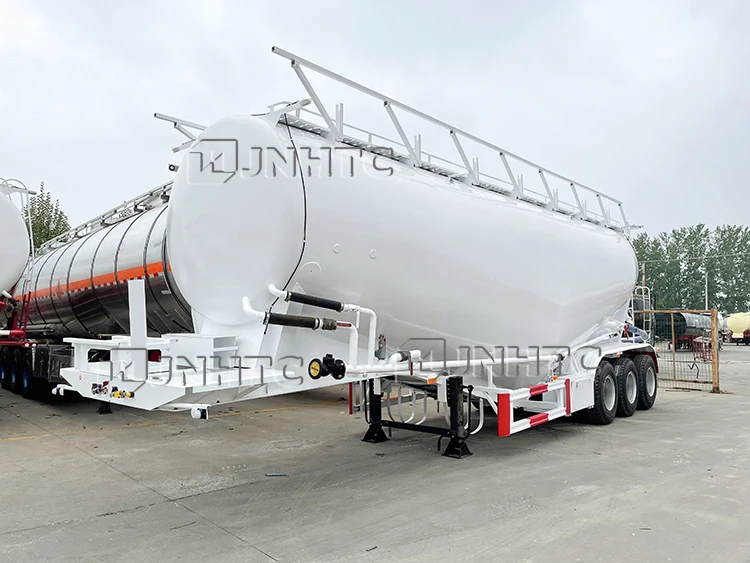

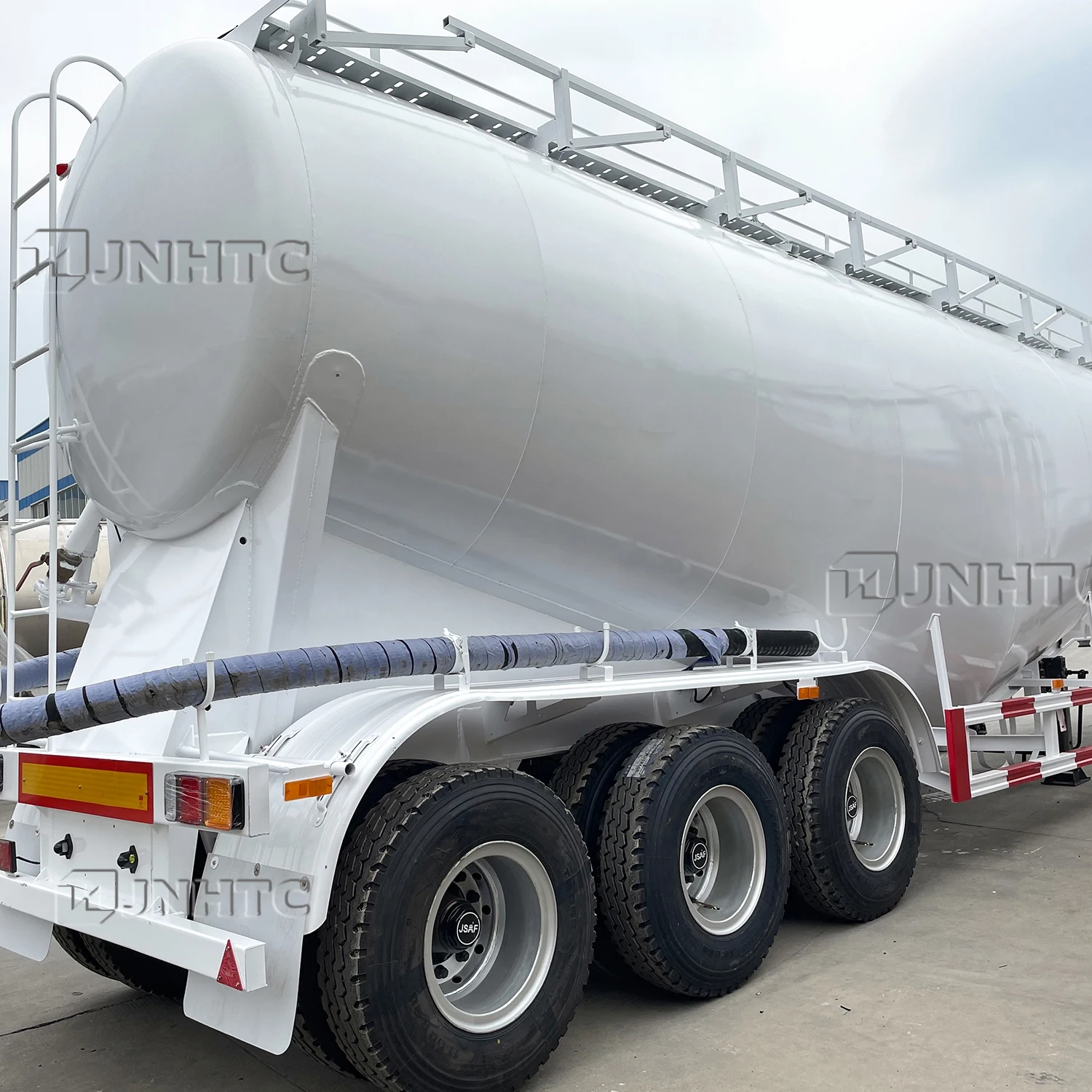

Factory Price 3 Axles bulk cement tank trailer Dry Powder cement tanker semi trailer For Sale
- Category: >>>
- Supplier: Jinan Heavy Truck Import & Export Co. Ltd.Jinan Ltd.
Share on (1600237583799):
Product Overview
Description
Product Description
Specification： | ||
Shape： | Round or Square (Optional） | |
Dimension： | 9500-13500*2500*3900 (Exact size depends on the final design) | |
Tare weight： | Approx. 8500kgs-11000kgs | |
Volume： | 30-90 cbm | |
Capacity： | 28-150 tons | |
Tank body material： | 5.5mm carbon steel/aluminum alloy/stainless steel | |
End plate： | 6mm carbon steel | |
Manhole cover： | diameter 500 mm 2 pieces, material aluminium | |
Ratedwork pressure： | 0.2Mpa | |
Discharging valve： | 3 or 4 inch ball valve / API valve | |
Diesel Engine： | PTO or 4102/4105 China weichai brand model | |
Compressor： | 12 cbm | |
Compartments： | Single | |
Discharging pipe： | 3" or 4" rubber pipe, 1 piece, 6 m / each | |
Axle： | 13/16T, FUWA / BPW / SHENGRUN brand etc | |
King pin： | Jost 2.0 or 3.5 inch bolted type | |
Suspension： | Mechanical suspension / Germany type or America type / Air suspension | |
Leaf spring： | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer | |
Braking system： | WABCO RE6 relay valve ;T30/30 spring brake chamber, 2 pieces of 45L air tank | |
Wheel rim： | 9.0*22.5 / 8.0-20 / 8.5-20 better brand 12pcs | |
Tire： | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional | |
ABS： | Optional | |
Landing gear： | JOST brand two-speed, manual operating ,heavy duty landing gear 24T | |
Air compressor： | 37 KW, 0.2Mpa. 1000r/Min | |
Air-charging system： | 2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge | |
Quadratic blow： | 1" diameter check valve | |
Fire extinguiser： | Two pieces 4 kgs | |
Spare tire carrier： | 2 pieces | |
Safety guard： | With standard | |
Painting： | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Color advised by customer | |
Accessories： | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light | |
Light： | LED 8 side lights and 2 rear lights 2 width lamp | |

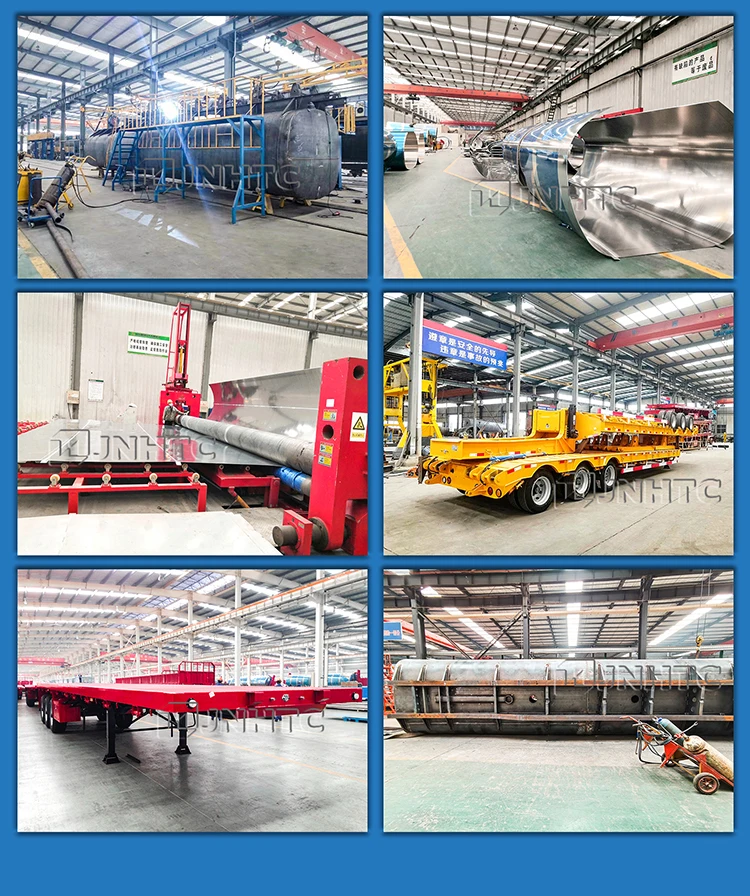

Factory Photos
Chat with Customer

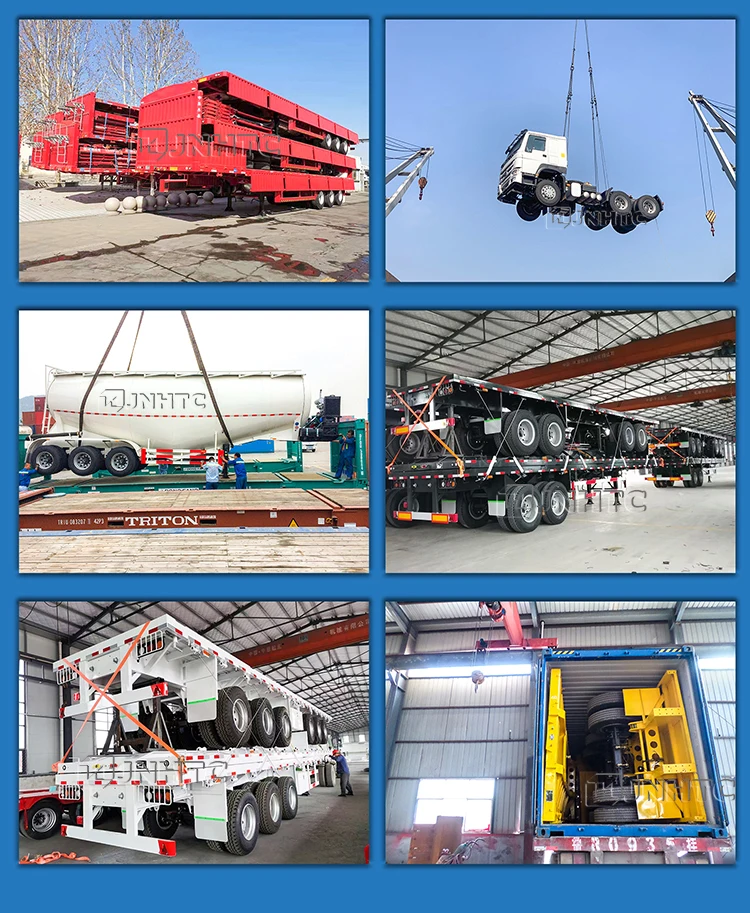

Packing & Shipping
