Fashion industrial tablet touch screen 15 inch win 10 high brightness ip65 pc case front panel pc
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Geshem Technology Co. Limited
Share on (1600240014830):
Product Overview
Description
Details Images

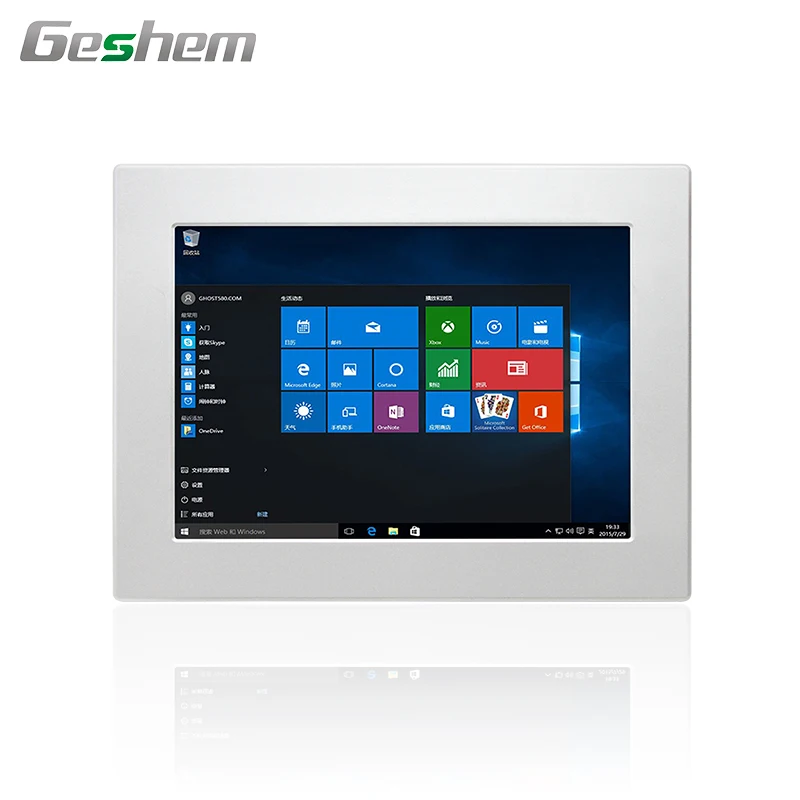

Industrial Panel PC
PPC-GS1551T, it is a 15 inch industrial panel pc that has a 15-inch display, resistive touch screen, CE/FCC/RoHs certification, IP65 front protection level optional.
Internally, it has 4GB of memory, 64GB SSD, and supports Max 8GB DDR3 ram, 512GB Msata SSD.
It runs windows 7/8/10 and linux OS.
Internally, it has 4GB of memory, 64GB SSD, and supports Max 8GB DDR3 ram, 512GB Msata SSD.
It runs windows 7/8/10 and linux OS.
It supports 4G LTE, WiFi/BT optional,which combines powerful computing with ultimate reliability in the toughest environments. Below you can check more details of it.
Product Paramenters
Hardware | ||
CPU | Intel® Bay Trail J1900 2.0Ghz | |
OS | Windows 7/8/10 and linux OS | |
RAM | 2GB DDR3; Max 8GB | |
ROM | 64GB Msata SSD; Max 512GB SSD | |
Audio | 1xLine out+ 1xMic-in | |

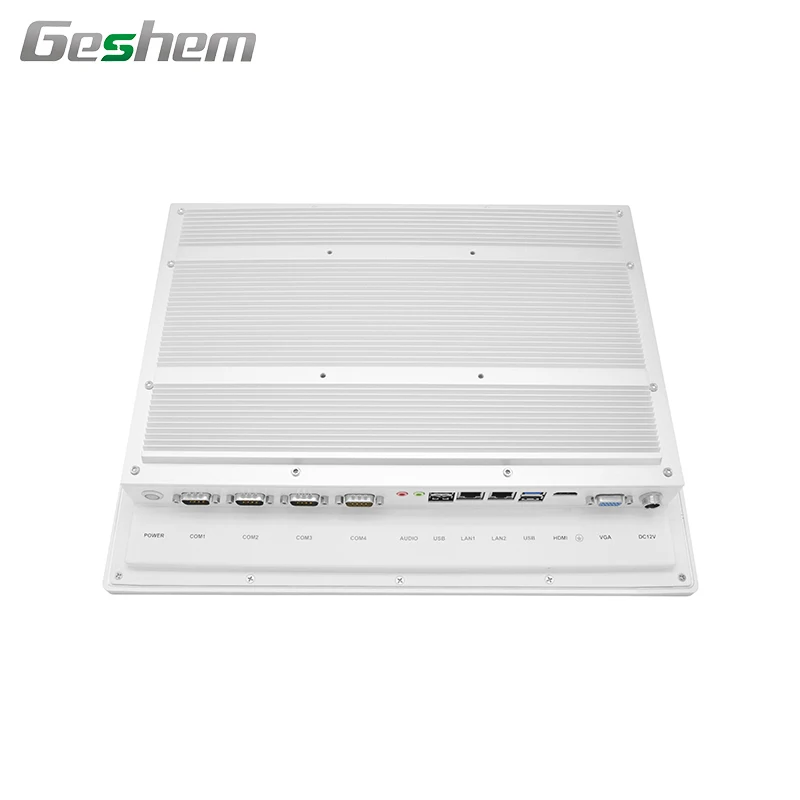

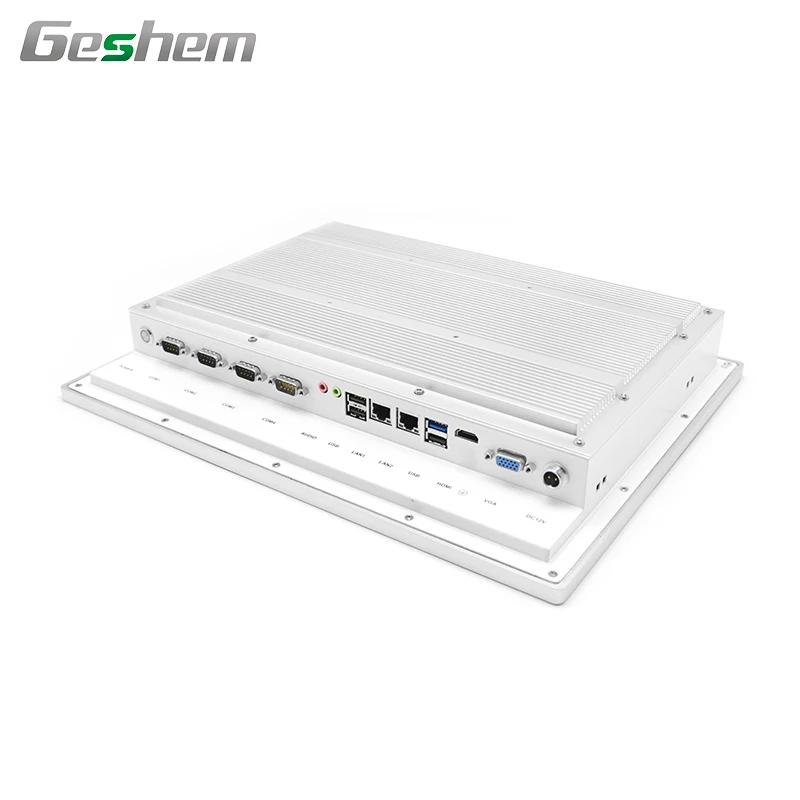

I/O | ||
USB | 3*USB2.0+1xUSB3.0 | |
Ethernet | 2*RJ45 1000M Ethernet port | |
COM port | 4*RS232 (1 or 2*RS485/RS422 optional) | |
Display | 1*HDMI+1*VGA | |
DC Jack | 1*DC IN (12V 5A power adapter) | |
GPIO | 1*GPIO (4 in/ 4 out,occupy one COM port) | |
LCD / TP | ||
Resolution | 1024x768, 15 inch | |
Brightness | 300cd/㎡; | |
Touch screen | 5-wire resistive touch screen | |
Contract ratio | 1500:1 | |
Expansion (Optional) | ||
Mini PCIe | 1xMini PCIe for WiFi/BT/4G LTE Optional | |
Reliability | ||
Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration | |
Anti-shock | 10g acceleration, 11ms duration | |
Reliability | MTBF≥50000h; MTTR≤0.5h | |
IP Level | front IP65 optional | |
Operating Temp. | -20℃ - +60℃ ( with air flow) | |
Storage Temp. | -30℃ - +70℃ | |
Operating Humidity | 95% @40℃, non-condensing | |
Size/Color | ||

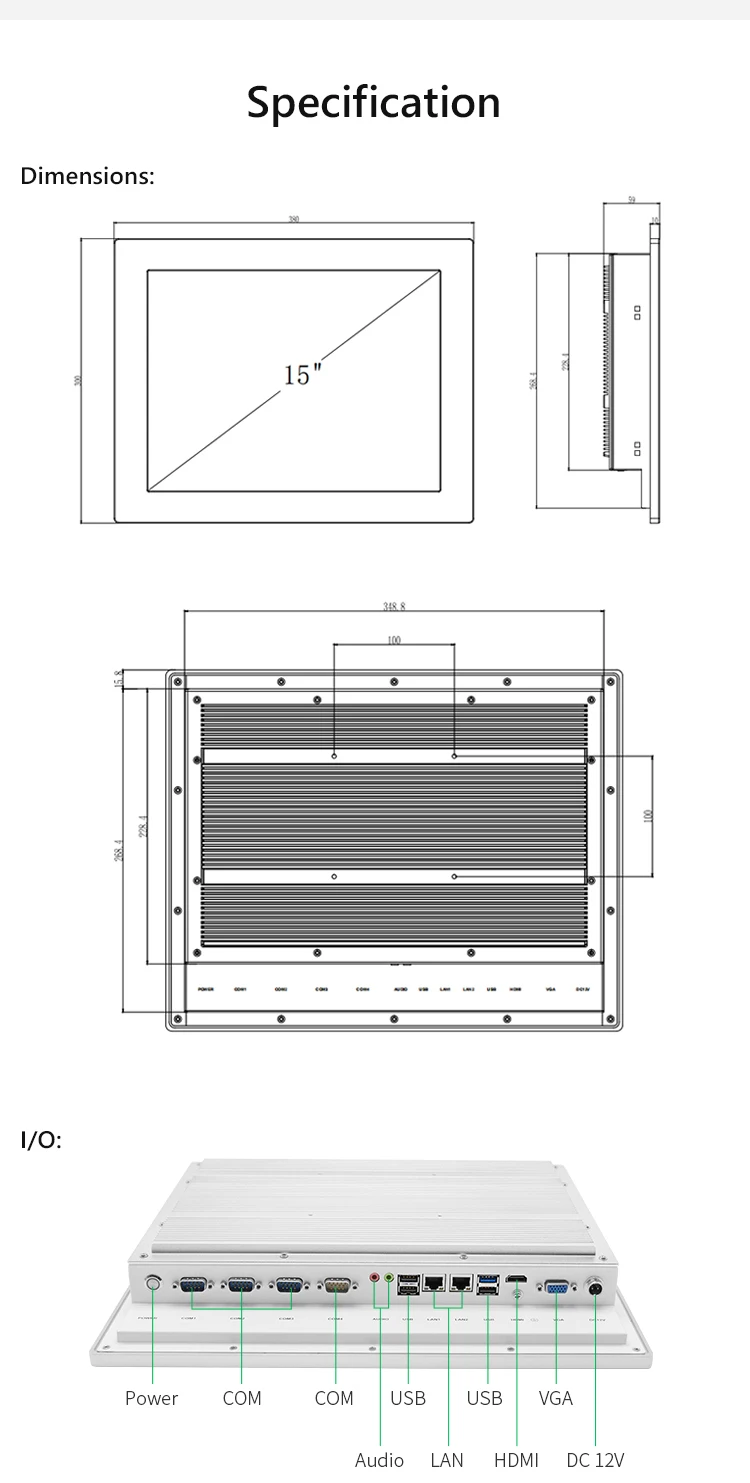

Size | 380mm(L)*300mm(W)*59mm(H) | |

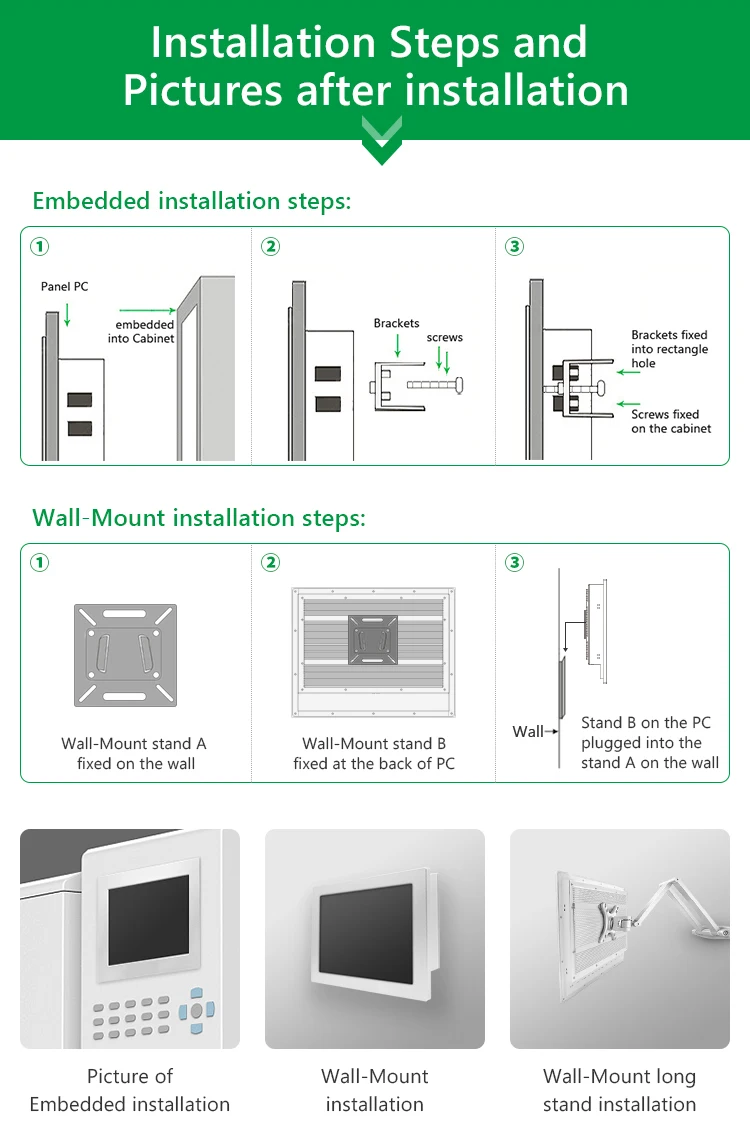

Installation | VESA installation: 100x100mm; Embedded installation: 352x232mm | |
Weight | 5.2KG/6.8KG(NW/GW) | |
Material | Fanless High-strength and elegant Al-alloy case | |
Color | Silver | |
Accessories / Certificate | ||
Power Supply | 12V/5A DC Port adapter and power supply | |
Certificates | CE/FCC/RoHs | |

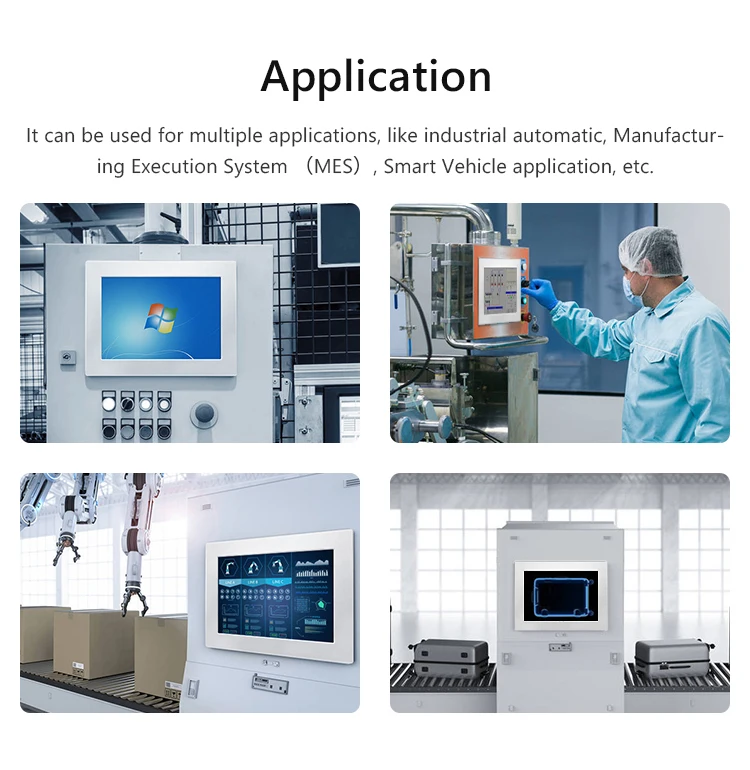

Application

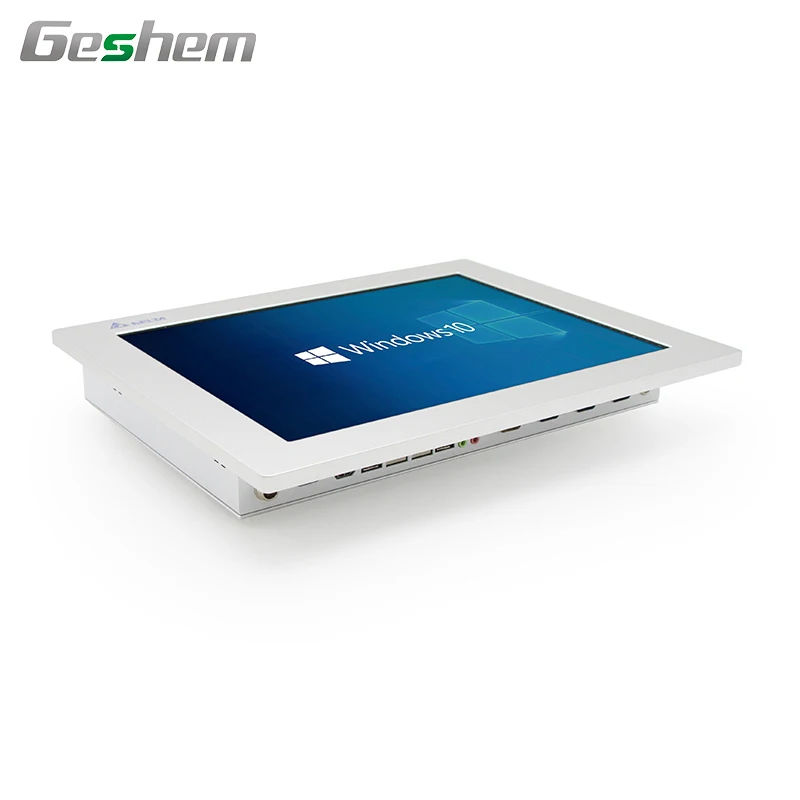

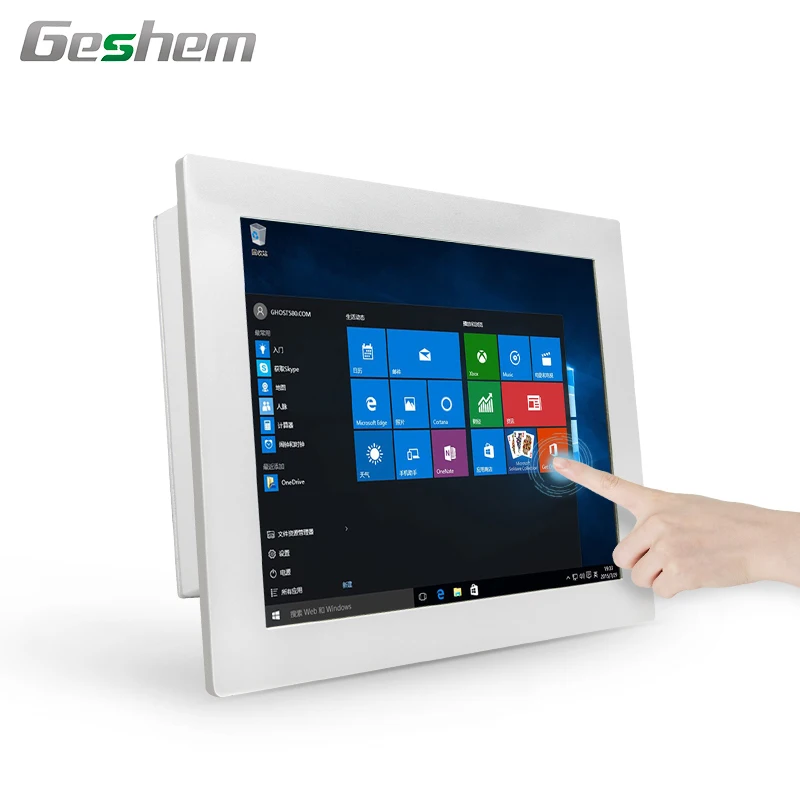

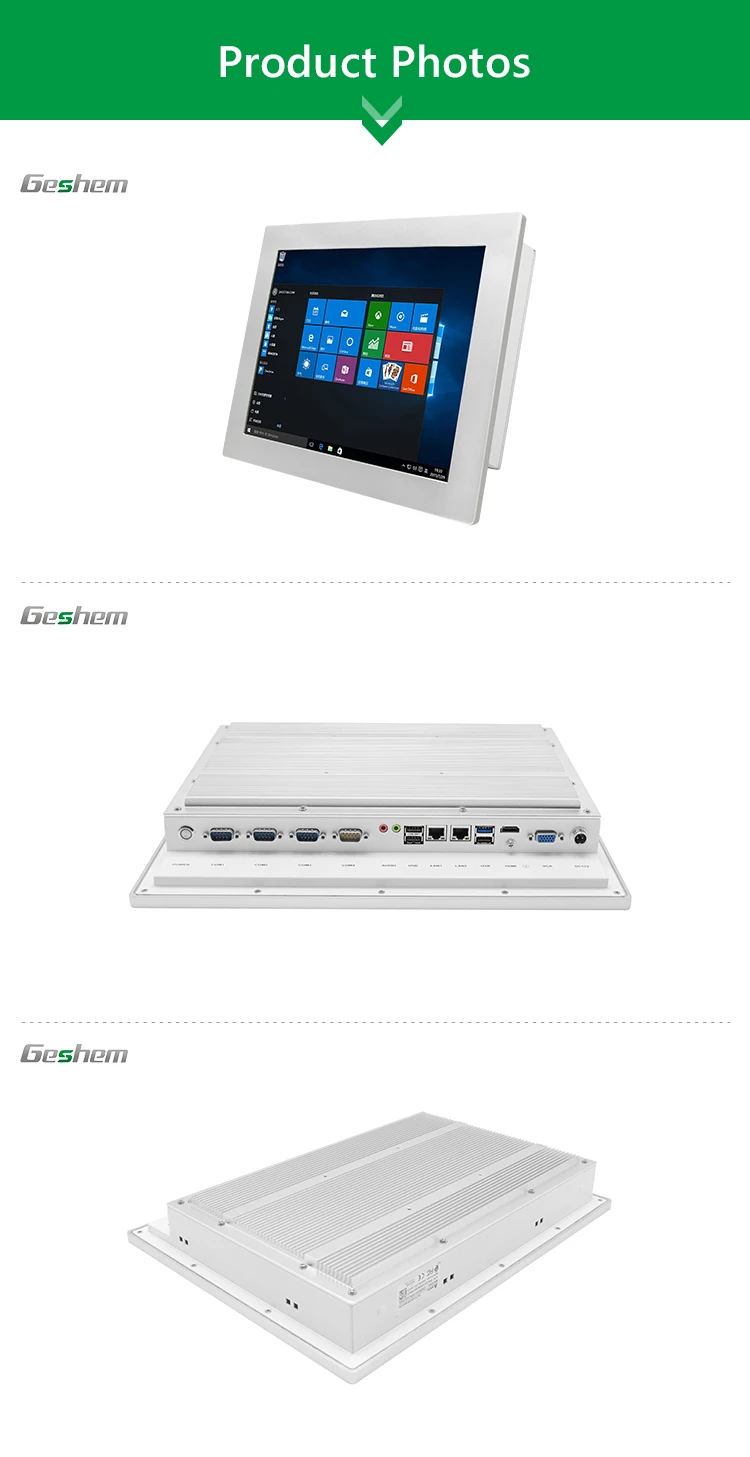

Product Photos

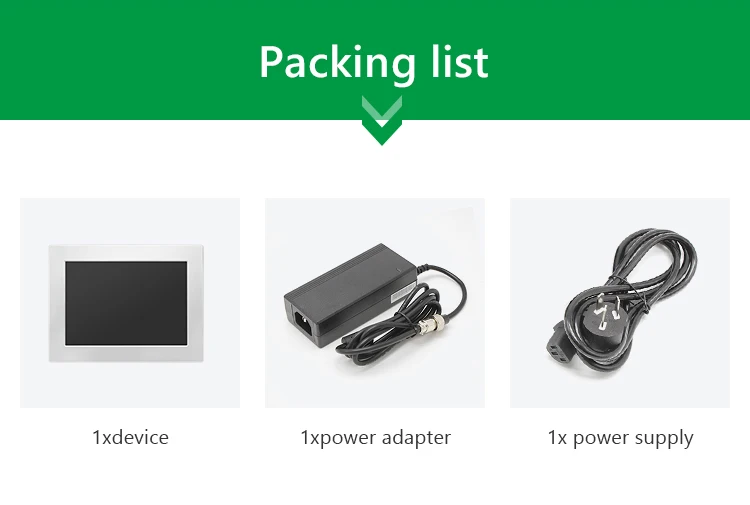

Product packaging
Company Profile
FAQ
1.Q: Are you manufacturer with your own factory or trading company?
A: We are manufacturer with our own factory located in Shenzhen.We produce industrial panel pc from 7” to 21”, embedded box pc, and rugged tablets. Above model is a 15 inch industrial panel pc. If you are available, welcome to visit us.
2. Q: Are you the original manufacturer of industrial pc and rugged tablet?
A: Yes,We are. Every product includes motherboard design, function modules and mould of casing are entirely made by Geshem itself. We also have some agents who sell our products in China and abroad.
3. Q: What kind of services can you provide?
A: We have two services models, one is OEM/ODM service,which is with customer’s brand based on our standard products, the other is providing customization service according to the customer’s individual demands, which are including appearance design, structure design, mold development, soft & hardware development, technical support and etc.Many famous brand are our customers such as DELTA in China.
4. Q: What are your product lines?
A: We have been engaged in the R&D and production of industrial PC and rugged tablets in the industrial field since 2008. Up till now, we have established Beijing, Shanghai and Chengdu branch offices in China, and also one branch office in Dusseldorf in Germany. And we also some good foreign distributors.
5. Q: How about your after sale?
A: 1 year warranty ensured from the date of delivery. Free repairing is available for functional
problems of non-artificial damage, otherwise that will be charged. Once you have after-sales need,our FAE employees will provide remote technical support & send maintenance materials first, FAE employees can also be sent to the customer’s place to repair depending on the situation, or customer can directly send the damaged products back to China or our Germany office, they will be repaired and send it out quickly.
problems of non-artificial damage, otherwise that will be charged. Once you have after-sales need,our FAE employees will provide remote technical support & send maintenance materials first, FAE employees can also be sent to the customer’s place to repair depending on the situation, or customer can directly send the damaged products back to China or our Germany office, they will be repaired and send it out quickly.
