SWL50K shovel wheel loader with fork for stone material
US $42750-$43150
5t высококлассный колесный погрузчик, лопаточный погрузчик L956FH с длинной колесной базой для сыпучих материалов и твердых материалов
- Category: Earth-moving Machinery >>>
- Supplier: Anhui Heavy And Light Industries International Co. Ltd.
Share on (1600240202047):
Product Overview
Description
Product Description

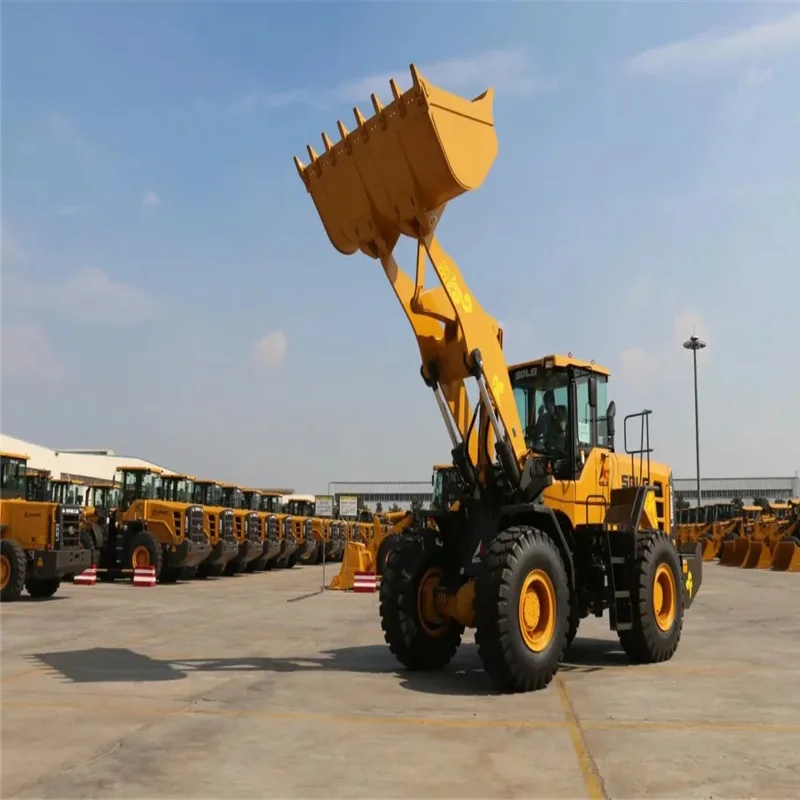

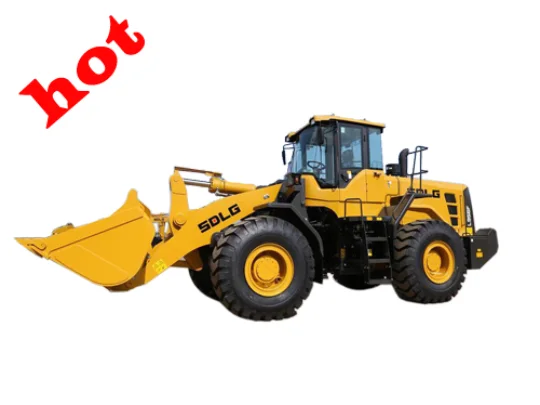

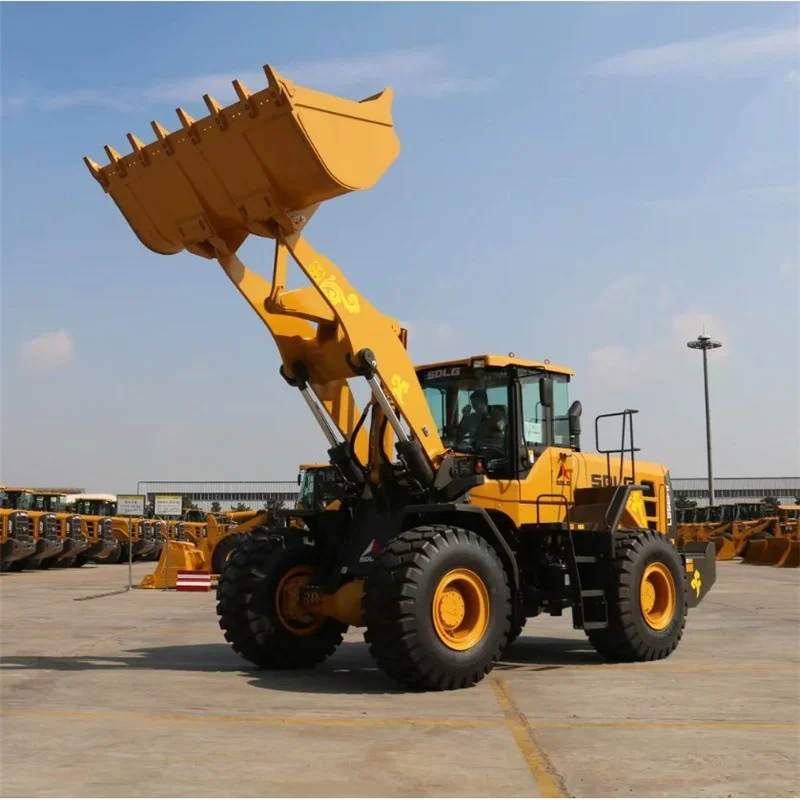

L956F is a long-wheelbase loader designed by SDLG with a next generation of appearance,
and combines the energy-saving, reliability and comfort.
It has the superior stability and large breakout force, and by virtue of the superior
comprehensive performance, it is more suitable for mining and other heavy-duty operations.
and combines the energy-saving, reliability and comfort.
It has the superior stability and large breakout force, and by virtue of the superior
comprehensive performance, it is more suitable for mining and other heavy-duty operations.
Item | Specifications | Item | Specifications | ||
Overall dimension | Emission standard | GB20891-2007(stage II) | |||
LxWxH | 8230×3024×3410 mm | Min.fuel-consume ratio | 215g/kw.h | ||
Wheelbase | 3300 mm | Transmission system | |||
Min.ground clearance | 420 mm | Torque converter | Single-stage three-element single-turbine torque converter | ||
Max.dumping height | 3110 mm | ||||
Dumping distance | 1050 mm | Transmission type | Axis-fixed electro-hydraulic transmission | ||
Dumping angle | -45° | Gears | four forward four reverse | ||
Wheel tread | 2190mm | Speed at forward gear/reverse gear I | 0～6.7 /0～6.8 km/h | ||
Steering angle | 40° | Speed at forward gear/reverse gear II | 0～12.4/0～12.5 km/h | ||
Horizontal crossing radius | 6870mm | Speed at forward gear/reverse gearⅢ | 0～25.9/0～26.1km/h | ||
Min.turning radius | 5890 mm | Speed at forward gear /reverse gearⅣ | 0～38/0～38.2km/h | ||
Overall parameters | Hydraulic system of working device | ||||
Bucket capacity | 3.2m³(Optional 2.7-4.5m³) | Type | Hydraulic pilot control | ||
Rated load | 5000kg | Total time | ≤10.0 s | ||
Operating weight | 17130kg | Brake system | |||
Max.tractive force | ≥165 kN | Service brake type | air over hydraulic disc type | ||
Max.breakout force | ≥175kN | Parking brake type | Electric pneumatic caliper disc type | ||
Tipping load | ≥110 kN | Steering system | |||
Engine | Type | load sensing full hydraulic articulated steering | |||
Model | WD10G220E21 | System pressure | 16 MPa | ||
Type | Inline, water-cooled, dry cylinder liner, direct injection | Fill Capacity | |||
Rated power | 162kW | Fuel | 300 L | ||
Rated speed | 2200 r/min | Hydraulic oil | 240 L | ||
Engine displacement | 9726ml | Engine | 20 L | ||
Cylinder bore/stroke | 126/130mm | Transmission | 28.4/4.7L | ||
Max.torque | 980 N.m | Drive axle | 2×30 L | ||
Braking system | 4L | ||||
Recommend Products
Company Profile
FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted | ||||||||
2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, | ||||||||
3: What about the delivery time? A: 7-20 days after receiving the deposit. | ||||||||
4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. | ||||||||
5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs | ||||||||
