Горячая SMA 500 6000 МГц 2 способ rf делитель мощности 0,5 6GHz 2 х канальный Уилкинсон мощность сплитер комбайнер поставщиков
- Category: Telecom Parts >>>
- Supplier: Sichuan MNK Communication Technology Co. Ltd.
Share on (1600240697019):
Product Overview
Description
Product Description

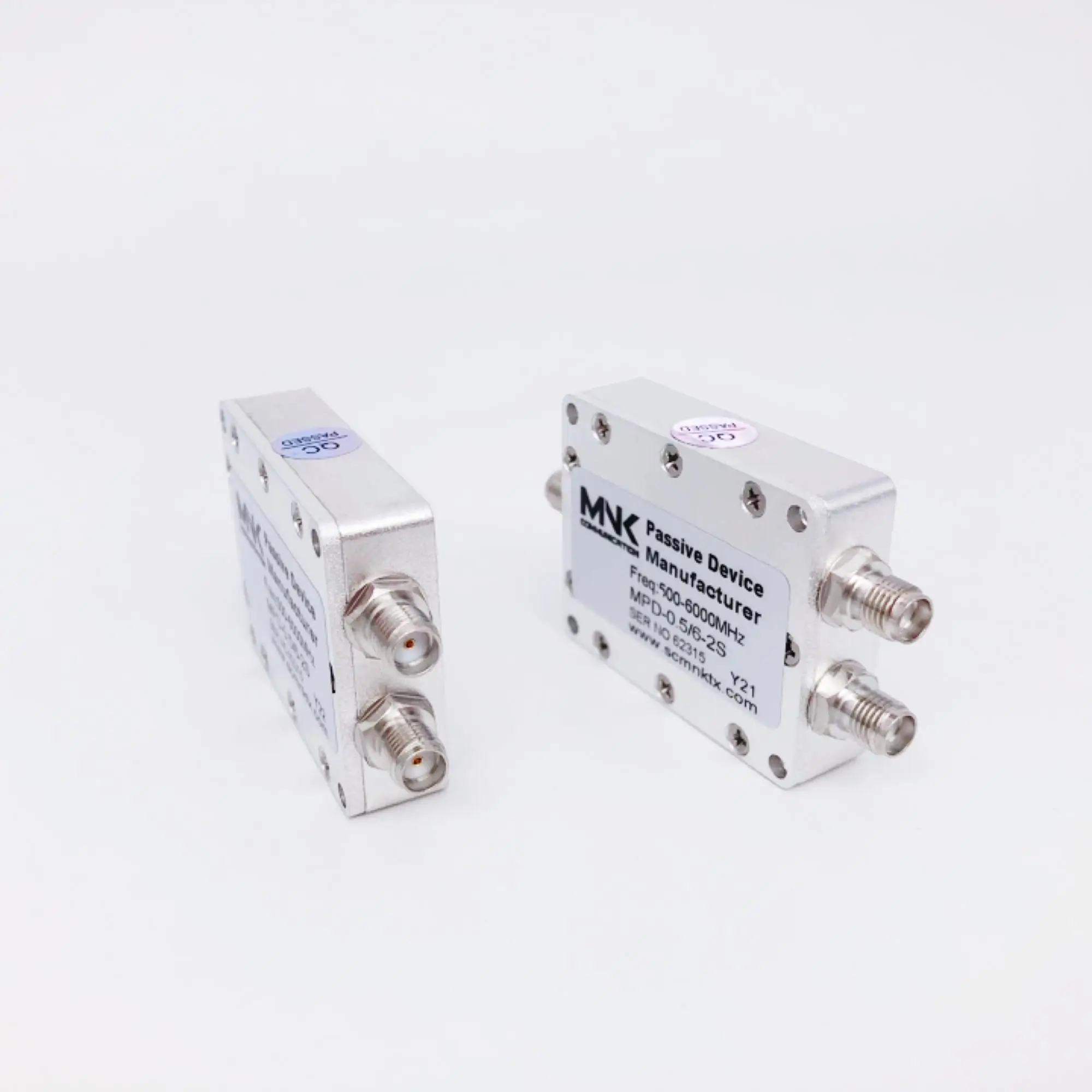

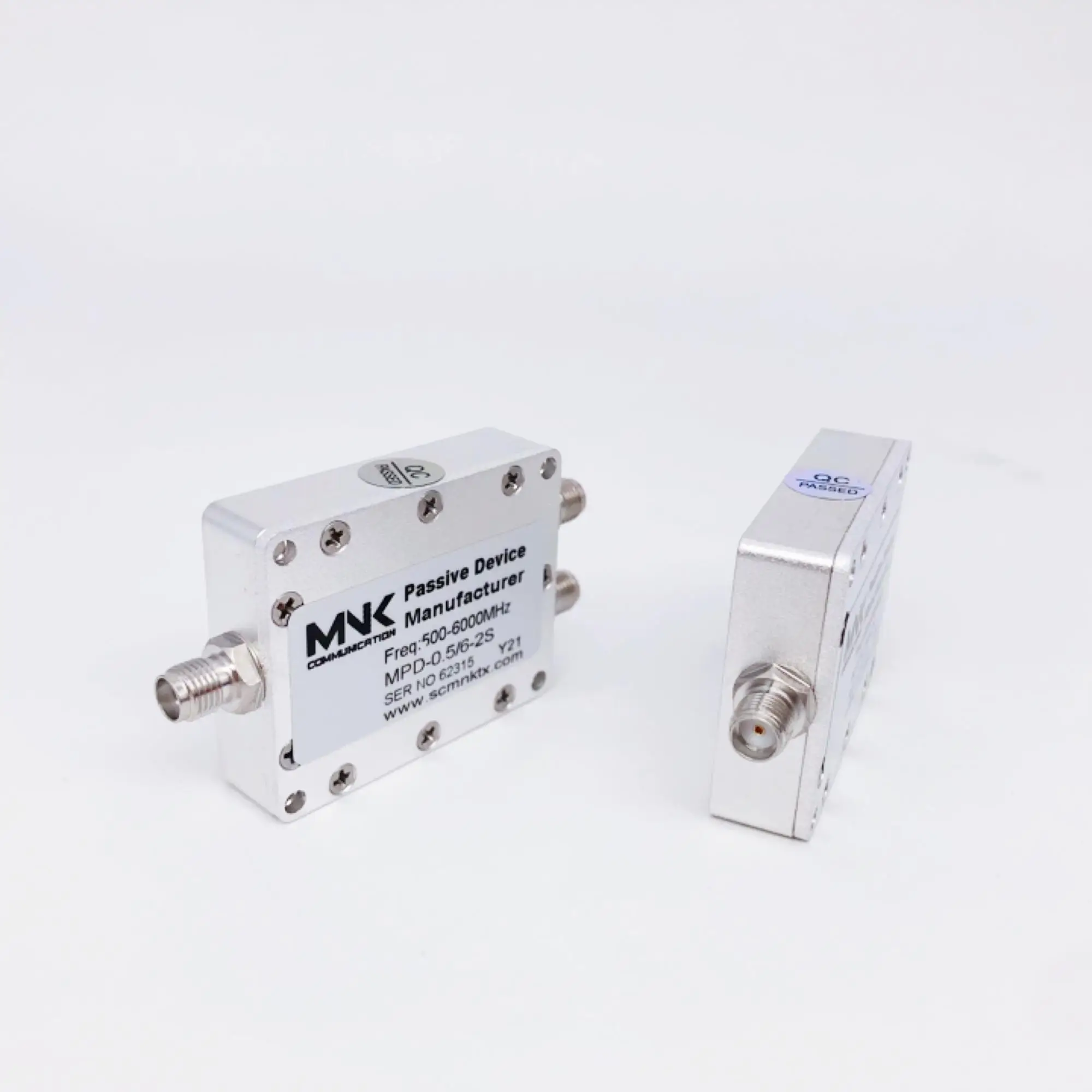

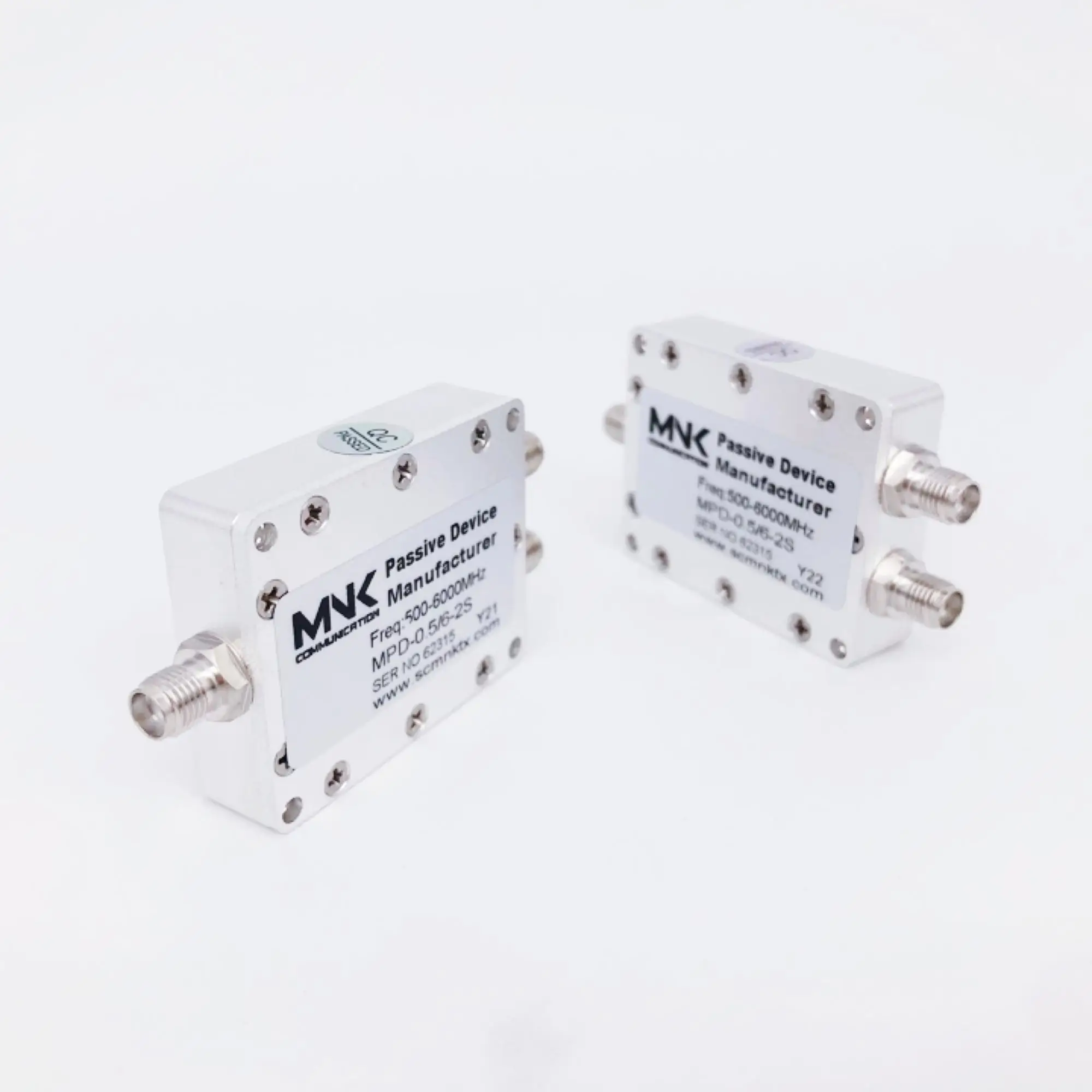

Two-Way Power Divider
Microstrip Power divider, full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.

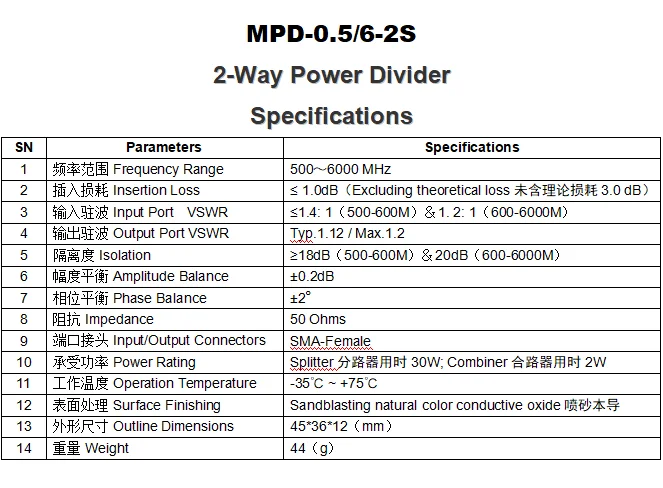

Specification
SN | Parameters | Specifications |
1 | Frequency Range | 500～6000 MHz |
2 | Insertion Loss | ≤ 1.0dB（Excluding theoretical loss 3.0dB） |
3 | Input Port VSWR | ≤1.4: 1（500-600M）＆1. 2: 1（600-6000M） |
4 | Output Port VSWR | Typ.1.12 / Max.1.2 |
5 | Isolation | ≥18dB（500-600M）＆20dB（600-6000M） |
6 | Amplitude Balance | ±0.2dB |
7 | Phase Balance | ±2° |
8 | Impedance | 50 Ohms |
9 | Input / Output Connectors | SMA-Female |
10 | Power Rating | Splitter≤30W; Combiner≤2W |
11 | Operation Temperature | -35℃ ~ +75℃ |
12 | Surface Finishing | Sandblasting natural color conductive oxide |

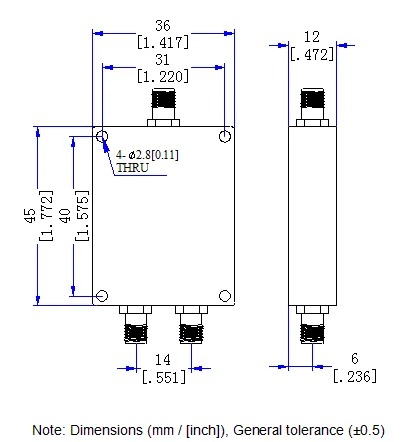

13 | Outline Dimensions | 45*36*12（mm） |
14 | Weight | 44（g） |
Company Profile
Sichuan Minnik Communication Technology Co., Ltd. was established in 2008, located in Wuhou District, Chengdu City, specializing in microwave communication, passive RF devices research and development, production and sales.
The company is committed to power dividers, Bridges, couplers and other passive devices to provide high quality products and quality services. We produce our own brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!
The company is committed to power dividers, Bridges, couplers and other passive devices to provide high quality products and quality services. We produce our own brand MNK passive RF devices. With nearly 20 years of design and production experience, our products are not only popular in the domestic market, but also exported to more than 30 countries and regions around the world. Our products can even be a perfect substitute for international famous brands! We warmly welcome OEM and ODM orders, we are a competitive and reliable supplier.
From China, serve the world!
Certificate
Packaging & Shipping
FAQ
Q1. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment (Conventional products).
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to
quantity.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A: Payment<=1000USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment (Conventional products).
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to
quantity.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
If you have another question, pls feel free to contact us.
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
If you have another question, pls feel free to contact us.
