Product Overview
Description
Products Description
Due To Different Customized Specifications And Models, The Price Will Change Accordingly contact us

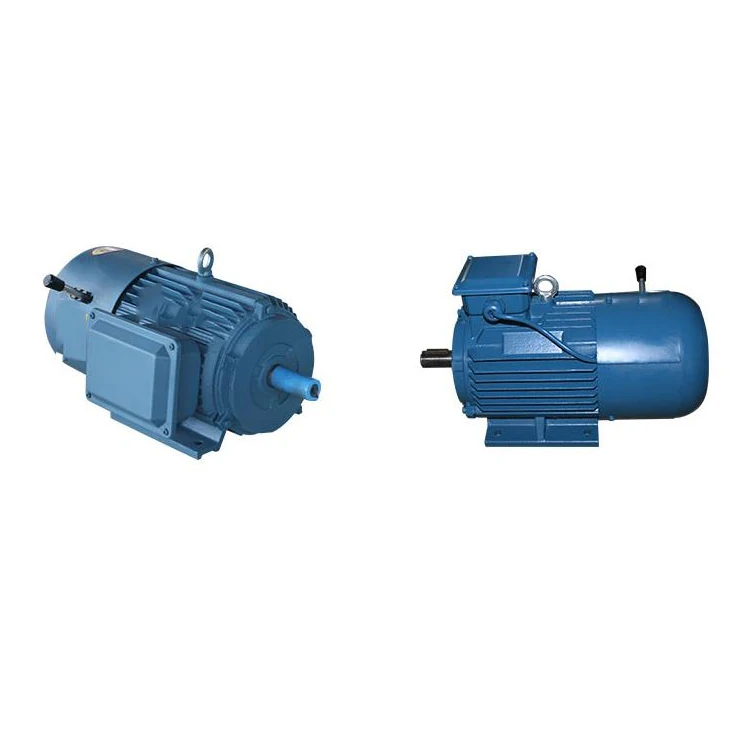

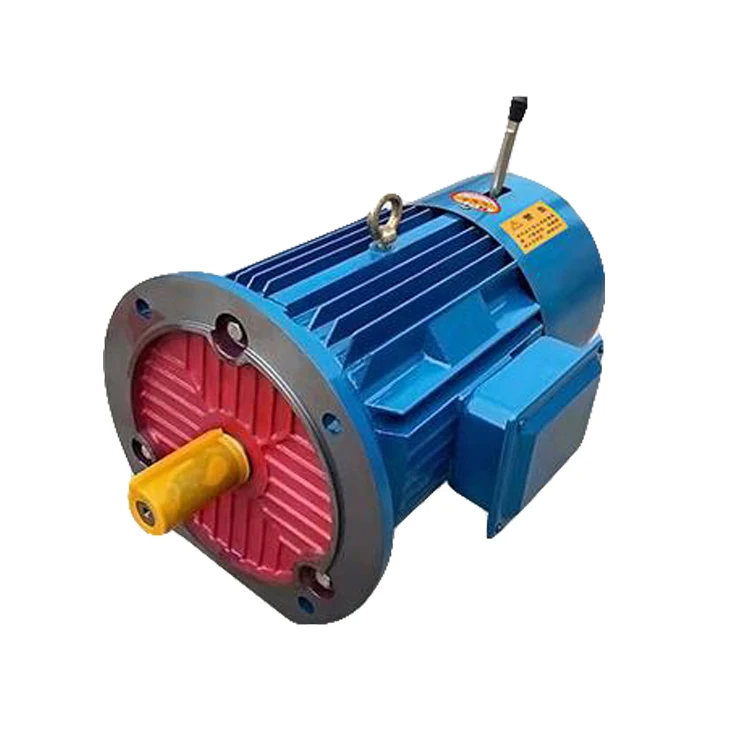

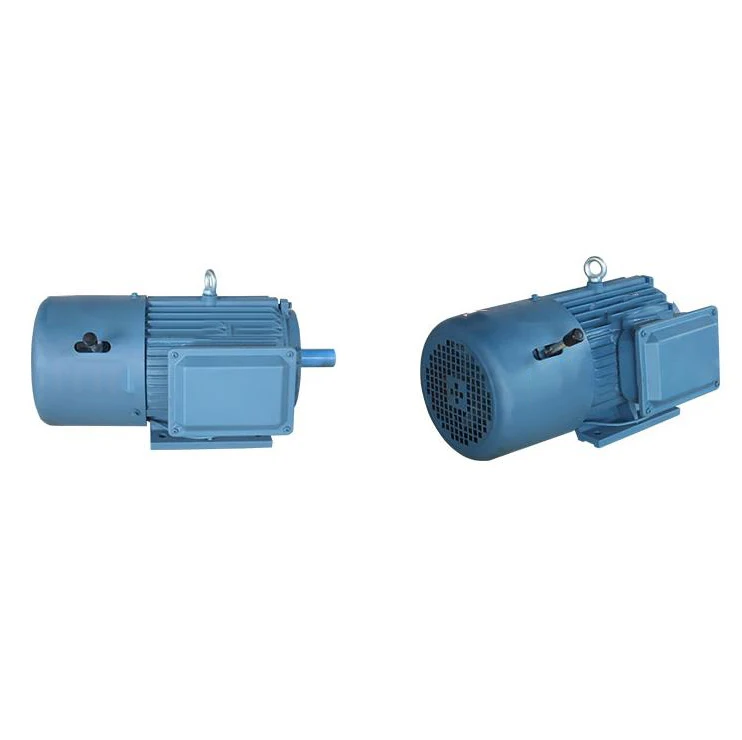

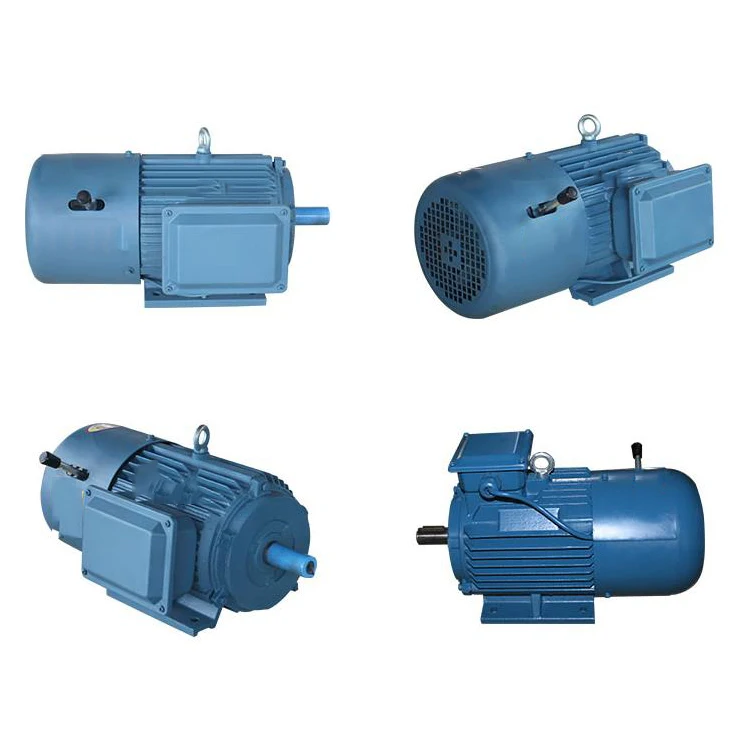

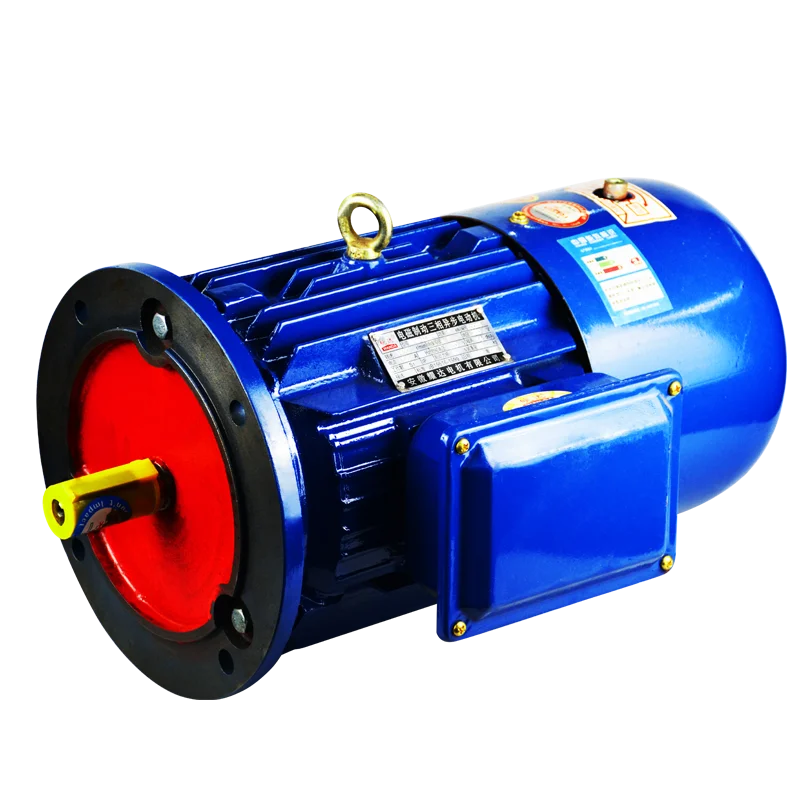

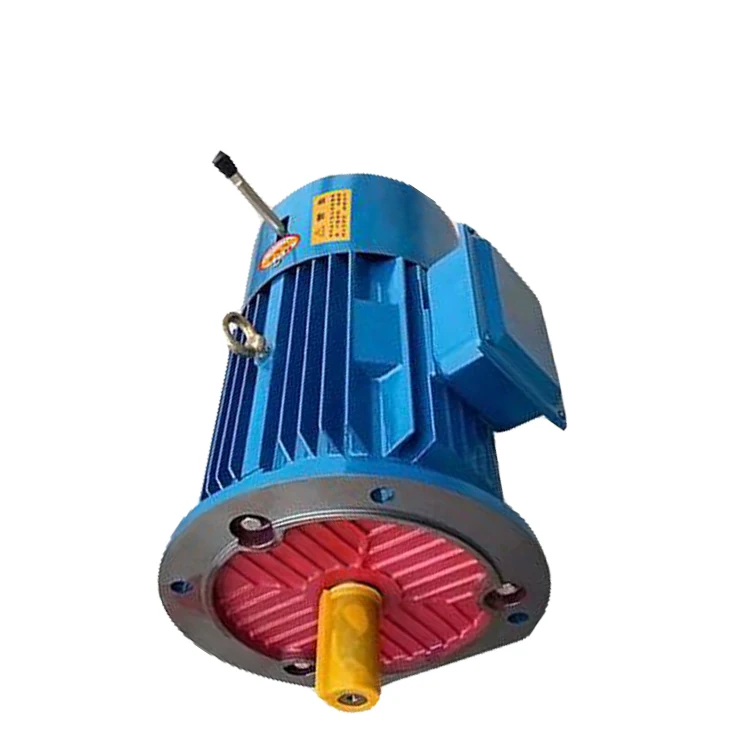

YEJ series electromagnetic brake three-phase asynchronous motor is a three phase asynchronous motor with full closed self fan cold
squirrel cage type with additional disc type DC brake. It has the advantages of fast braking, simple structure, high reliability
and high high pass. In addition, the brake has an artificial release mechanism. It is widely used in all kinds of mechanical
equipment requiring fast stop and accurate positioning.
And in the transmission. The flange dimensions of this series are the same as those of Y2 series.
squirrel cage type with additional disc type DC brake. It has the advantages of fast braking, simple structure, high reliability
and high high pass. In addition, the brake has an artificial release mechanism. It is widely used in all kinds of mechanical
equipment requiring fast stop and accurate positioning.
And in the transmission. The flange dimensions of this series are the same as those of Y2 series.
YEJ2 series three-phase asynchronous motor with electric braker | ||||||||
TYPE | weight (kg) | Speed (r/min)(2p-4p) | Current In(A) | No-loadbrakelagtime(S) | ||||
YDEJ2-63M1-2 | 12 | 2720 | 0.53 | 0.2 | ||||
YDEJ2-63M2-2 | 13 | 2720 | 0.69 | 0.2 | ||||
YDEJ2-71M1-2 | 14 | 2740 | 0.99 | 0.2 | ||||
YDEJ2-71M2-2 | 15 | 2845 | 1.4 | 0.2 | ||||
YDEJ2-80M1-2 | 19 | 2840 | 1.83 | 0.2 | ||||
YDEJ2-80M2-2 | 20 | 2840 | 2.58 | 0.2 | ||||
YDEJ2-90S-2 | 25 | 2840 | 3.43 | 0.2 | ||||
YDEJ2-90L-2 | 29 | 2860 | 4.85 | 0.2 | ||||
YDEJ2-100L-2 | 38 | 2880 | 6.31 | 0.2 | ||||
YDEJ2-112M-2 | 50 | 2880 | 8.1 | 0.25 | ||||
YDEJ2-132S1-2 | 74 | 2900 | 11 | 0.25 | ||||
YDEJ2-132S2-2 | 80 | 2900 | 14.9 | 0.25 | ||||
YDEJ2-132M-2 | 84 | 2900 | 17.8 | 0.35 | ||||
YDEJ2-160M1-2 | 134 | 2930 | 21.3 | 0.35 | ||||
YDEJ2-160M2-2 | 142 | 2930 | 28.8 | 0.35 | ||||
YDEJ2-160L-2 | 141.5 | 2930 | 34.7 | 0.35 | ||||
YDEJ2-180M-2 | 209 | 2940 | 41 | 0.45 | ||||
YDEJ2-200L1-2 | 285 | 2950 | 55.5 | 0.45 | ||||
YDEJ2-200L2-2 | 300 | 2950 | 67.9 | 0.45 | ||||
YDEJ2-225M-2 | 362 | 2950 | 82.3 | 0.45 | ||||
